CA8202A（Waterproof 2-Channel Signal Amplifier，1 DMX inputs, 2 DMX outputs）
Waterproof 2‑Channel DMX Signal Amplifier
Product Overview

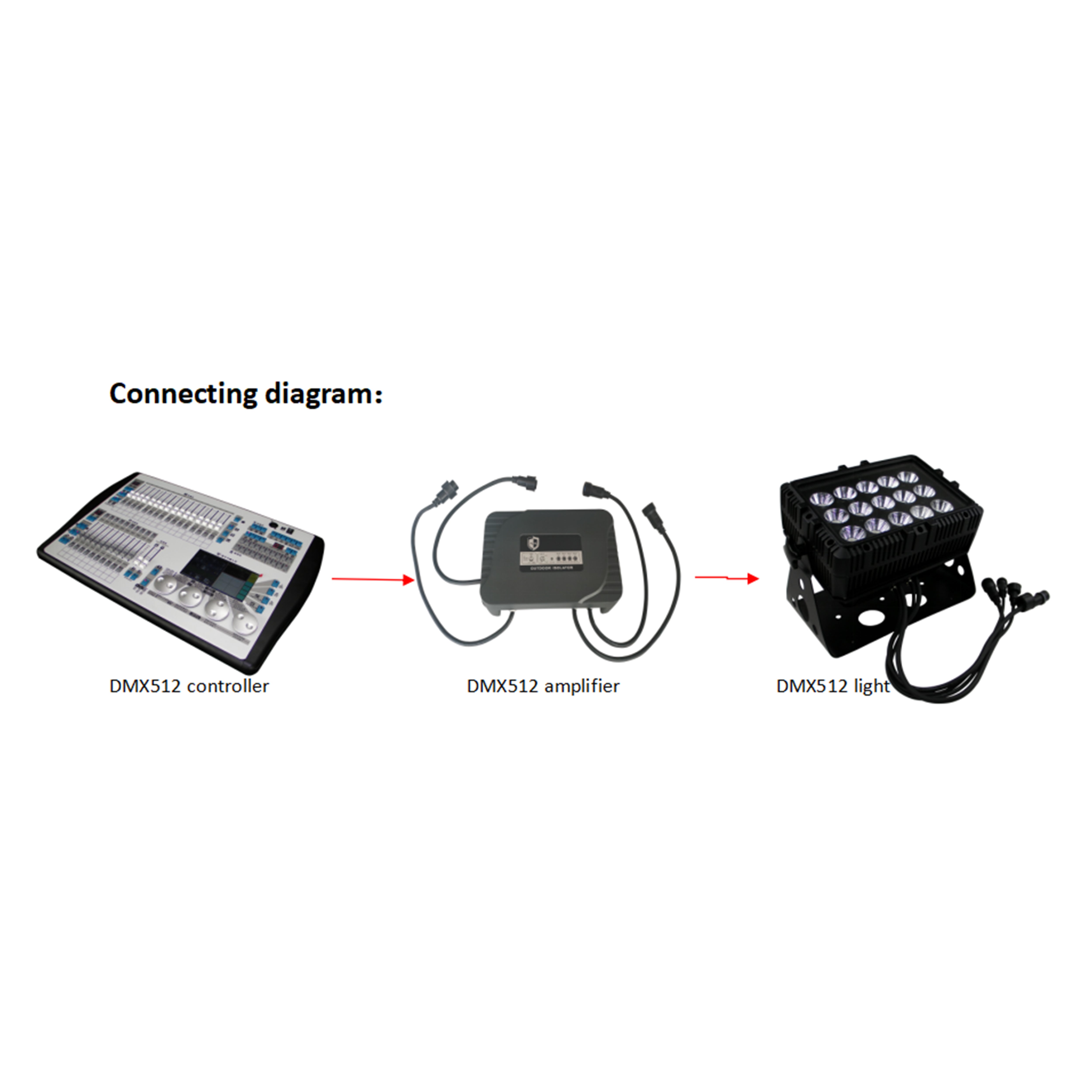

This waterproof 2‑channel DMX signal amplifier is designed for reshaping, amplifying and distributing DMX512 signals.
It effectively extends DMX signal transmission distance, improves load‑driving capacity, enhances anti‑interference performance, and provides high‑voltage isolation to protect connected lighting equipment.

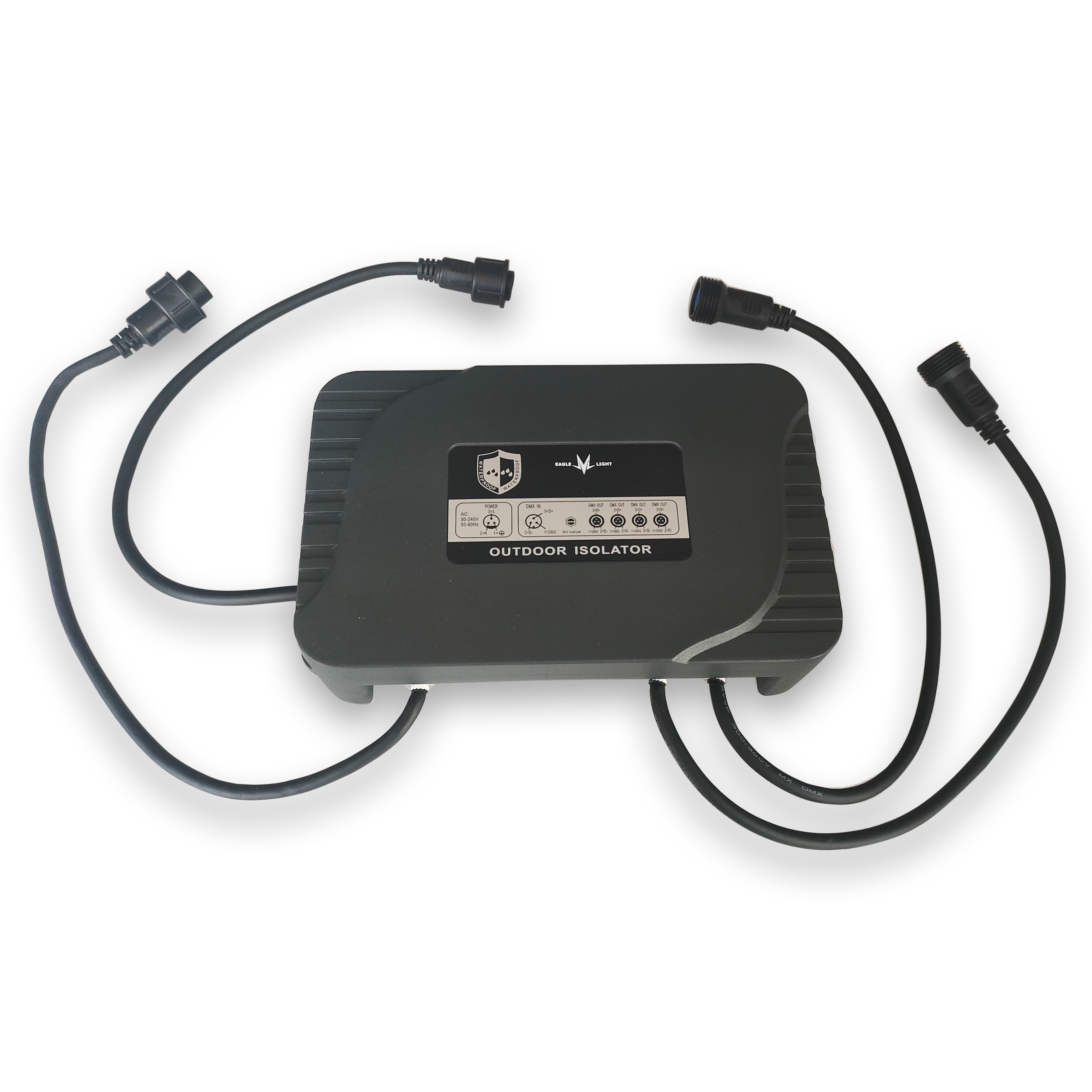

The unit features 1 DMX input and 2 fully electrically isolated DMX outputs.
Each channel works independently with no mutual interference, ensuring stable and safe operation in professional lighting systems.
Key Features

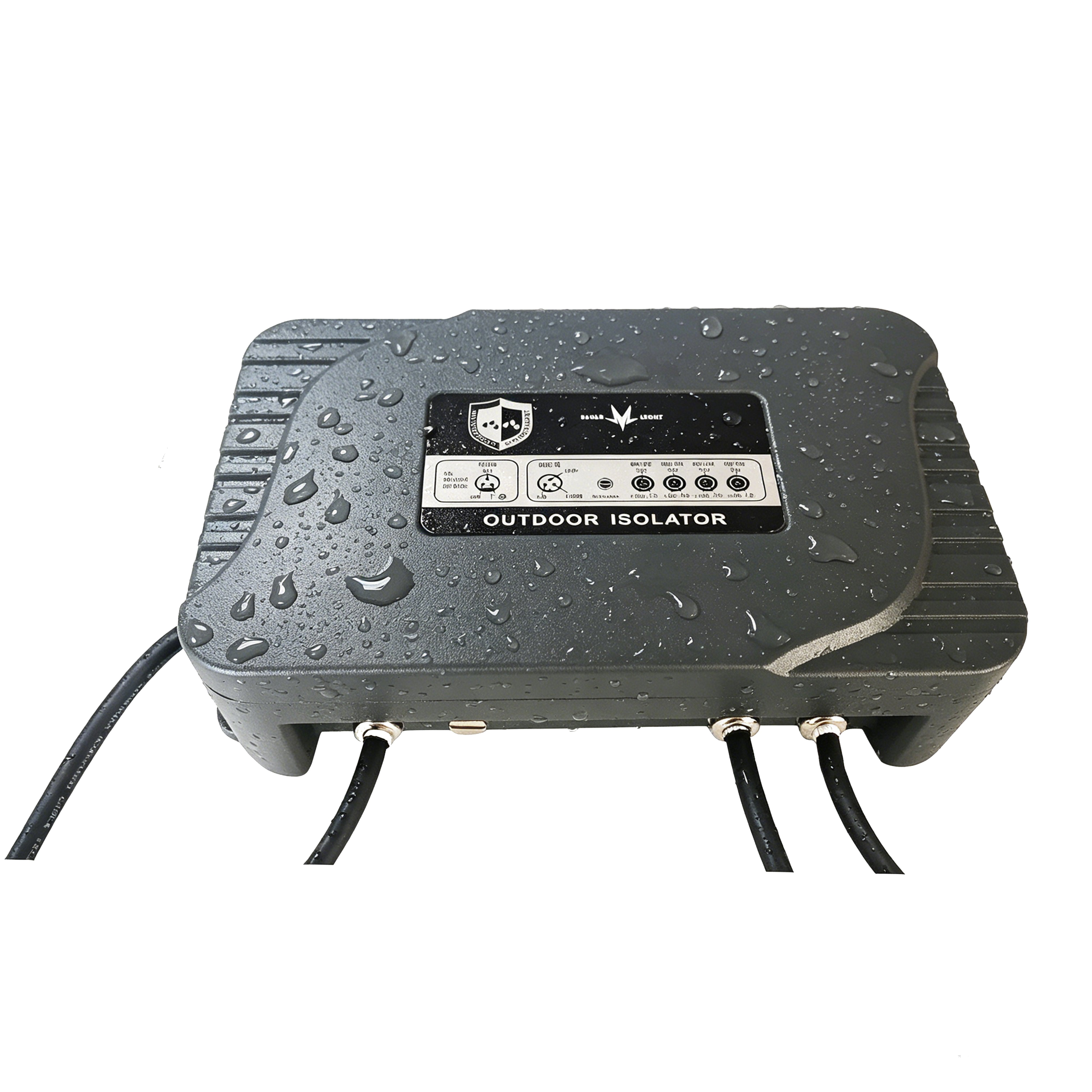

- IP67 waterproof rating, strong anti‑interference ability
- Extends DMX512 signal transmission distance effectively

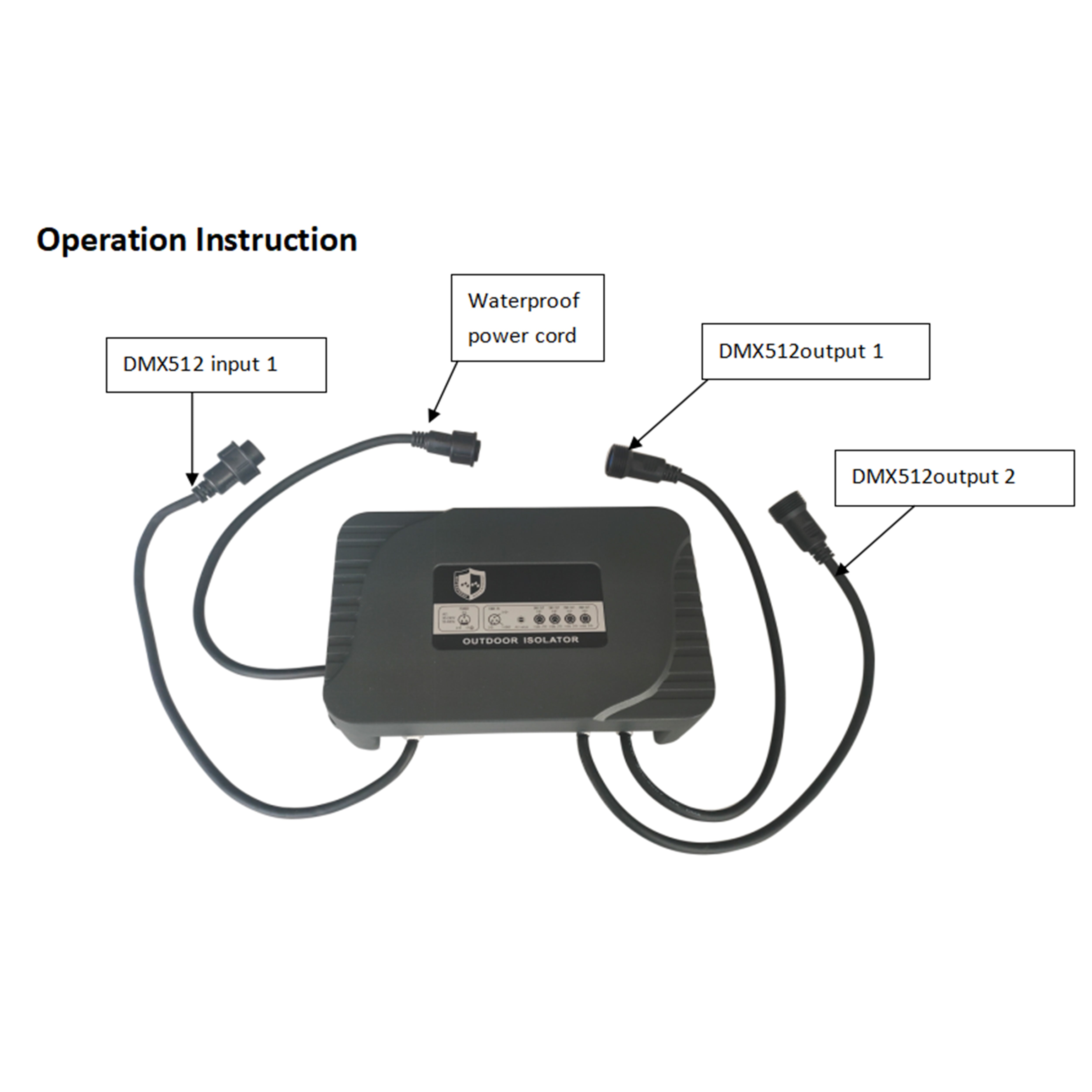

- 1 DMX input, 2 fully isolated DMX outputs
- High stability and reliability for harsh outdoor & wet environments
- Full electrical isolation between input and output

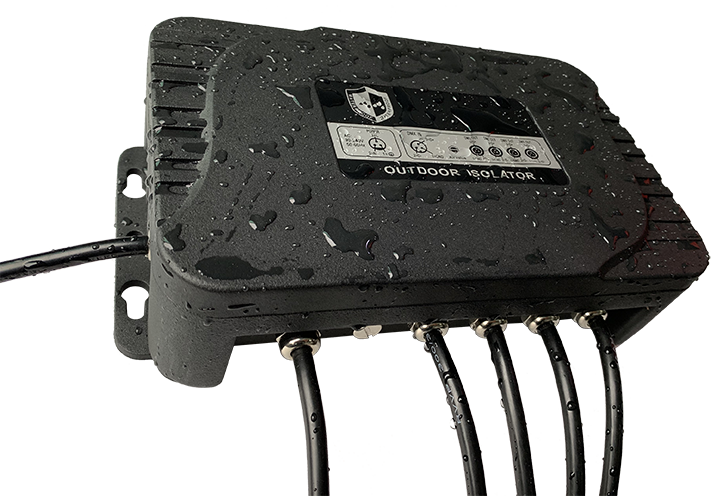

- Die‑cast aluminum housing for excellent heat dissipation
- Universal wide voltage input for global use
- Easy installation with truss mounting clamp
Application Scenarios
- Outdoor concerts, festivals, live events
- Stage lighting, touring shows, parade floats
- Landscape lighting and architectural lighting
- Fountains, swimming pools and wet environments
- Theaters, stadiums and professional venues
Technical Parameters
- Input: 1 × DMX512
- Output: 2 × DMX512 (fully isolated)
- Isolation mode: Independent photoelectric isolation for each module
- Isolation voltage: > AC 3000V
- Waterproof rating: IP67
- Power supply: AC 90–240V, 50/60Hz
- Housing: Die‑cast aluminum (good heat dissipation & durability)

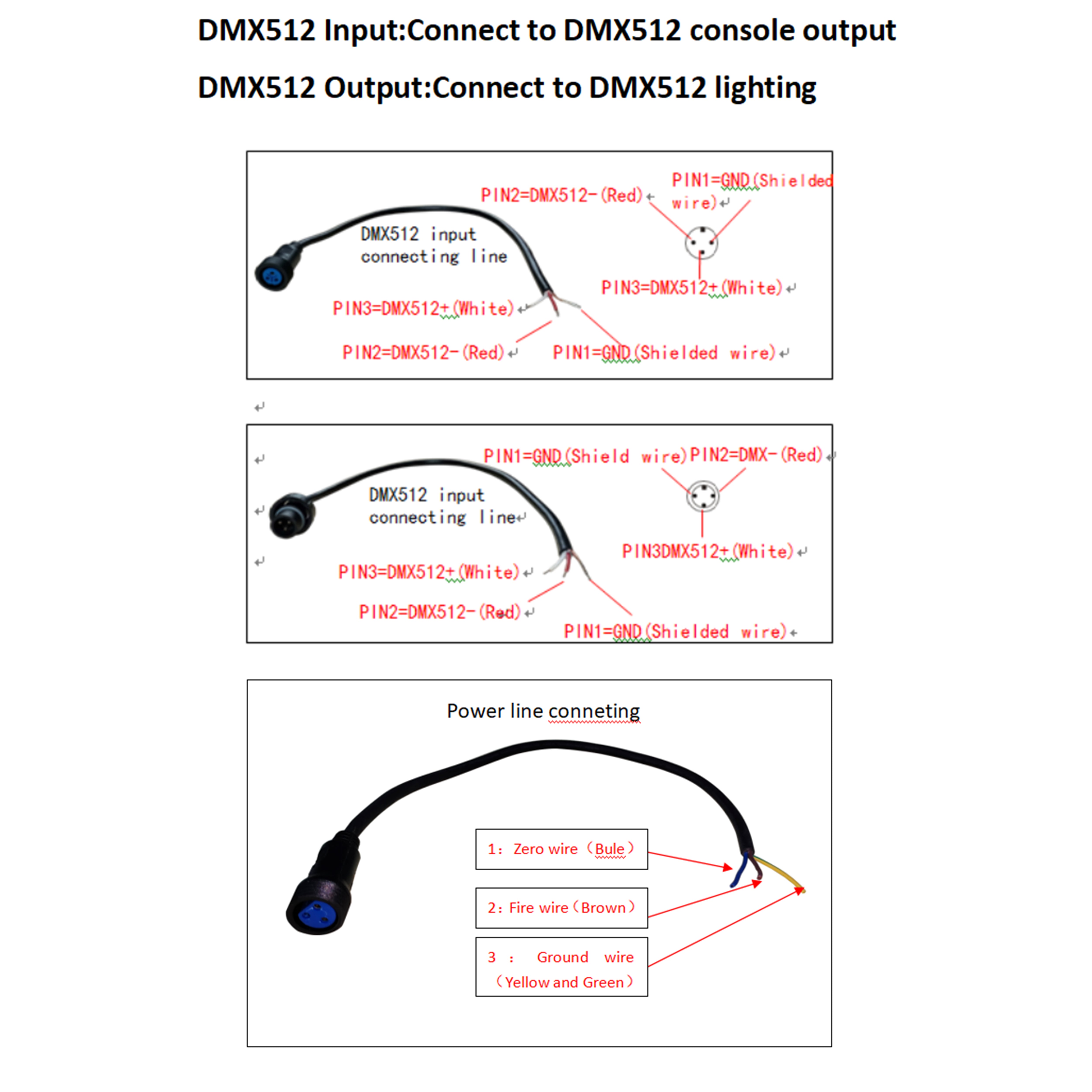

- Connectors: Waterproof power & DMX connectors with shielded cables

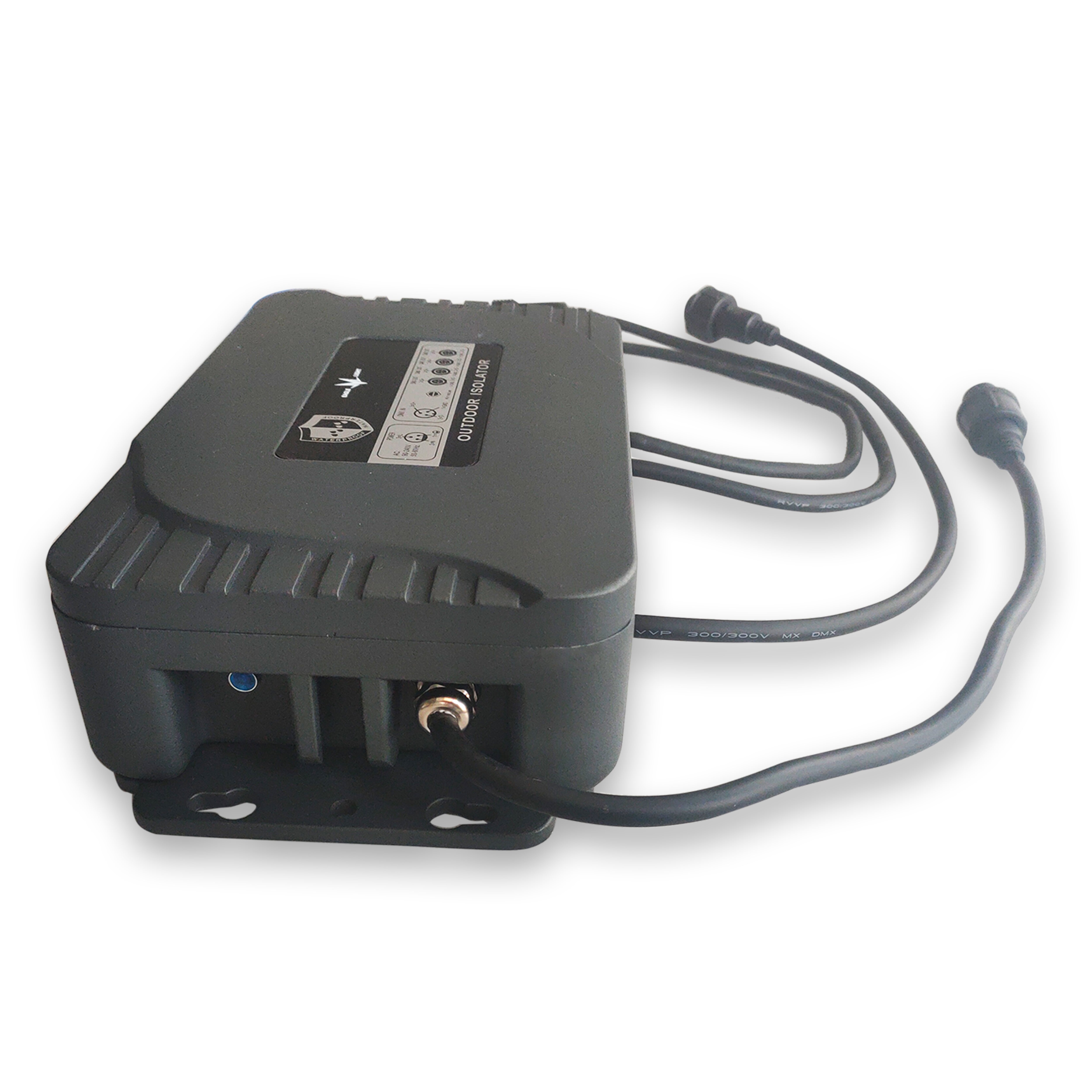

- Mounting: With bracket for truss installation
- Dimensions: 220 × 140 × 65 mm
- Net weight: 1.54 kg
- Carton size: 315 × 195 × 105 mm
- Gross weight: 2.1 kg
