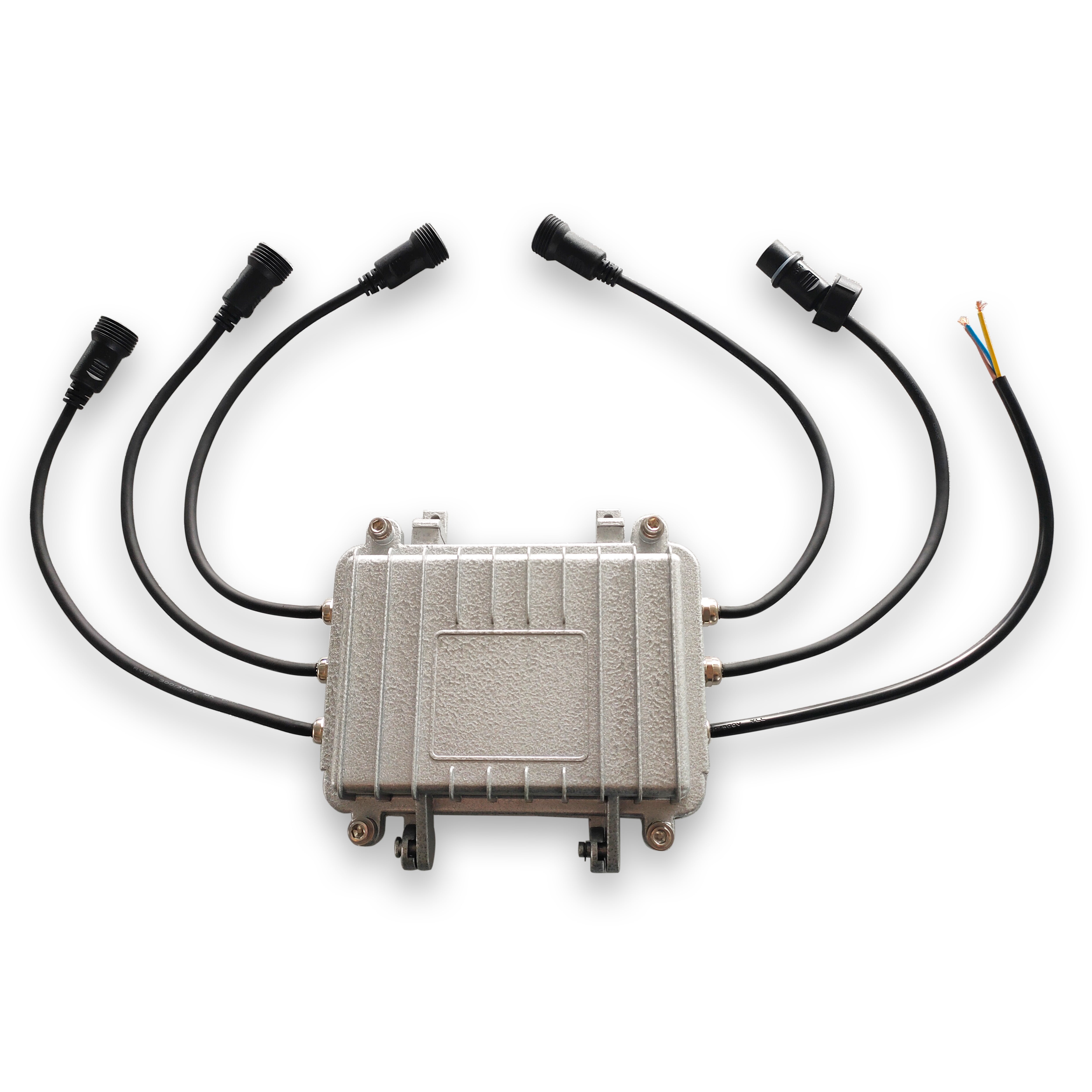

CA8402C

4 Ways Waterproof DMX Splitter

Technical Parameter：

◆Digital signal : DMX512 and the transmission signal of RS-485;
（There is electrical isolation between signal input and direct communication signal ）;
◆ 4 way isolated DMX splitter output;
◆ Interface:RS-485;

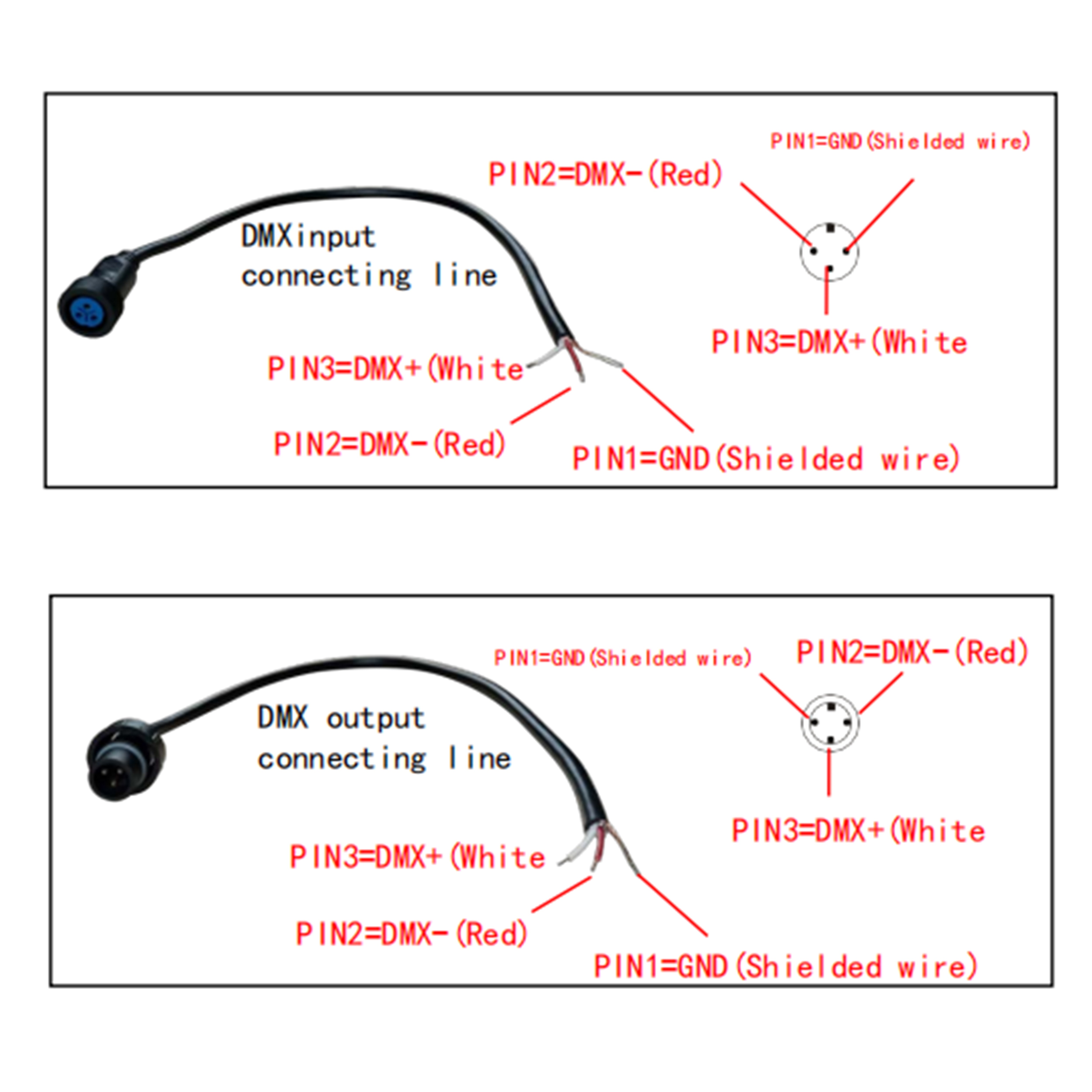

◆ Signal connection socket: Adopt 3pin waterproof joint;

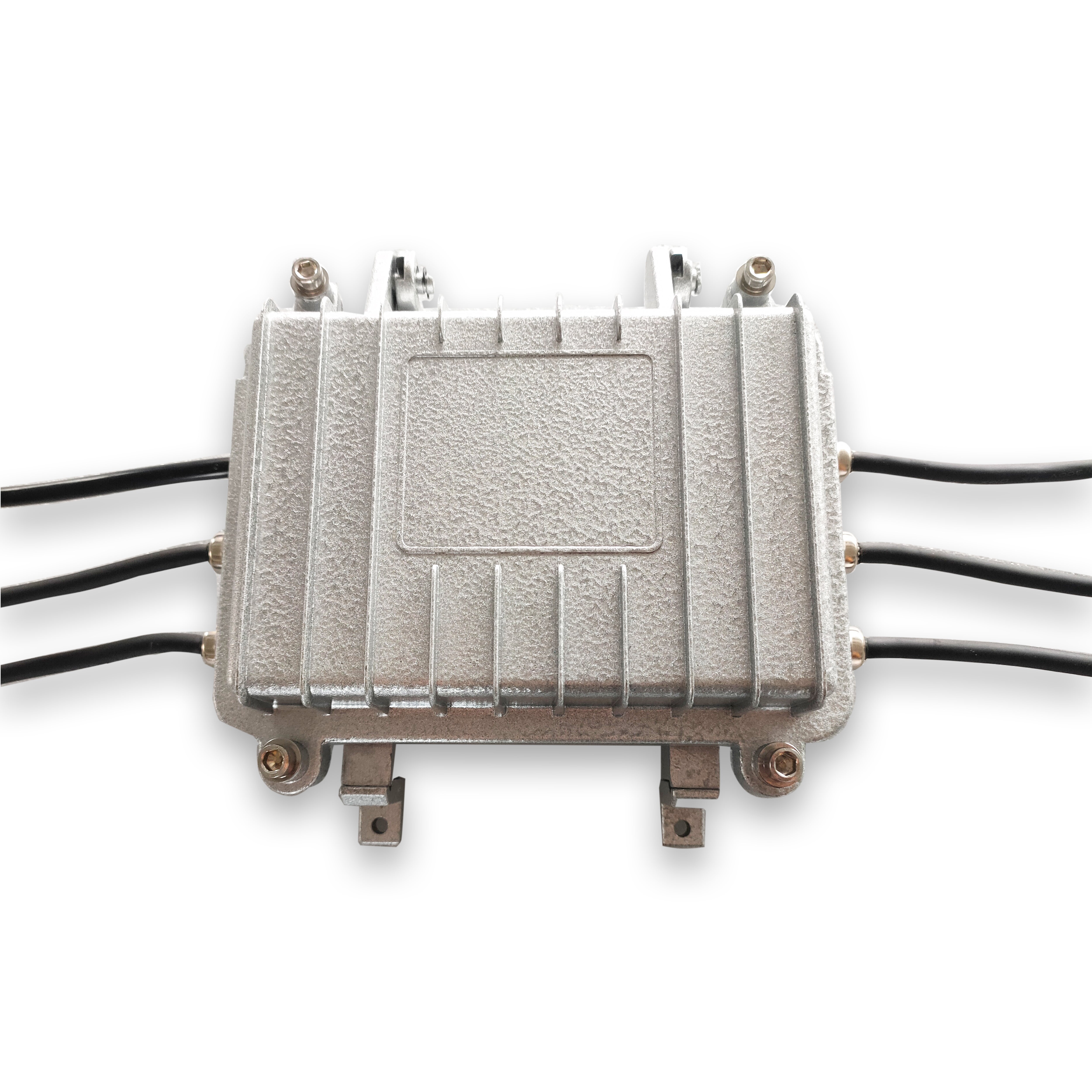

◆ With waterproof cast aluminum chassis;
◆ Waterproof level: IP65;
◆ Isolation voltage between input and output : > AC3000V.

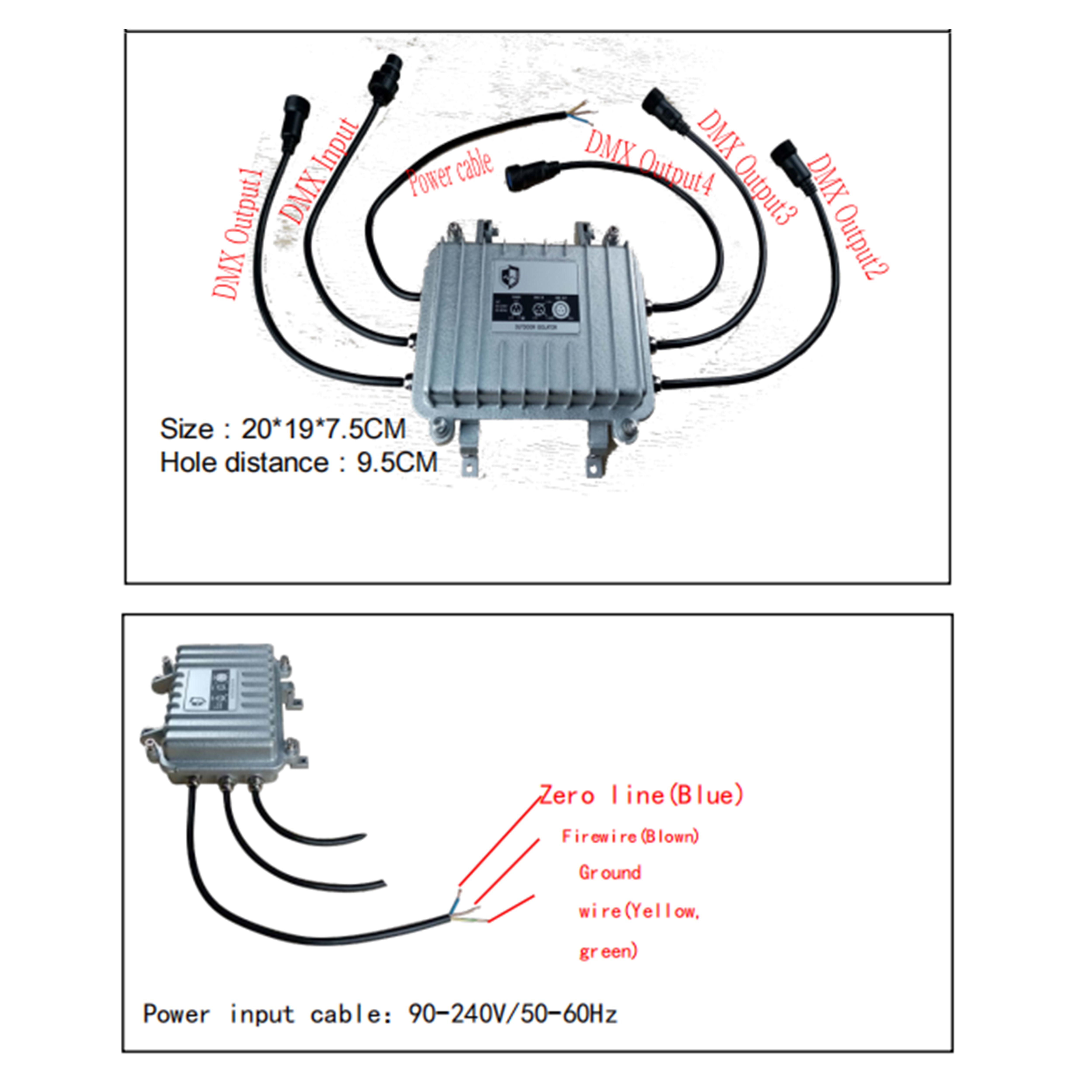

◆ Power supply: AC90V~240V, 50Hz / 60Hz , 15W .
◆ Size:20×19×7.5CM ,Installation hole distance: 9.5CM.
◆ Weight:1.9kg
