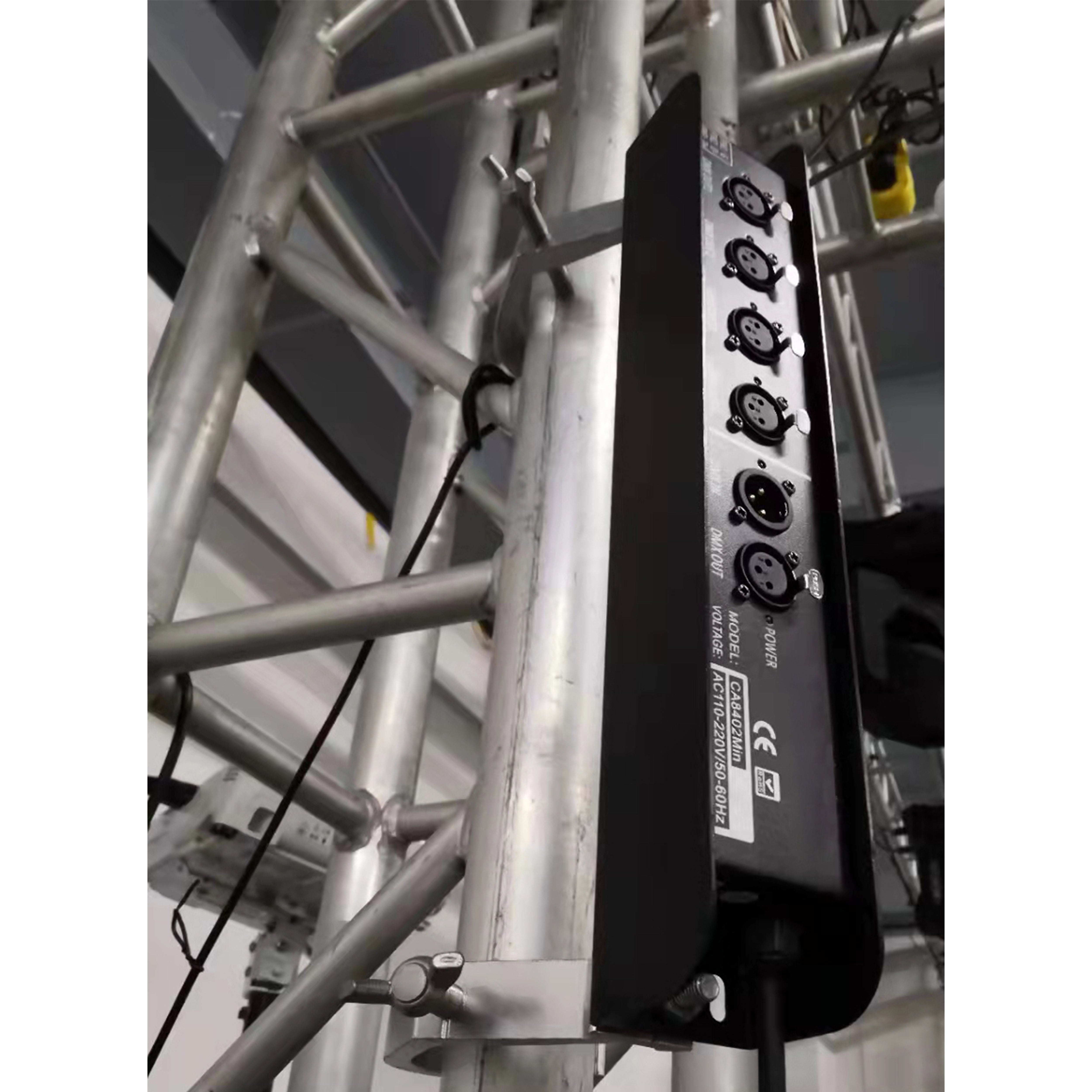

DMX mini distributor 4-channel (light hook installation)
Technical Specifications:
1 in and 4 out, with a compact and exquisite appearance.
◆ Using electronic isolation signals and transformer power supply.
Interface type: RS-485.

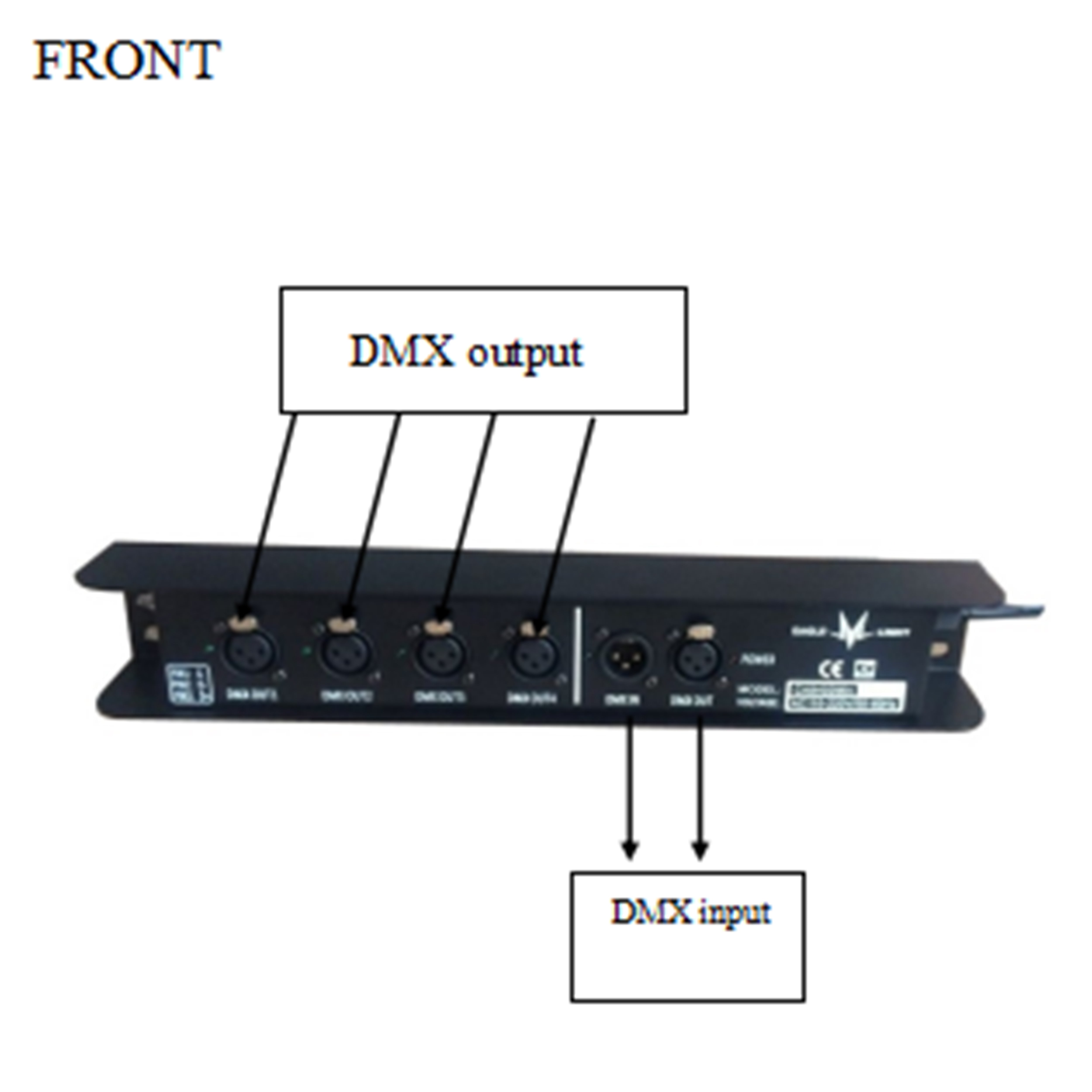

Interface: Input: XLR-3-M, Output: XLR-3-F.
Power supply: AC90V~240V, 50Hz/60Hz, 15W.
Voltage:>AC3000V
The input and output signals adopt isolation design, effectively enhancing anti-interference ability.
Net weight: 1.52kg, 36 × 5.5 × 5.5CM.
Gross weight: 1.7kg, 40 × 12 × 12CM.
