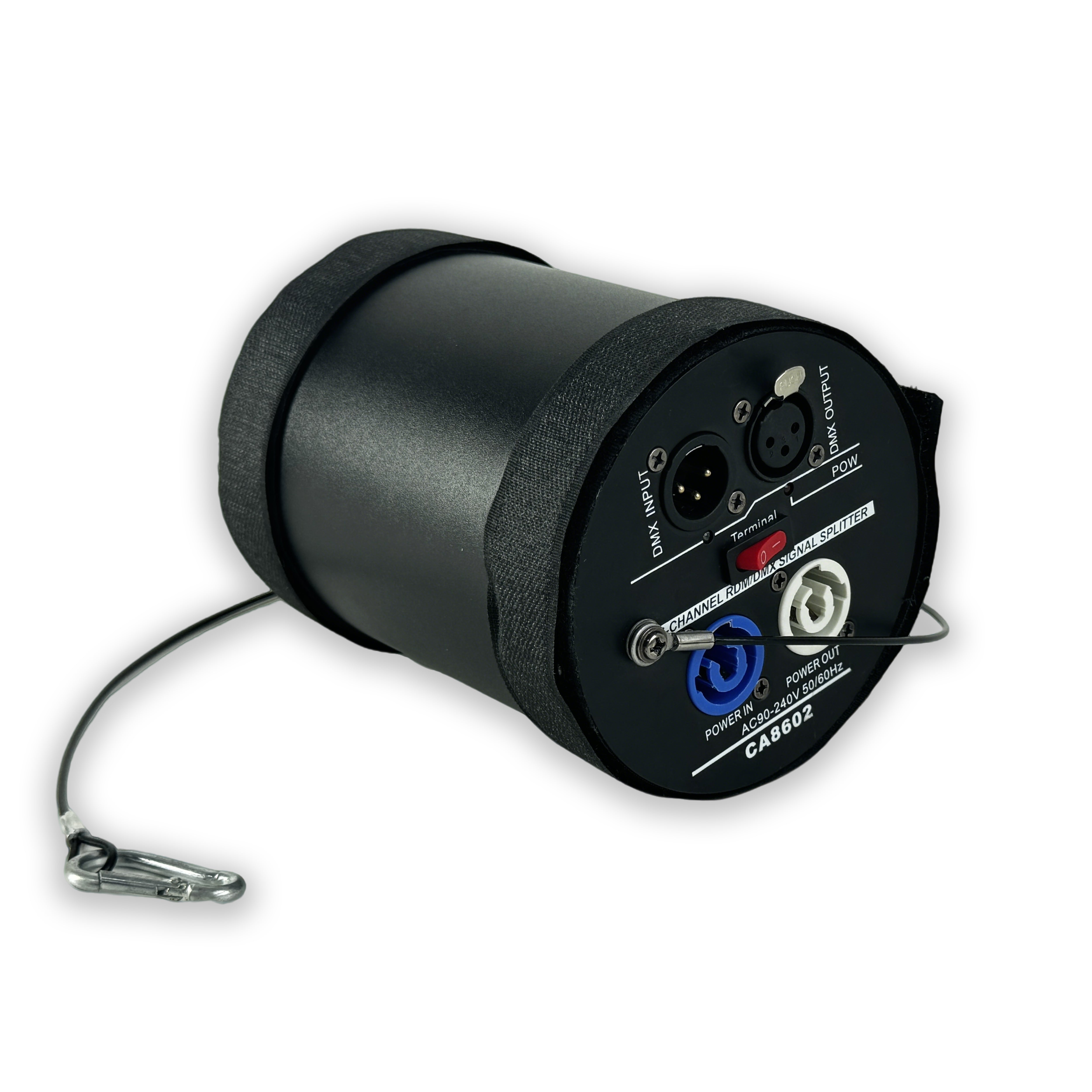

6-Channel DMX Signal Splitter

  The 6 - channel Cylindrical DMX Signal Amplifier is a DMX512 signal distributor product featuring quick bundling - type installation. It can be rapidly installed at any position on the lighting stand. This device is capable of shaping and amplifying DMX512 data signals.

  The input and output ports are powered by independent power supplies. Each output interface adopts a modular design, along with high - voltage isolation technology and port protection circuits.

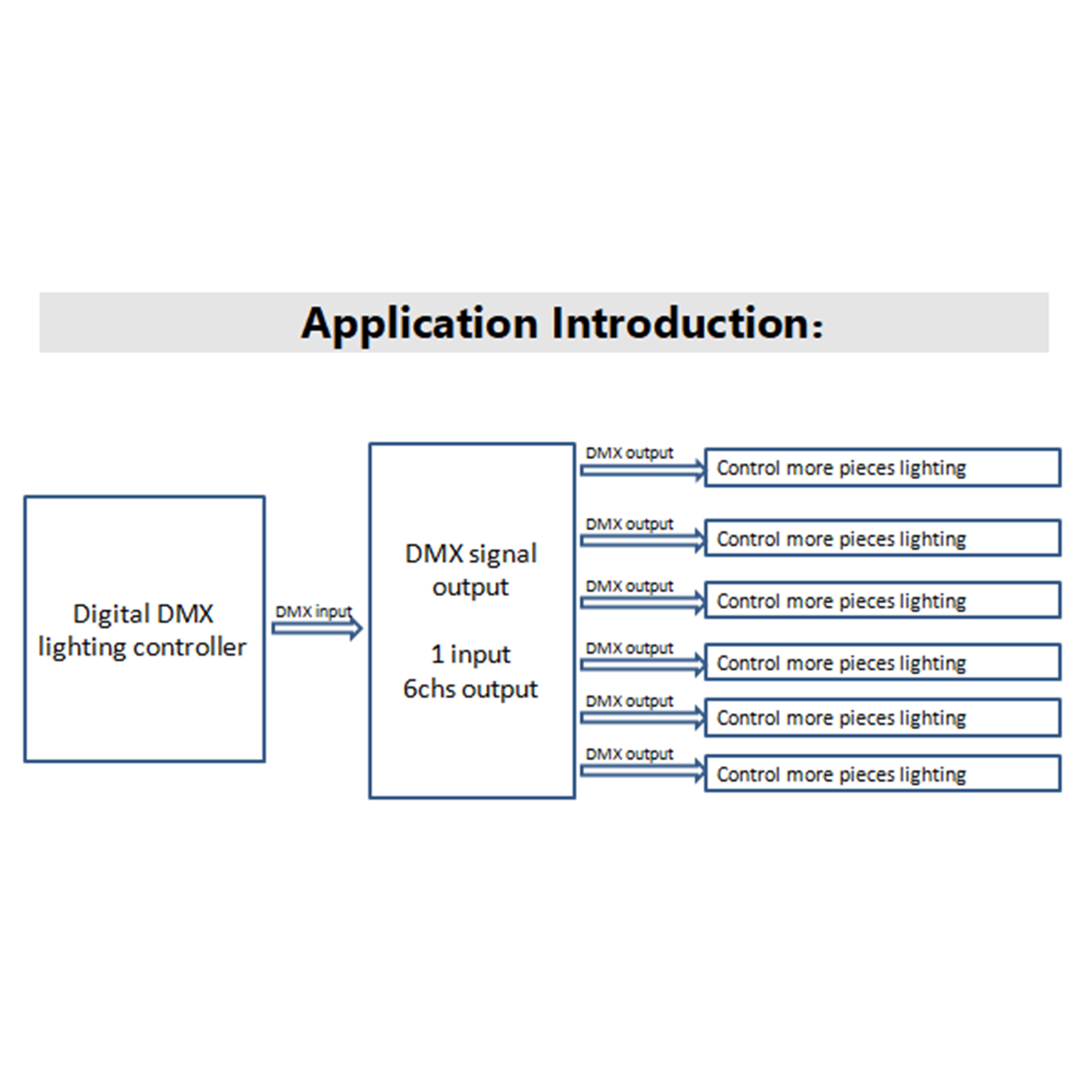

  It is suitable for scenarios where it is necessary to increase the transmission distance of DMX512 signals, enhance the signal strength, increase the number of lighting fixtures connected to the console, and isolate the electrical connection between the console and the lighting fixtures.

  Due to the complete electrical isolation between the input and output interfaces, it can prevent high - voltage currents from flowing back and burning out the precise digital lighting console in case of control circuit failures or malfunctions of lighting fixtures. It also avoids external interference signals from infiltrating and disrupting the entire system's signals. This ensures the safe operation of the digital lighting console and the entire system. Meanwhile, it guarantees that the DMX512 signal has sufficient strength to be transmitted to various lighting devices, thus improving the reliability of the entire lighting control system.

The main features of the 6 - channel Cylindrical DMX Signal Amplifier are as follows:

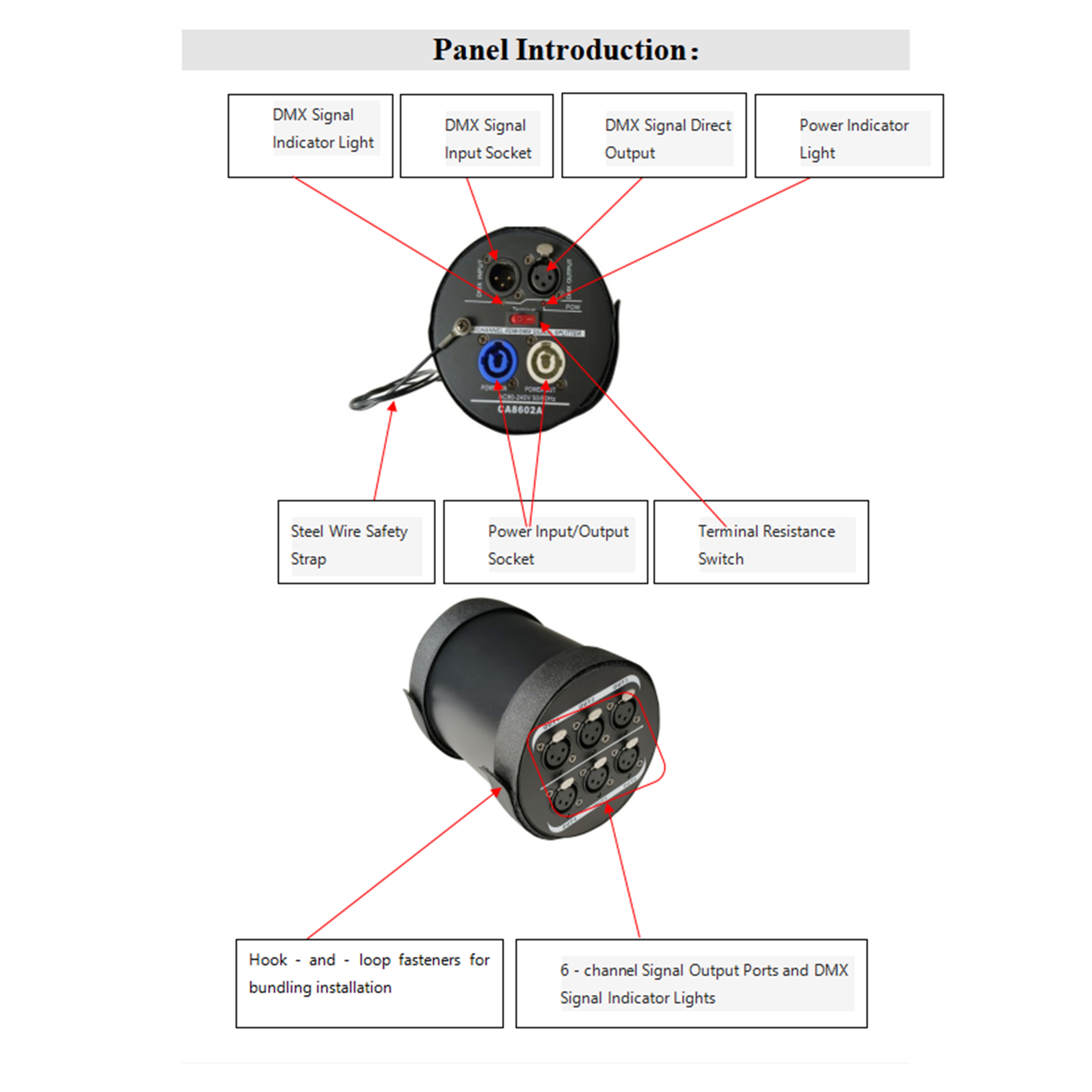

1）The input and output are powered by independent power supplies. Each interface is equipped with an independent protection circuit and opto - isolation measures, achieving complete signal and electrical isolation.

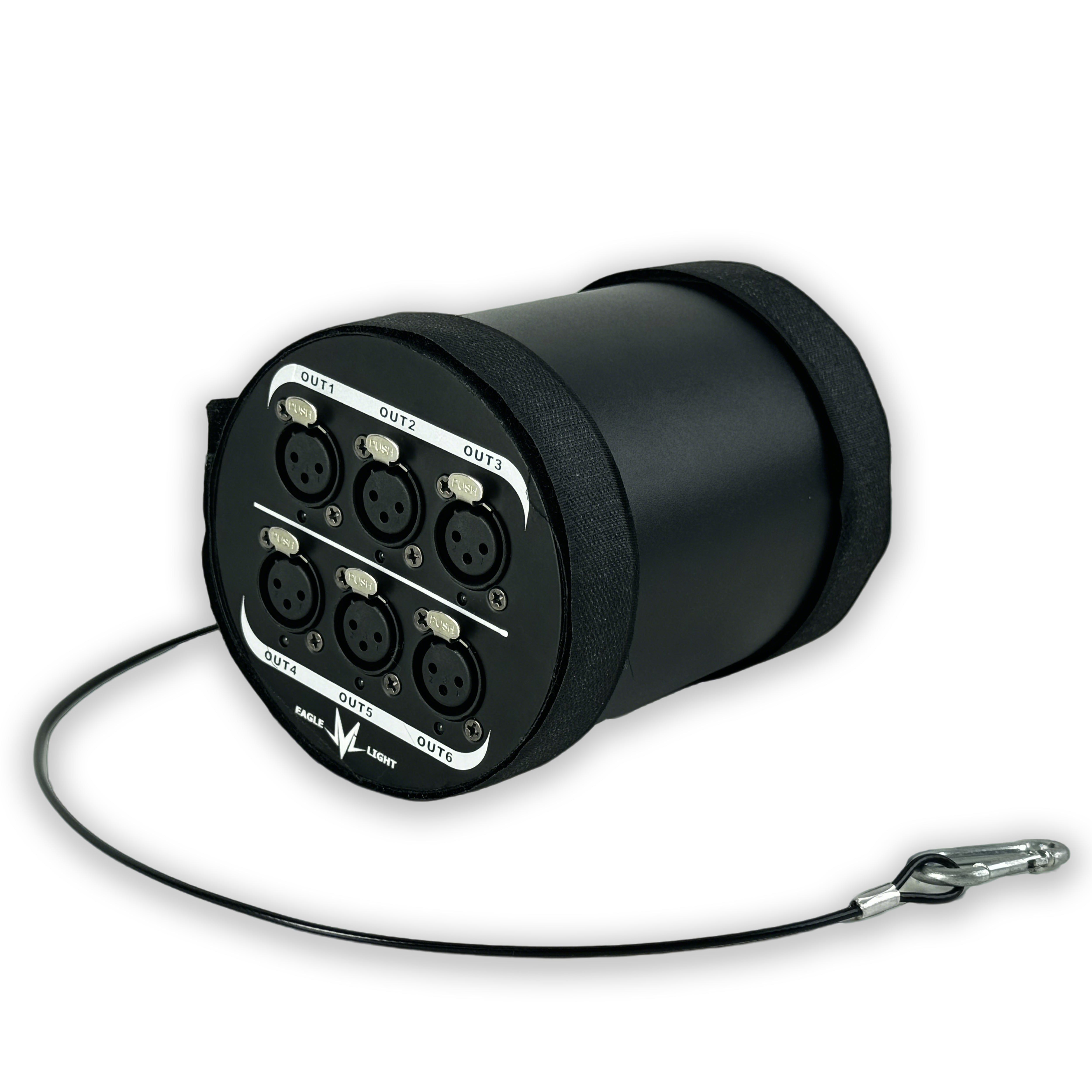

2）Each output port is equipped with a high - brightness blue indicator light, which can indicate the working status of each channel at any time.

3）In response to different installation scenarios and user needs, the product provides various installation methods, such as wall - mounted, bundled, and suspended installations. Users can choose flexibly according to the actual situation.

 Technical Parameters：
