CA8602A

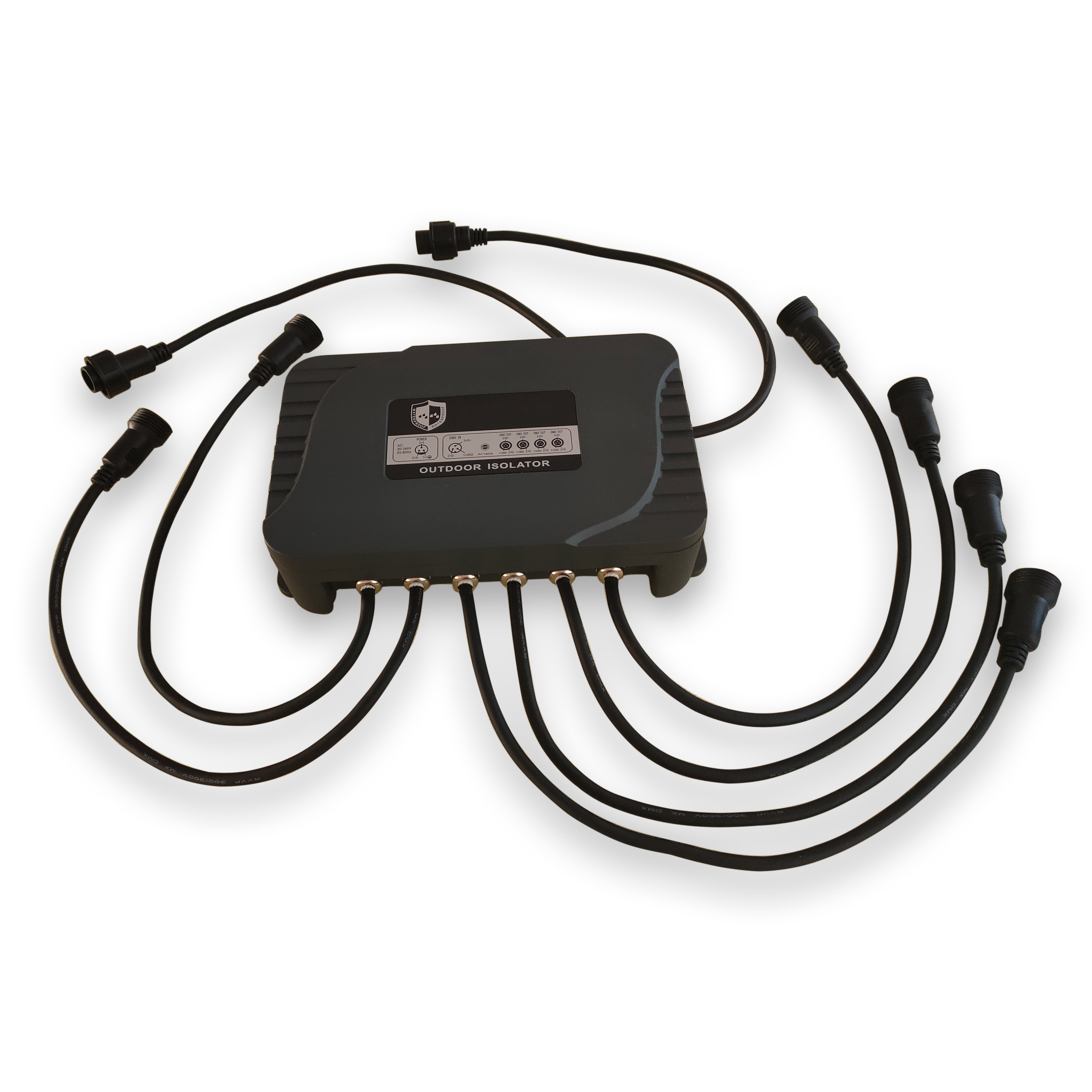

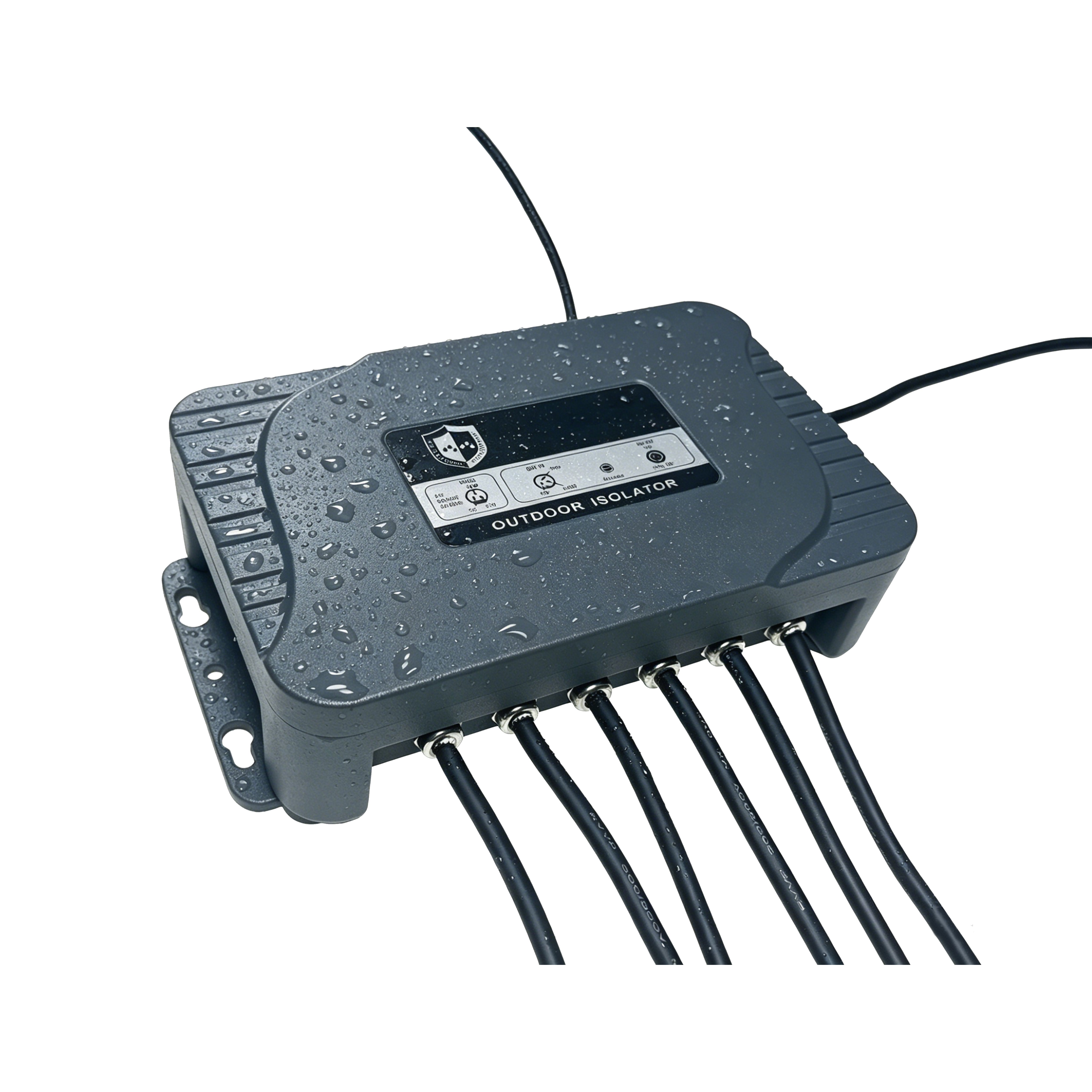

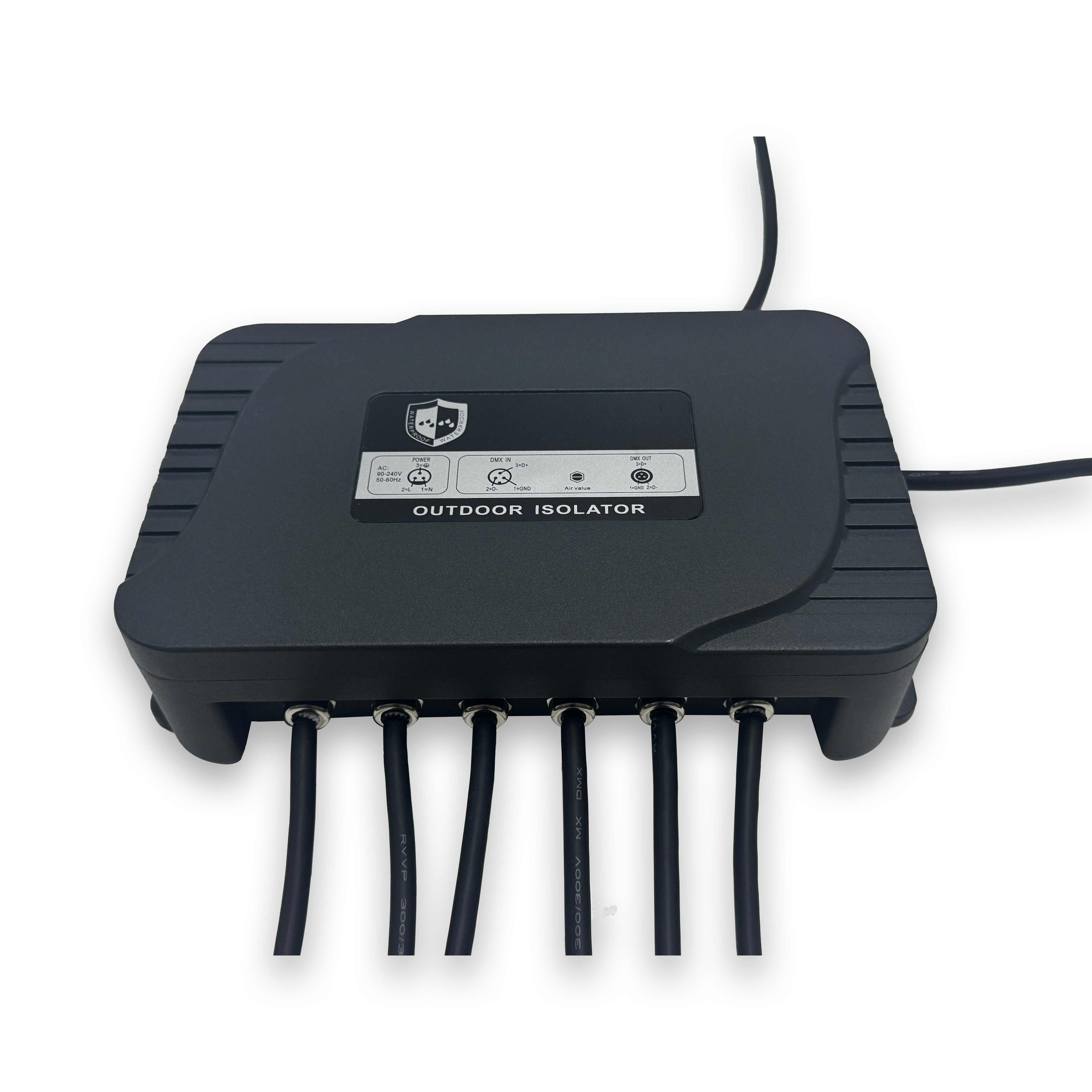

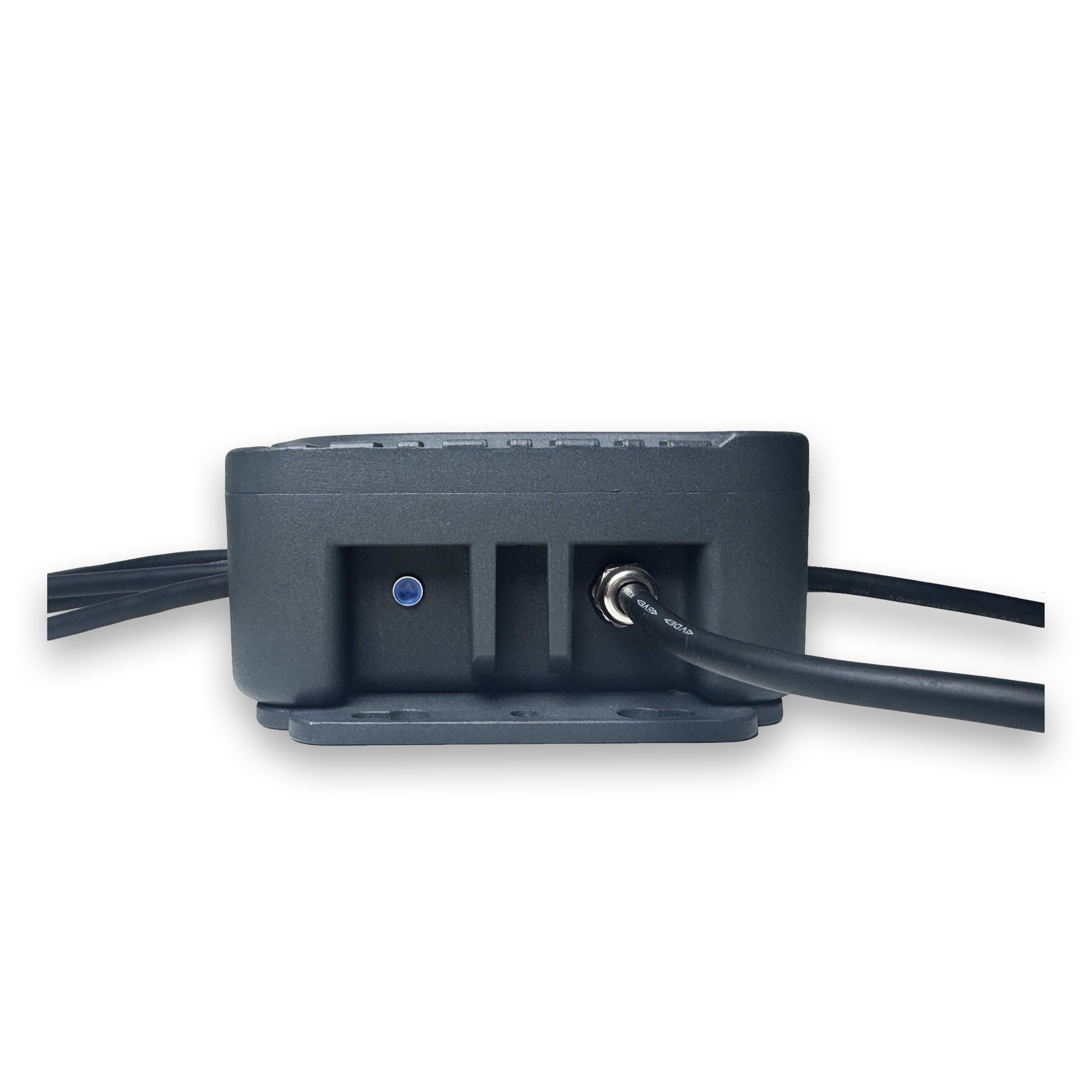

Waterproof 6-Channel Signal Amplifier

Technical Parameter：

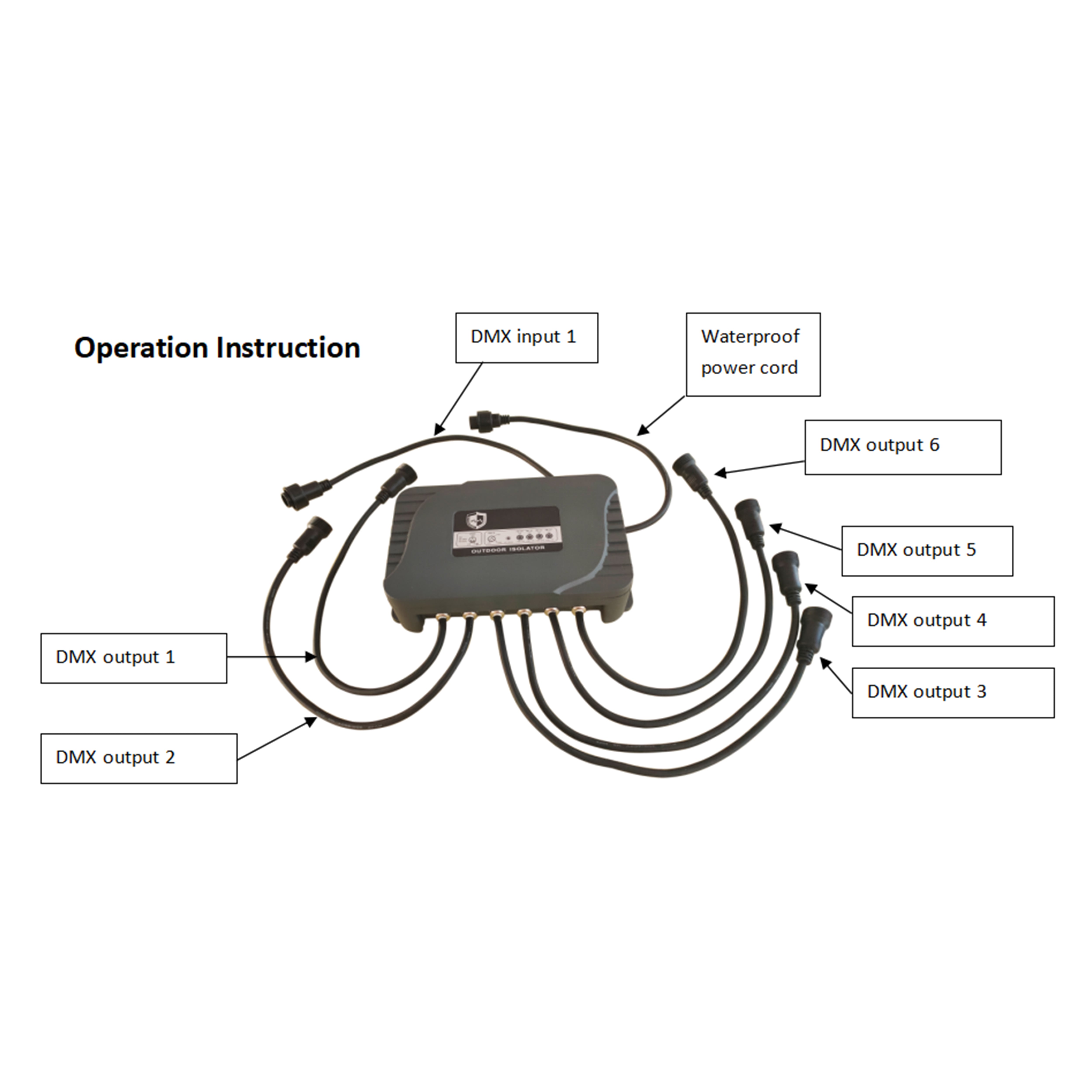

◆1 DMX inputs,6 DMX outputs;
◆ Each input and output all have independent power supply（Adopt transformer to supply）;
Using independent photoelectric isolation to every module to avoid the inference between them;
◆ Aluminum die-cast housing for excellent outlook and better heat dissipation, as well as better
water-proof structure. All power cable, DMX input and output signal cables can be with waterproof connectors, DMX signal cables it use are professional shielded wires;
◆ Optoelectric Isolation Voltage-resistant of Input to Output: >AC 3000 V;
◆ Water-proof rate: IP 67;
◆ A clamp can be attached directly soit can be hung up to the truss system;
◆ Voltage: AC 90 - 240V / 50 - 60 Hz;
◆ Dimension: 220×140×65mm;
◆ N. W.: 1.54 kg;
◆ Carton size: 315×195×105mm;
◆ G.W.: 2.1 KG;
