CA8802A（Waterproof 8-Channel Signal Amplifier，1 DMX inputs, 8 DMX outputs）
Waterproof 8‑Channel Signal Amplifier
Product Overview
The CA8802A signal amplifier supports the reshaping, amplification and distribution of DMX signals. It is used to extend the control distance of DMX signals, improve their load‑driving capability, enhance anti‑interference performance, isolate high‑voltage electricity, and protect connected equipment.
Key Features
- Waterproof & anti-interference
- Extend DMX signal distance
- 1 input, 8 fully isolated outputs
- Stable & reliable for harsh environments
Applications
- Outdoor concerts, festivals and live events
- Stage, touring and float lighting
- Landscape & architectural lighting
- Fountains, swimming pools and wet environments
- Theaters, stadiums and professional venues
Technical Parameters
- 1 DMX input, 8 DMX outputs
- Each input and output equipped with independent power supply (transformer powered); each module adopts independent photoelectric isolation to avoid mutual interference
- Die‑cast aluminum housing for excellent appearance, efficient heat dissipation and reliable waterproof structure; all power cables and DMX I/O signal cables can use waterproof connectors; DMX signal cables use professional shielded wires
- Input‑to‑output optoelectric isolation voltage: > AC 3000V

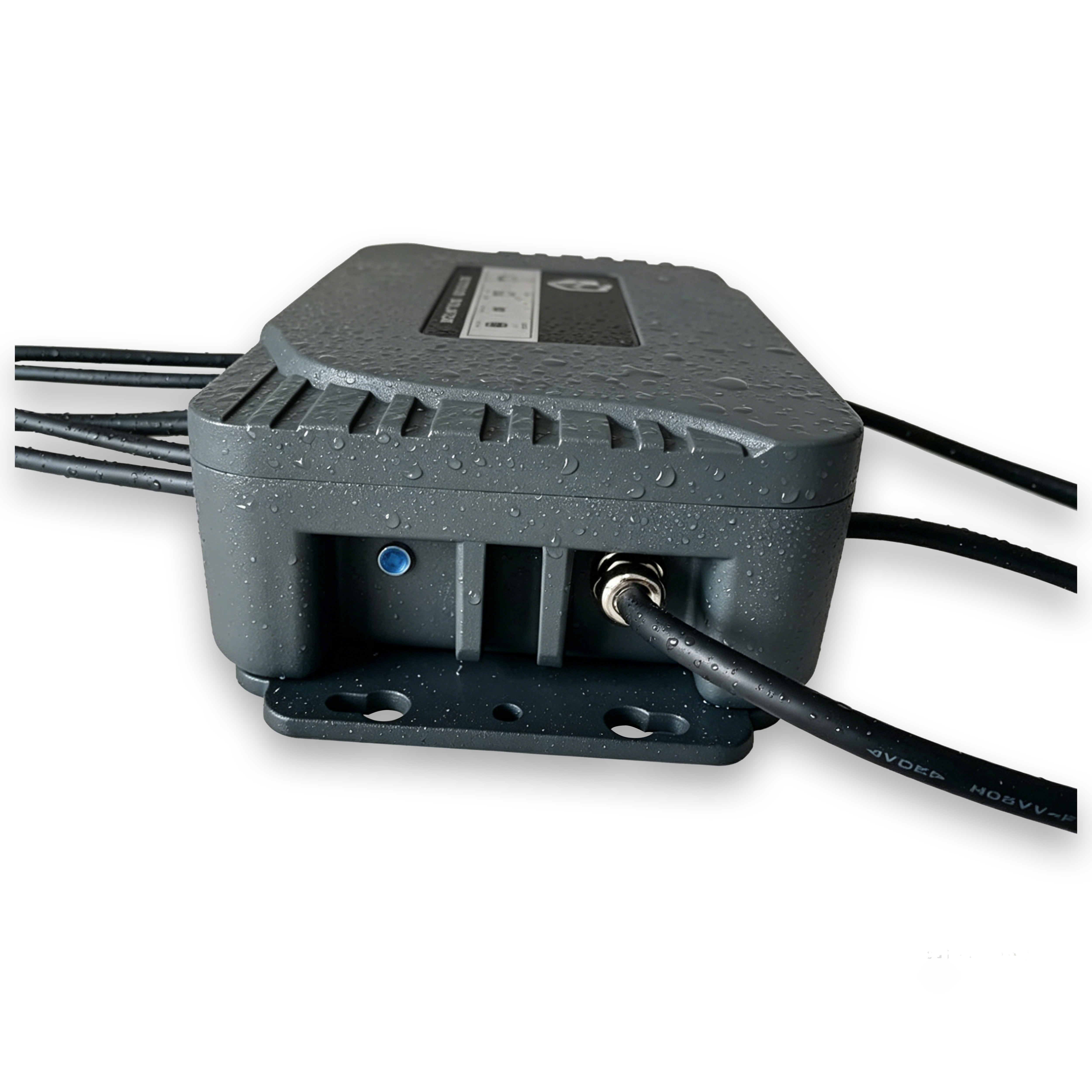

- Waterproof rating: IP67
- Can be directly mounted with a clamp and hung on truss system
- Voltage: AC 90–240V / 50–60Hz
- Dimension: 220×140×65mm
- N.W.: 1.54kg
- Carton size: 315×195×105mm
- G.W.: 2.1kg
