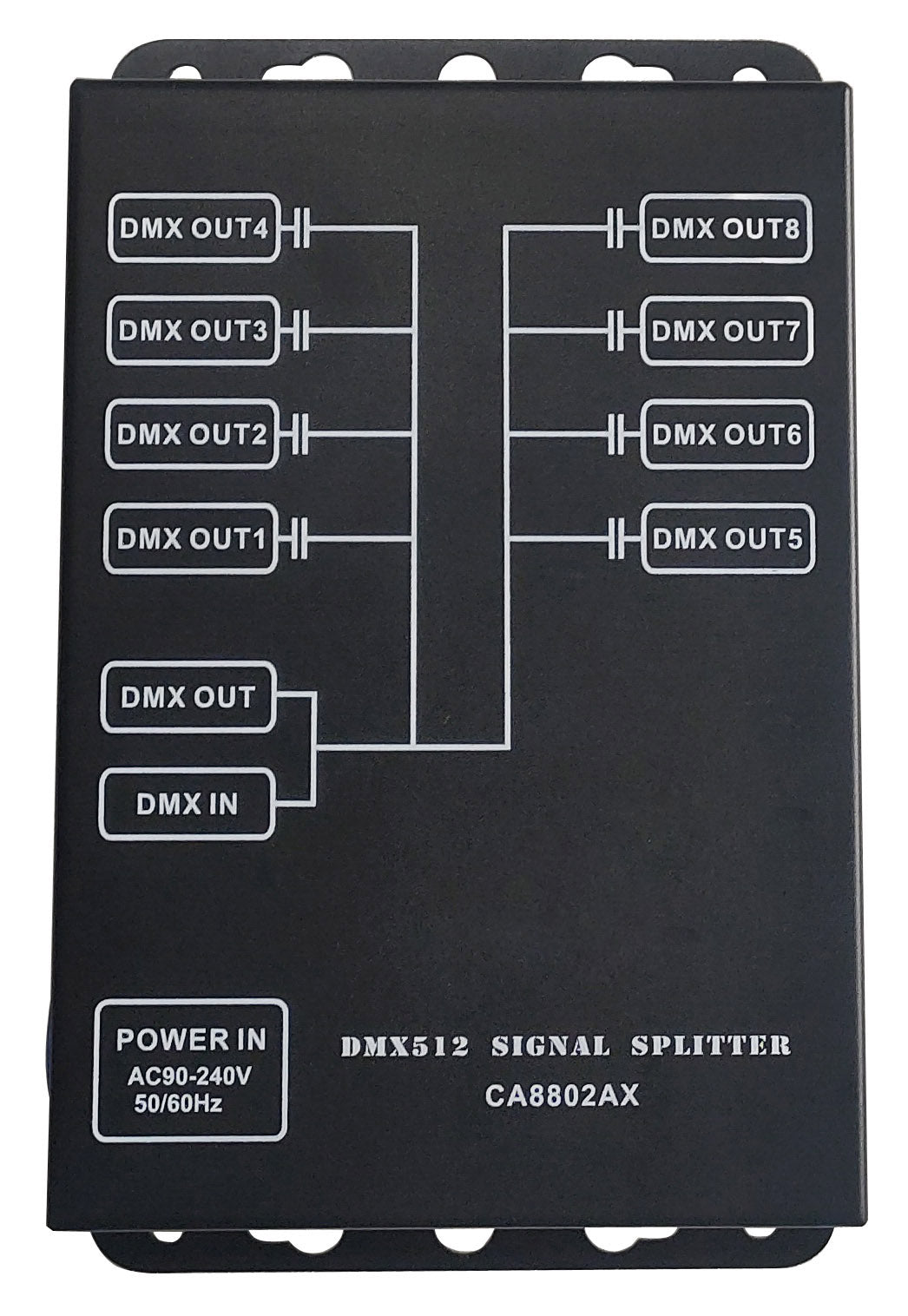

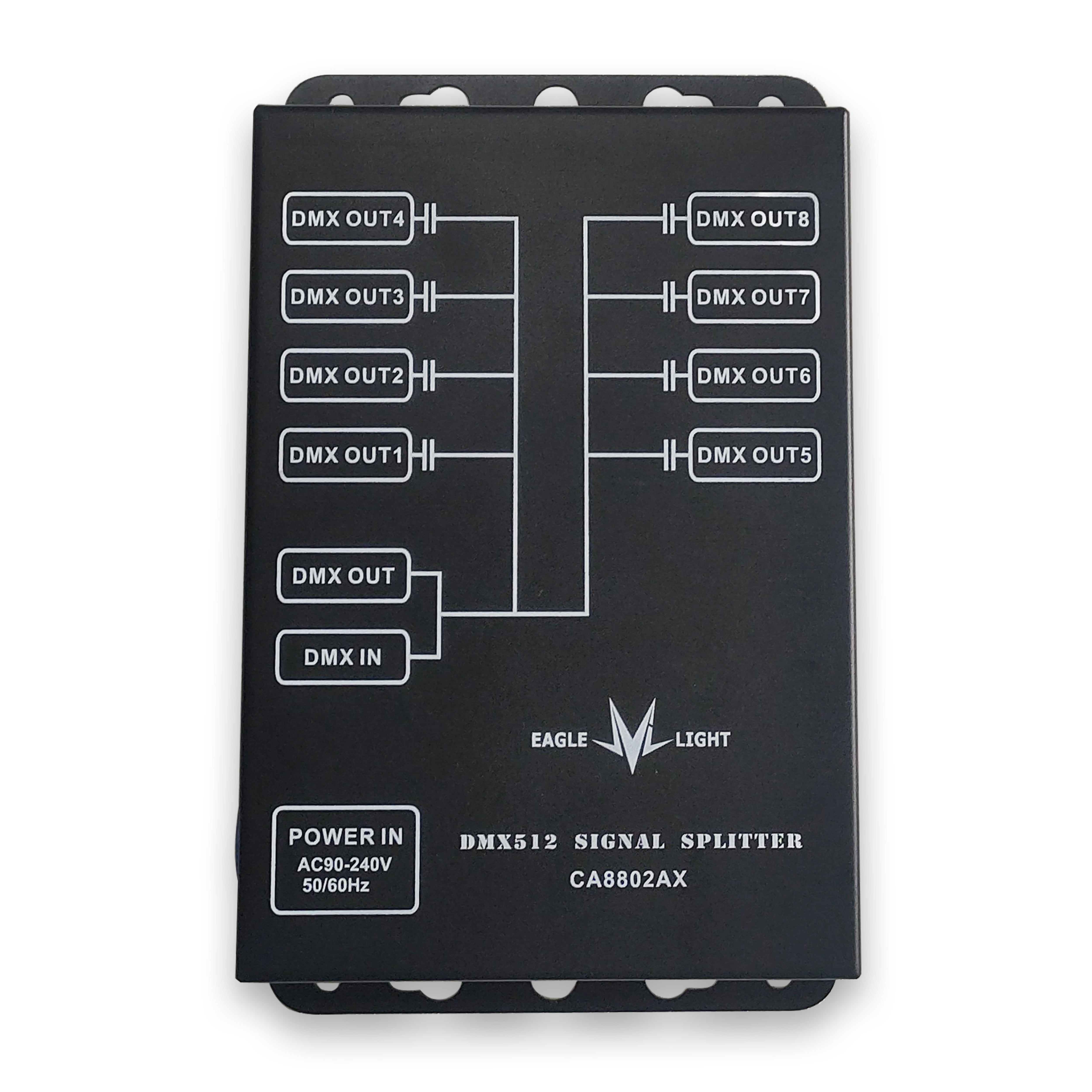

CA8802AX（8 Way DMX512 Signal Distributor，RJ45， 1 signal input, 1 through signal output ）
8 Way DMX512 Signal Distributor
Product Overview
The CA8802AX Amplifier is specially designed to reshape, amplify, and distribute the DMX512 digital lighting control signal into 8 output channels. Each input interface adopts high-voltage isolation technology, making it suitable for reshaping and amplifying DMX512 signals attenuated after long-distance transmission, as well as for applications requiring complete electrical isolation between the distributed output ports and between the input port and all output ports. Since all interfaces are electrically isolated from each other, it can prevent the sophisticated digital lighting console from being damaged due to faults in control cables, moving heads, dimmer packs, or other equipment. This ensures the safe operation of the digital lighting console, maintains stable DMX signal transmission to various lighting devices, and improves the reliability of the entire digital lighting control system.
Key Features
-
Professional reshaping, amplification & 8-channel distribution for DMX512 lighting control signals.
-
High-voltage isolation technology on input interfaces for enhanced anti-interference performance.
-
Ideal for long-distance signal restoration—effectively resolves DMX512 signal attenuation issues.
-
Full electrical isolation between input & all outputs, and among all output ports.
-
Protects lighting console from damage caused by faults in control cables, moving heads, or dimmer packs.
-
Guarantees stable DMX signal transmission and improves the reliability of the entire lighting control system.

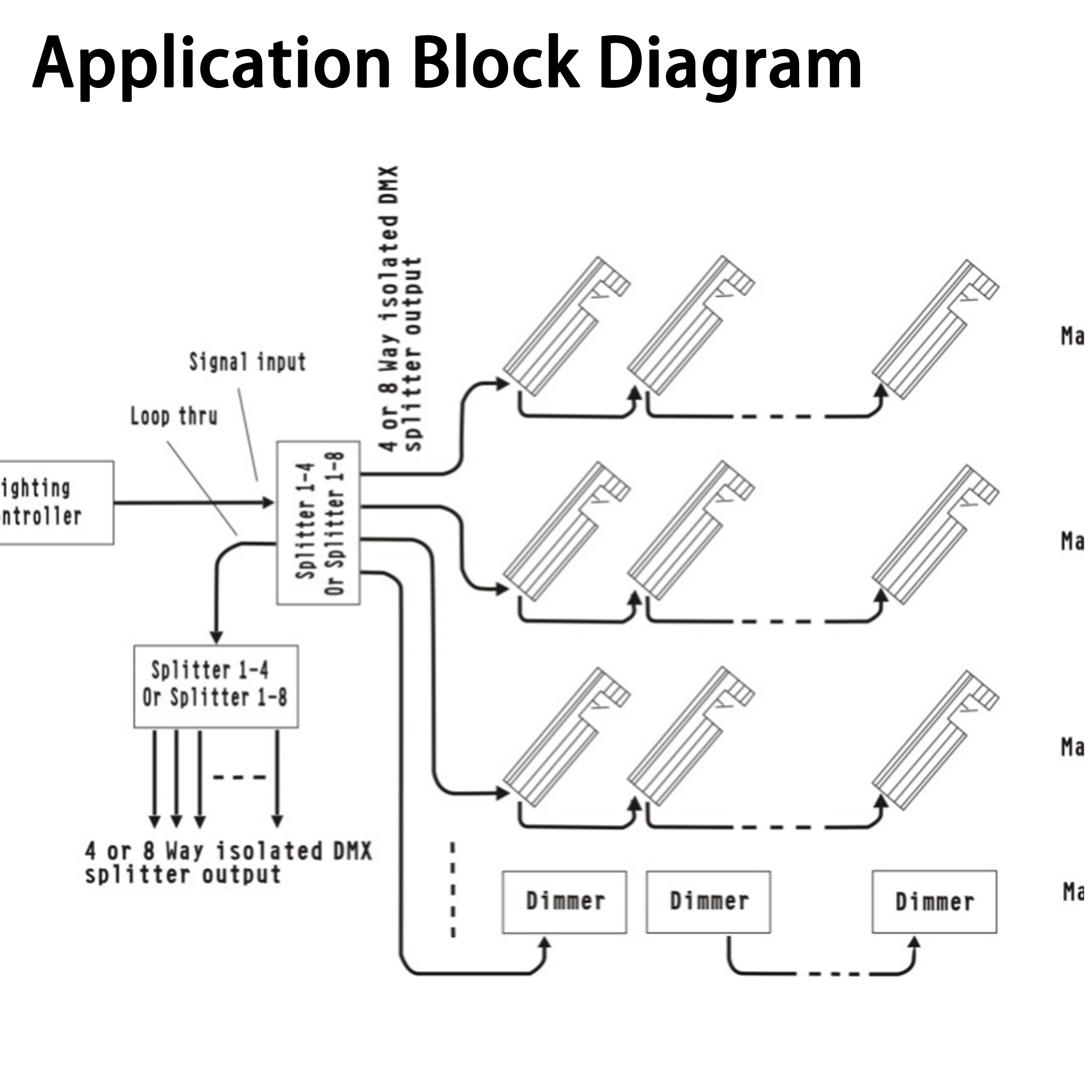

Signal Amplifier Application Scenarios
-
Stage performances, concerts, music festivals, outdoor light shows
-
Theaters, bars, KTV, banquet halls, wedding venues
-
Architectural lighting, landscape lighting, cultural tourism lighting projects
-
Studios, exhibition halls, large-scale lighting control systems
-
Engineering sites with strong electrical interference and long-distance transmission needs
Technical Parameter
-
◆ Digital signal type: DMX512, and digital signals transmitted through RJ45 terminal interface;
-

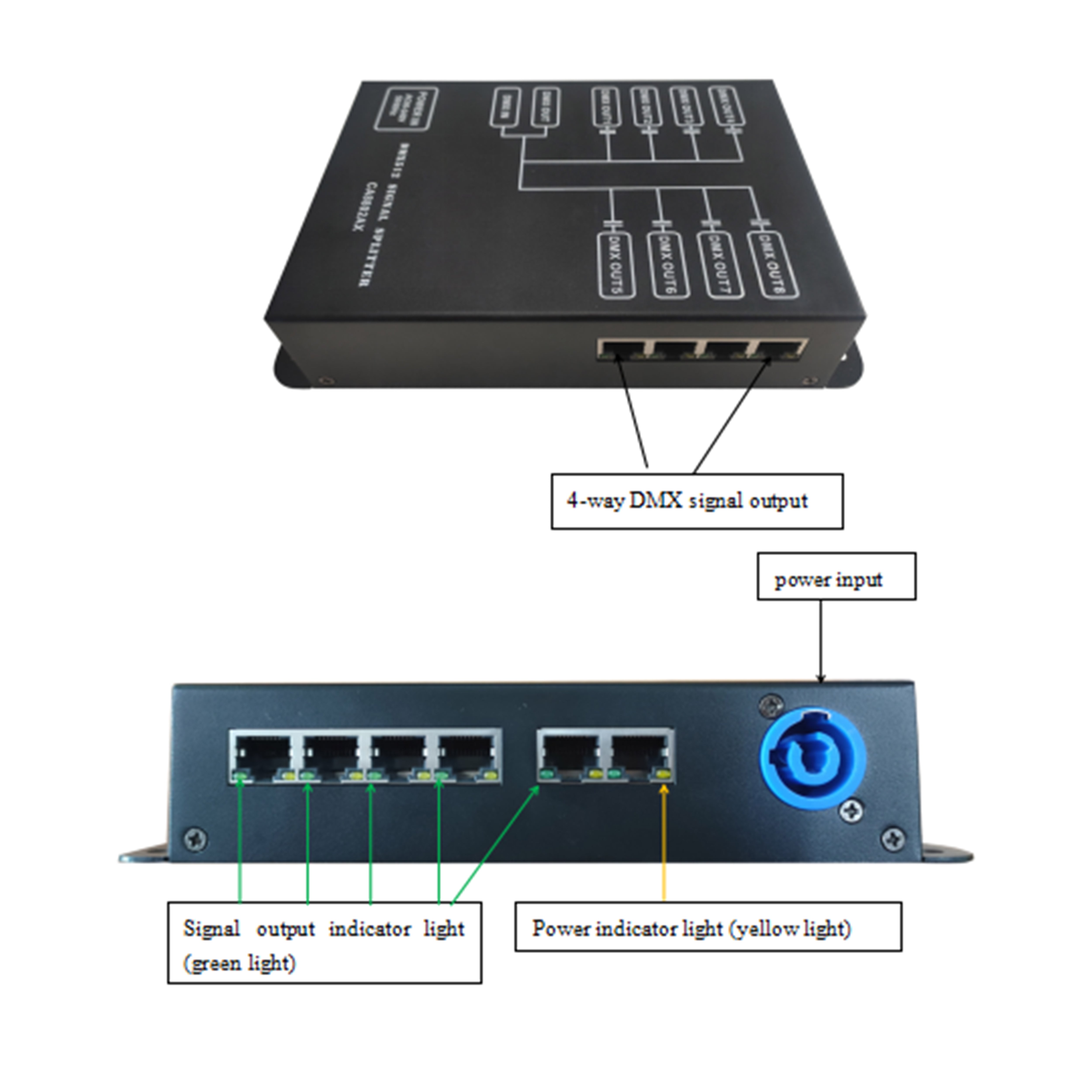

◆ 1 signal input, 1 through signal output (with electrical isolation between signal input and through signal), with signal input indicator light;
-
◆ 8 signals are distributed and output through electrical isolation, each with signal indicator lights;
-

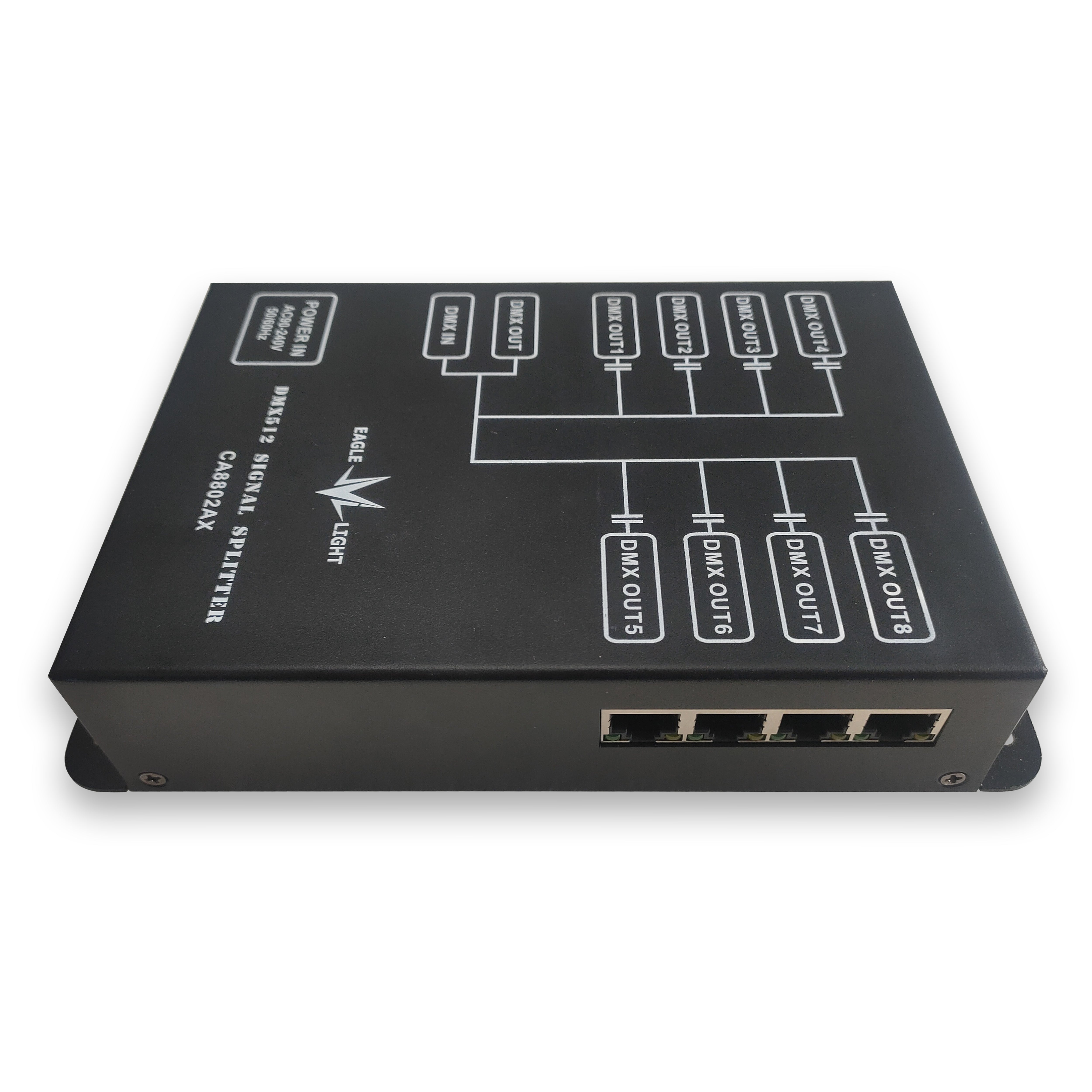

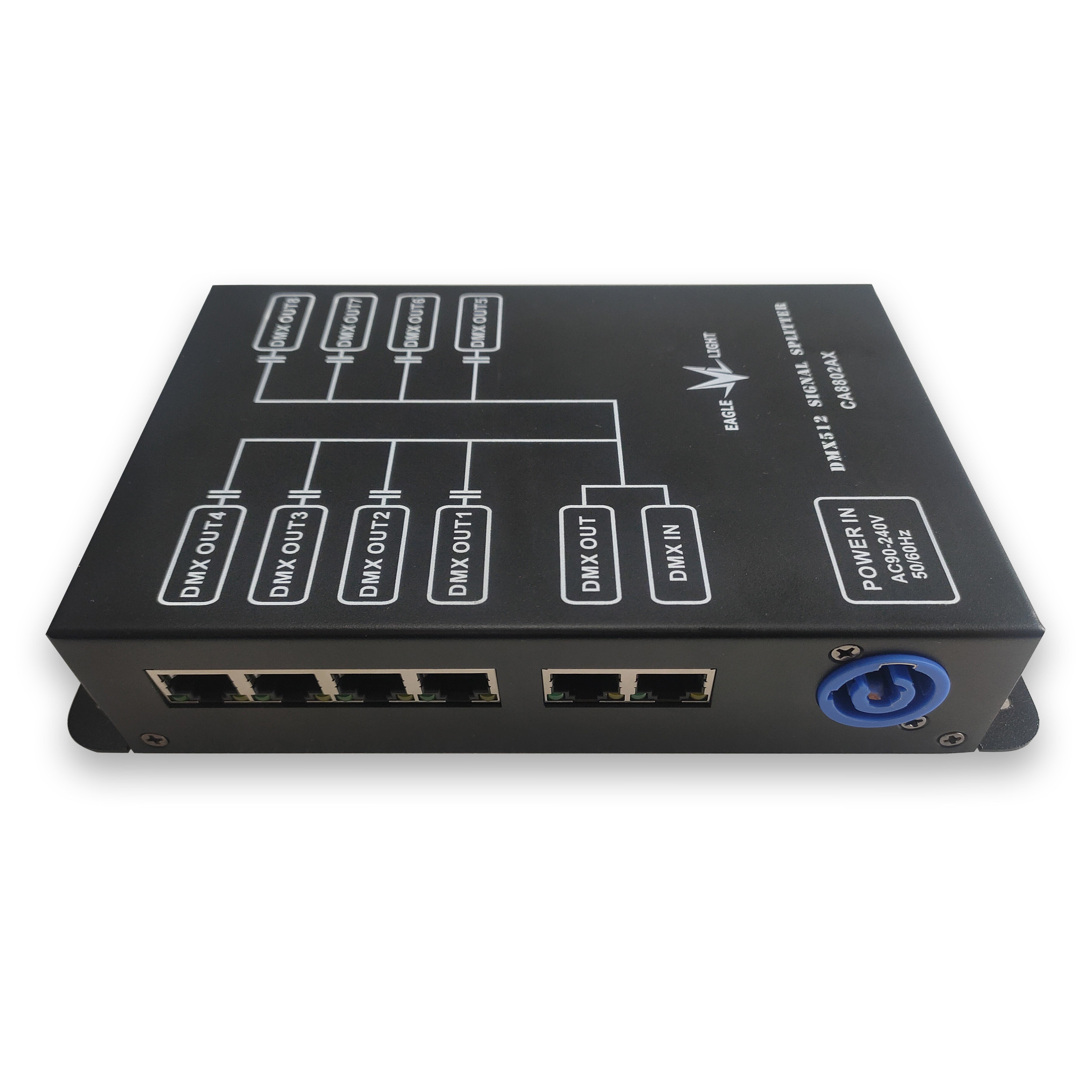

◆ Signal connection socket: RJ45 terminals are used for both input and output ports;
-
◆ Input to output electrical isolation withstand voltage:>AC3000V;
-
◆ Power supply: AC90V~240V, 50Hz/60Hz, 15W;
-
◆ Size: 25 ×12.3 × 4.3 cm;
-

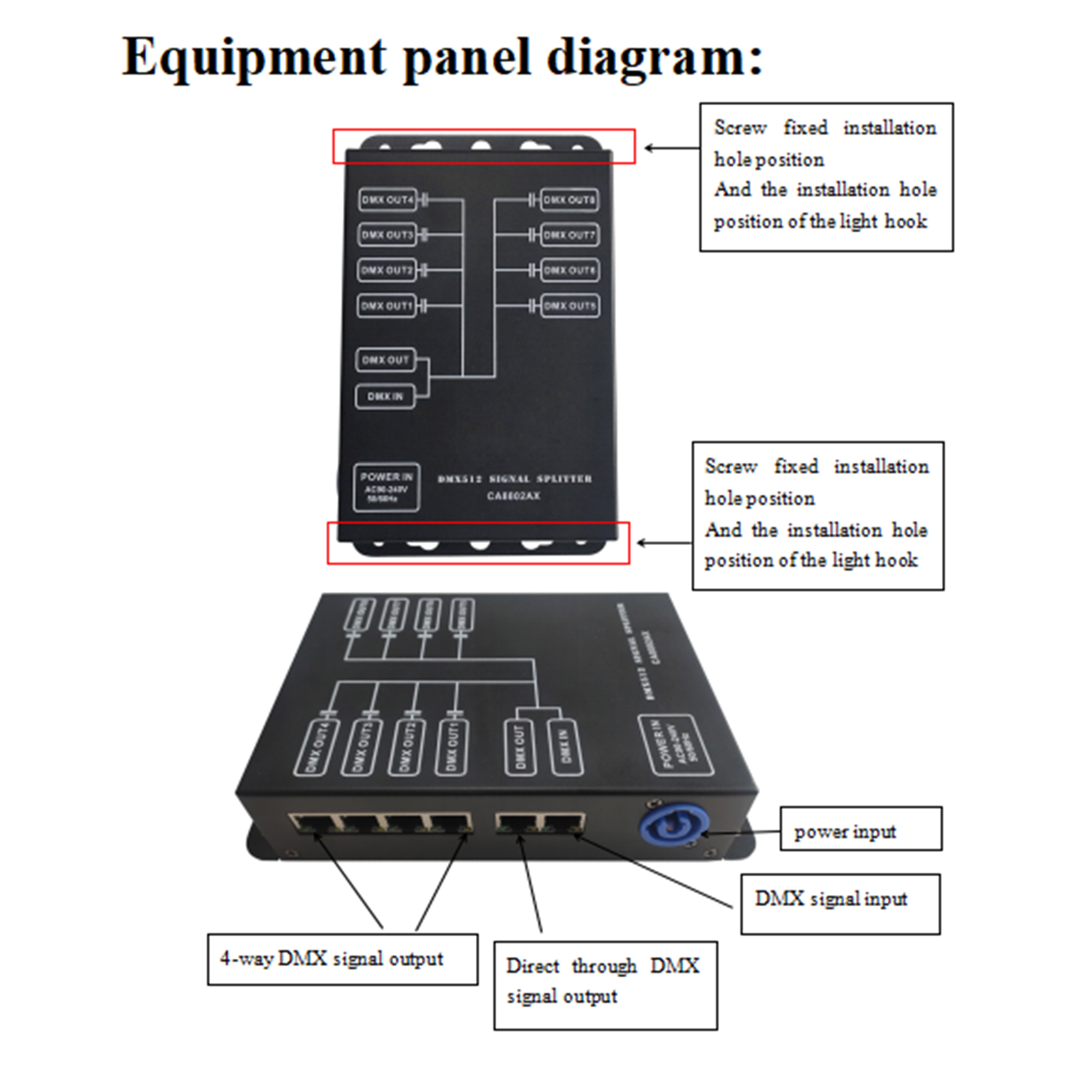

◆ Installation method: It can be fixed with screws or hung with a light hook for installation;
-
◆ Weight: 0.75 Kg ;
