CA8802J（8 Way Hanging Splitter，DMX512、 RS-485 ）
CA8802J（8 Way Hanging Splitter，DMX512、 RS-485 ）
Sale price$0.00
8 Way Hanging Splitter
Product Overview
The wall-mounted amplifier is specially designed to reshape, amplify and distribute DMX512 digital lighting control signals into 8 output channels. Each input interface adopts high-voltage isolation technology, making it suitable for reshaping and amplifying DMX512 signals attenuated after long-distance transmission, as well as applications requiring complete electrical isolation between the distributed output ports and between the input port and all output ports. Since all interfaces are electrically isolated from each other, it can prevent the sophisticated digital lighting console from being damaged due to faults in control cables, moving heads, dimmer packs and other equipment. This ensures the safe operation of the digital lighting console, maintains stable DMX signal transmission to various lighting devices, and improves the reliability of the entire digital lighting control system. The wall-mounted installation is very convenient.
Key Features
-
Professional reshaping, amplification and 8-channel distribution for DMX512 signals.
-
Input interface with high-voltage isolation technology.
-
Effectively solves signal attenuation in long-distance transmission.
-
Full electrical isolation between input and outputs, and among outputs.
-
Protects the lighting console from damage.
-
Ensures stable DMX signal transmission.
-
Wall-mounted design for easy installation.

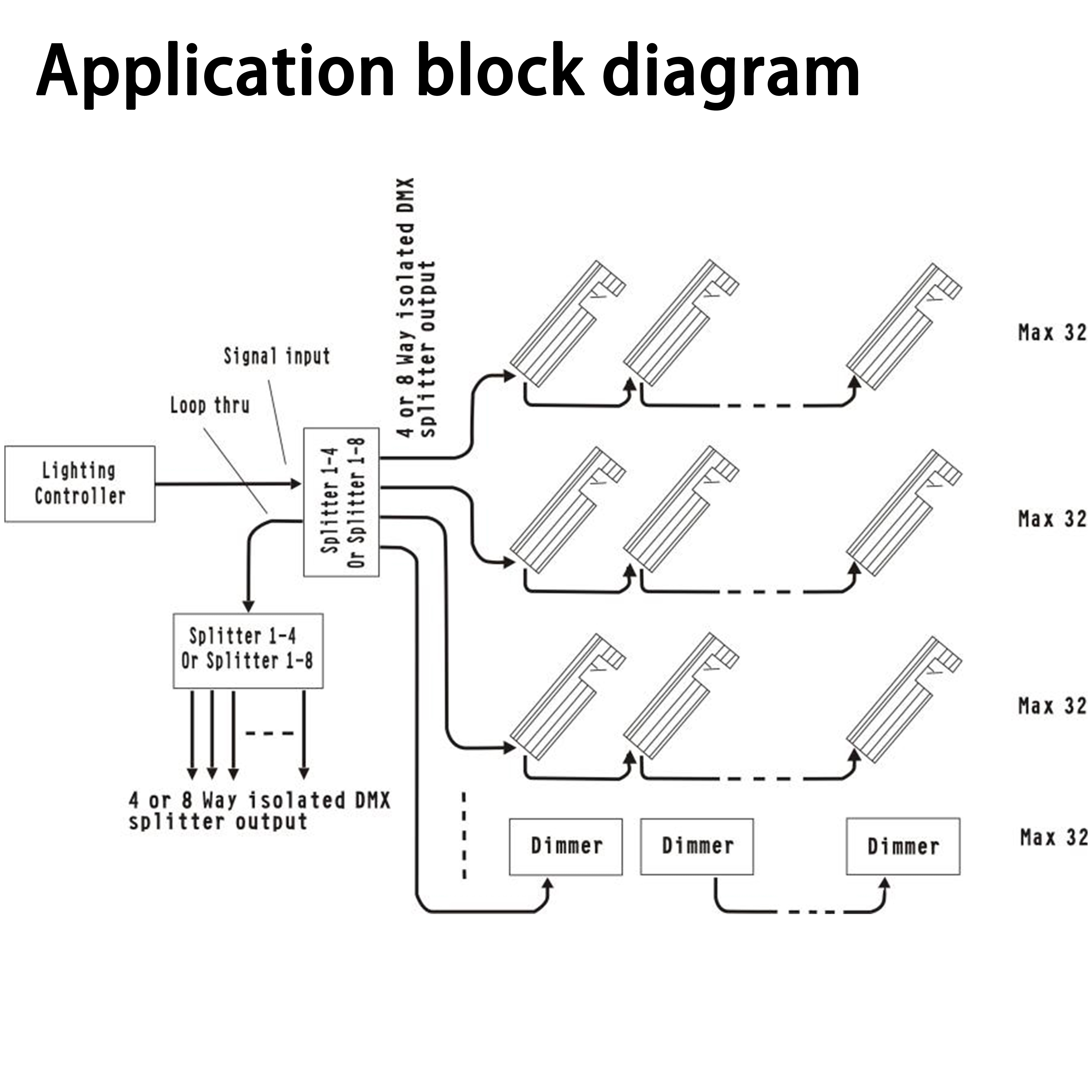

Signal Amplifier Application Scenarios
-
Stage performances, concerts, music festivals, outdoor light shows
-
Theaters, bars, KTV, banquet halls, wedding venues
-
Architectural lighting, landscape lighting, cultural tourism lighting projects
-
Studios, exhibition halls, large-scale lighting control systems
-
Engineering sites with strong electrical interference and long-distance transmission needs
Technical Parameter
-
◆ Digital signal type: DMX512, and digital signals transmitted using RS-485 interface;
-

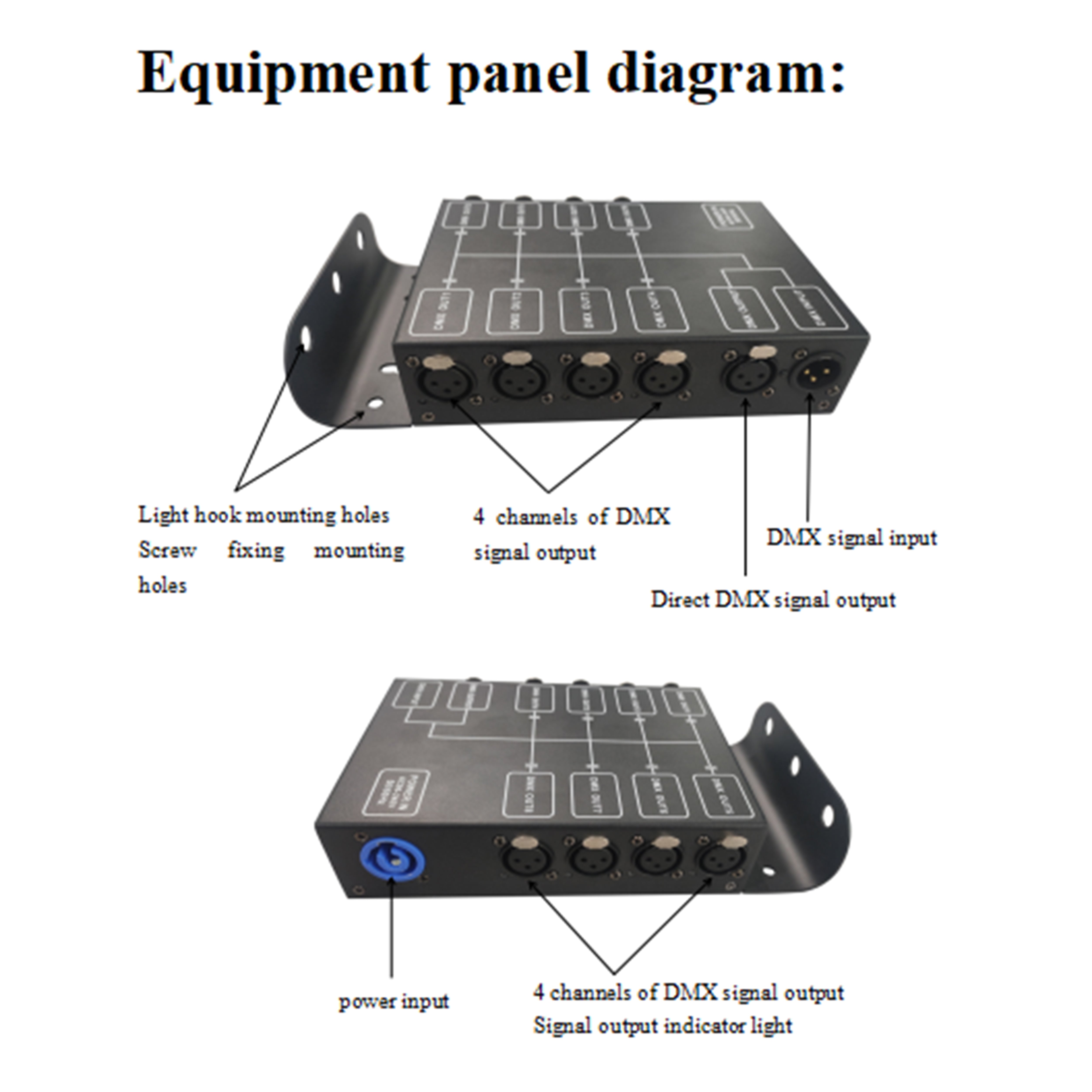

◆ 1 signal input, 1 direct signal output (with electrical isolation between signal input and direct signal), with signal input indicator light;
-
◆ 8 signal distribution outputs through electrical isolation, each with signal indicator lights;
-
◆ Signal connection socket: input XLR-3-M, output XLR-3-F
-
◆ Electrical isolation and withstand voltage of input to output: ＞AC3000V
-
◆ Power supply: AC90V~240V, 50Hz/60Hz, 15W, with power indicator light;
-
◆ Size: 21.5×12.3×4.2 cm
-
◆ Installation method: It can be fixed with screws or hung with a light hook for installation.
-
◆ Weight: 0.85Kg
