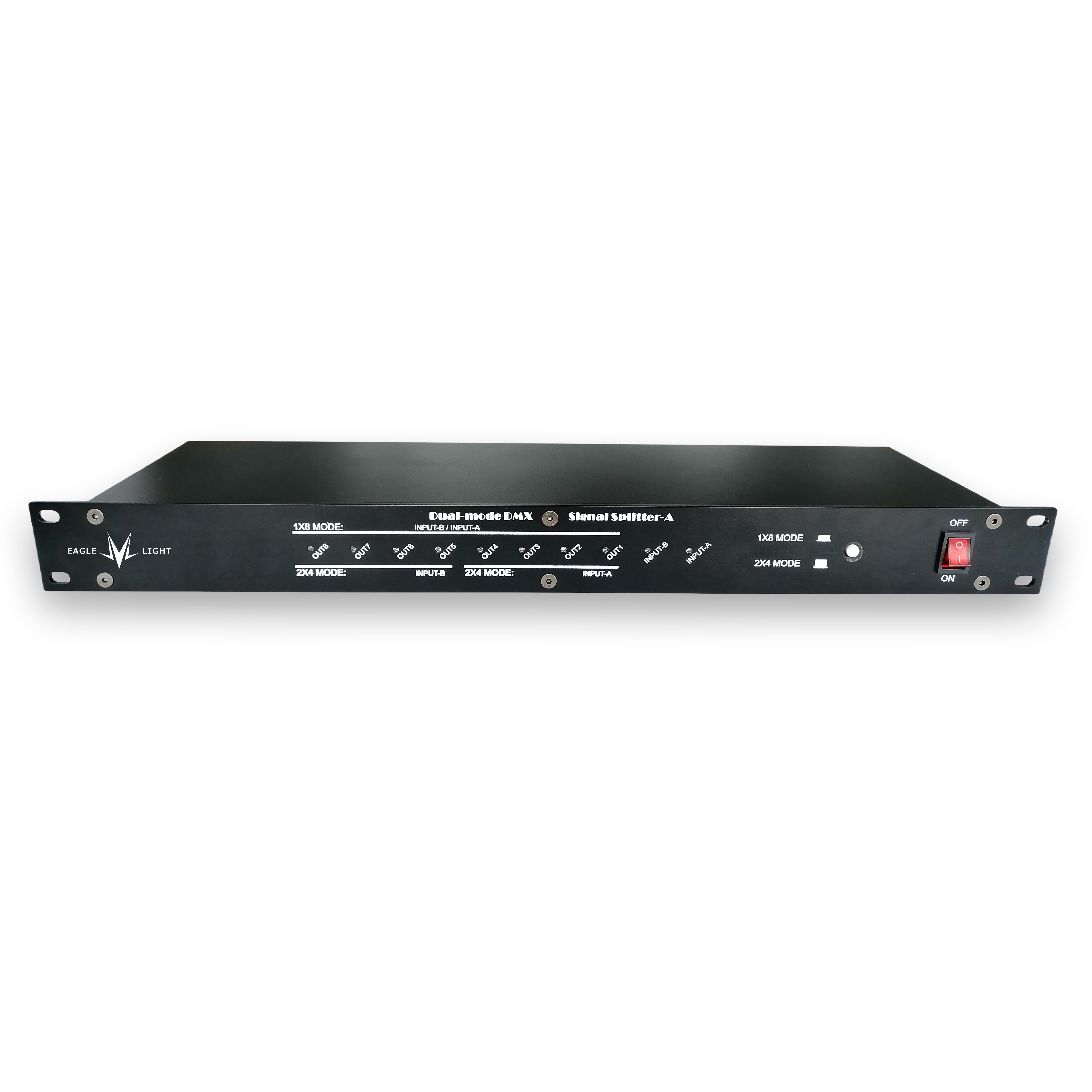

CA8802K-A DMX Splitter
Product Overview：
CA8802K-A is a newest DMX Splitter, which can shape and amplify the signal out putted in 4ways or 8 ways, and each input and output has separately electricity supply, with high voltage isolation technology .The products can be used for the situation like long distance transmitting; extending the quantity of the lighting in the live show and the Electrical isolation between each port.Due to the isolation of each port, it can protect the lighting consoles from the cables, computer light, and dimmer pack’s burning down, or the interference to the whole console’s signal. At the same time it can ensure that the DMX 512 has enough and strong signal to various lighting equipments, so that the whole lighting system can be more reliable.
Technical Parameters：
●Power Supply: AC 90–240V, 50Hz / 60Hz
●Input / Output Protocol: International standard DMX512 protocol
●Transmission Capacity: Supports real‑time transmission of up to 512 channels
●Signal Output: 2 groups of 1‑in 4‑out, or 1 group of 1‑in 8‑out, all electrically isolated
●Terminating Resistor: Prevents signal reflection and interference

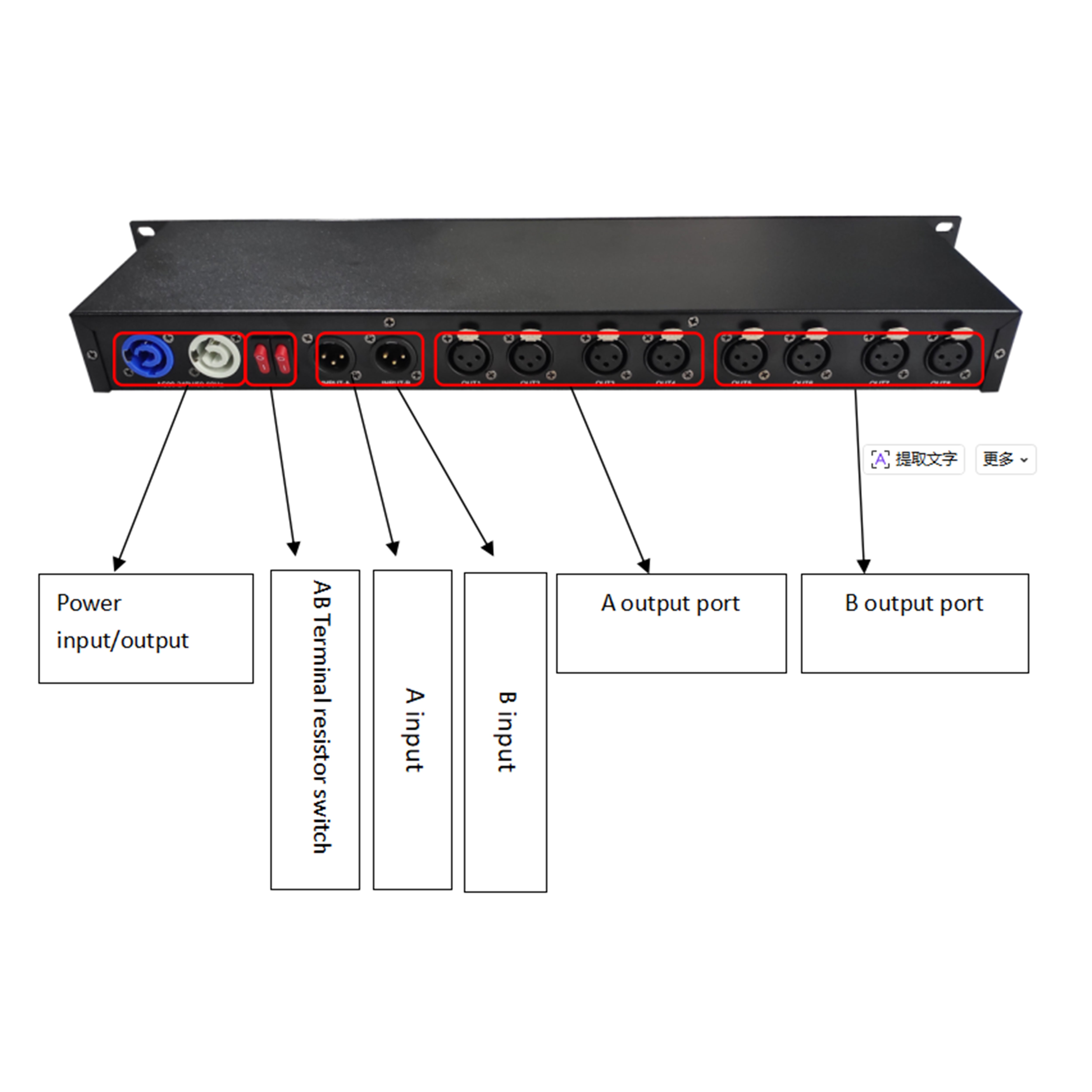

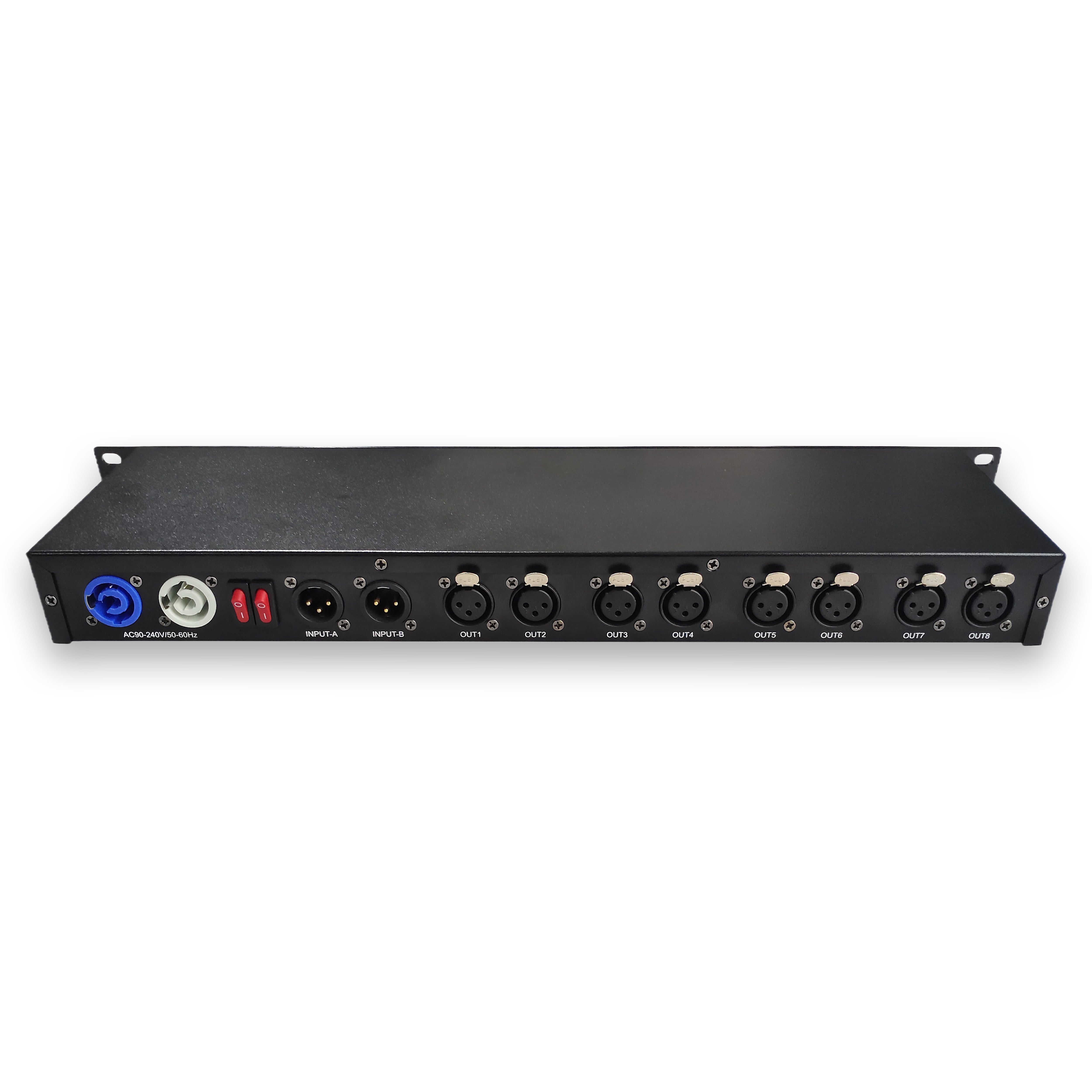

Connectors:
●Input: XLR‑3/5‑M
●Output: XLR‑3/5‑F
●Interface Type: RS‑485
●Input‑Output Isolation Voltage: ＞ AC 300V
●Dimensions: 484 * 45 * 140 mm, 19" 1U rack mount
●Net Weight: 1.8 kg
Key Features:
1) Two working modes can change freely: single group 1way input ,8 ways output and double groups 1 way input, 4 ways output;
2) Each input and output all have measures of the separately power supply and the optical isolation ; it can make the totally isolation on the electrical;

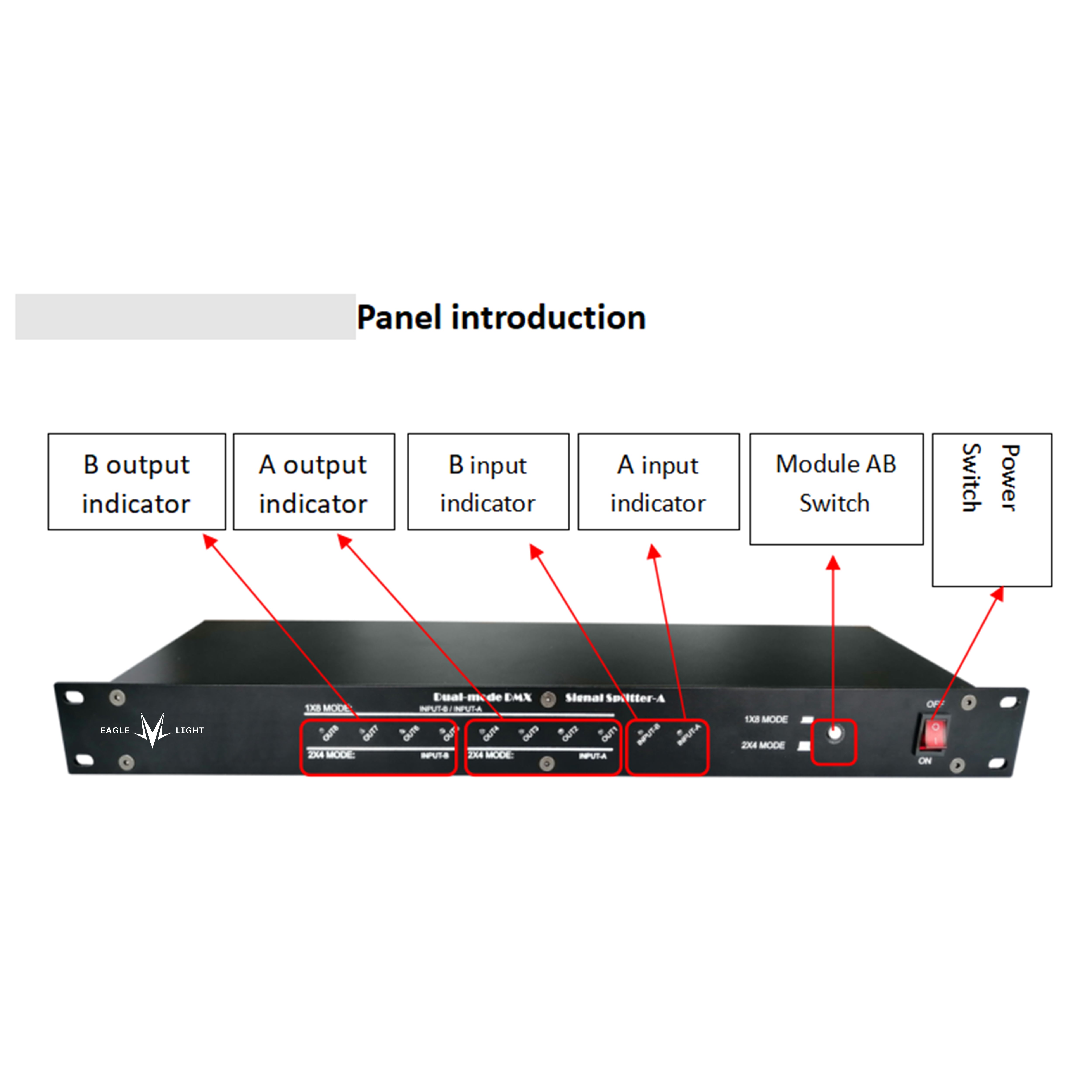

3) Each port has a high brightness blue light indicator light, Always indicate the working status of each route

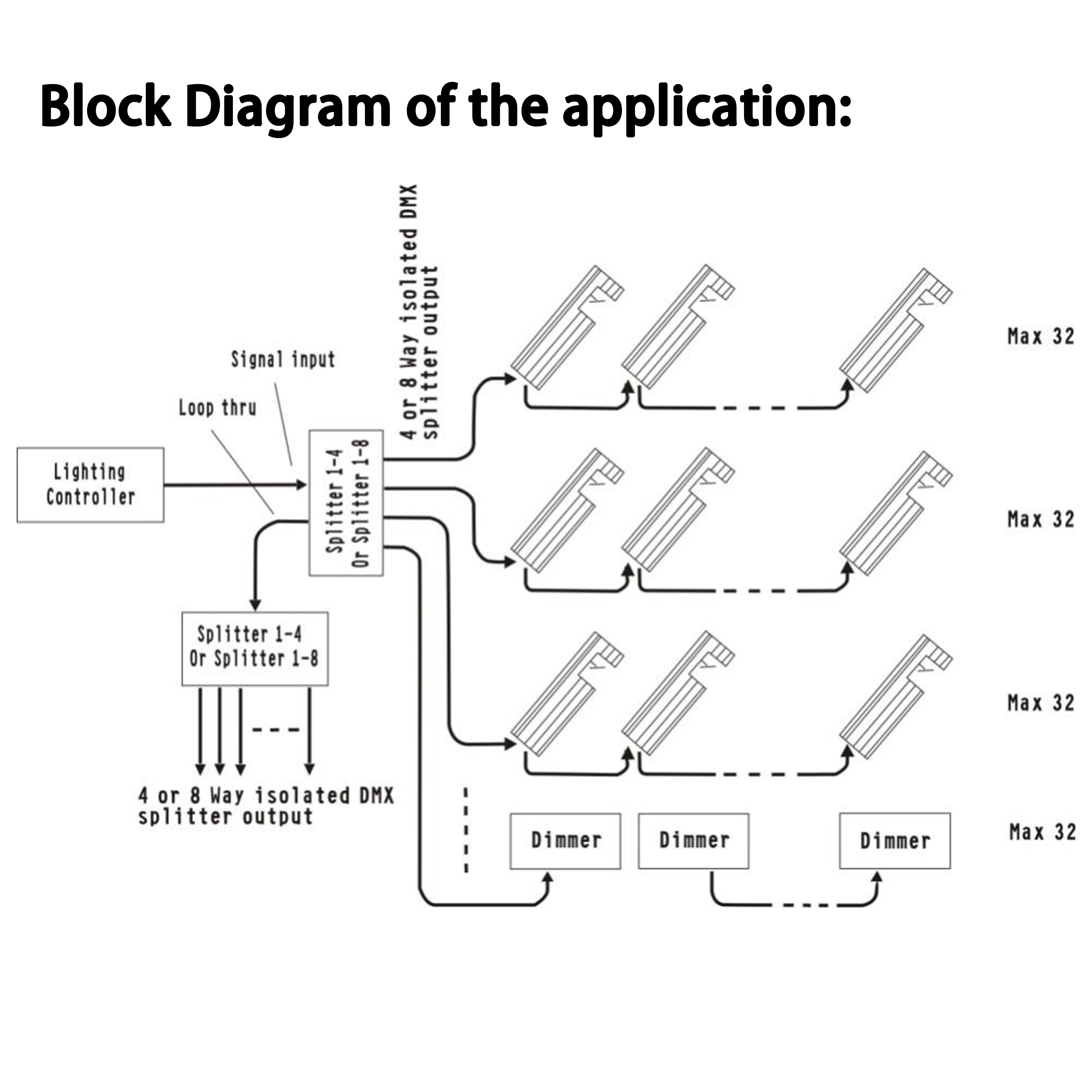

Signal Amplifier Applications：
●Stage performances, concerts, music festivals, outdoor light shows
●Theaters, bars, KTV, banquet halls, wedding venues
●Architectural lighting, landscape lighting, cultural tourism lighting projects
●Studios, exhibition halls, large-scale lighting control systems
●Engineering sites with strong electrical interference and long-distance transmission needs
Technical Parameter：
| Voltage | AC90V-AC220V 50HZ/60Hz |
| transmission capacity | Supporting 512channels’s real time transmission |
| Signal output | single group 1 way input ,8 ways output or double groups 1 way input, 4 ways output ;optical isolation ;separately output |
| Terminal resistor | Prevent signal reflection interference |
| The canon of Signal connection | Input XLR-3/5-M, output XLR-3/5-F |
| Interface type | RS-485 |
| Political isolation of the input to the output | ＞AC300V |
| size | 484*45*140mm |
