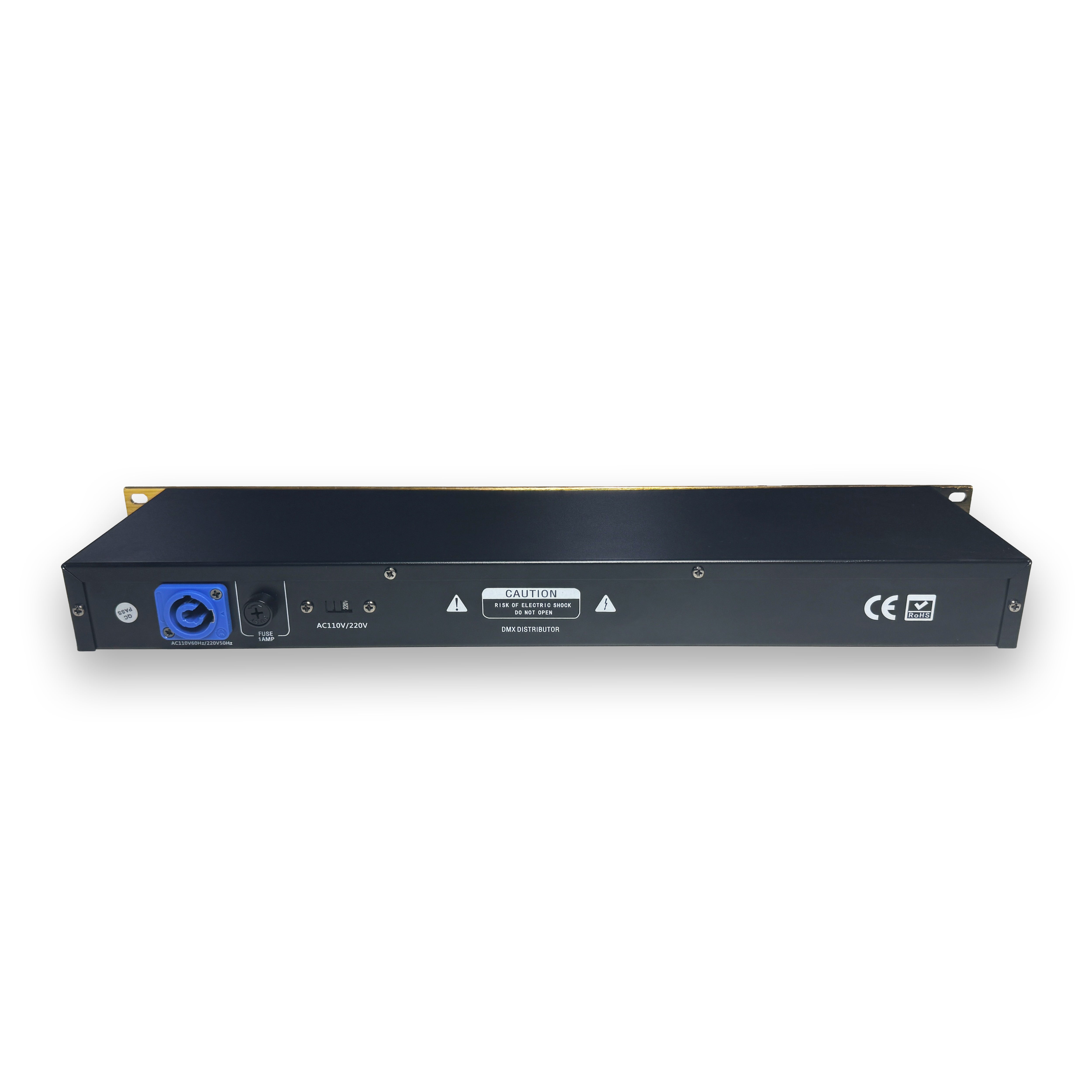

CA8802Mod（DMX Splitter 8CH，Two Work Modes）
Sale price$0.00
Modular DMX Splitter 8CH (Two Work Modes)
Product Overview

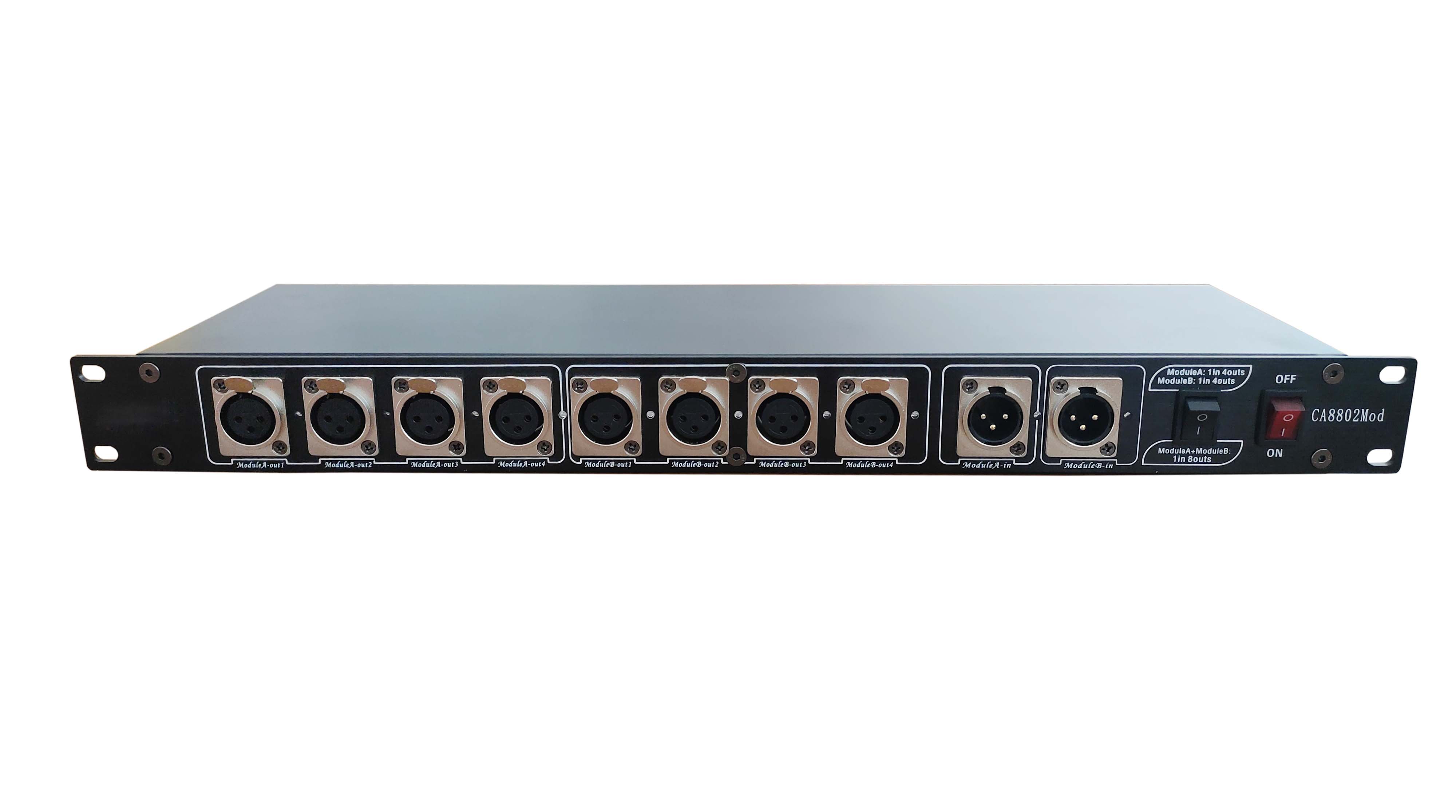

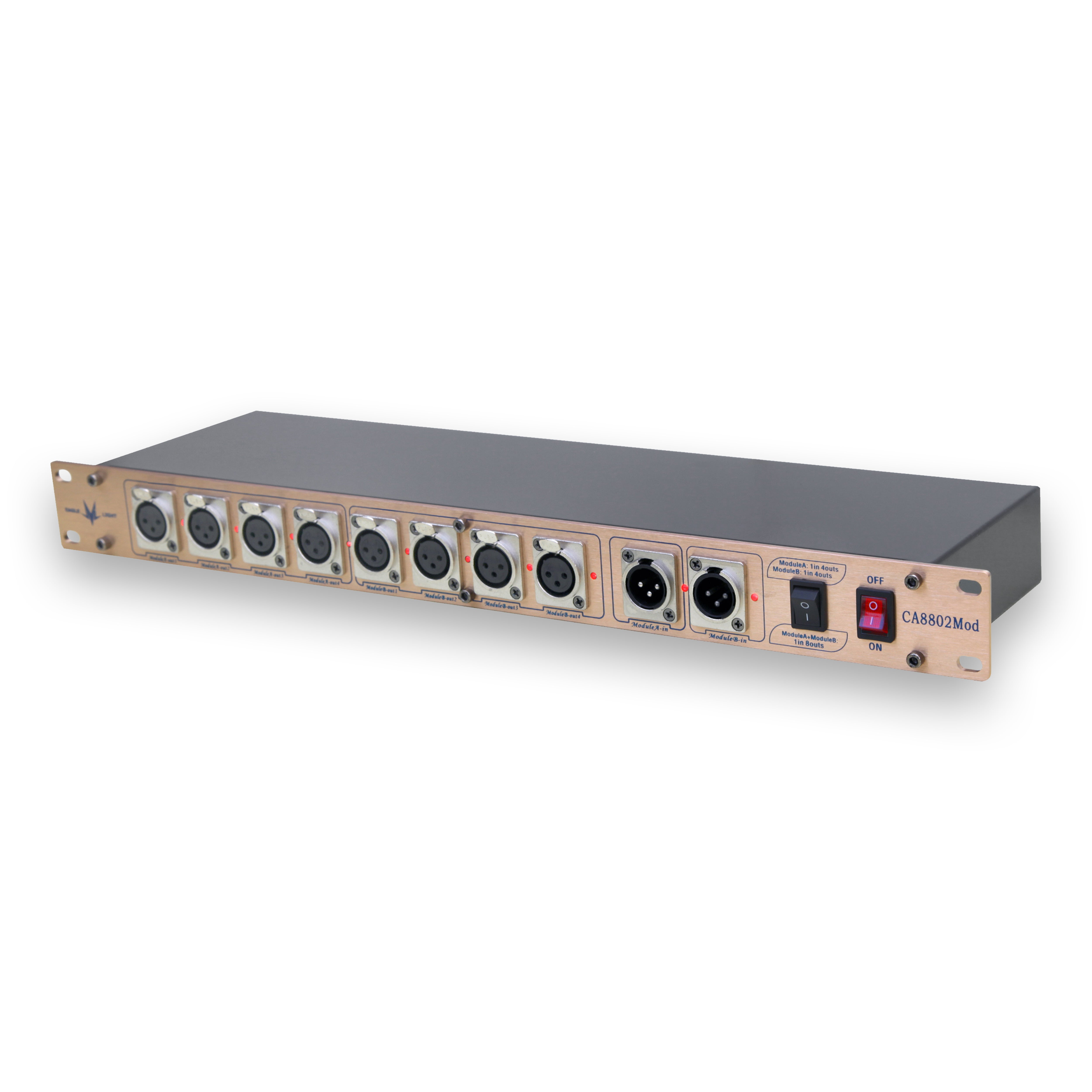

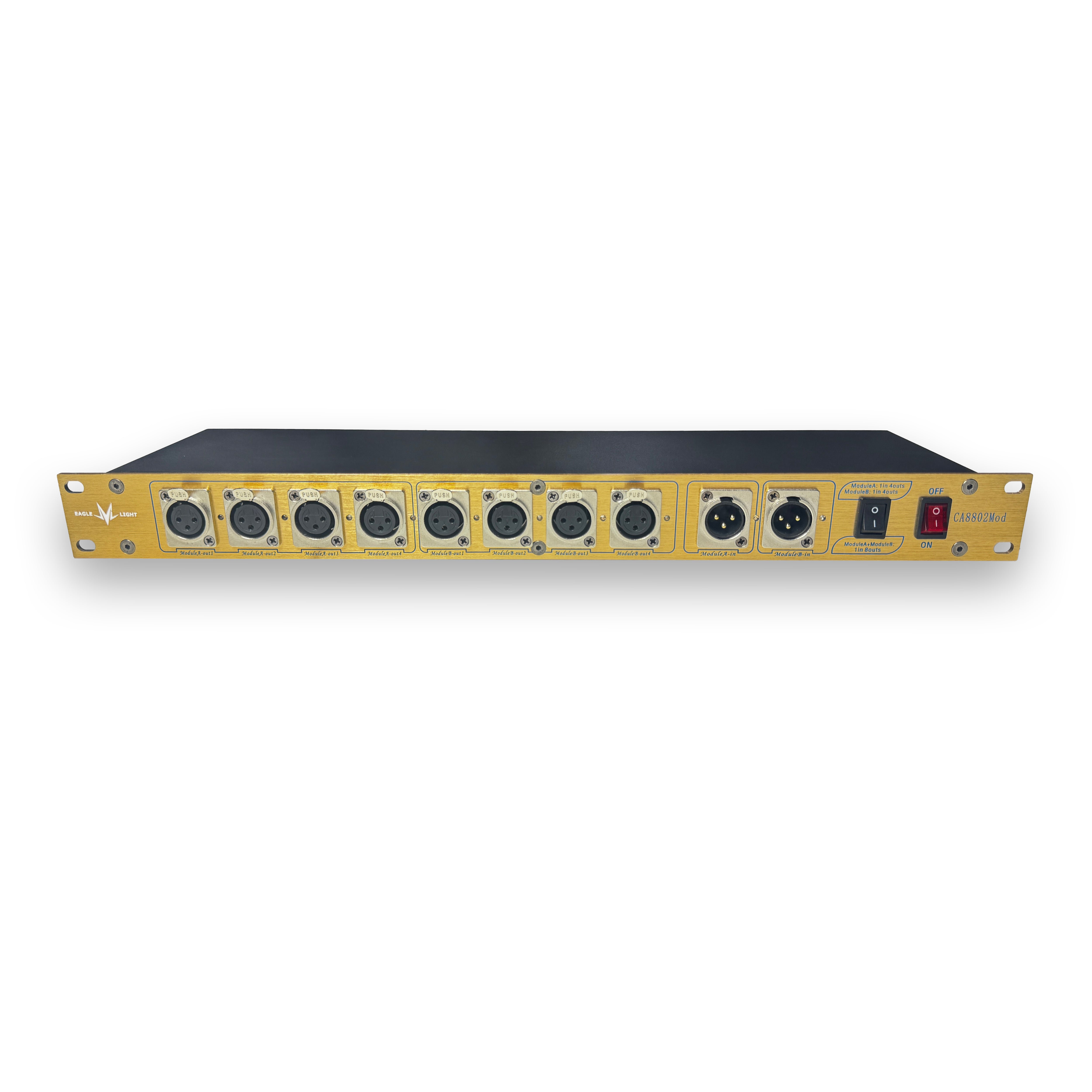

The CA8802Mod is a brand-new, high-quality modular DMX512 signal distributor engineered for professional lighting control systems. It reshapes and amplifies standard DMX512 signals, and distributes input signals flexibly into 4 or 8 independent DMX512 output channels.
Every input and output interface is equipped with an independent power supply and high-voltage isolation technology, making it the perfect solution for long-distance DMX512 signal transmission, expanding the number of connected lighting fixtures, and scenarios requiring full electrical isolation between signal ports.
With complete isolation between all interfaces, this splitter effectively protects sophisticated digital lighting consoles from damage and prevents full system signal disruption caused by faults in control cables, moving heads, dimmers, or other connected equipment. This guarantees the safe operation of both the lighting console and the entire control system, while maintaining stable signal strength to reach all lighting devices, significantly improving the overall reliability of the lighting control network.
Key Features
-

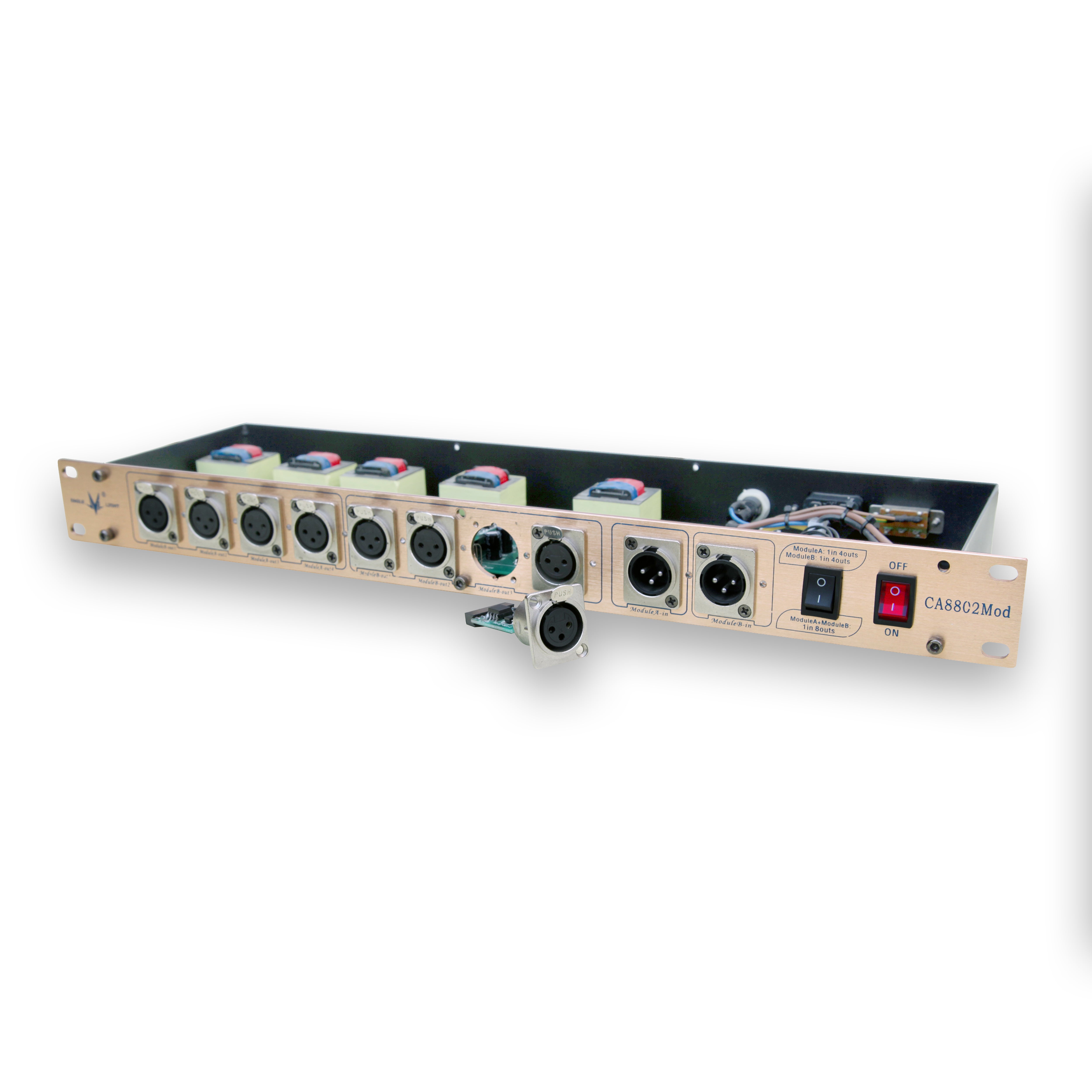

Modular Design for Easy Maintenance: All input and output channels adopt a modular structure. Users can replace any single input or output module individually without opening the device chassis, making on-site emergency maintenance faster and more convenient, and adding an extra layer of stability for field engineering applications.
-
Dual Operating Modes (Free Switching):
-
Single Group Mode: 1 input, 8 outputs (ideal for expanding the number of output ports)
-
Dual Group Mode: 1 input, 4 outputs (suitable for multi-controller setups and applications requiring more independent DMX ports)
-
-
Full Electrical Isolation: Each input and output channel is fitted with an independent power supply and professional photoelectric isolation, realizing complete electrical isolation between channels to eliminate cross interference.
-

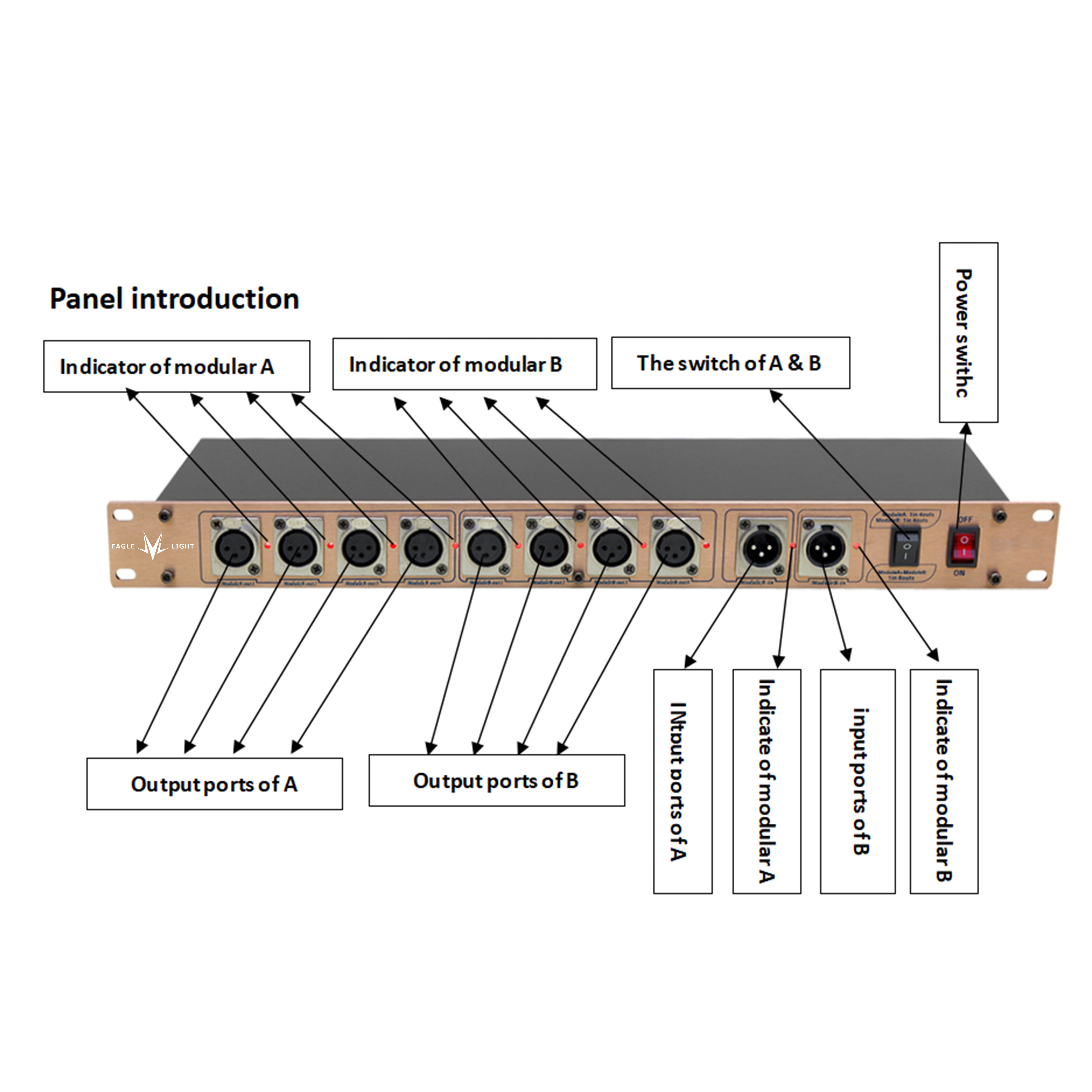

Intuitive Status Indication: Each module is equipped with a high-brightness blue LED indicator, which integrates power status and signal transmission status, clearly displaying real-time working conditions for quick monitoring.
-
Stable Internal Power Supply: Built with a regulated transformer power supply, featuring higher durability and lower electromagnetic interference for consistent performance.
-
High-Quality Connectors: Equipped with silver metal 3-pin or 5-pin XLR connectors, offering enhanced structural strength and extended service life.
Application Scenarios
-
Stage performances, live concerts, music festivals, outdoor large-scale light shows
-
Theaters, bars, KTV lounges, banquet halls, professional wedding venues
-
Architectural lighting, landscape lighting, cultural tourism lighting engineering projects
-
Professional studios, exhibition halls, large-scale centralized lighting control systems
-
Engineering sites with strong electrical interference and strict long-distance transmission requirements
Technical Parameters
-
Professional modular DMX signal splitter, compliant with international standard DMX512 protocol
-
Each input and output channel powered by an independent regulated transformer, with dedicated photoelectric isolation for every module to avoid cross-channel interference
-

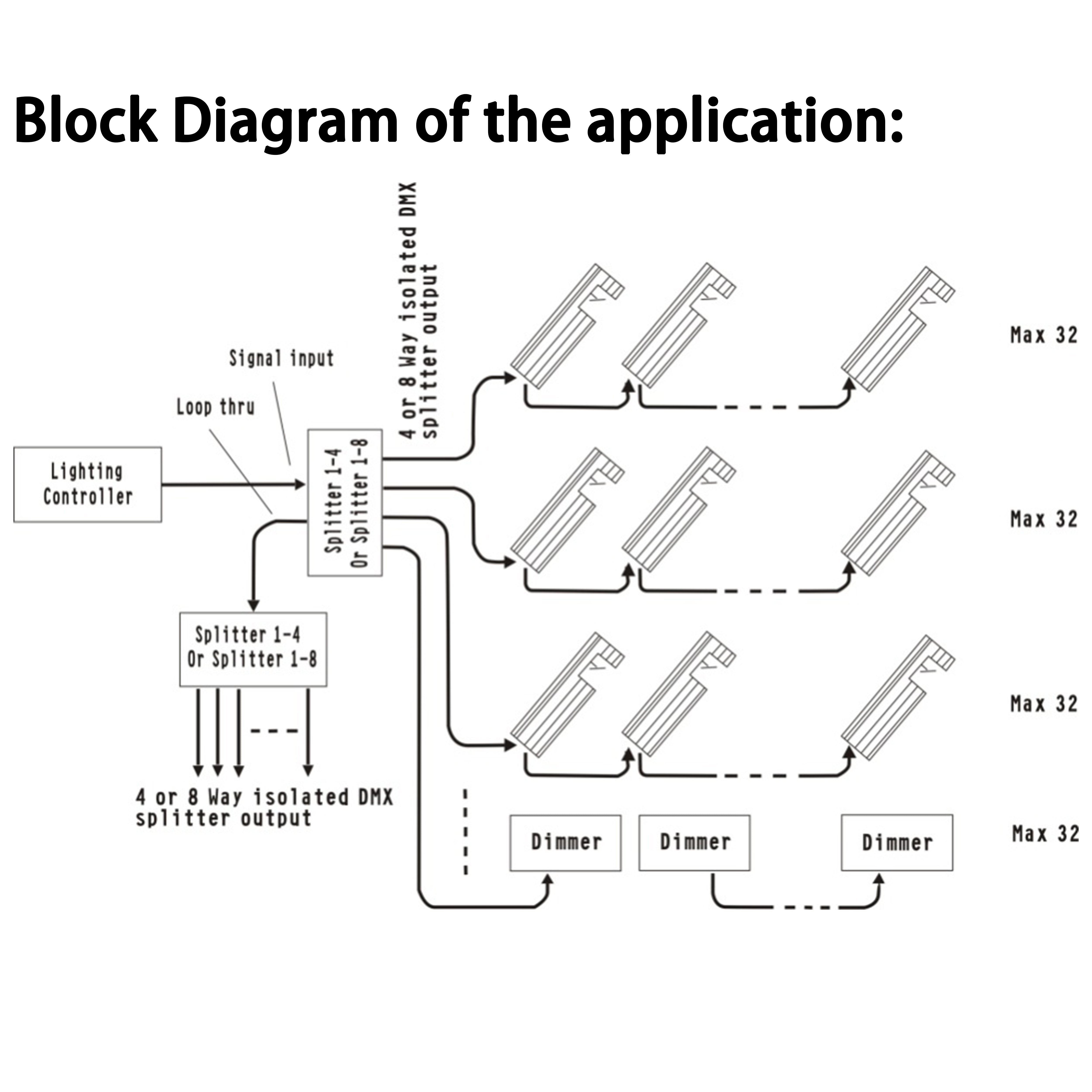

Reshapes and amplifies DMX512 signals, distributes single input signal into multiple independent outputs
-
Flexible dual working modes for free switching:
-
Dual Group Mode: 1 Input & 4 Outputs, perfect for multi-controller systems and diversified DMX port applications
-
Single Group Mode: 1 Input & 8 Outputs, designed for expanding the number of output ports
-
-
Modular input and output design, supports customizable 3-pin or 5-pin XLR connectors
-
Built-in signal indicators, photoelectric isolation, and high-stability durable transformer
-
Input-output isolation voltage: > AC3000V
-
Net Weight: 2.38KG
-
Product Size: 48.3×12.5×4.5 CM, 19" 1U standard rack mount
-
Gross Weight: 2.78 KG
-
Package Size: 56×16×8 CM
About Us

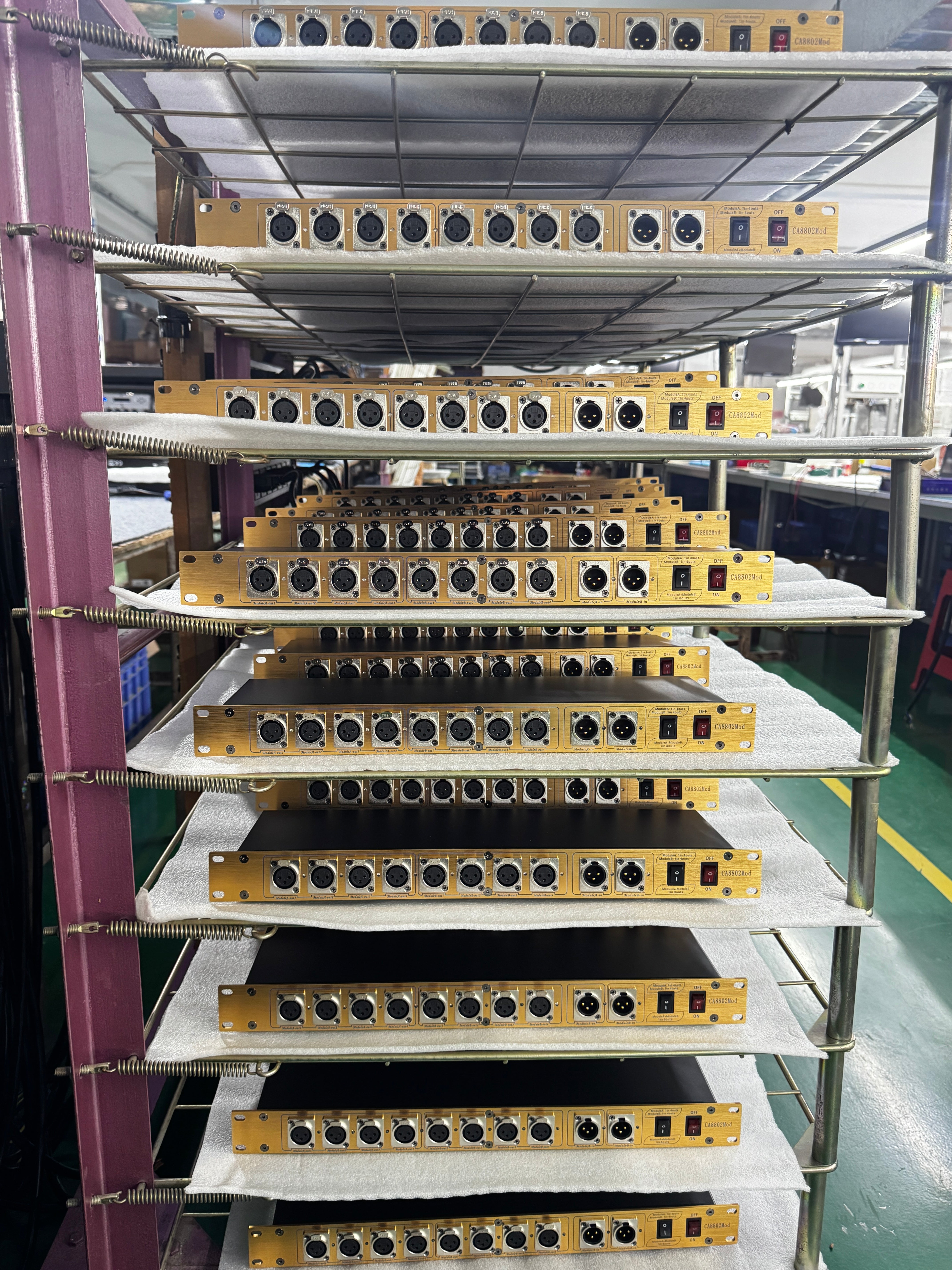

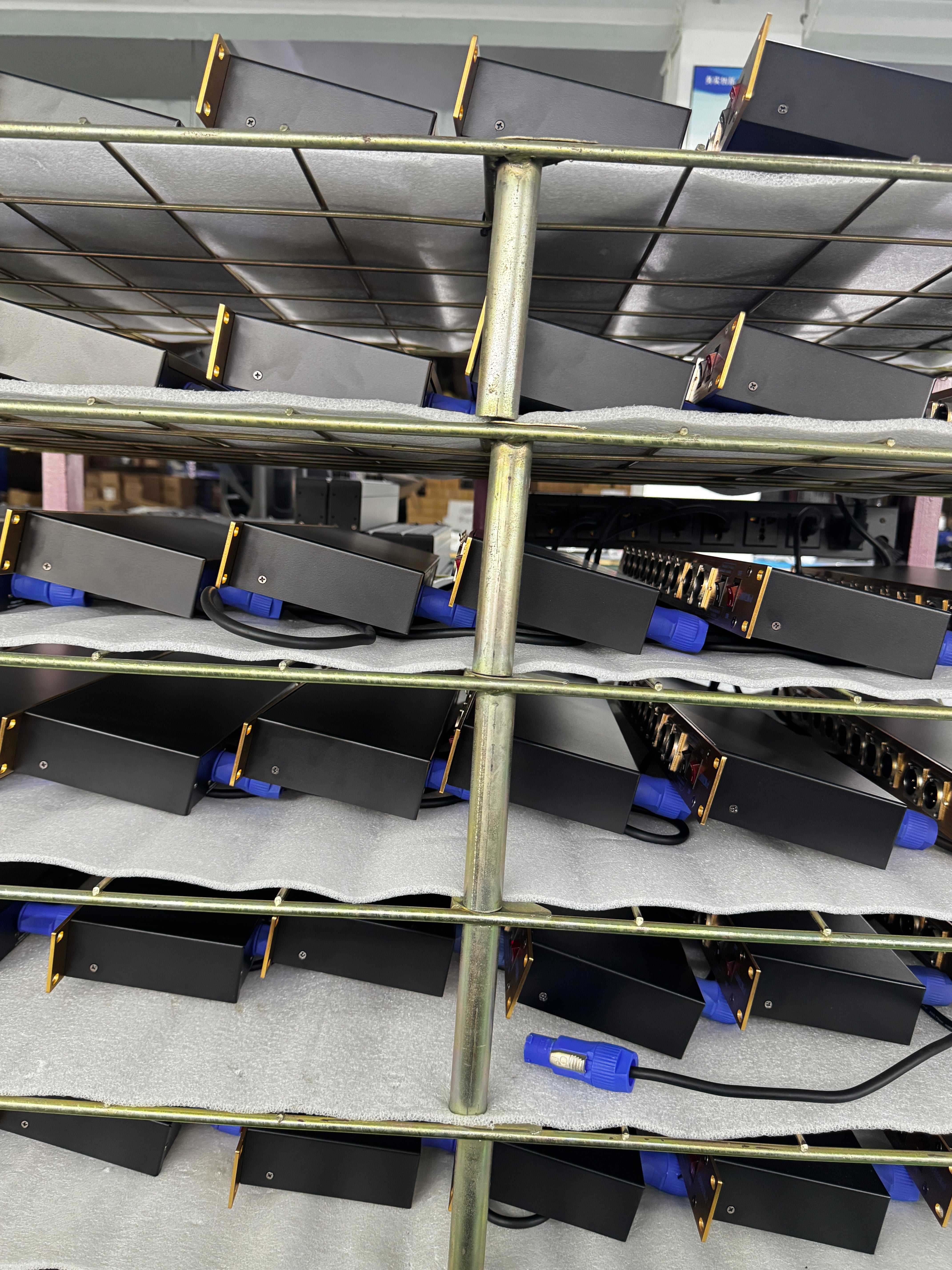

We are a professional original equipment manufacturer with independent R&D team and dedicated production lines. With years of in-depth experience in stage lighting control and signal equipment manufacturing, we are committed to providing stable, reliable and high-performance professional lighting accessories for global customers.
