8 Ways DMX Smart Splitter (Lighting Doctor) - Model: CA8802Pro-A
Product Overview
The CA8802Pro-A Intelligent Digital Signal Distributor is specially designed to reshape and amplify standard DMX512 digital lighting control signals, distributing a single input DMX signal into 8 independent DMX output channels. It features real-time DMX signal monitoring for all input and output ports, with an instant alarm function triggered when signal faults are detected.
The built-in signal monitoring module also supports quick detection of open circuits and short circuits in DMX signal lines, simplifying on-site troubleshooting. All input and output interfaces adopt independent power supply and high-voltage isolation technology, with a dedicated protection circuit equipped for each interface to prevent interface chips from damage caused by external surge currents.
This device is ideal for reshaping and amplifying DMX512 signals attenuated by long-distance transmission, enhancing the signal driving capability of the console ports (effectively expanding the number of controllable lighting fixtures), and providing full protection for high-precision digital lighting consoles to ensure stable system operation.
Key Features
-
Professional DMX512 Signal Processing: Precision reshaping and amplification for stable long-distance transmission
-
Real-time Monitoring & Fault Alarm: 24/7 signal tracking with instant alerts for line faults, open circuits and short circuits
-
High-Safety Isolation Protection: Industrial-grade high-voltage isolation for maximum equipment security
-
Full Console Protection: Safeguards expensive lighting consoles and stabilizes the entire control system
-
Wrong Cable Connection Protection: Built-in anti-misconnection protection for all input and output ports
-

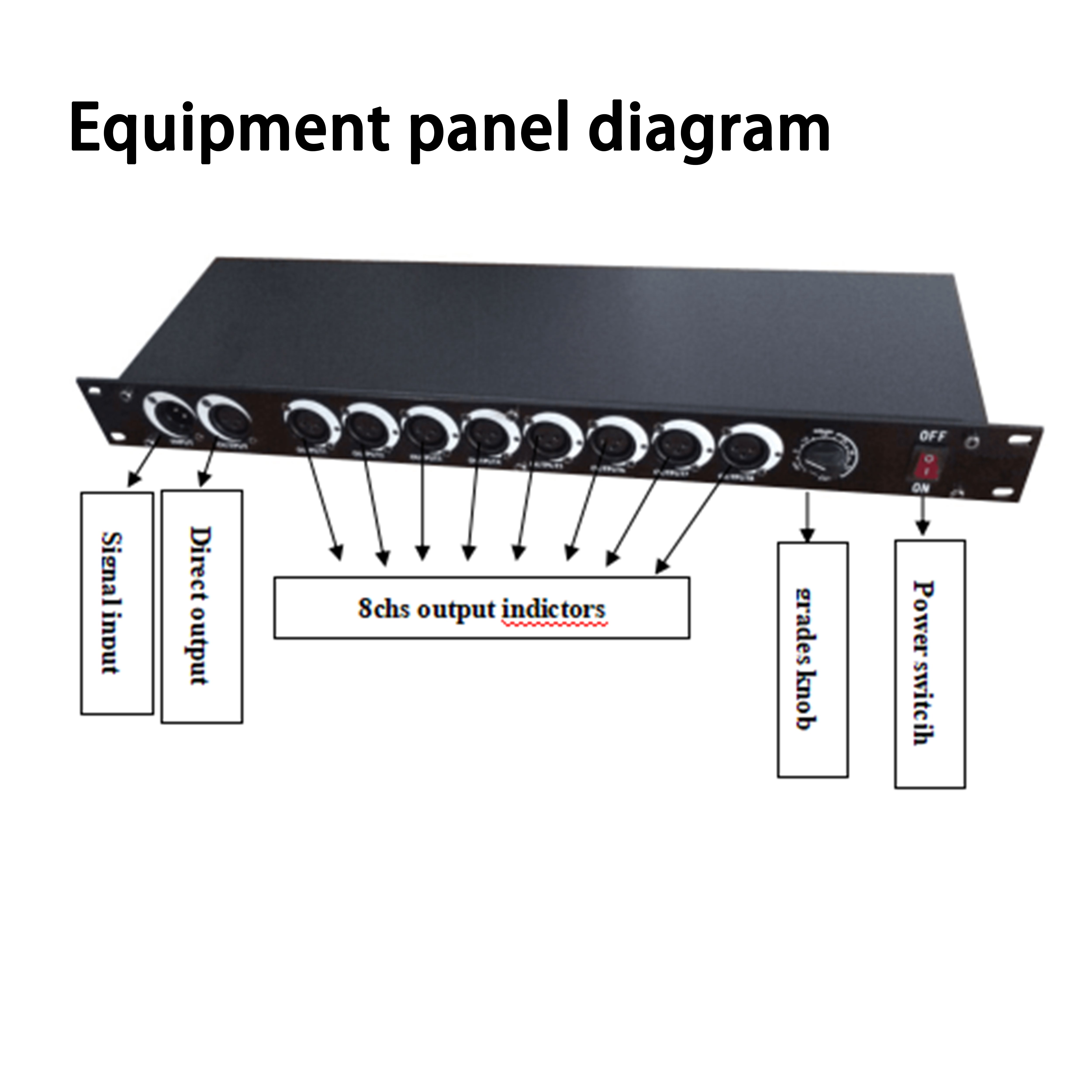

Channel Status Indication: Independent signal indicator for each output channel for intuitive monitoring
Application Scenarios
-
Stage performances, live concerts, music festivals, outdoor large-scale light shows
-
Theaters, bars, KTV lounges, banquet halls, professional wedding venues
-
Architectural lighting, landscape lighting, cultural tourism lighting engineering projects
-
Professional studios, exhibition halls, large-scale centralized lighting control systems
-
Engineering sites with strong electrical interference and strict long-distance transmission requirements
Technical Parameters
-
8 output channels with intelligent system fault reminder function
-
All input & output ports equipped with wrong cable connection protection
-
8 electrically isolated DMX signal output channels, with a dedicated signal indicator for each channel
-
Compliant with standard digital signal protocols: DMX512 & genuine RS-485
-

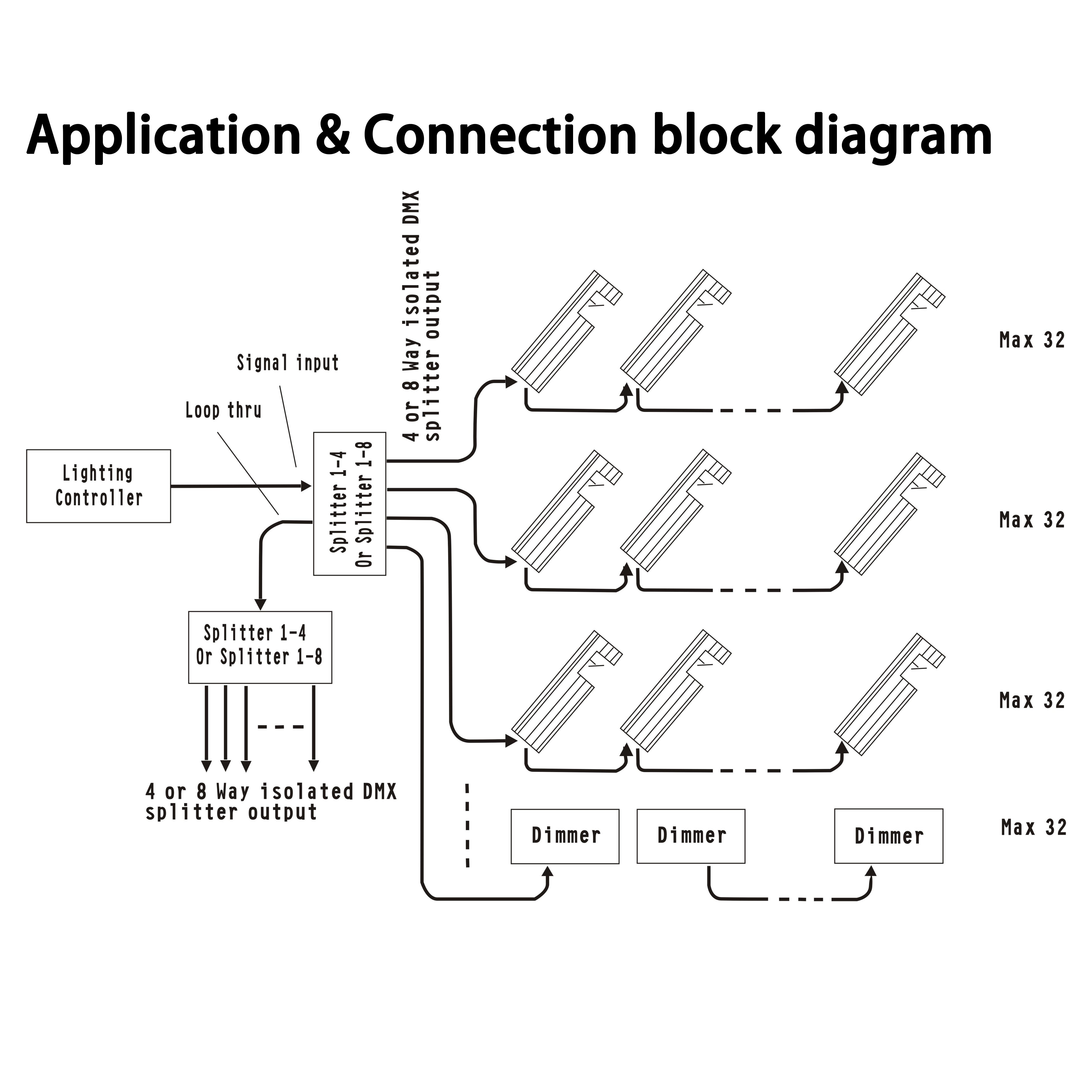

Standard configuration: 1 channel signal input, 8 channels direct independent signal output
-
Interface type: RS-485
-
Connector type: Input XLR-3-M, Output XLR-3-F
-
Input to output electrical isolation voltage: > AC3000V
-
Working voltage: AC90-240V, 50-60Hz (wide voltage universal)
-
Net weight: 1.9KG
-
Product size: 48.3×12.5×4.5 CM, 19” 1U standard rack mount
-
Gross weight: 2.3KG
-
Package size: 53.5×18.5×10 CM
