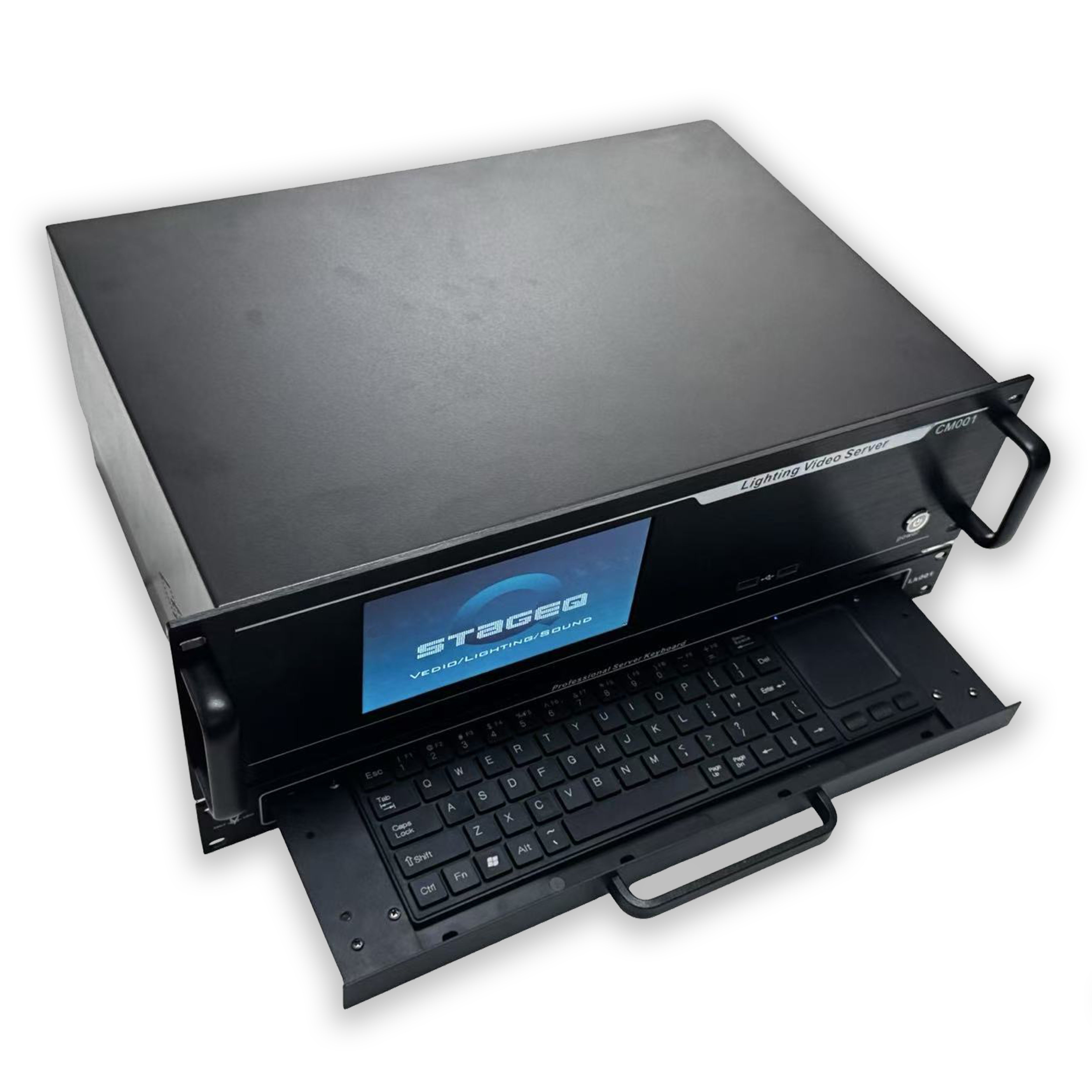

Video Lighting Server

Technical Specifications：

1) Industrial-grade motherboard, Intel processor, 8GB RAM, 128GB solid-state drive

2) 4 optically isolated DMX512 output ports, 2048 DMX512 channels, expandable to 32 outputs and 16384 channels via network

3) 4 optically isolated DMX512 input ports

4) 6 USB ports

5) 1 network port supporting TPC/IP protocol for high-speed data transmission

6) 1 audio and 1 microphone interface

7) 1 left channel TRS output jack

8) 1 right channel TRS output jack

9) 1 VGA and 1 HDMI high-definition video output interface, which can be used as a video source signal for large LED screens  10) 7-inch TFT color display screen

11) 7-inch capacitive touch screen

12) Can be paired with a 19-inch standard 1U height industrial keyboard with mouse function

13) Pre-installed Windows 10 Professional operating system

14) Pre-installed intelligent control software

15) Supports recording and playback of all DMX512 signal devices

16) Supports Art-Net signal recording and playback

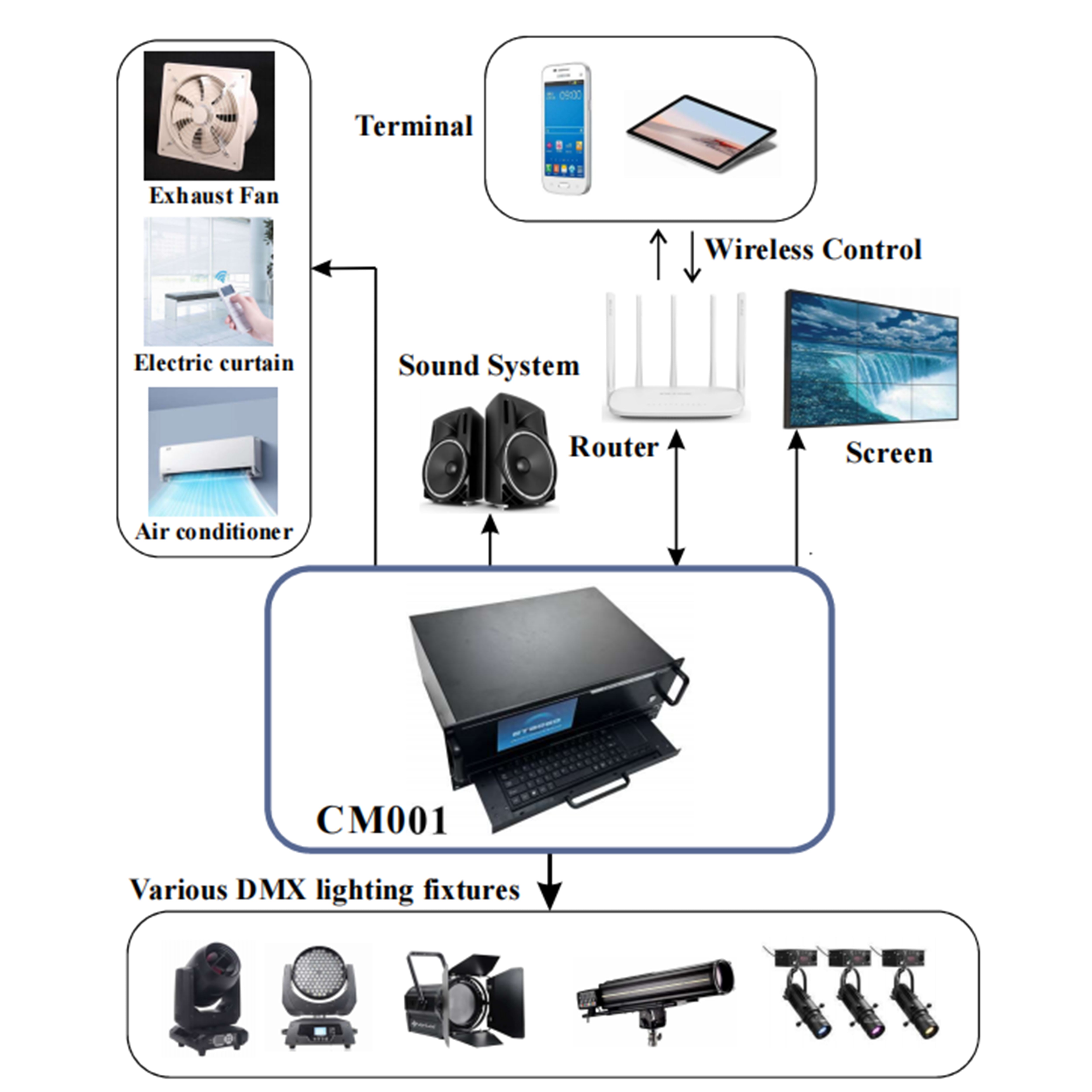

17) Supports intelligent central control mode, compatible with connecting and coordinating more peripheral devices

18) Supports playback scheduling function, allowing for timed playback and ending, single or loop playback, and other modes, enabling unattended, automatic timed operation, suitable for banquet halls, music restaurants, cultural tourism landscapes, outdoor lighting projects, etc.

19) Enables one-key control of light shows, stage effects, intelligent electrical cabinets, and other equipment for coordinated control

20) Enables integrated synchronous control and operation of audio, video, lighting, and intelligent control

21) Supports screen splitting and simultaneous playback of multiple videos

22) Allows scaling and shifting of the output video size

23) Allows video preview

24) Timeline performance editor for precise matching and playback of different materials

25) Automatic startup of intelligent control software

26) Supports wireless control via mobile phones and tablets, and connection control via central control equipment

27) Standard 19-inch rack mount, 3U height
