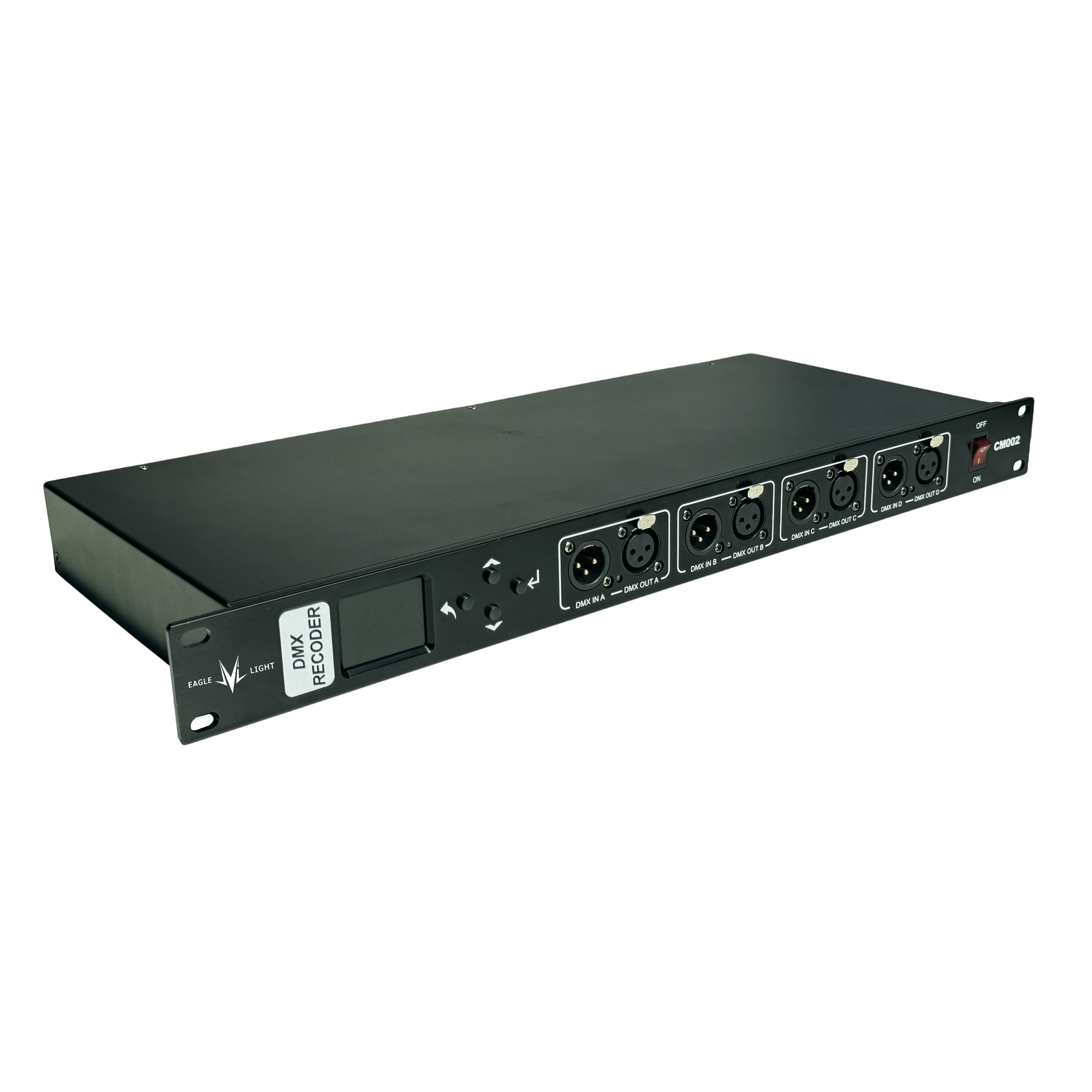

Audiop Synchronized Lighting Recorder
Product Overview：
This intelligent DMX512 recorder and player is a high-performance professional device integrating lighting signal recording, offline playback, audio signal output and intelligent remote control. The product strictly complies with the international standard
DMX512/1990 protocol, supporting simultaneous recording of 4 DMX512 signals. It can accurately capture complete lighting data of 512 channels output from a lighting console, and store program files in the standard 16GB TF memory card. It realizes unattended functions such as automatic operation without a console, loop playback and one-key light show. It is widely used in stage performances, wedding ceremonies, bar shows, exhibition hall lighting, landscape lighting and various fixed lighting engineering applications.
The unit is equipped with one 3.5mm audio output interface and two independent TRS Cannon output sockets for left and right channels, meeting the audio output requirements in professional scenarios. It supports long-distance balanced transmission with strong anti-interference capability, and can be directly connected to mixers, power amplifiers and professional audio systems.
In terms of intelligent control, the device supports wireless recording, editing and playback control via a tablet APP, allowing intuitive management of lighting programs through mobile terminals, greatly simplifying on-site operation.

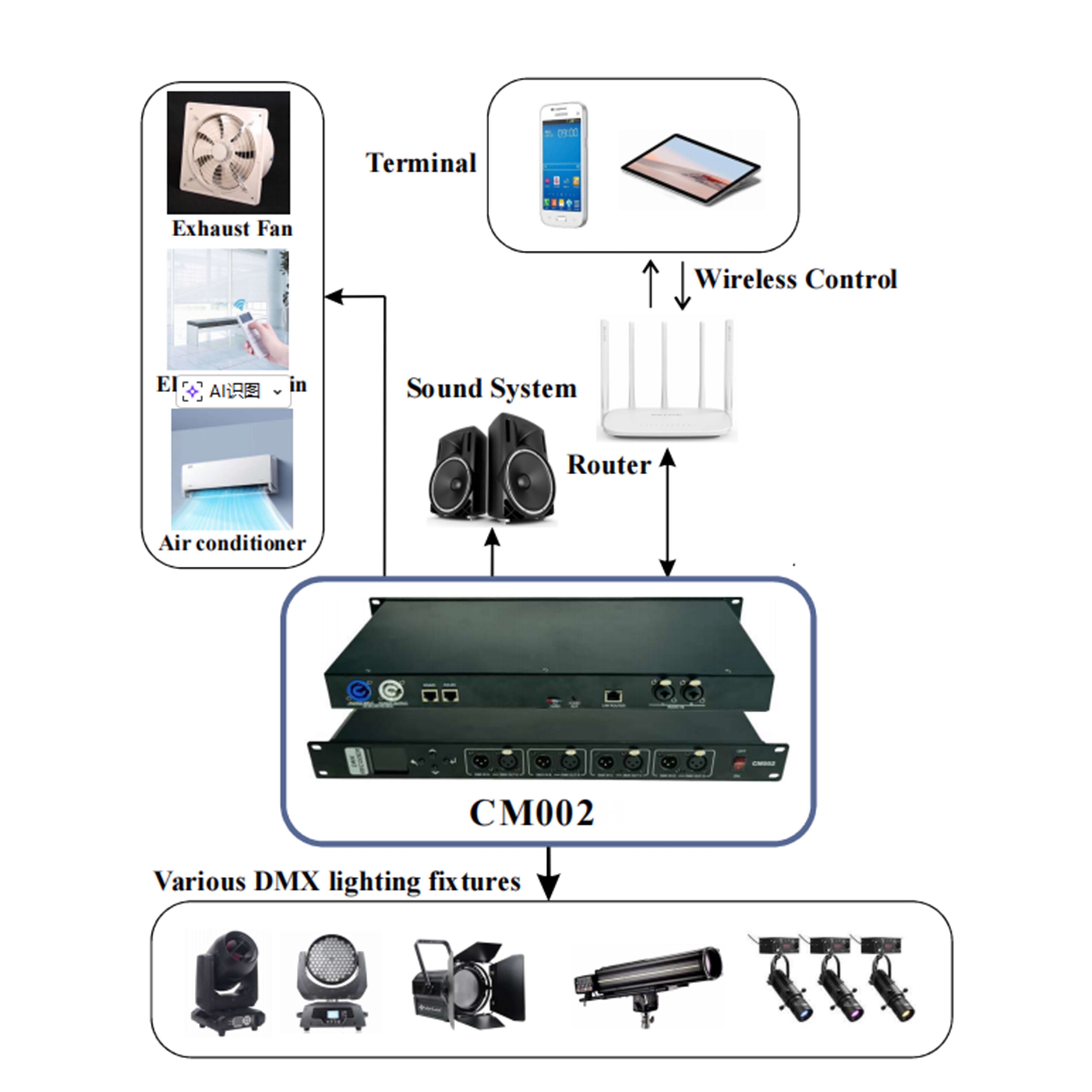

It also features strong expandability and compatibility: it can receive commands from a third-party central control system for centralized control, and actively send commands to control external devices. It supports seamless integration with intelligent central control systems, audio-visual systems and lighting matrices, meeting the automated control requirements of modern intelligent venues, multi-function halls, theaters and commercial complexes.
The device features simple operation and stable performance, integrating multi-channel DMX512 recording & playback, multi-channel audio output, intelligent networking and central control linkage. It is suitable for quick on-site setup and can also be integrated into an overall intelligent control system, making it an ideal solution for automated, integrated and intelligent lighting control.
Technical Specifications

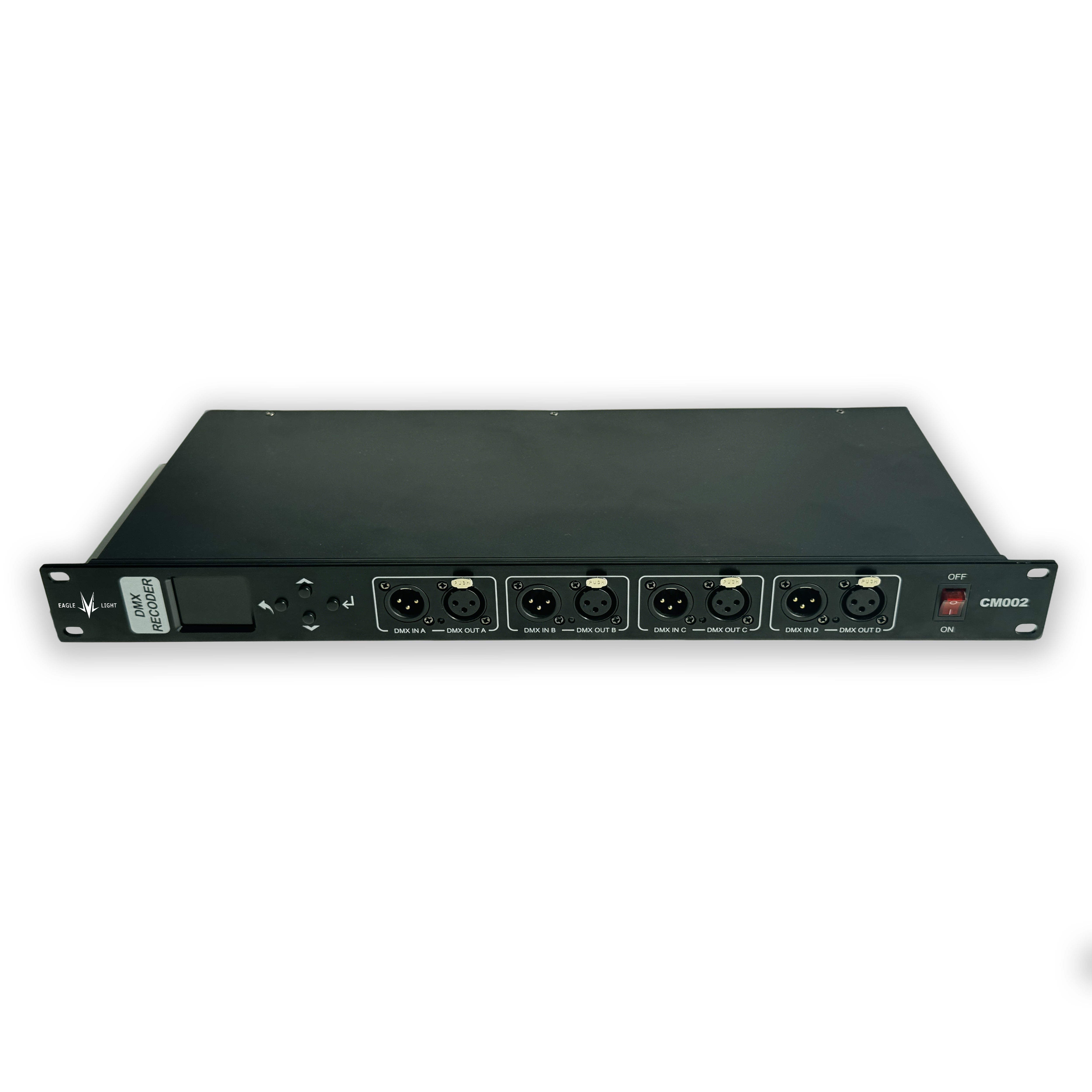

1）4 optically isolated DMX512 output ports, 2048 DMX512 channels
2）4 optically isolated DMX512 input ports

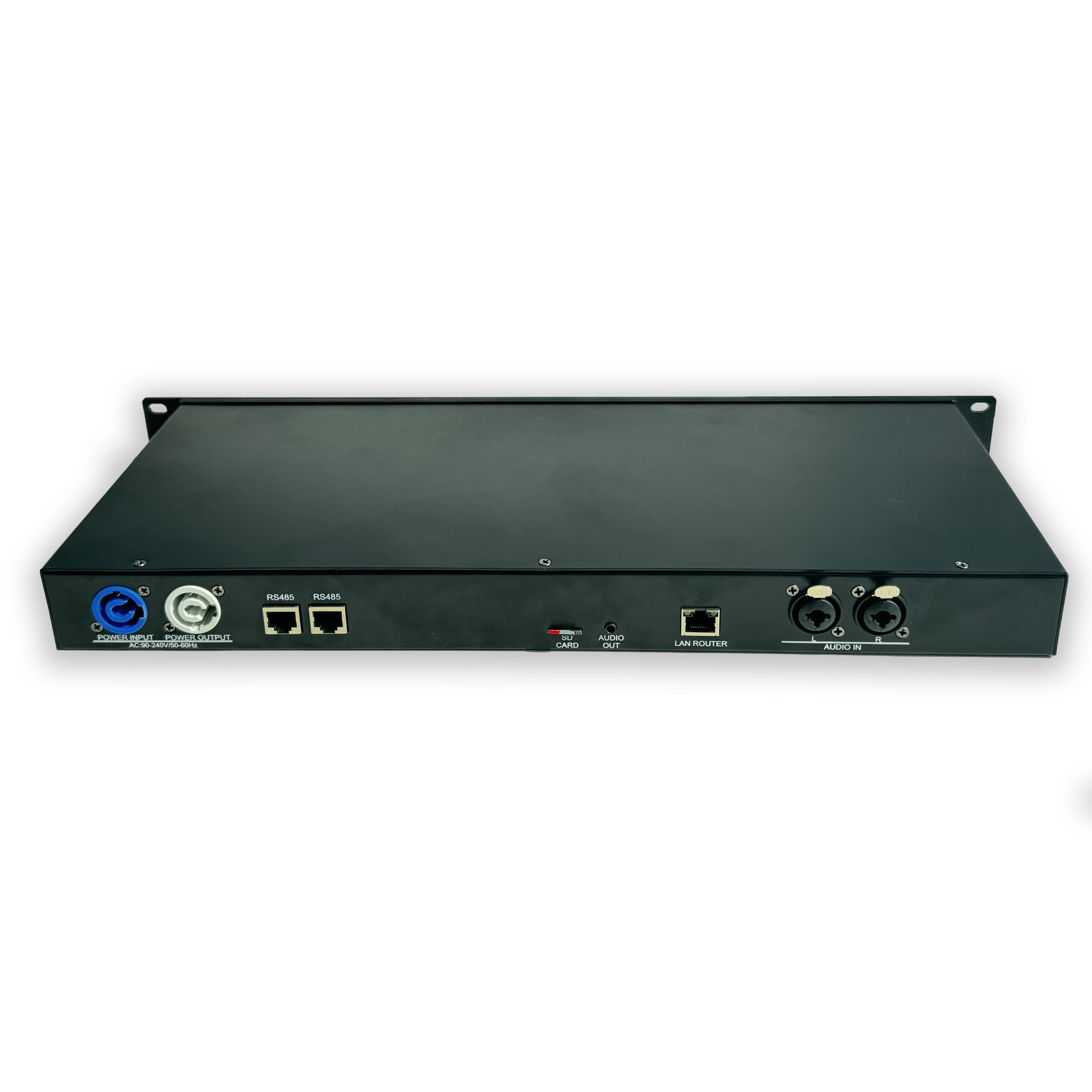

3）1 Ethernet port supporting TCP/IP data transmission
4）1 3.5mm audio interface
5）1 16GB TF card
6）2 RS485 interfaces
7）1 left-channel TRS output connector
8）1 right-channel TRS output connector
9）Supports recording and playback for all DMX512 signal devices
10）Supports intelligent central control mode, compatible with more peripheral devices for coordinated operation
11）Suitable for banquets, music bars, cultural tourism landscapes, outdoor lighting projects and more
12）Enables one-key control for coordinated operation of light shows, stage effects, intelligent electrical cabinets and other equipment
13）Supports wireless control via mobile phones and tablets, as well as control via connected central control equipment
14）Standard 19-inch rack, 1U height
