Introduction

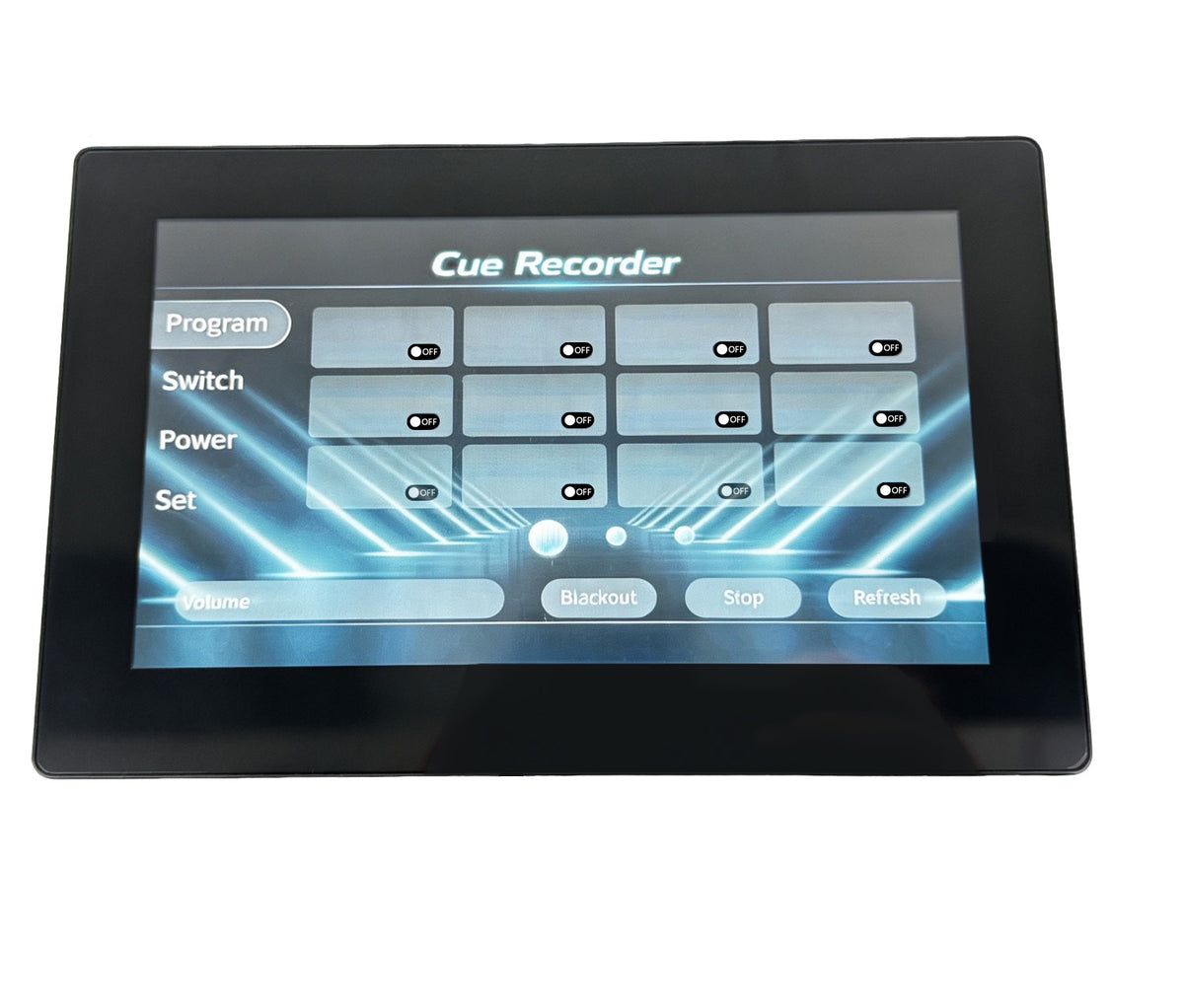

  The 7-inch Super Smart Panel is a highperformance professional device integrating lightingsignal recording, offline playback, audiosignal output and intelligent remote control. Fully compliant with the international DMX512/1990 protocol, it can record 2-channel DMX512 signals simultaneously. It accurately captures complete 512-channel lighting data output from lighting consoles and stores program files on the included 16 GB TF card. It supports stand-alone operation without a console, loop playback and one-touch light-show triggering. It is widely applied in stage performances, wedding events, bar entertainment, exhibition-hall lighting, landscape lighting and various fixed lightingengineering projects.

  The unit is equipped with one 3.5 mm audio output port for professional-grade audio-signal output. It supports longdistance balanced transmission with strong anti-interference performance, and can be directly connected to mixers, power amplifiers and professional audio systems.

For intelligent control, the device supports wireless recording, editing and playback control via tablet APP. Lighting programs can be intuitively managed on mobile terminals to greatly simplify on-site operations. It features excellent expandability and compatibility: it can receive commands from third-party centralcontrol systems for centralized management, and also send commands to control external devices. Seamless integration with intelligent central controllers, audio systems and lighting matrices is available, meeting the automation-control requirements of modern smart venues, multifunction halls, theatres and commercial complexes.

Technical Specifications

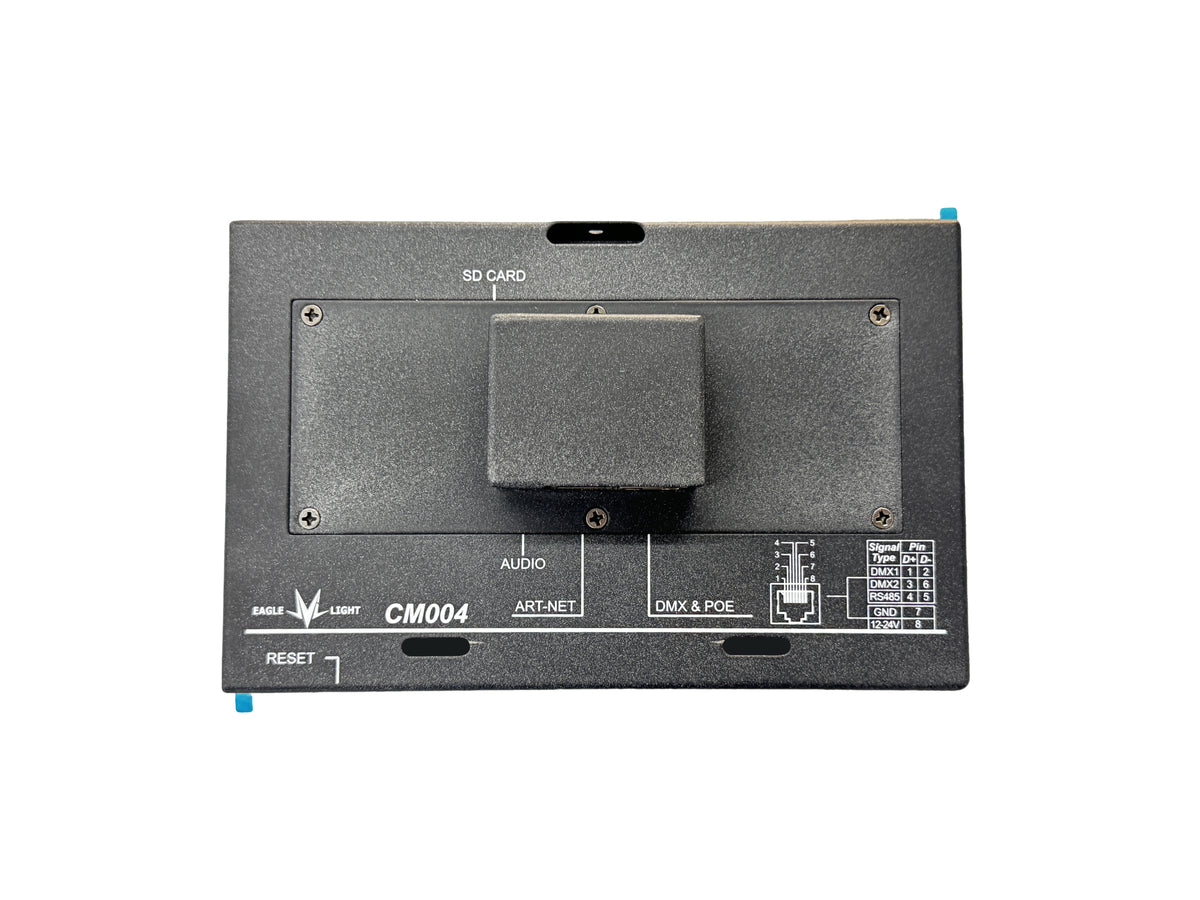

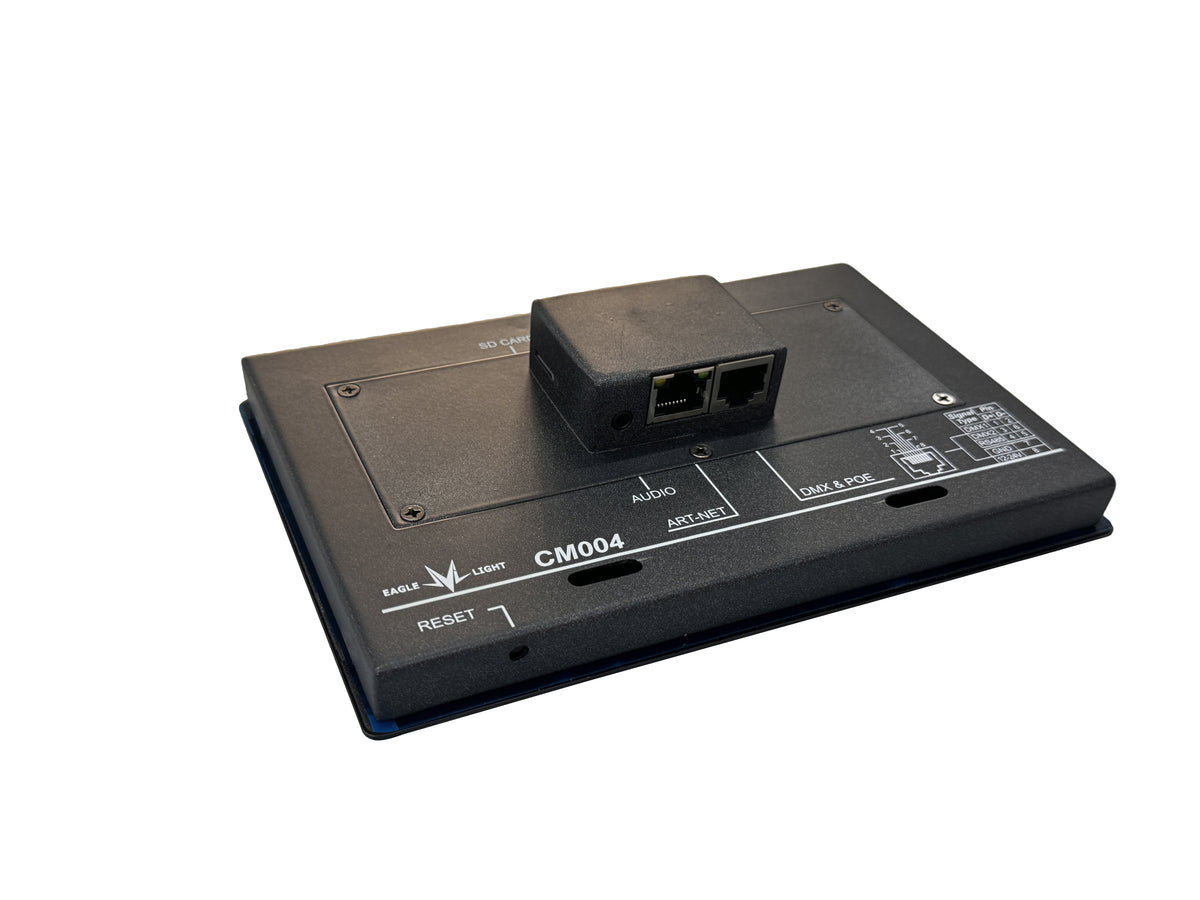

1) 2 DMX512 (Input & Output) ports, total 1024 channels

2) 1 Ethernet port without indicator light, supports DMX/RS485 signal transmission and power supply

3) 1 Ethernet port with indicator light, supports TCP/IP protocol for data transmission

4) 1 × 3.5 mm audio port

5) 1 × 16 GB TF card

6) 1 × RS485 interface

7) Supports recording and playback of all DMX512-compatible lighting devices

8) Supports intelligent central-control mode, compatible with more peripheral devices for coordinated operation

9) Suitable for banquet halls, music restaurants, KTV and other projects

10) One-touch synchronized control for light shows, stage special-effect equipment, intelligent power cabinets and other devices

11) Supports wireless control via mobile phones and tablets, as well as connection and control by central-control devices

12) Supports embedded wall-mount installation
