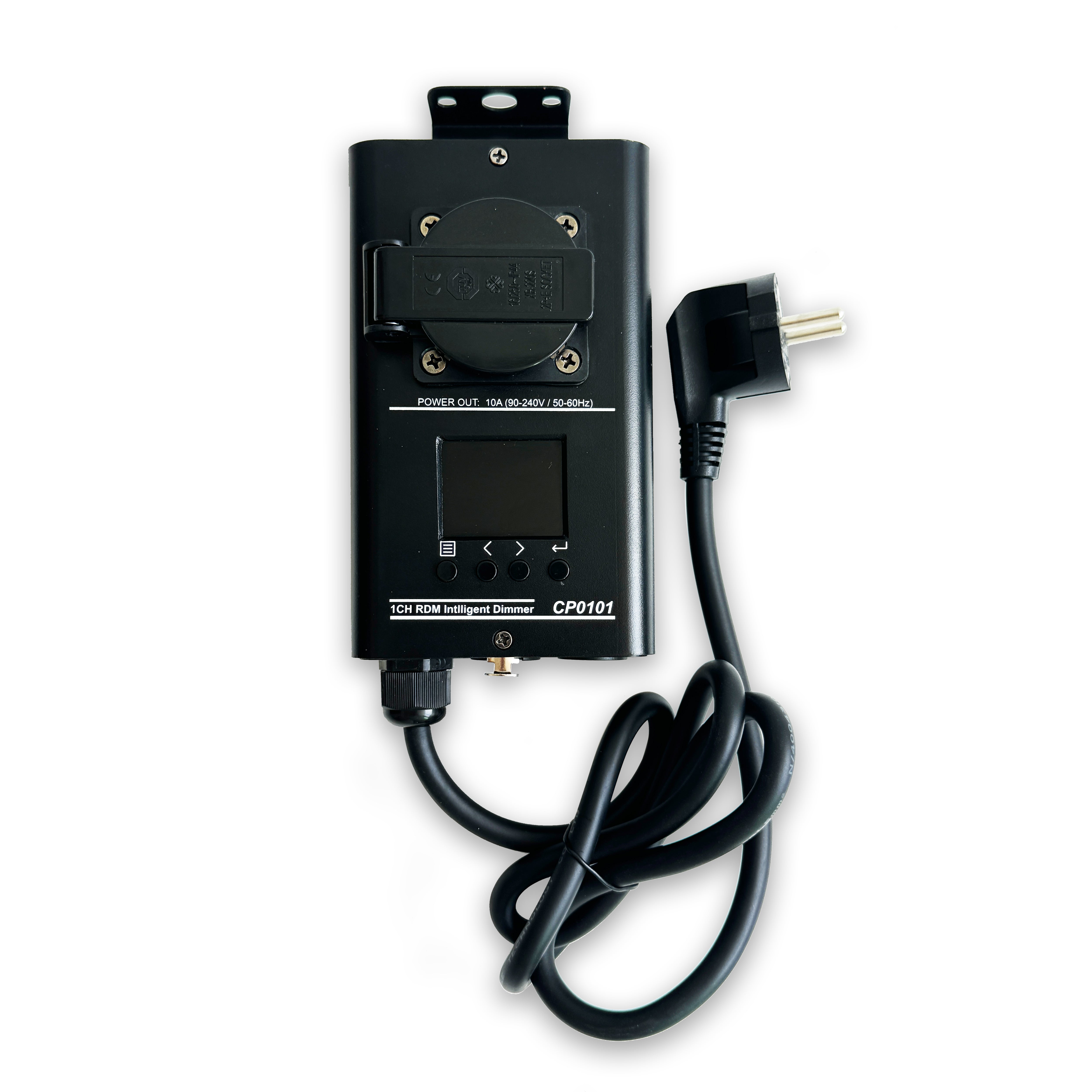

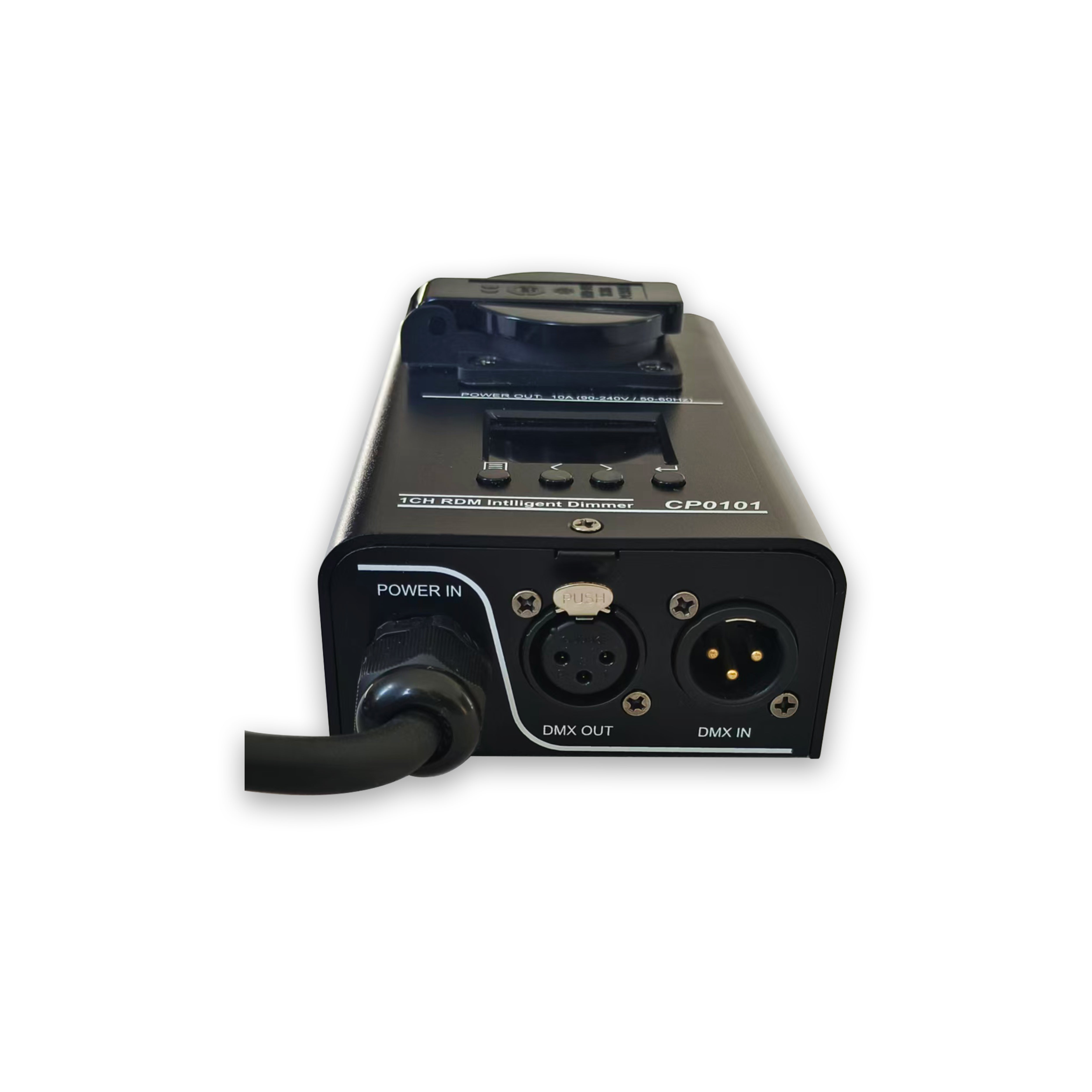

1-Channel RDM Intelligent Dimmer Controller

  The 1-channel intelligent dimmer is a dimming controller with 3 control modes: MANUAL (manual mode), CHASE (built-in program mode), and RDM & DMX channel mode. It can perform linear dimming for AC LED light strips or halogen bulbs. Each channel output socket is universal. Connect RDM & DMX signals using 3PinXRL male and female sockets, with a rated output current of 10A. This model is particularly suitable for fixed and mobile locations.

Technical Specification:

◆ It can perform linear dimming on the communication LED light strips;

◆ It can also perform linear dimming on halogen bulbs;

◆ Two output modes: dimming or switching;

◆ Supports standard DMX512 protocol control;

◆ Supports standard protocol RDM remote management;

◆ Due to the intervention of the Fade function, the "fade in fade out" effect of dimming can be achieved;

◆ 3 control modes: MANUAL manual mode, CHASE built-in program mode, RDM & DMX channel mode;

◆ Voltage range: AC90V - AC240V / 50-60Hz;

◆ Rated current: Output rated current 10A
