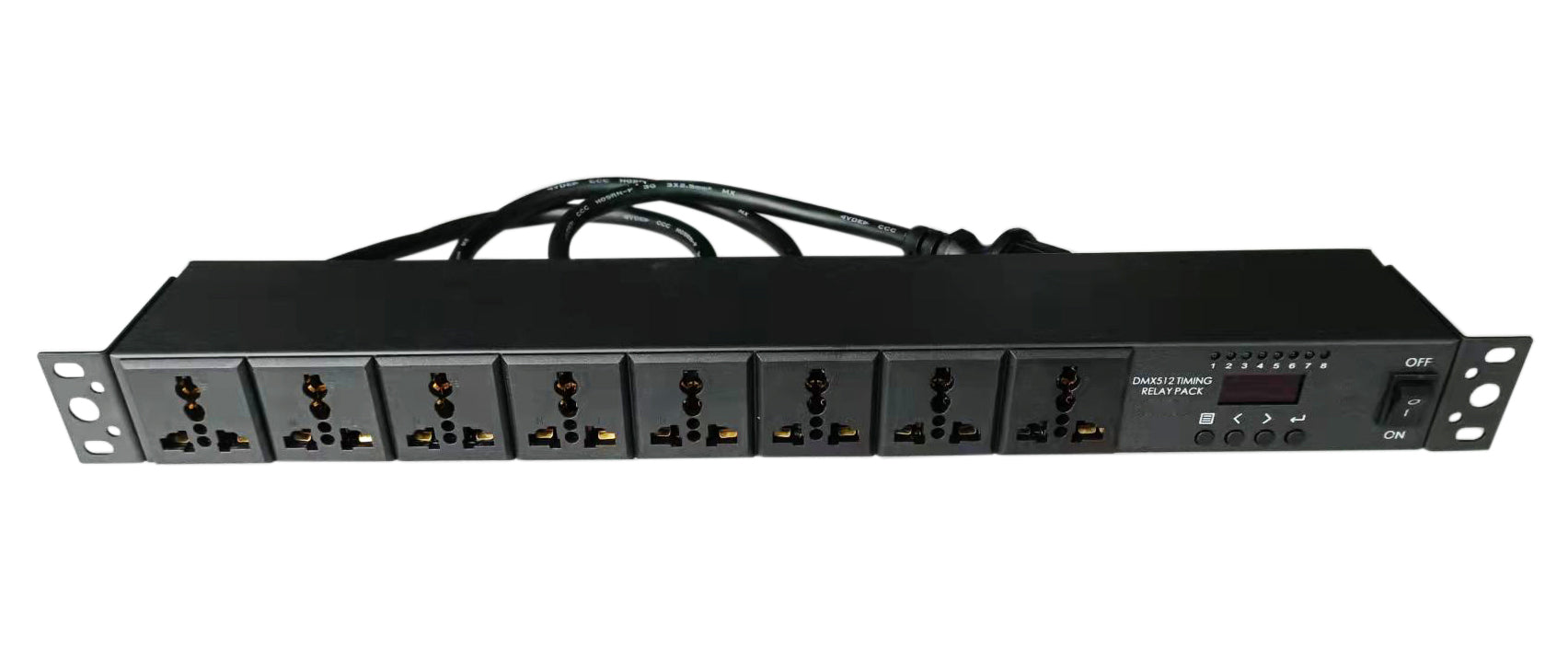

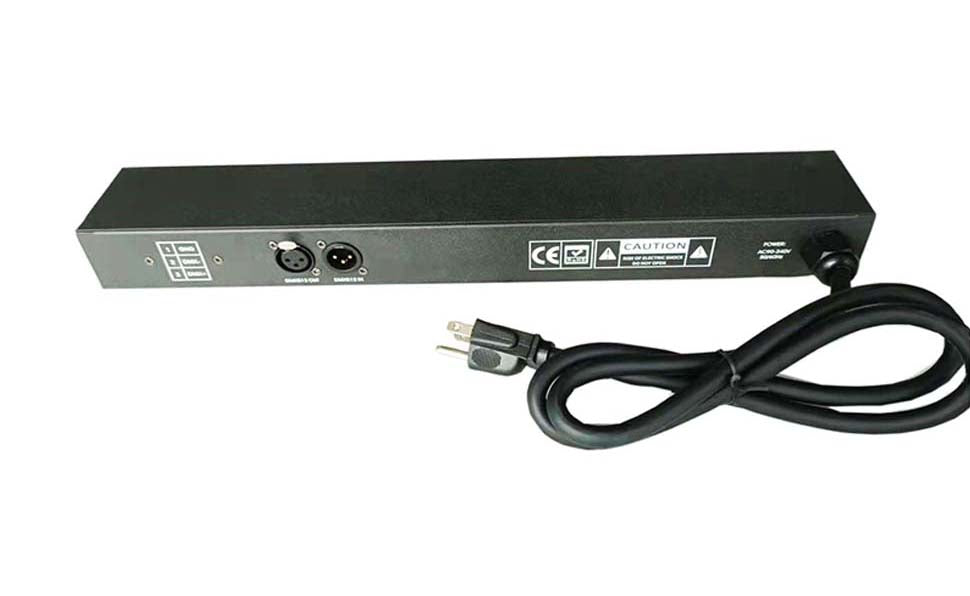

CP0802（Intelligent Power Supply Sequencer）
CP0802（Intelligent Power Supply Sequencer）
Sale price$0.00
Intelligent Power Sequencer
Product Overview
The "Sequencer + Smart Switch" is an innovative power management product. It integrates the functions of a power sequencer and smart switch control, supports multiple control methods, and can meet various on-site application requirements through flexible combinations of timing and smart switching functions.
Typical Applications
-
Audio system equipment has strict sequential requirements for power activation. If the devices are not turned on and off in the correct order, strong noise signals will be introduced into the power amplifier, which will then be amplified to produce harsh squeal. When the current is sufficiently high, it may damage or burn out the audio equipment.
-
Entertainment lighting facilities usually involve a large number of units (a typical mass‑equipment application scenario). If all these devices are controlled simultaneously only by a main switch, it will cause a large inrush current. This surge current may damage the lighting equipment or control system and, in severe cases, lead to the paralysis of the entire system. Installing this sequential power supply unit in the lighting system avoids equipment damage caused by current surges.
-
Many devices in smart hotels, smart homes, smart conference rooms, and other scenarios do not support remote control. The smart switch function can realize remote control for these devices, turning non-smart equipment into smart ones.
Technical Specifications
Application scope:
The "timed sequence mode" function of this product can delay the power switching of electrical equipment in sequence, avoiding damage to equipment due to unstable signals during power on and off periods, and also avoiding damage to electrical equipment due to large current surges generated during power on and off moments;
The "intelligent switch mode" function of this product can control 8 intelligent switches through DMX512 signal or RS485 signal.
Function features:
- Two working modes: "timing sequence mode" and "intelligent switch mode" are optional;
- Supports DMX signal control or RS485 signal control;
- Support control code learning function in RS485 signal mode;
- With 8 intelligent switch functions, each switch has a maximum output power of 1000W;
- Multiple installation methods: cabinet installation, light hook installation, screw fixed installation;
- The installation component has 4 adjustable directions, which can be installed from different directions, making it more convenient to use.
Working voltage: 90-240 volts/50-60 hertz.
