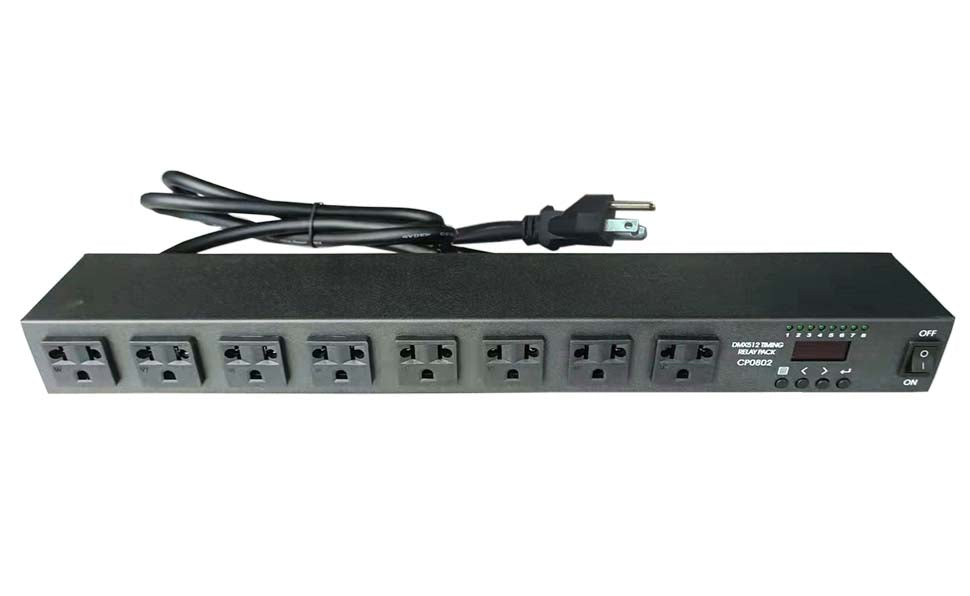

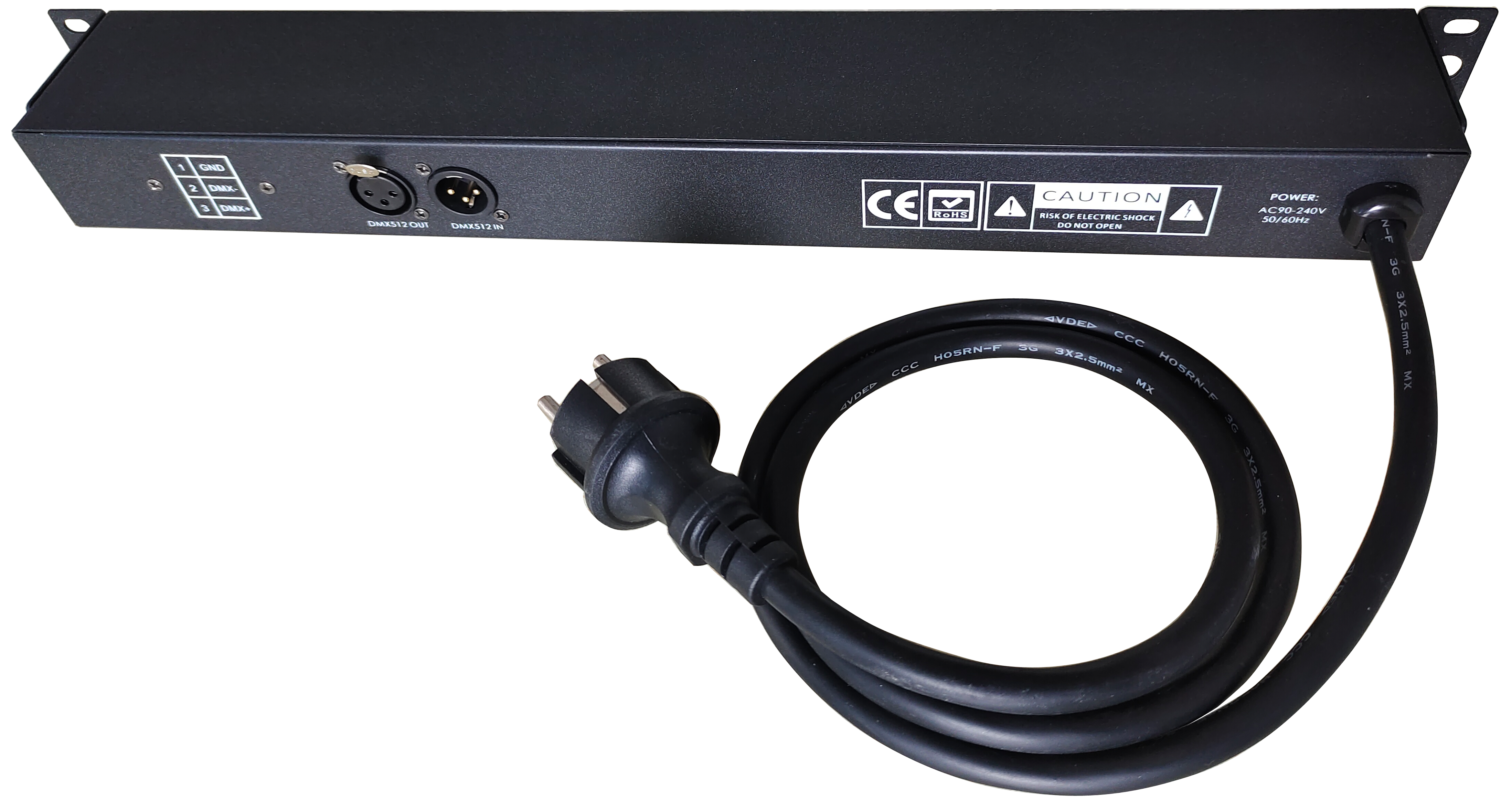

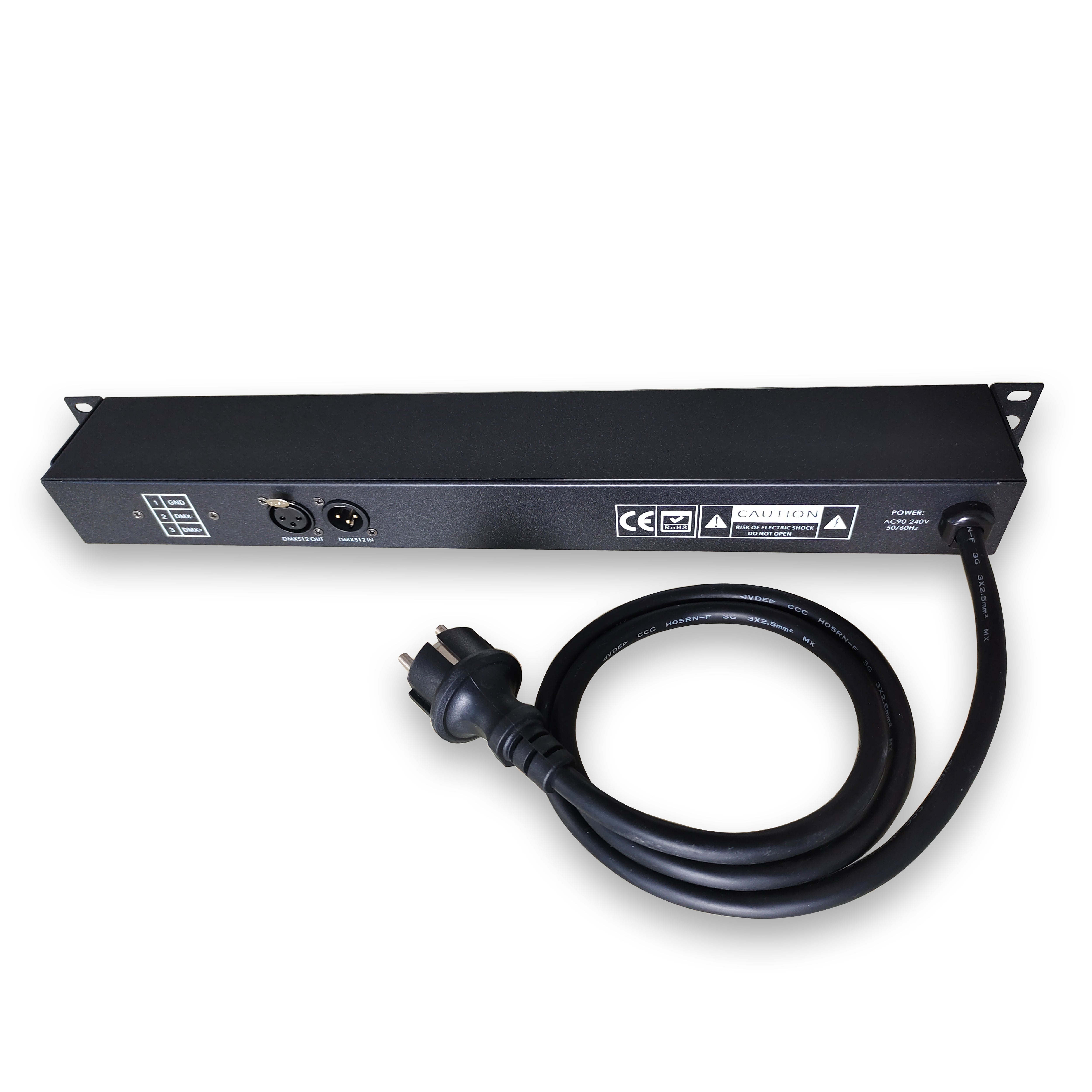

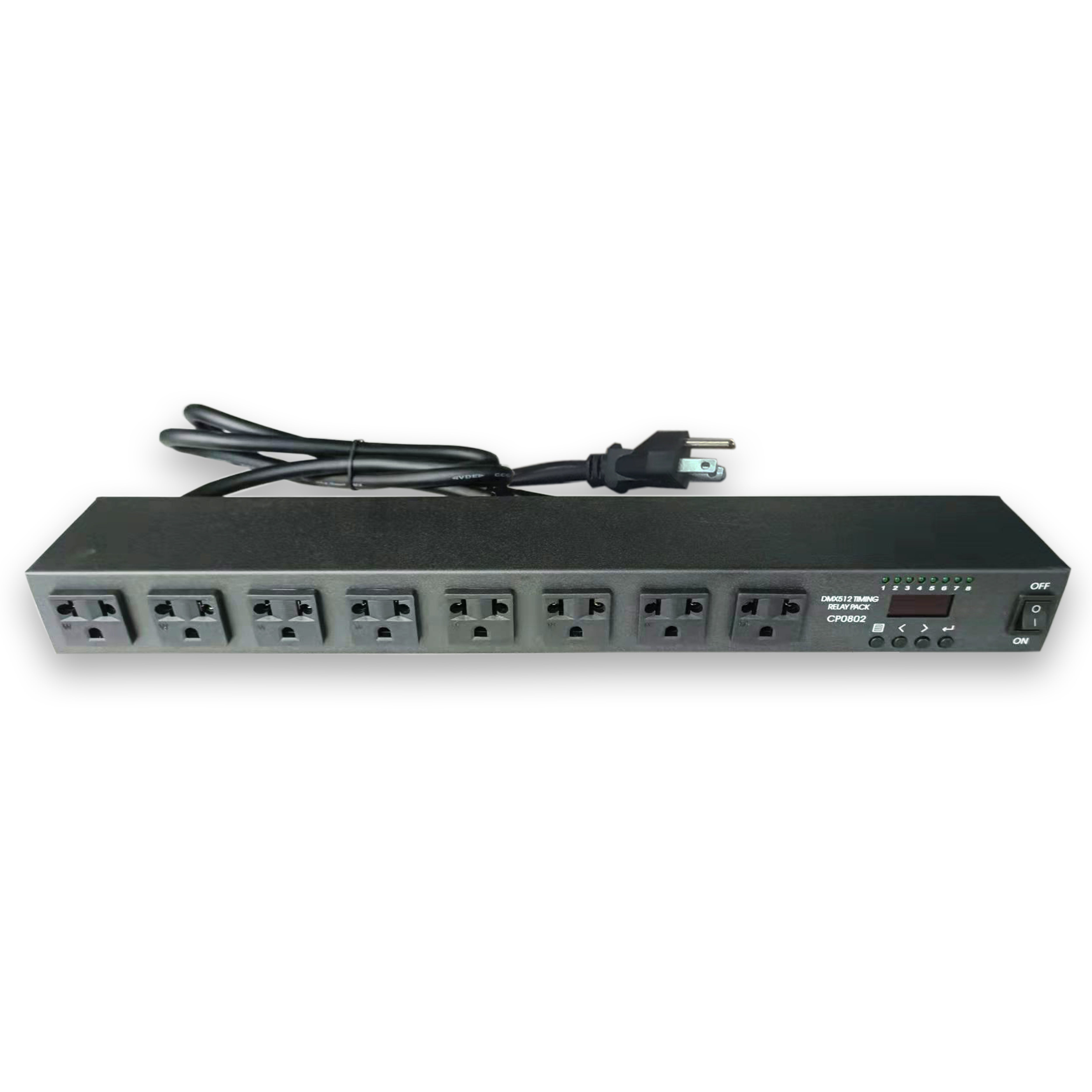

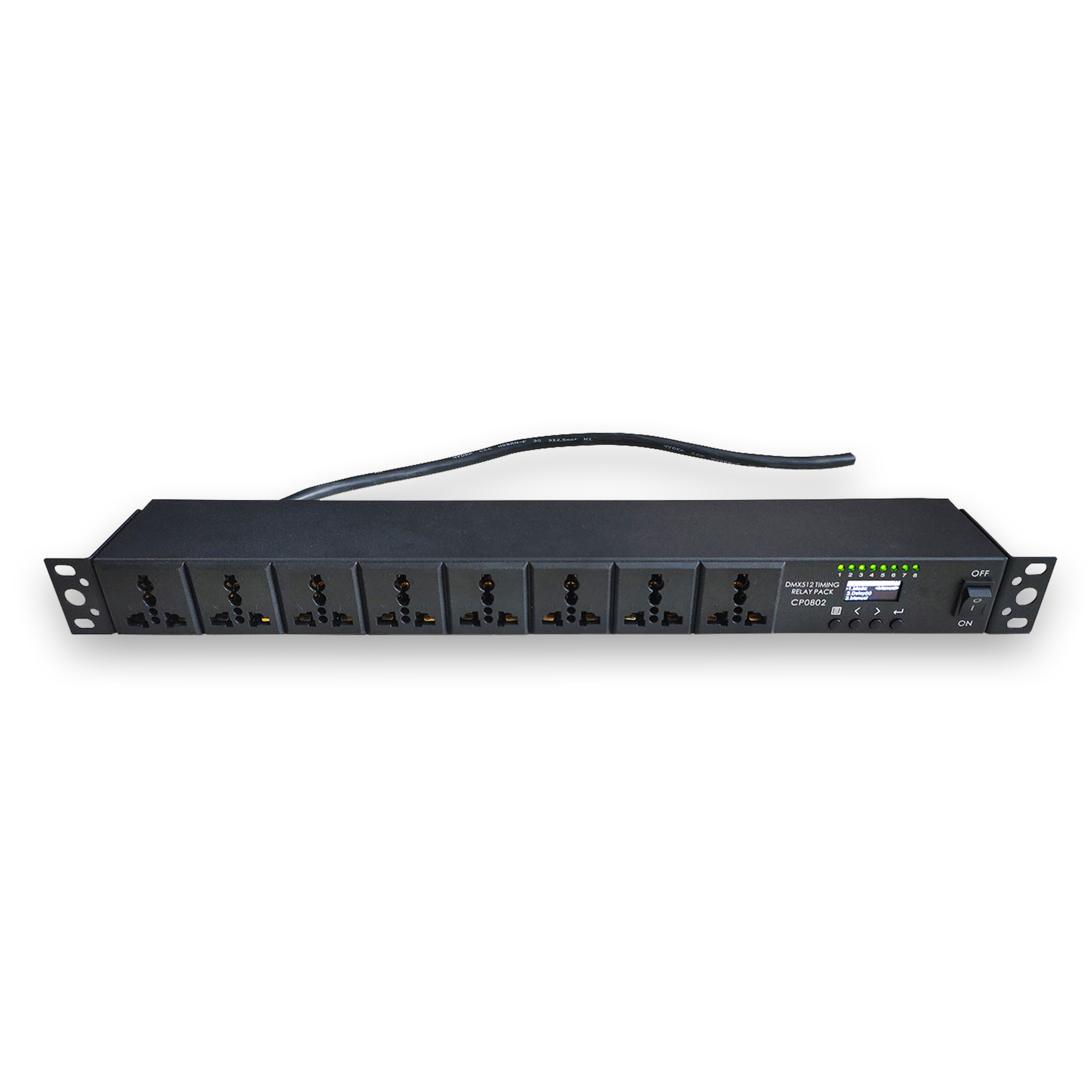

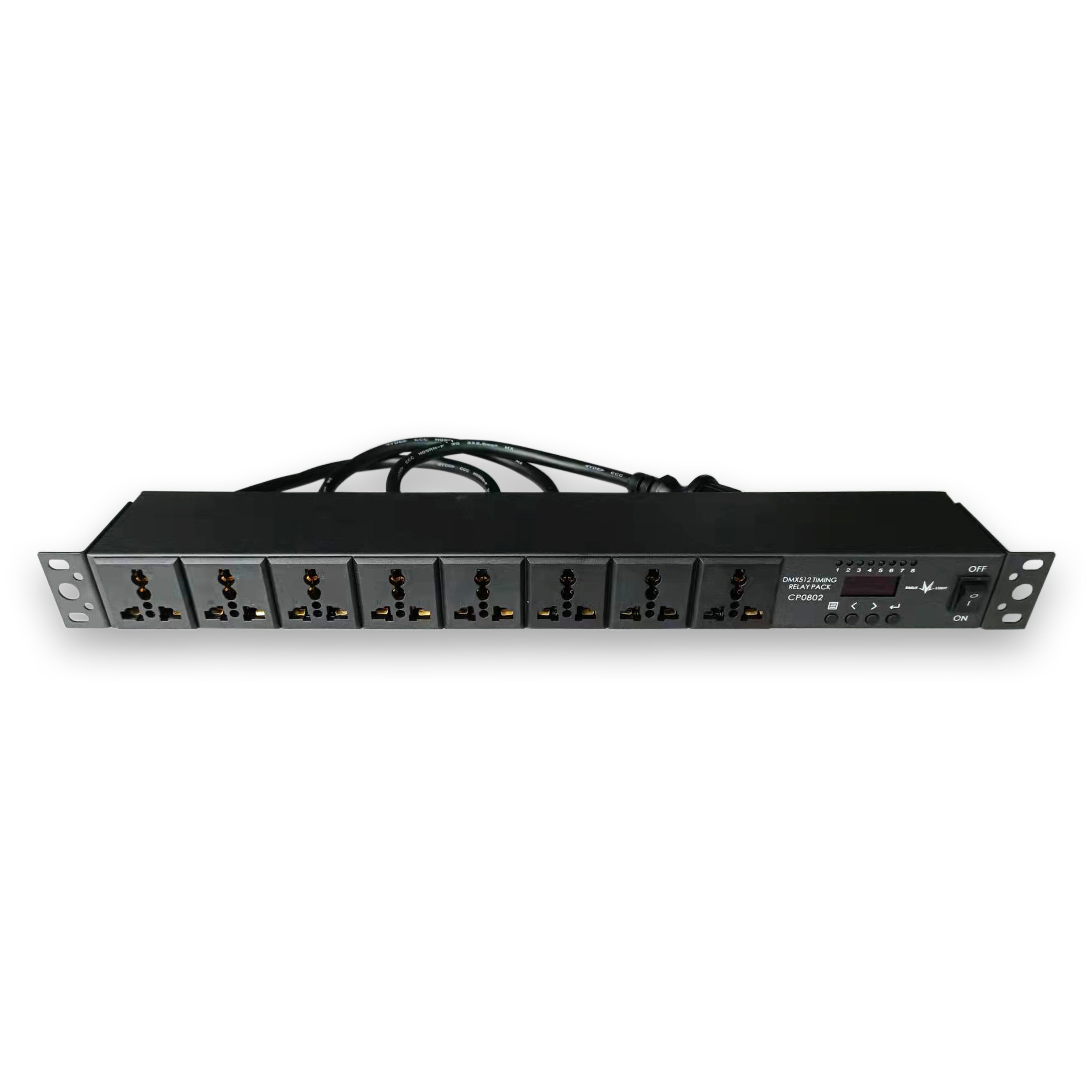

Intelligent Power Supply Sequencer

Product Overview

Typical Applications

1. Audio System Equipment: Audio system equipment has strict sequential requirements for power activation. If the devices are not turned on and off in the correct order, strong noise signals will be introduced into the power amplifier, which will then be amplified to produce harsh squeal. When the current is sufficiently high, it may damage or burn out the audio equipment.
2. Entertainment Lighting Facilities: Entertainment lighting facilities usually involve a large number of units (a typical mass‑equipment application scenario). If all these devices are controlled simultaneously only by a main switch, it will cause a large inrush current. This surge current may damage the lighting equipment or control system and, in severe cases, lead to the paralysis of the entire system. Installing this sequential power supply unit in the lighting system avoids equipment damage caused by current surges.
3. Smart Scenarios (Hotels, Homes, Conference Rooms): Many devices in smart hotels, smart homes, smart conference rooms, and other scenarios do not support remote control. The smart switch function can realize remote control for these devices, turning non-smart equipment into smart ones.

Technical Parameter

Scope of Application

• The "time sequencer mode" function of the product can delay the switching of the power supply of the electrical equipment in sequence, which can avoid damaging the equipment due to the unstable signal during the power on and power off period, and can also avoid damaging the electrical equipment due to the large current surge caused by the instant of power on and power off;
• The "intelligent switch mode" function of the product can realize the control of 8-way intelligent switch by DMX512 signal or RS485 signal.

Functional Features

• Two working modes: "sequencer mode" and "intelligent switch" mode are optional;
• Support DMX signal control or RS485 signal control;
• Support the learning function of control code in RS485 signal mode;
• It has 8-way intelligent switch function, and the maximum output power of each switch is 1000W;
• Various installation methods: cabinet installation, lamp hook installation, screw fixed installation;
• The mounting piece has 4 adjustable directions, which can be installed in different directions and is more convenient to use;
• Working voltage: 90-240v/50-60Hz.
