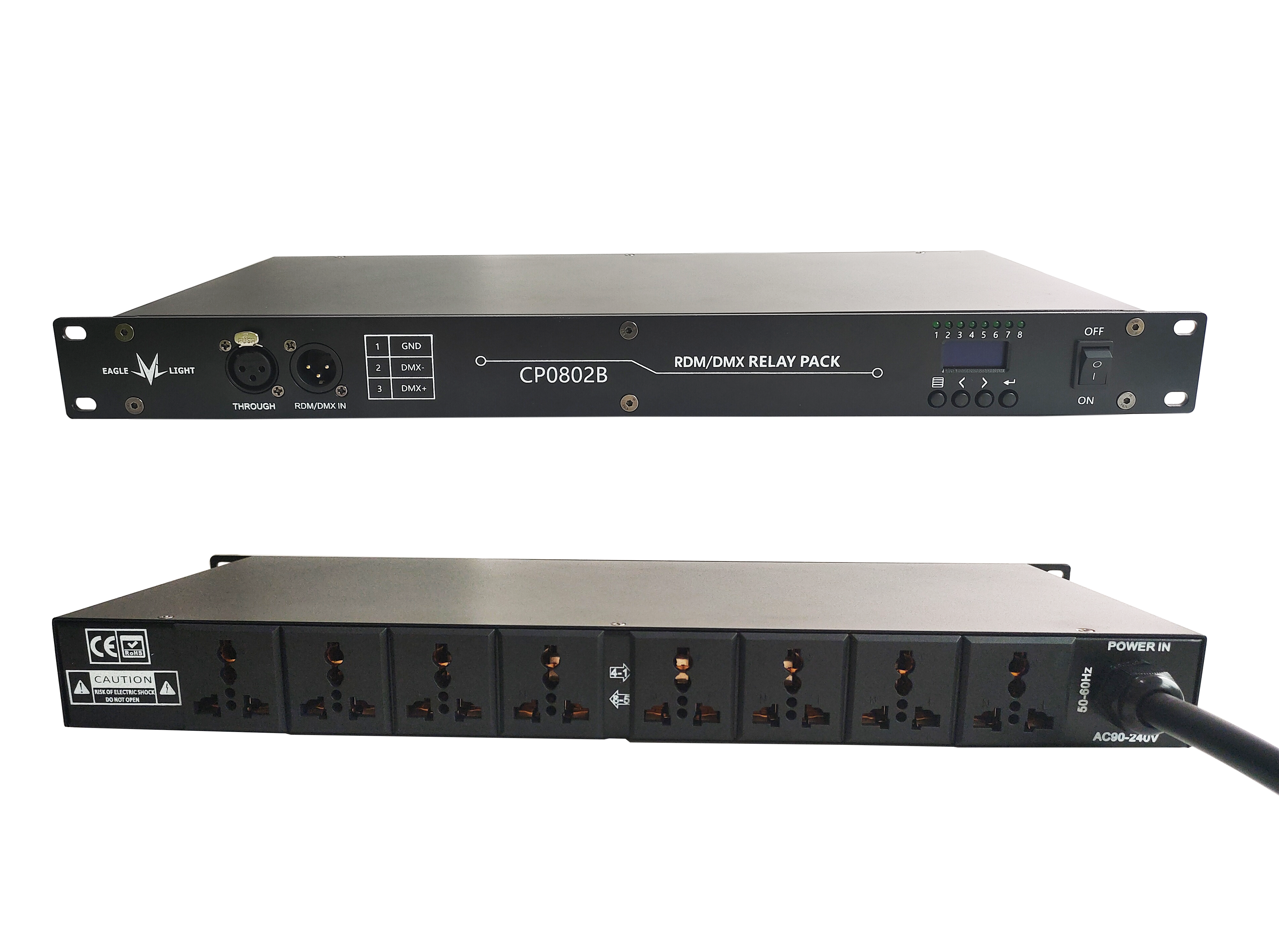

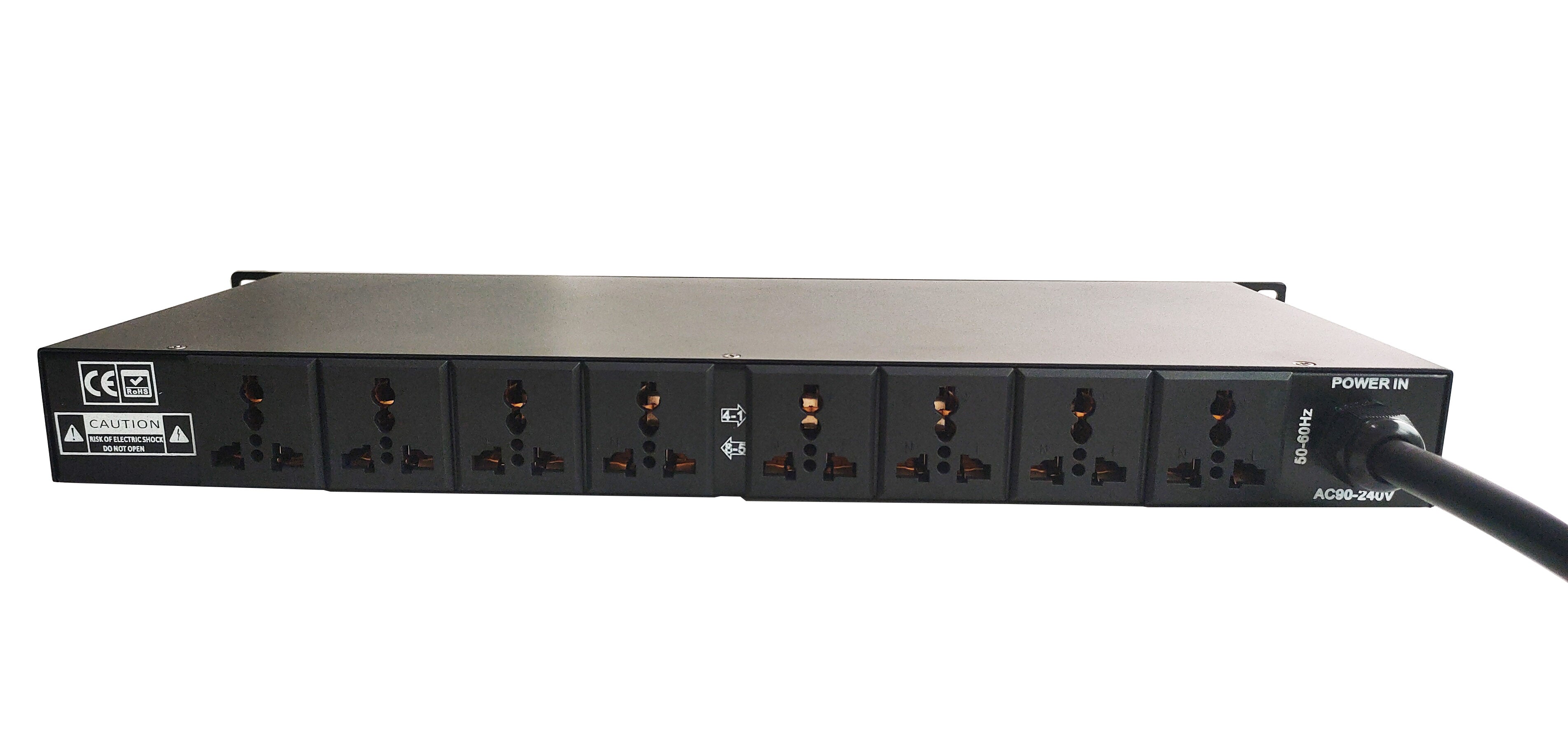

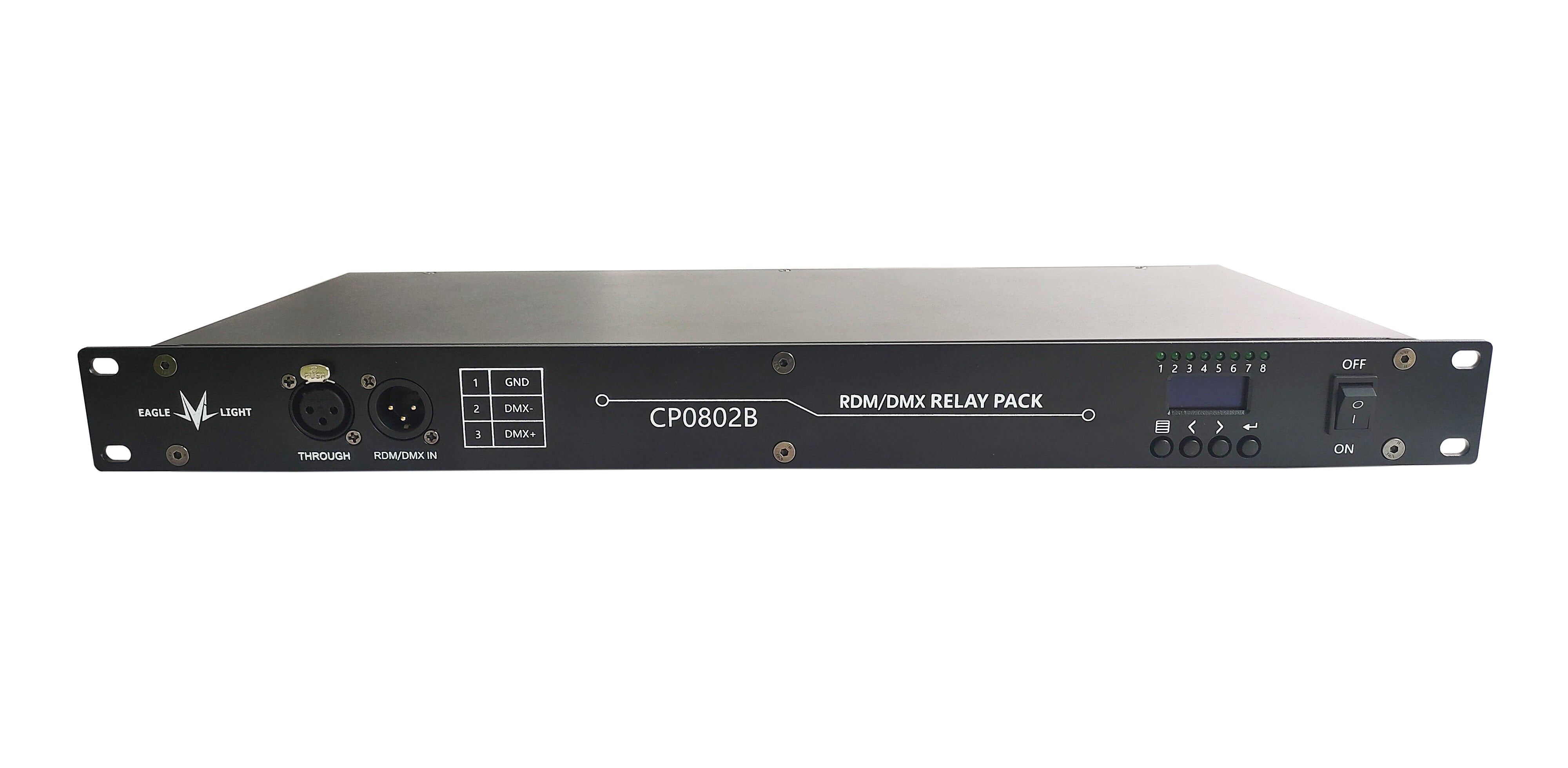

CP0802B

Intelligent Power Supply Sequencer

Technical Parameter：

Scope of application:
The device is an intelligent switch product with a "sequence" function. The sequence
function of the device can prevent the electrical equipment it controls from
simultaneously turning on and off the power, causing the current superposition to
generate a huge surge current, which will damage the system. electrical equipment in at
the same time, the 8-way output switch of this product can accept the control of DMX512
signal or RS485 signal, which can realize the intelligent remote control and management
function of the power supply.
The Features:
◆Three control modes: manual control, RDM/DMX control, CODE (RS485) control;
◆ Support RDM remote setting management, support DMX remote intelligent control;
◆ In the CODE (RS485) mode, the control code can be edited at will, and the control
code can also be recorded through learning;
◆ With 8 intelligent switch functions, the maximum output power of each switch is 2KW;
◆The output adopts a high-power relay, which has the function of anti-spark protection,
making the product more durable.
◆ Installation method: standard 19-inch cabinet installation, 1U height;
◆Working voltage: 90-240V/50-60Hz
