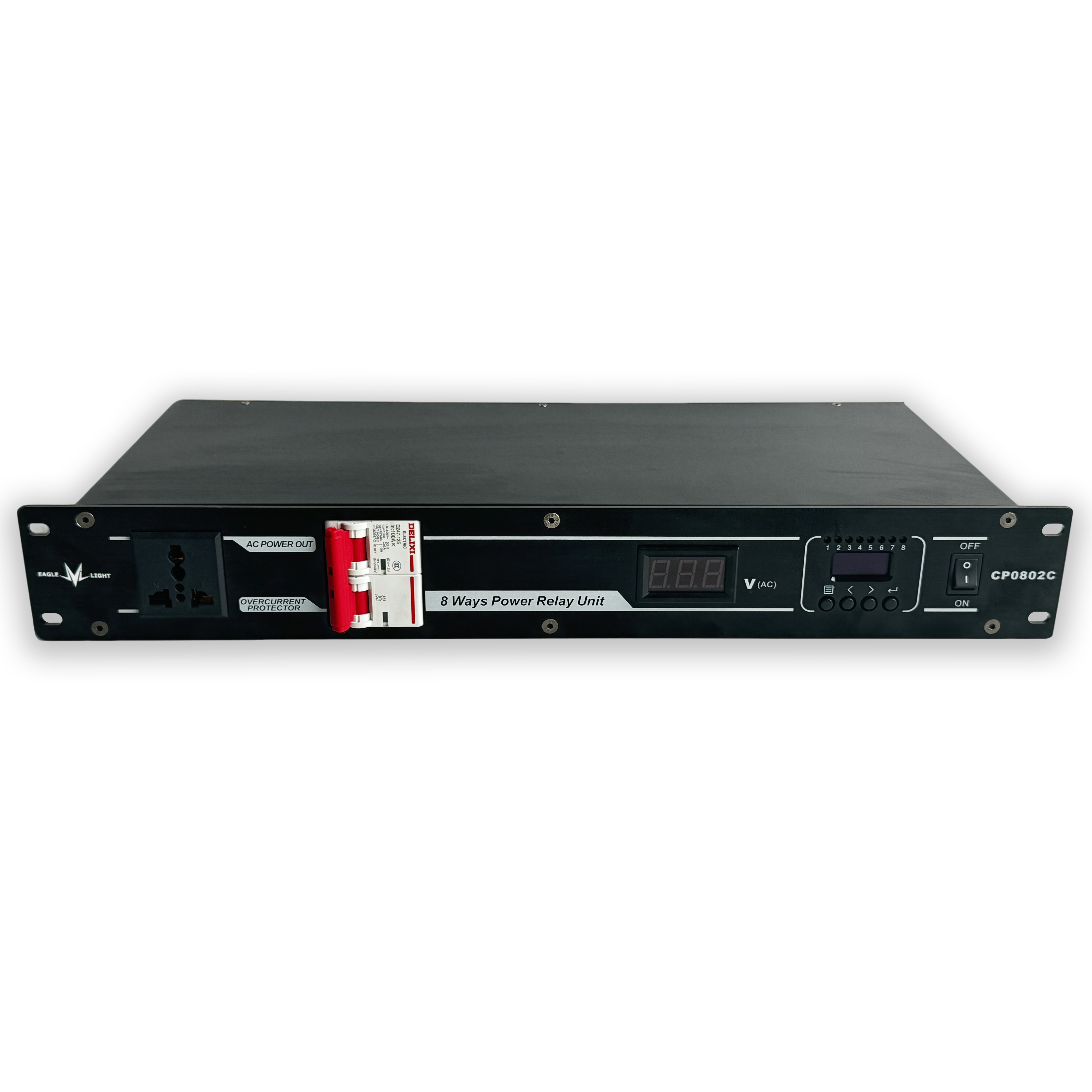

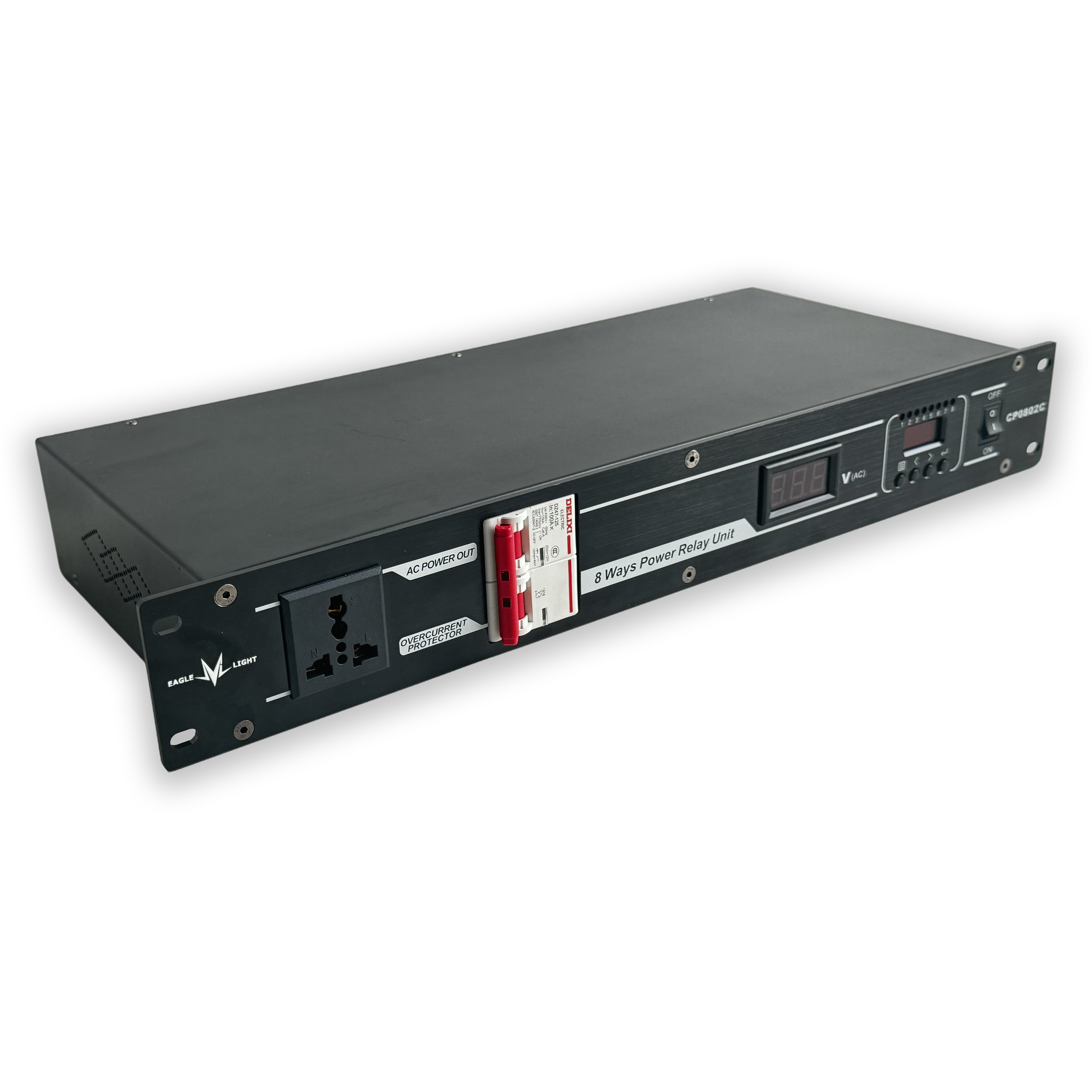

CP0802C(DMX512 Timing Relay Pack +Smart Switch)
DMX512 Timing Relay Pack +Smart Switch
"DMX512 Timing Relay Pack+Smart Switch" is a new power management product. It combines the function of timing device and intelligent switch control function, and supports a variety of control modes. Through the different combination of timing function and intelligent switch function, it can meet a variety of field application requirements.
Scope of application:
The "Timer Mode" function of this product can delay the power switch processing of electrical equipment in sequence, which can avoid damage to equipment due to unstable signals during power on and off periods, as well as prevent damage to electrical equipment caused by large current surges during power on and off moments;
The "intelligent switch mode" function of this product can control 8 intelligent switches with DMX5 12 signal or RS485 signal;
Features:
(2) Support DMX/RDM signal control or RS485 signal control;
(3) Support the learning function of control codes in RS485 signal mode;

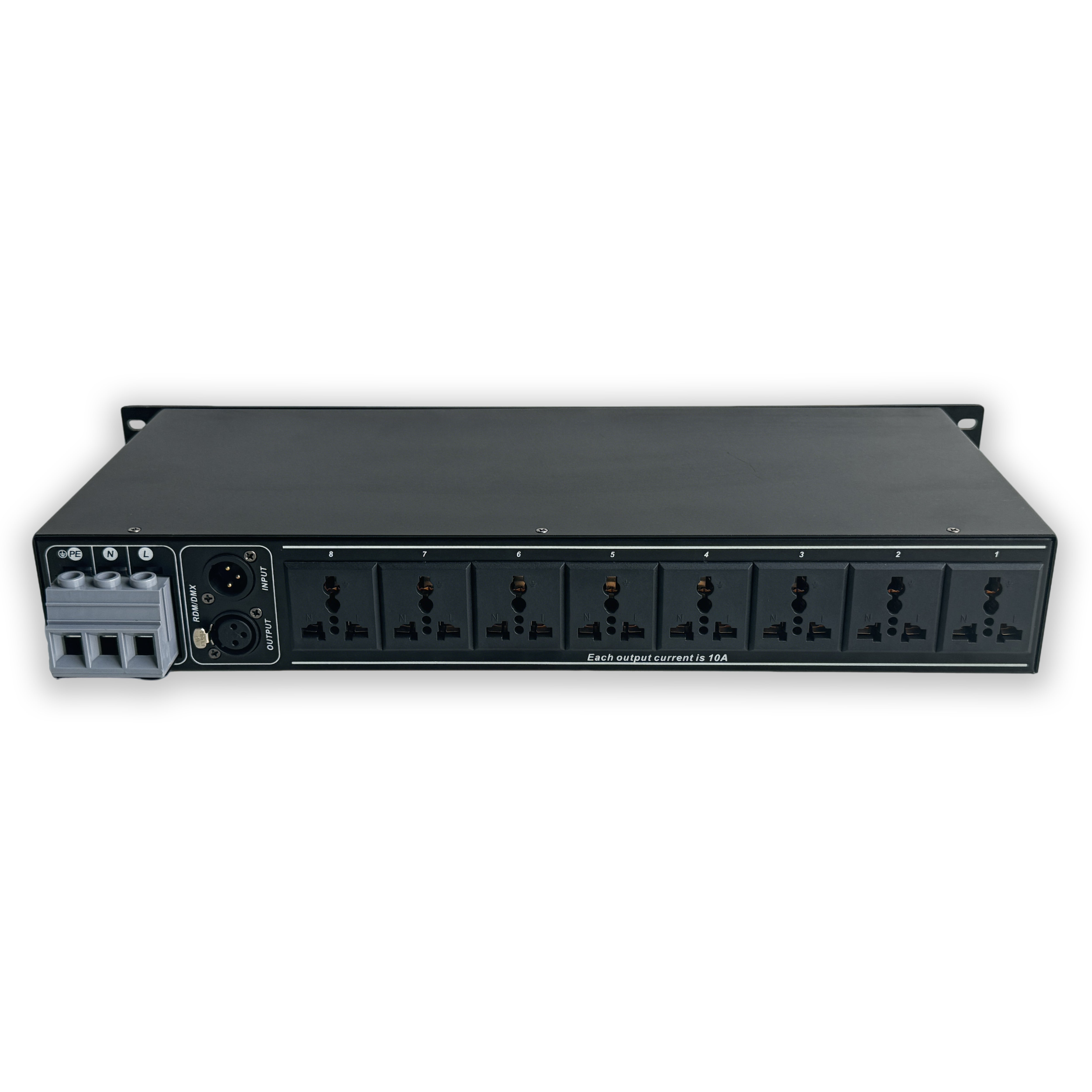

(4) Equipped with 8 intelligent switch functions, each switch has a maximum output current of 10A and a maximum power of 2000W
(6) Equipped with AC voltage display function, it can intuitively see the current AC voltage value, making it convenient for real-time display
Monitor whether the circuit voltage is stable
(7) Equipped with an air switch, it can detect circuit overload (such as total power exceeding the limit) and short circuit faults in real time. Once an abnormality is detected, it will immediately trip and cut off the power supply, avoiding overheating of the circuit, electrical burnout, etc
(8) 1.5U chassis suitable for cabinet installation, screw installation
(9) Working voltage 90-240V/50-60HZ
Typical application：
1）Audio system power management：
◆The equipment of the sound system has strict sequence requirements for the opening of the power supply. If the power supply of the equipment is not turned on and off in the normal sequence, it will cause a strong noise signal to be introduced into the power amplifier. After amplification, it will produce a harsh sound. When the current is large enough, the sound equipment may be burned。
◆If the equipment current is closed directly through the main gate, all equipment will be powered on at the same time, resulting in the superposition of current, which will produce a strong instantaneous current, and the impact caused by the current may damage the equipment。
◆At the same time, because the equipment supports remote timing control function, it can realize remote power control of sound system in combination with light console or central control equipment。
2）Power management of lighting equipment (or other batch equipment)：
◆ entertainment lighting facilities are generally used in a large number (typical batch equipment application scenarios). If these devices are controlled only through the main gate at the same time, it will cause a large current impact. This impact current may damage the lighting equipment or control system, and in serious cases, it may cause the paralysis of the whole system. If the sequential power supply equipment is added to the lighting system, the equipment damage caused by current impact will be avoided.
◆ at the same time, in the era of intelligent control, both lighting effect and power supply need remote control. The device also provides a solution for remote control of each switch, which can realize remote power management and control.
3）Places requiring intelligent power supply control：
Many devices such as smart hotels, smart homes, smart conference rooms and so on do not support remote signal control. The remote control function of these devices can be realized through the smart switch function to make non smart devices intelligent.
