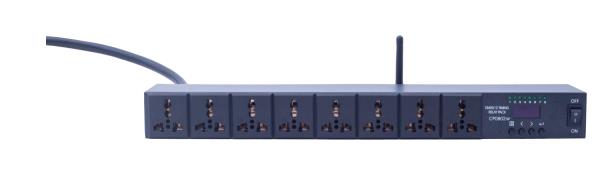

CP0802W

The maximum current of the plug input cable is 25A. It is optional when placing an order
The maximum current of the bare input line is 40A, which is optional when placing an order
Input voltage: 90-240V/50-60Hz full-frequency voltage input, globally universal
The rated output power of each channel is 1000W
The sequencer functions include
The functions of the intelligent switch include
Manual control mode support
DMX512 signal control mode support
The Dmx512 mode supports channel modes such as 2-channel, 8-channel, and 10-channel. Different channel modes have different uses
Support for RS485 signal control mode
The RDM function supports remote modification of address codes
Universal power output socket (default). Other types of sockets need to be specified when placing an order
The standard installation size is a 19-inch 1U cabinet
There are three installation methods (cabinet, light hook, and screw fixation)
