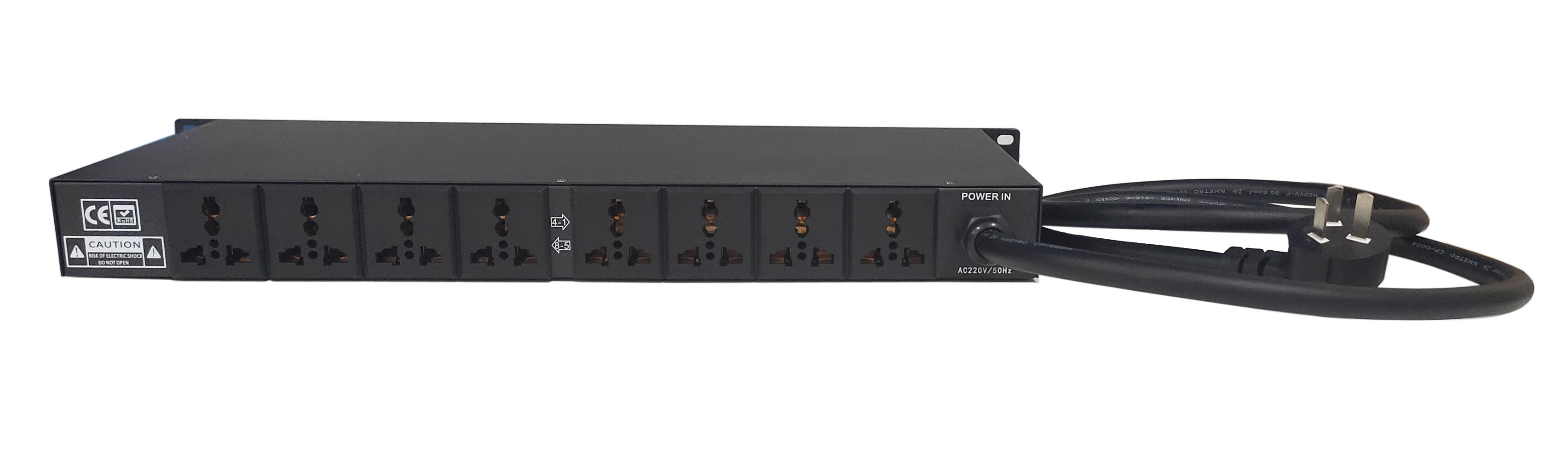

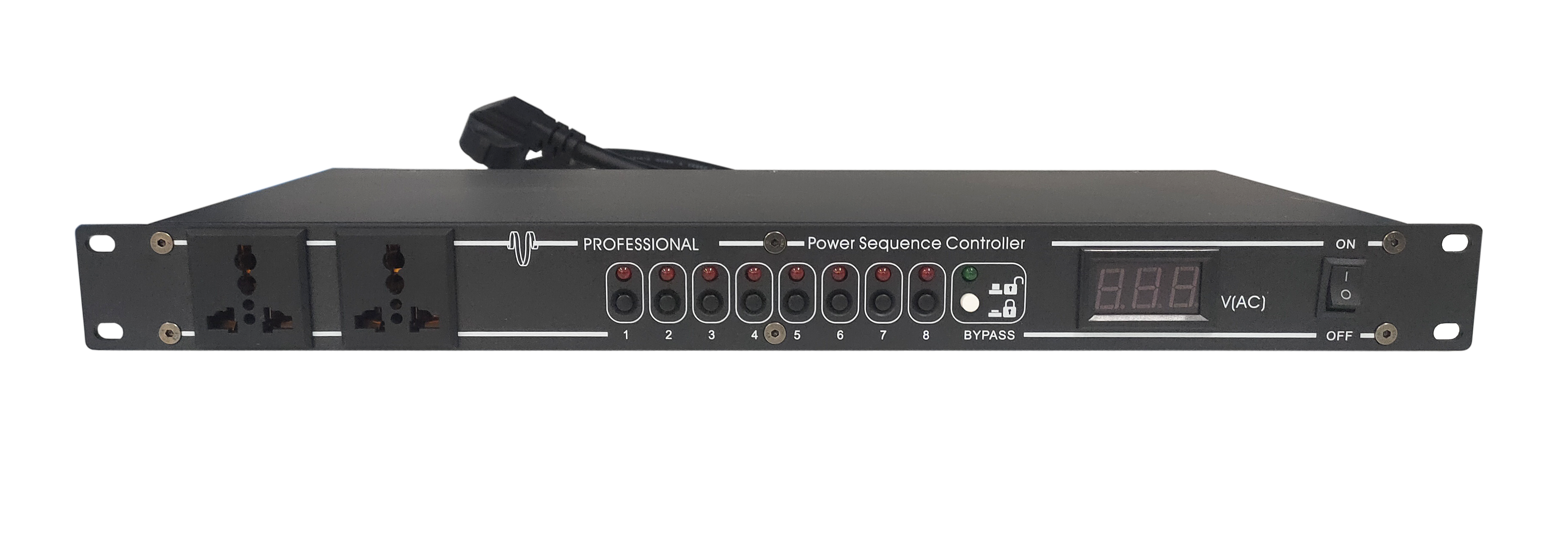

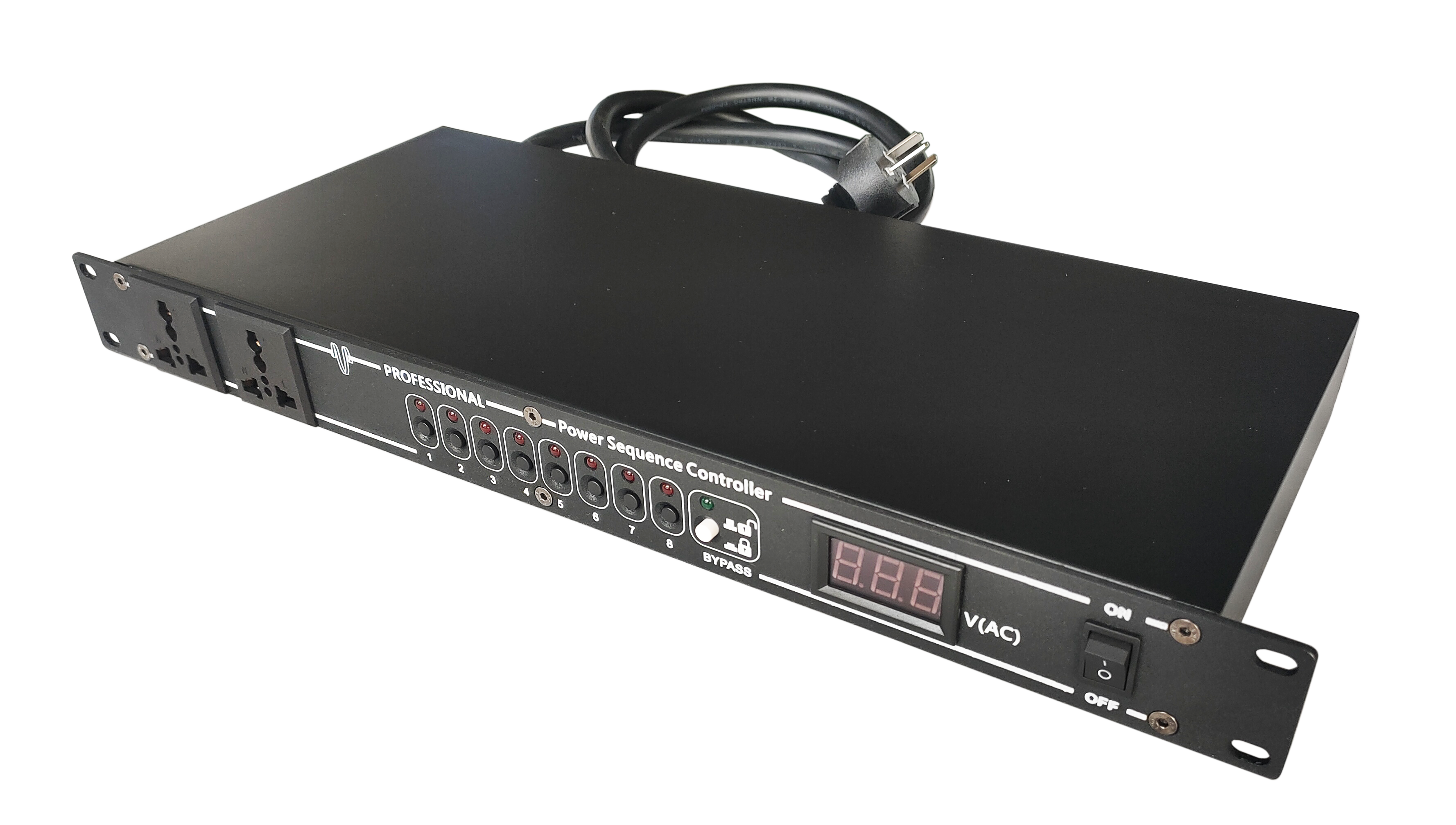

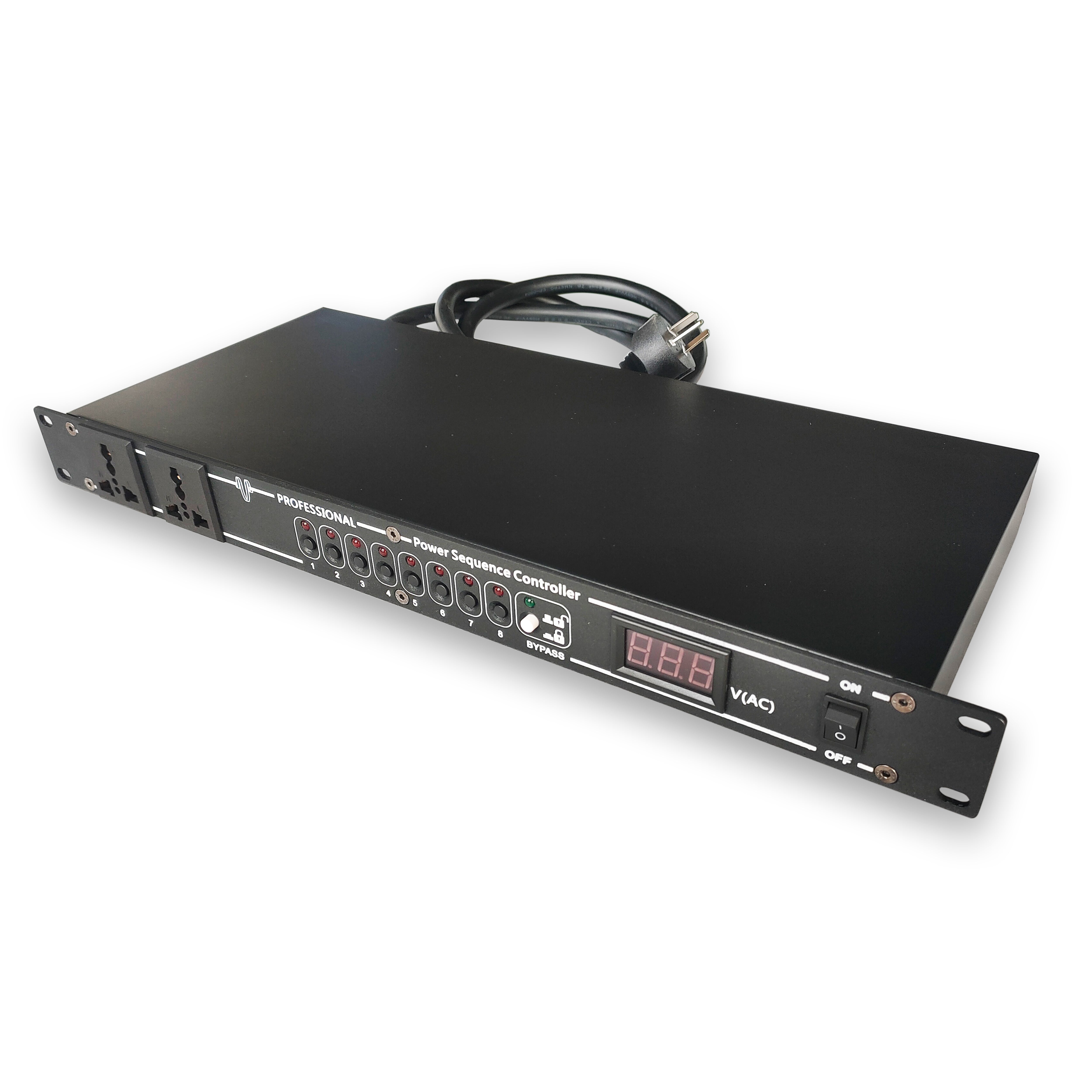

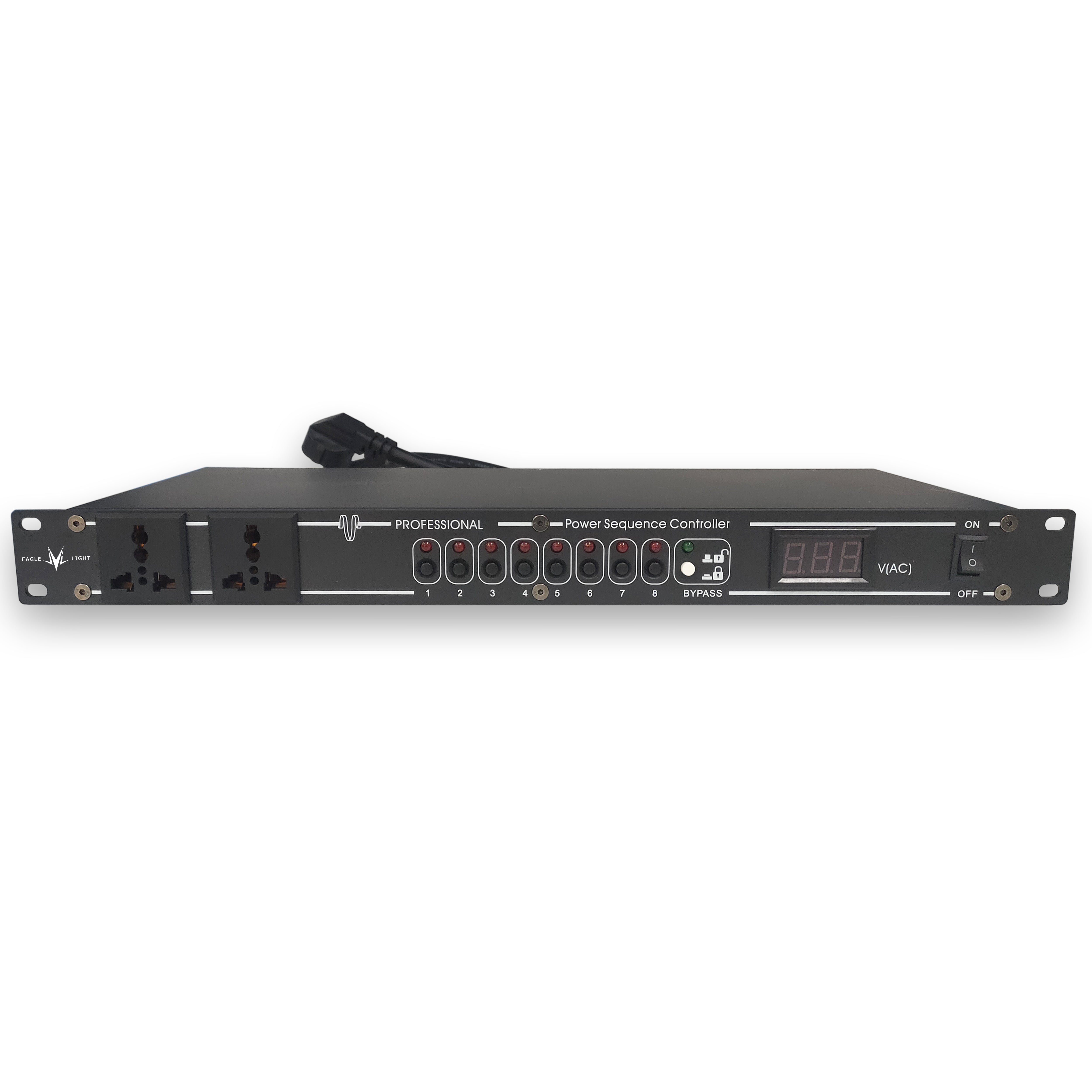

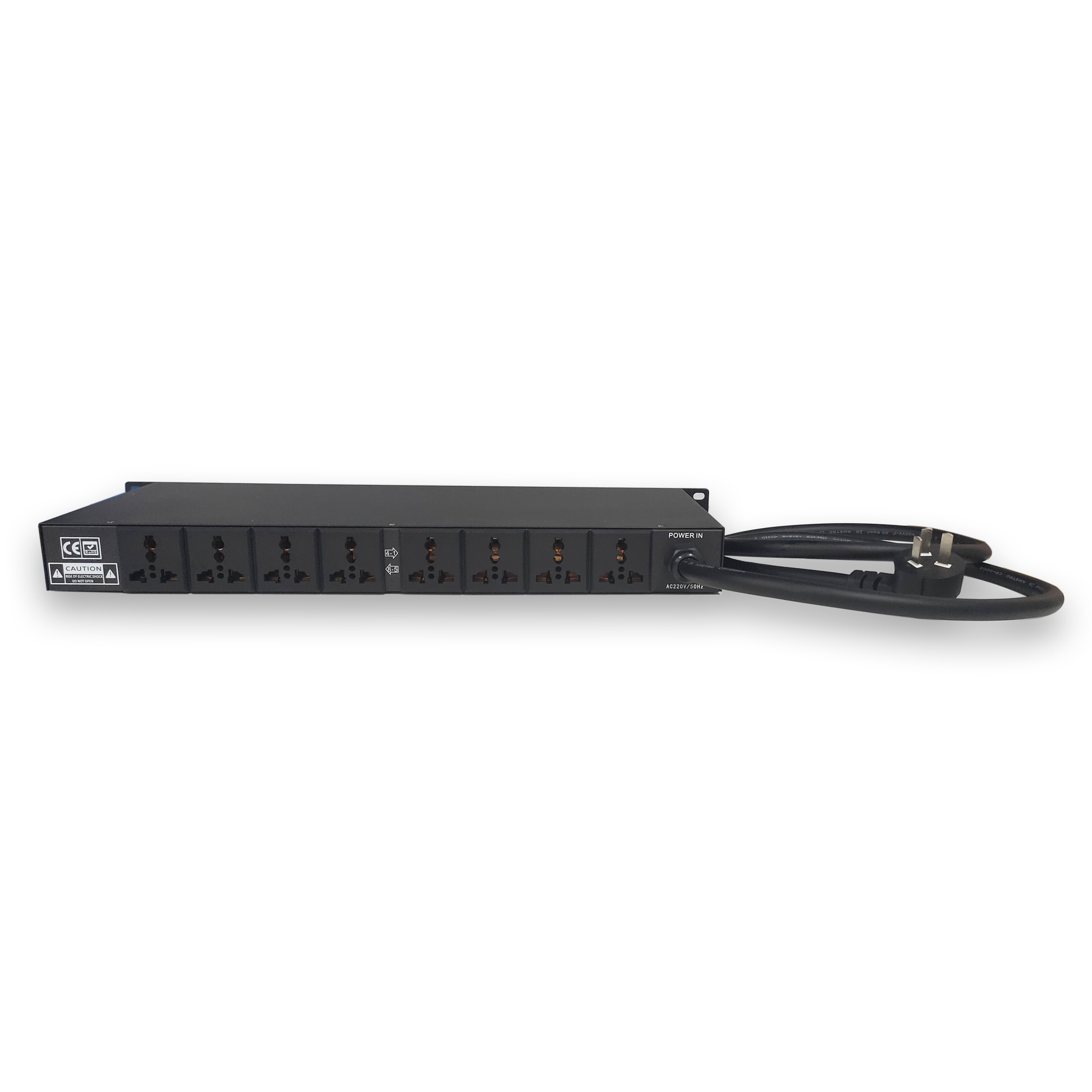

CP0803

Power Supply Sequencer

Technical Parameter：

◆Scope of application:
This sequencer product is used for centralized power management of electrical
equipment, and its standard cabinet installation features are more suitable for unified
management of the power supply of equipment in the cabinet.
◆Input power: AC 90-240V, frequency 50-60Hz.
◆Power input wire diameter:4 square mm high quality pure copper 3 core cable.
◆Maximum output current:40A max.
◆Maximum output current per channel:16A max.
◆Maximum output power per channel:2KW.

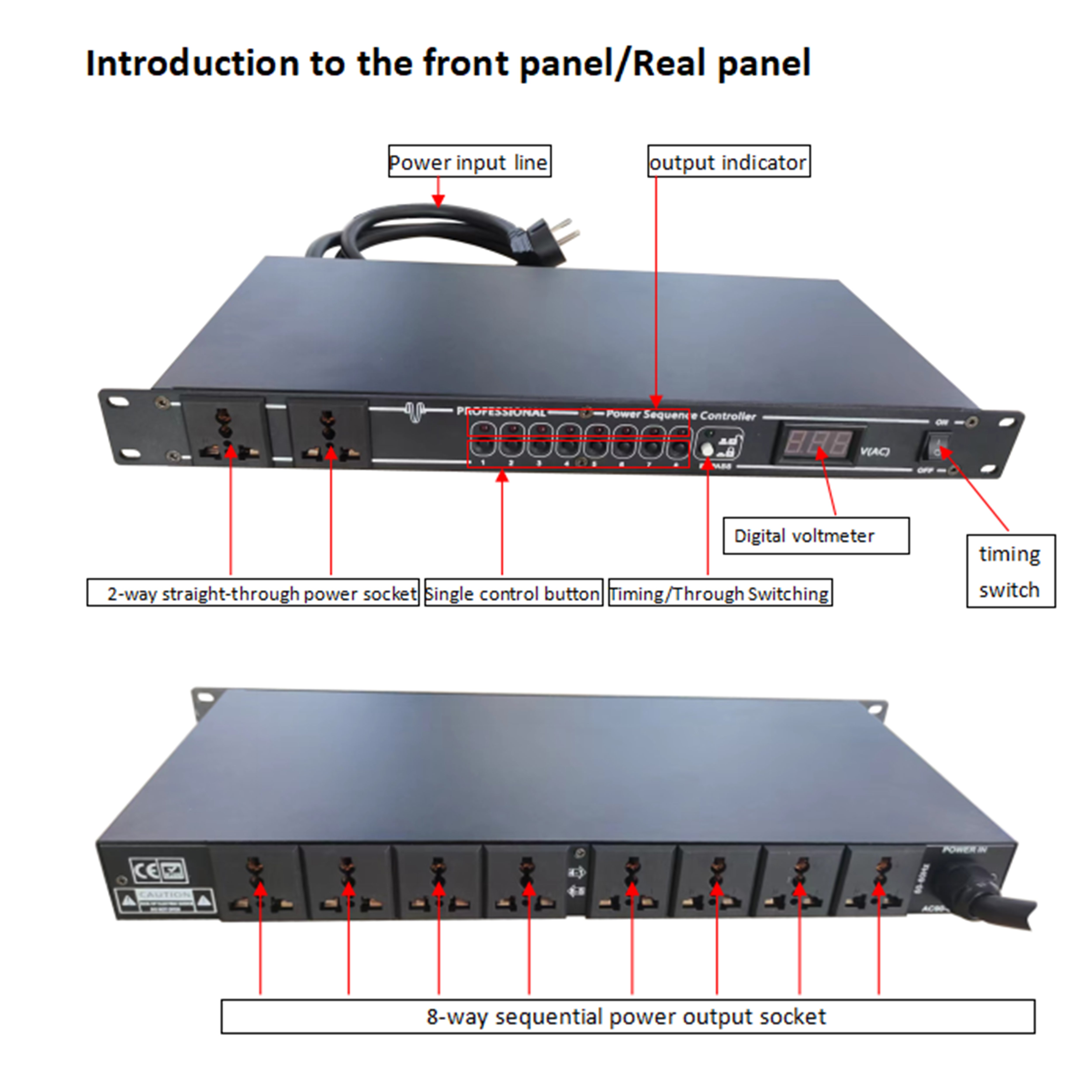

◆Number of control channels:8-channel timing output.
◆Number of straight paths:2 direct output.
◆timing interval: The time interval between each way is 1 second.
◆Operating mode: Timing Mode/Through Mode.
◆Single control function: Yes.
◆Voltage display: Yes.
◆Output socket type; Universal power socket.
◆Socket material: Phosphor Bronze.
◆Installation method: 19-inch 1U standard cabinet installation.
