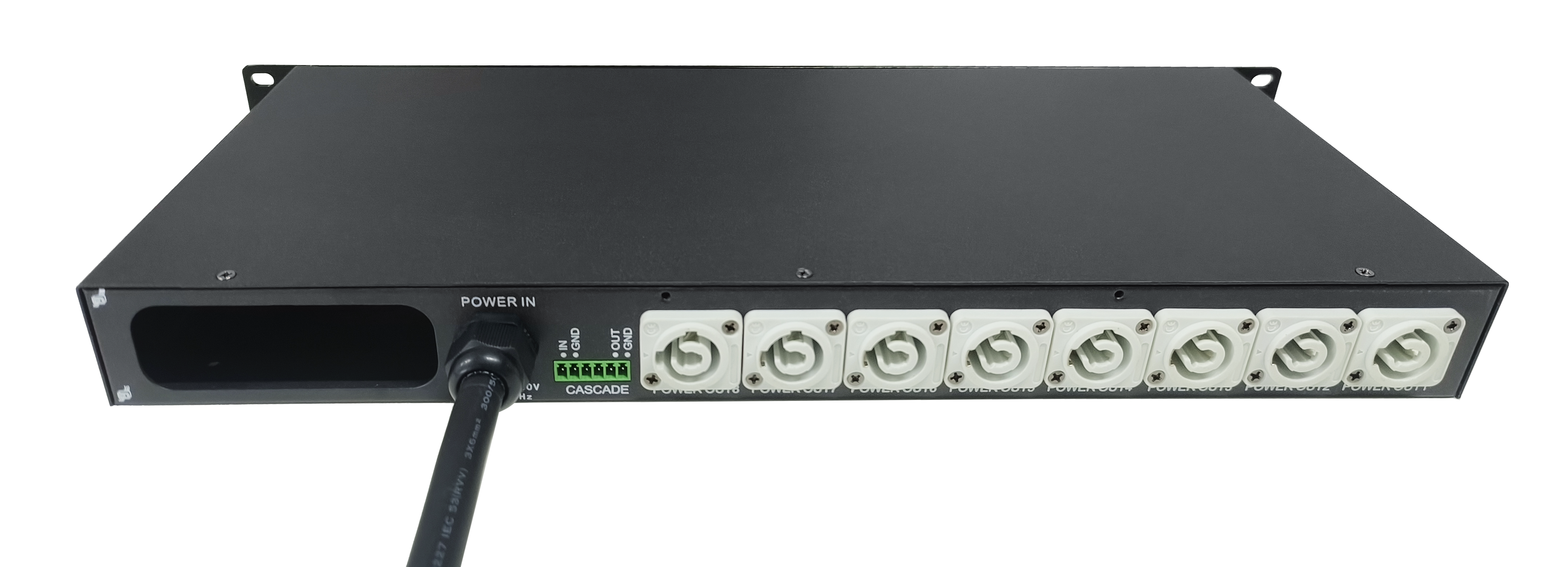

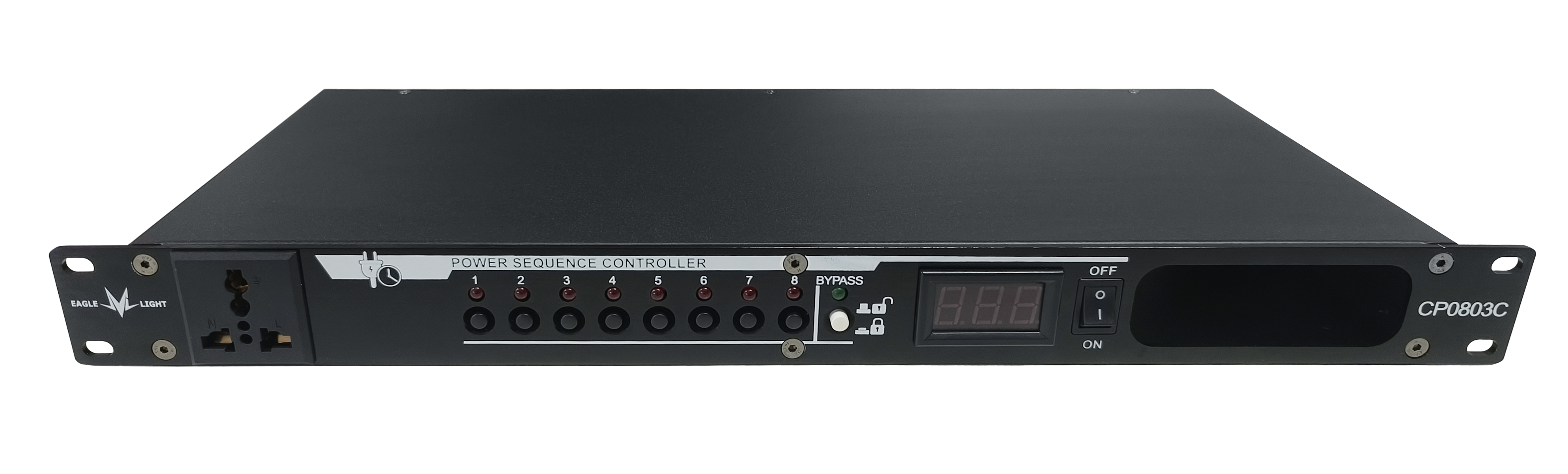

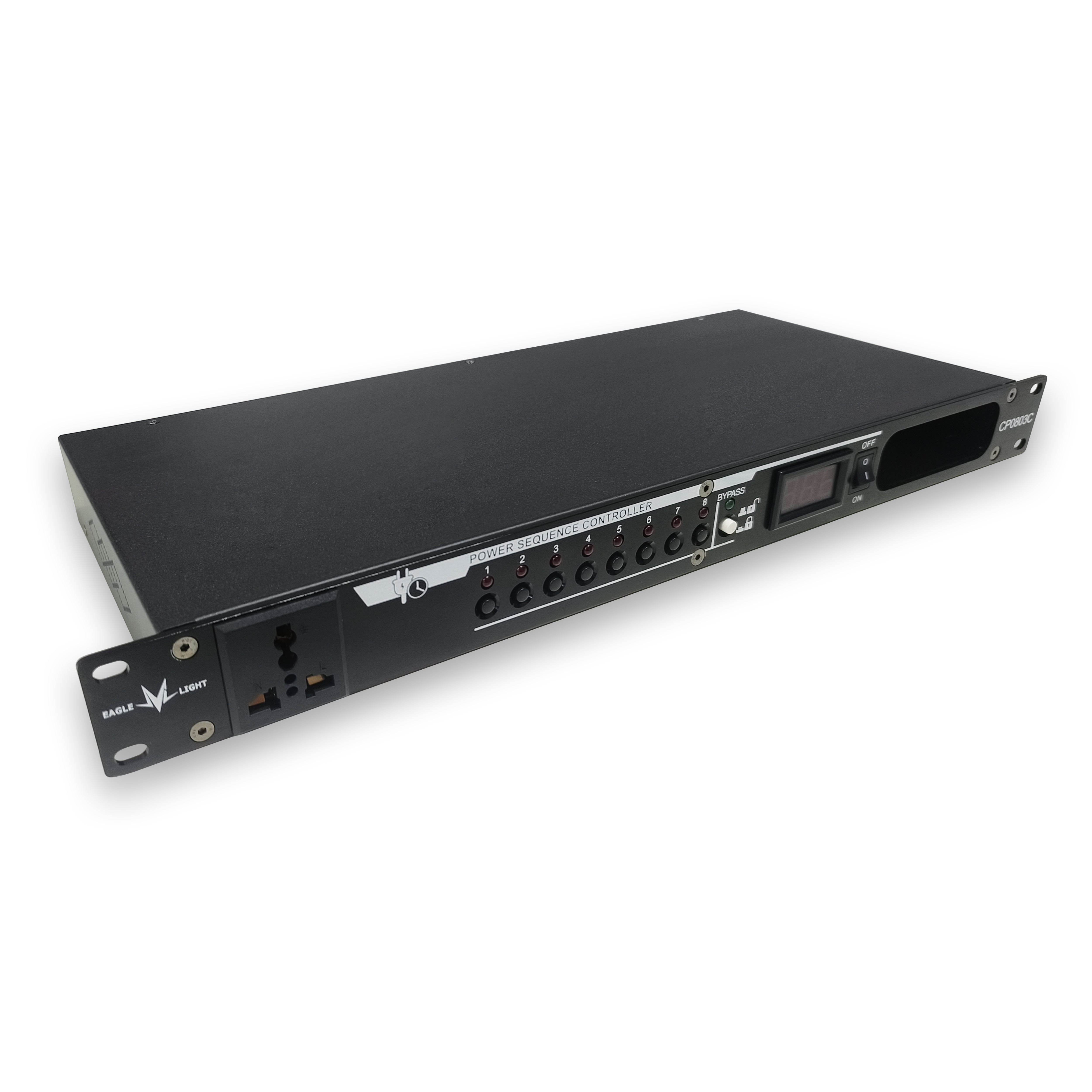

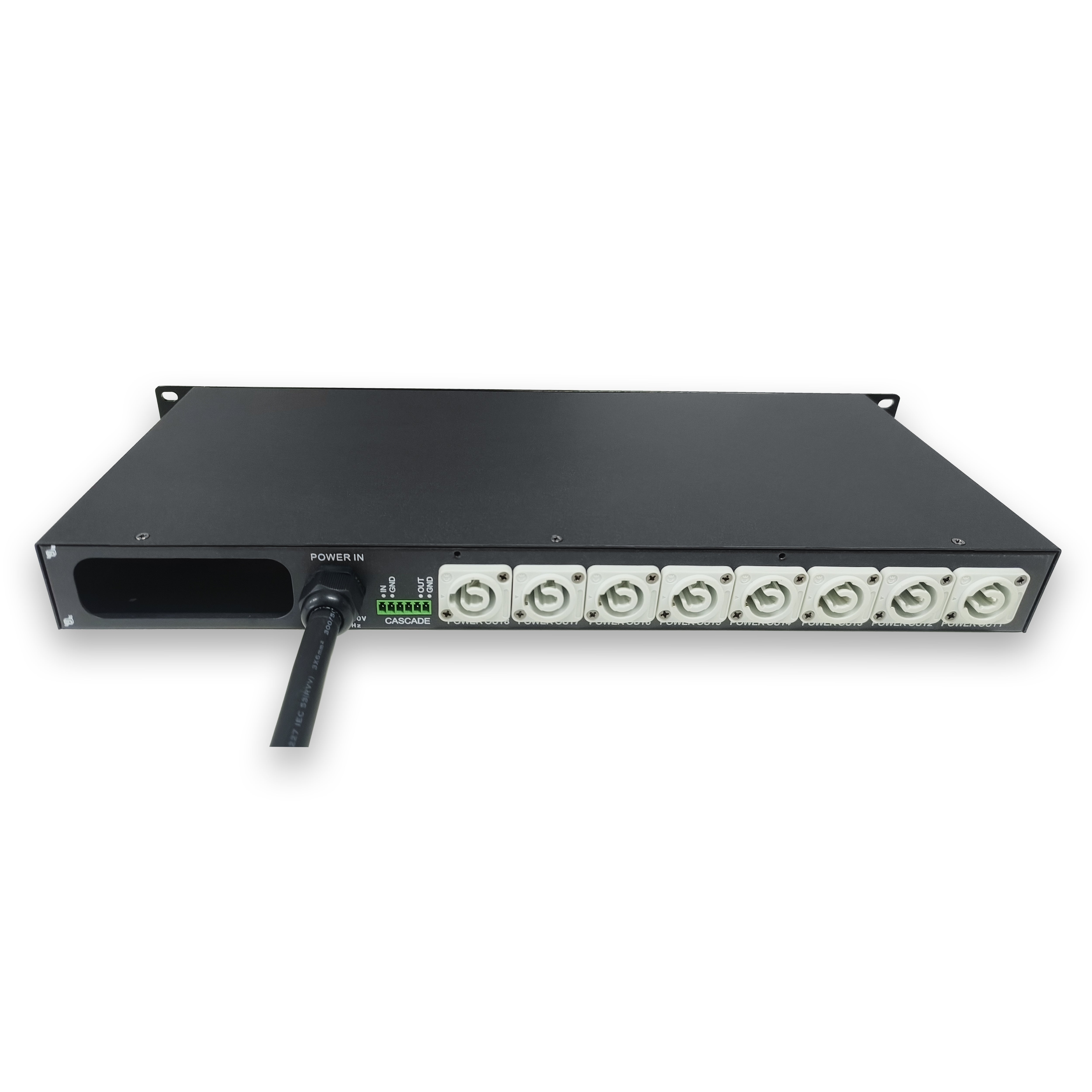

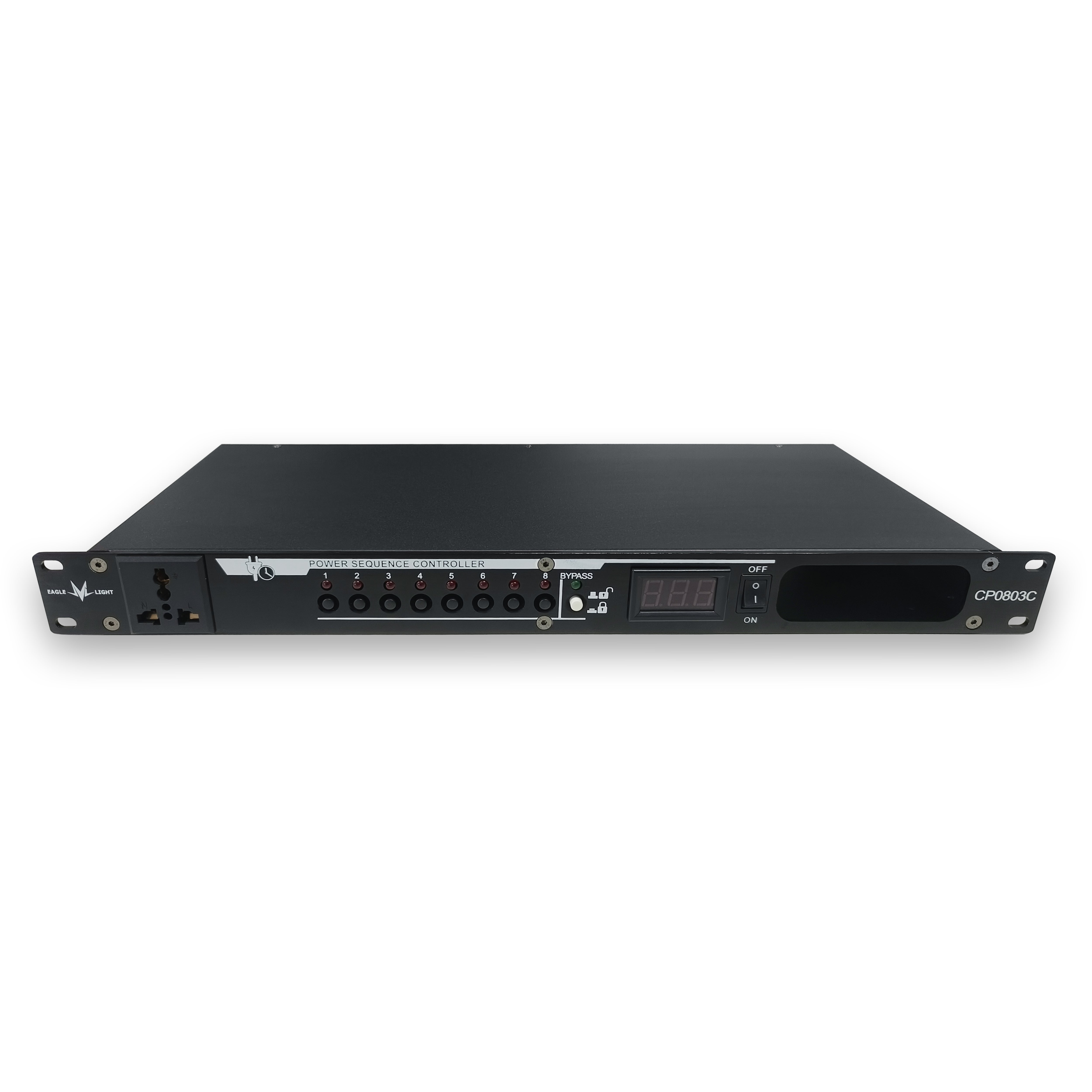

CP0803C（Power Supply Sequencer）
CP0803C（Power Supply Sequencer）
Sale price$0.00
Power Supply Sequencer
Product Overview：
A power sequencer is a device designed to protect electrical equipment during power‑on and power‑off, and to provide centralized power management.It switches the power supply of electrical equipment on or off sequentially with time delays, ensuring no noise is introduced during the startup and shutdown of audio systems.By staggering the power‑on and power‑off sequence, it avoids large instantaneous surge currents, thus protecting the safety of electrical equipment and realizing centralized power management.It prevents human error, ensuring the stability of the power system and convenient operation.This power sequencer is used for centralized power management of electrical equipment.Its standard rack‑mount design makes it particularly suitable for unified power control of devices installed in equipment cabinets.
Typical Applications：
Audio system equipment has strict sequential requirements for power activation.If the devices are not turned on and off in the correct order, strong noise signals will be introduced into the power amplifier, which will then be amplified to produce harsh squeal.When the current is sufficiently high, it may damage or burn out the audio equipment.
Entertainment lighting facilities usually involve a large number of units (a typical mass‑equipment application scenario).If all these devices are controlled simultaneously only by a main switch, it will cause a large inrush current.This surge current may damage the lighting equipment or control system and, in severe cases, lead to the paralysis of the entire system.Installing this sequential power supply unit in the lighting system avoids equipment damage caused by current surges.
Many devices in smart hotels, smart homes, smart conference rooms, and other scenarios do not support remote control.The smart switch function can realize remote control for these devices, turning non-smart equipment into smart ones.
Technical Parameter：
◆Scope of application: This sequencer product is used for centralized power management of electrical equipment, and its standard cabinet installation features are more suitable for unified management of the power supply of equipment in the cabinet.
◆Input power: AC 90-240V, frequency 50-60Hz.
◆Power input wire diameter:4 square mm high quality pure copper 3 core cable.
◆Maximum output current:40A max.
◆Maximum output current per channel:16A max.
◆Maximum output power per channel:2KW.
◆Number of control channels:8-channel timing output.
◆Number of straight paths:2 direct output.
◆timing interval: The time interval between each way is 1 second.
◆Operating mode: Timing Mode/Through Mode.

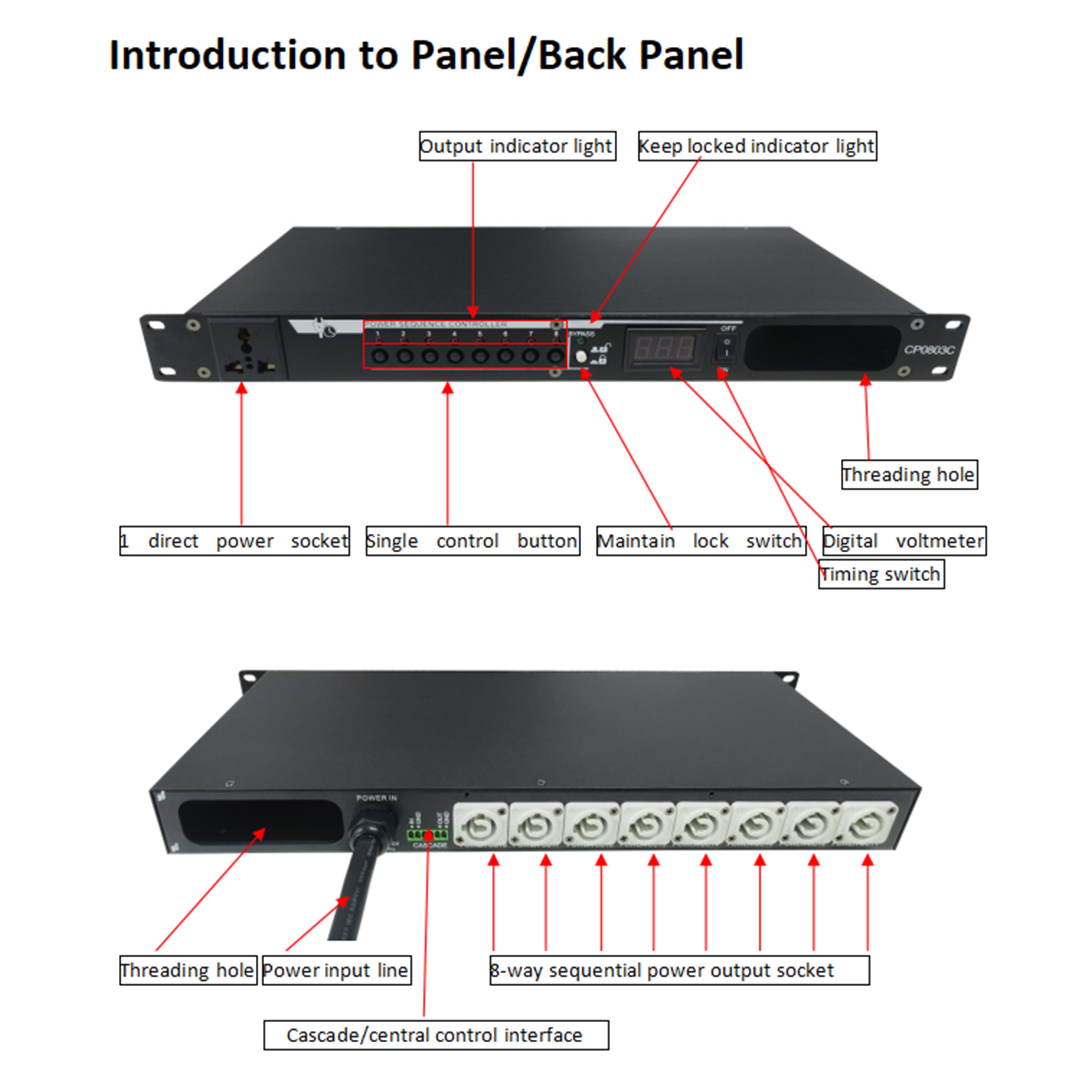

◆Single control function: Yes.
◆Voltage display: Yes.
◆Output socket type; Universal power socket.
◆Socket material: Phosphor Bronze.
◆Installation method: 19-inch 1U standard cabinet installation.
