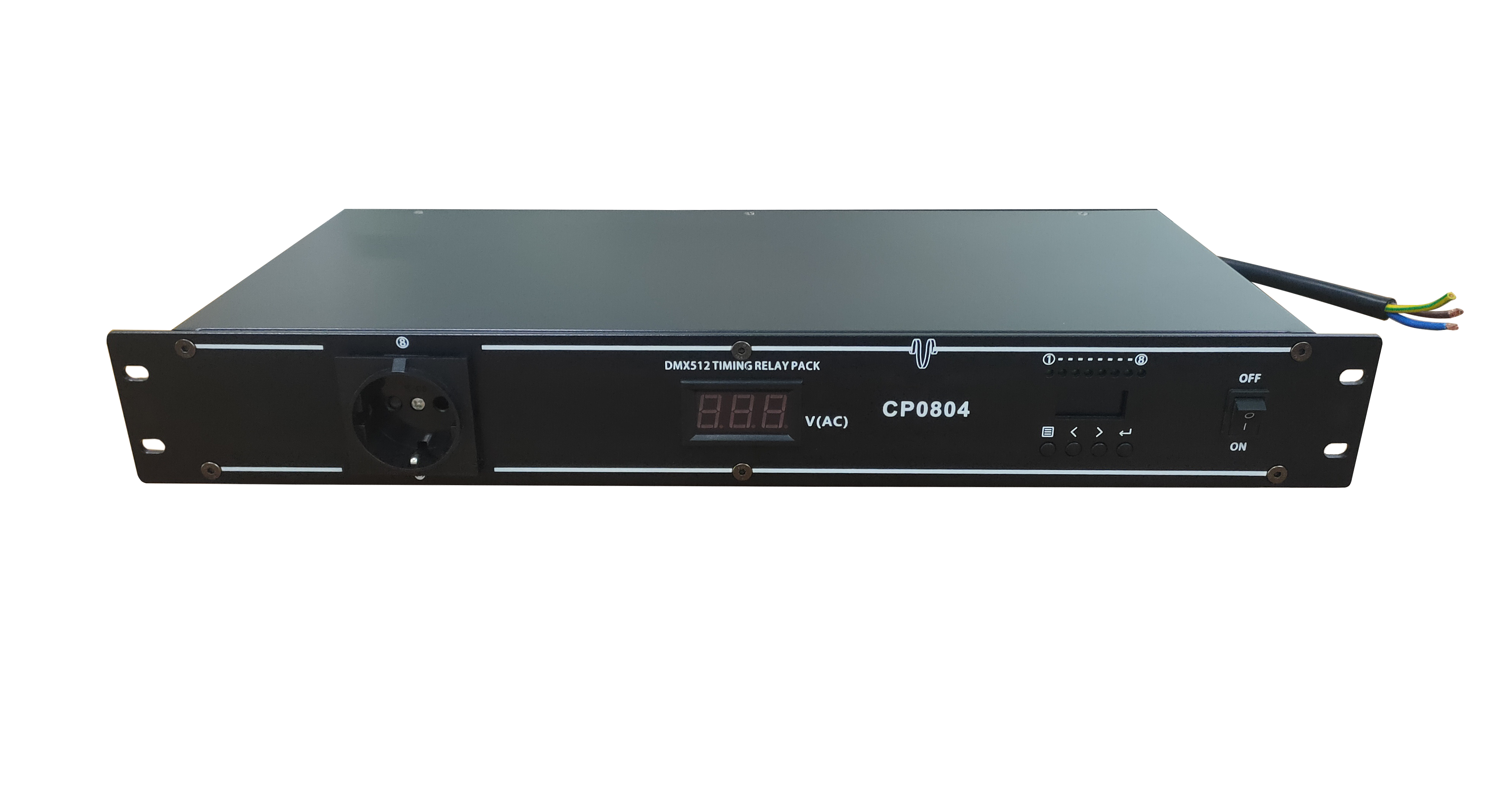

CP0804

◆Scope of application:

The "time sequencer mode" function of the product can delay the switching of the power supply of the electrical equipment in sequence, which can avoid damaging the equipment due to the unstable signal during the power on and power off period, and can also avoid damaging the electrical equipment due to the large current surge caused by the instant of power on and power off;

The "intelligent switch mode" function of the product can realize the control of 8-way intelligent switch by DMX512 signal or RS485 signal.

◆Functional features:

1) Two working modes: "sequencer mode" and "intelligent switch" mode are optional;

2) Support DMX signal control or RS485 signal control;

3) Support the learning function of control code in RS485 signal mode;

4) It has 8-way intelligent switch function, and the maximum output power of each switch is 2000W;

5) Standard 19-inch 1.5U cabinet installation

6) Working voltage: 90-240v/50-60hz.

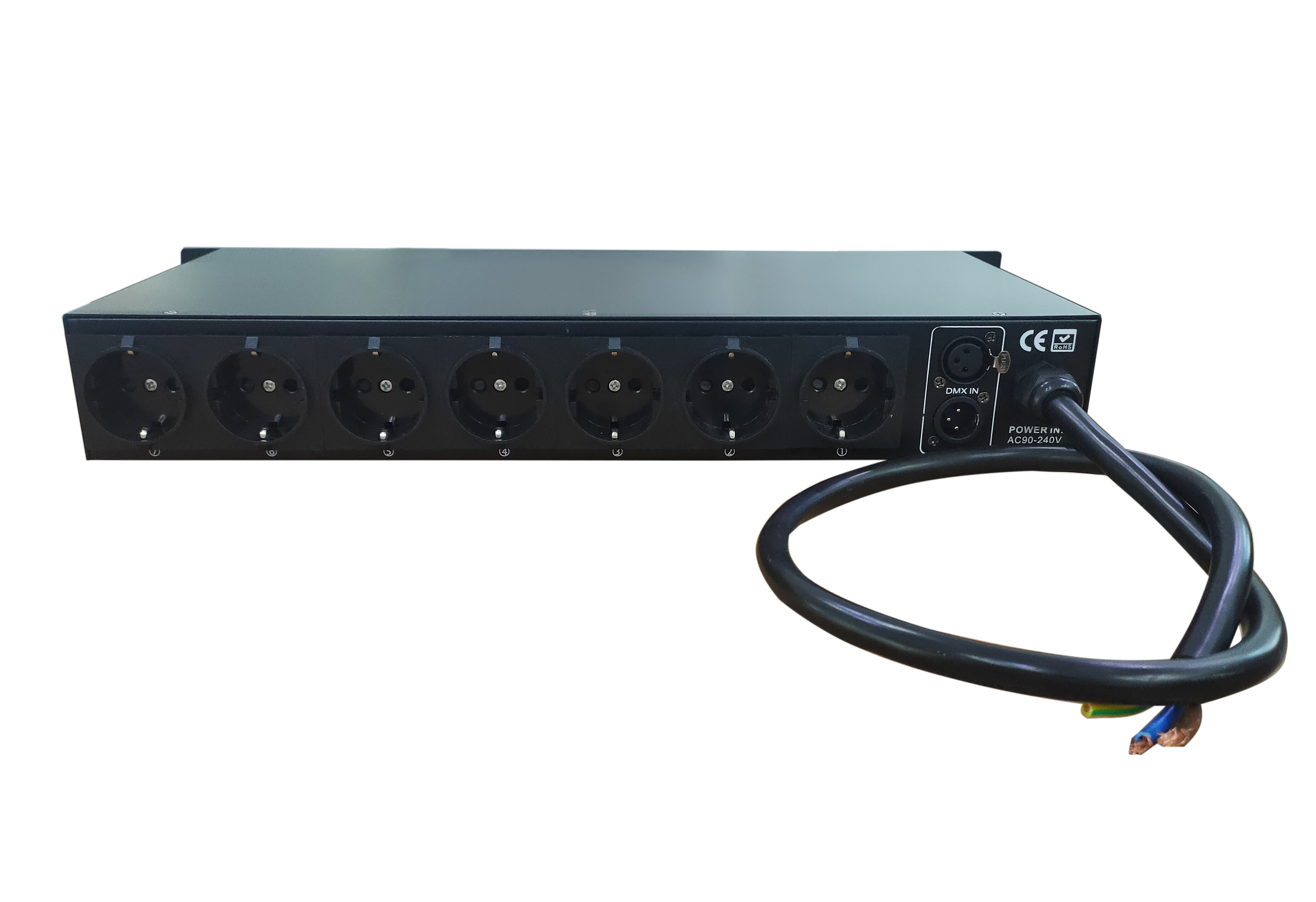

7) Power output socket: European standard power socket.
