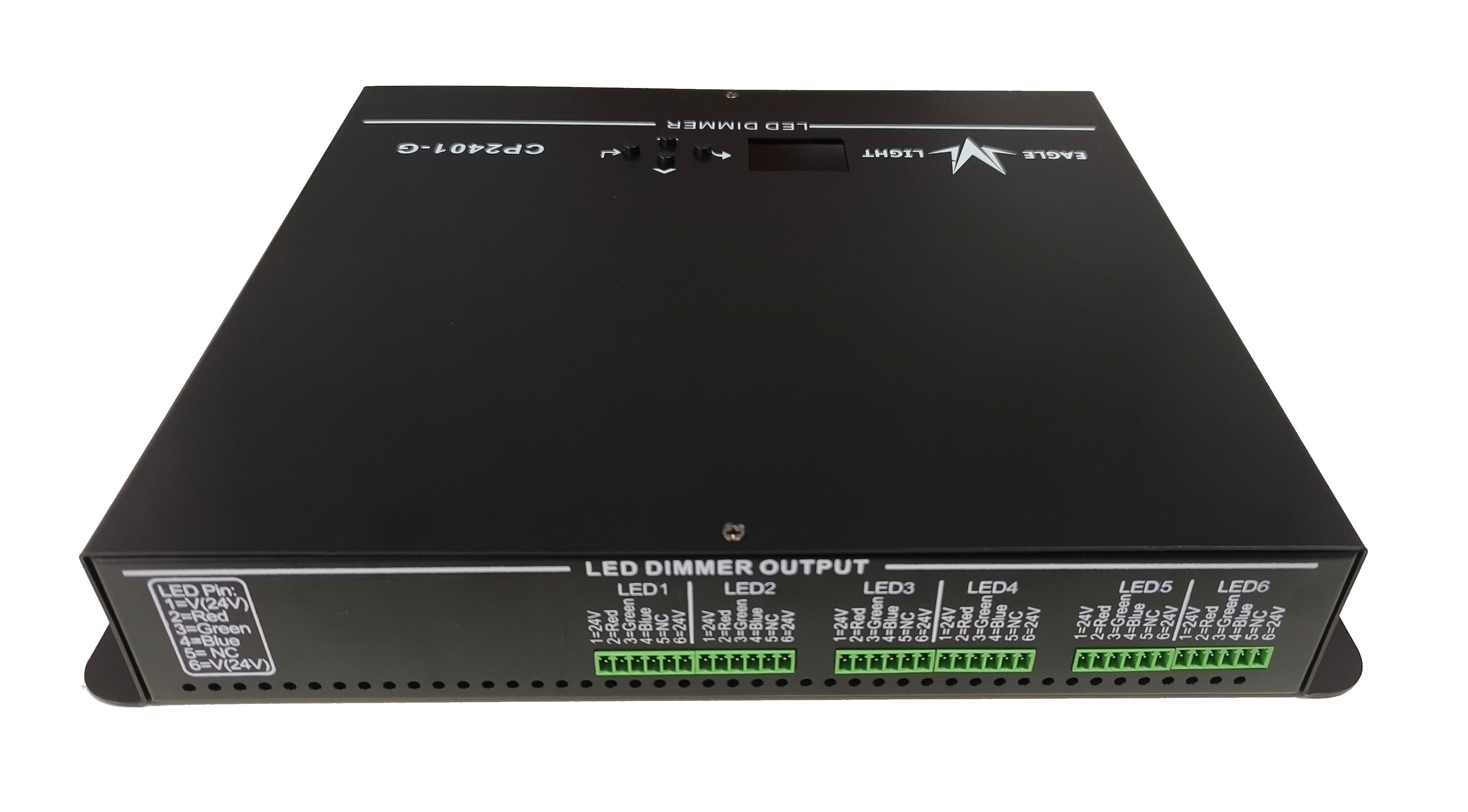

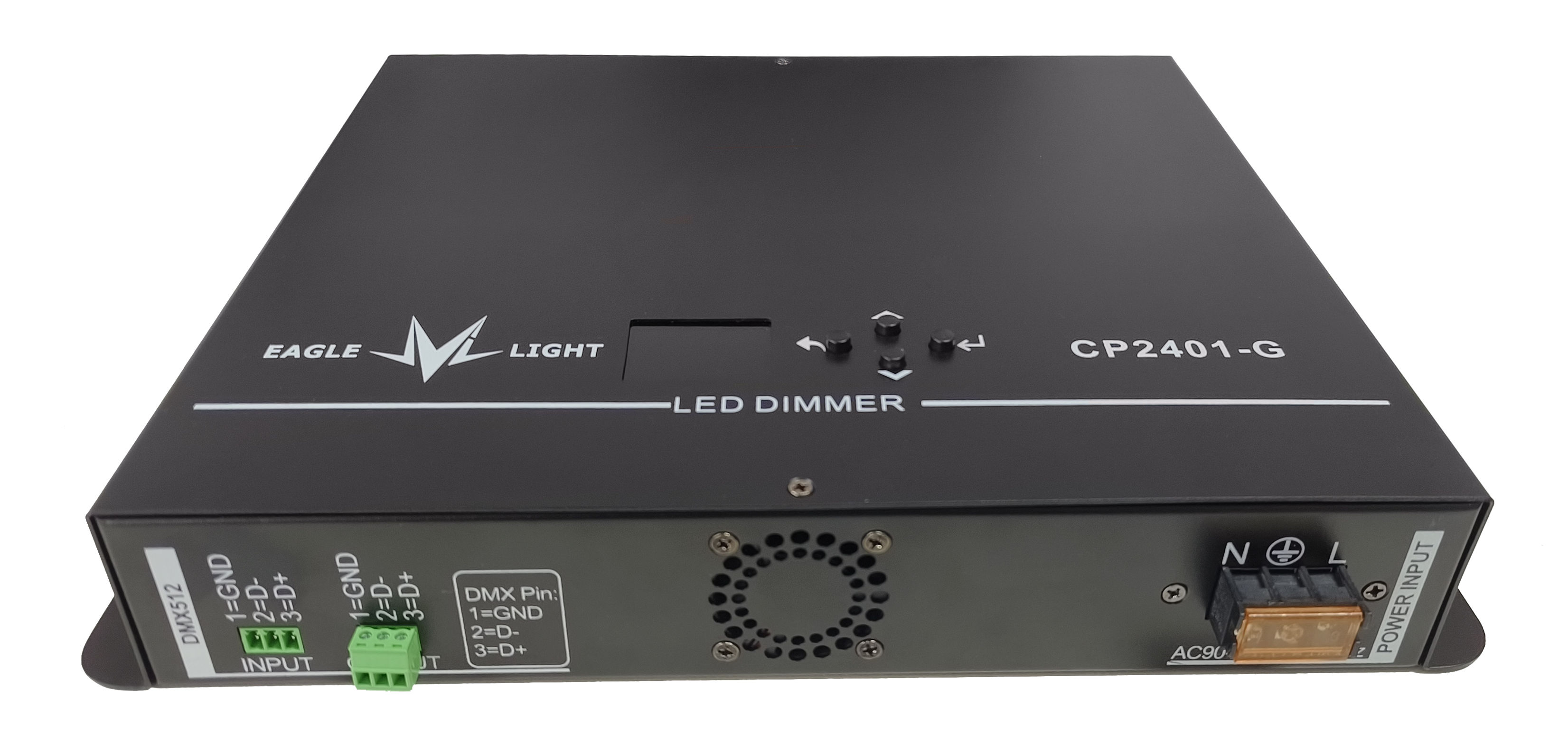

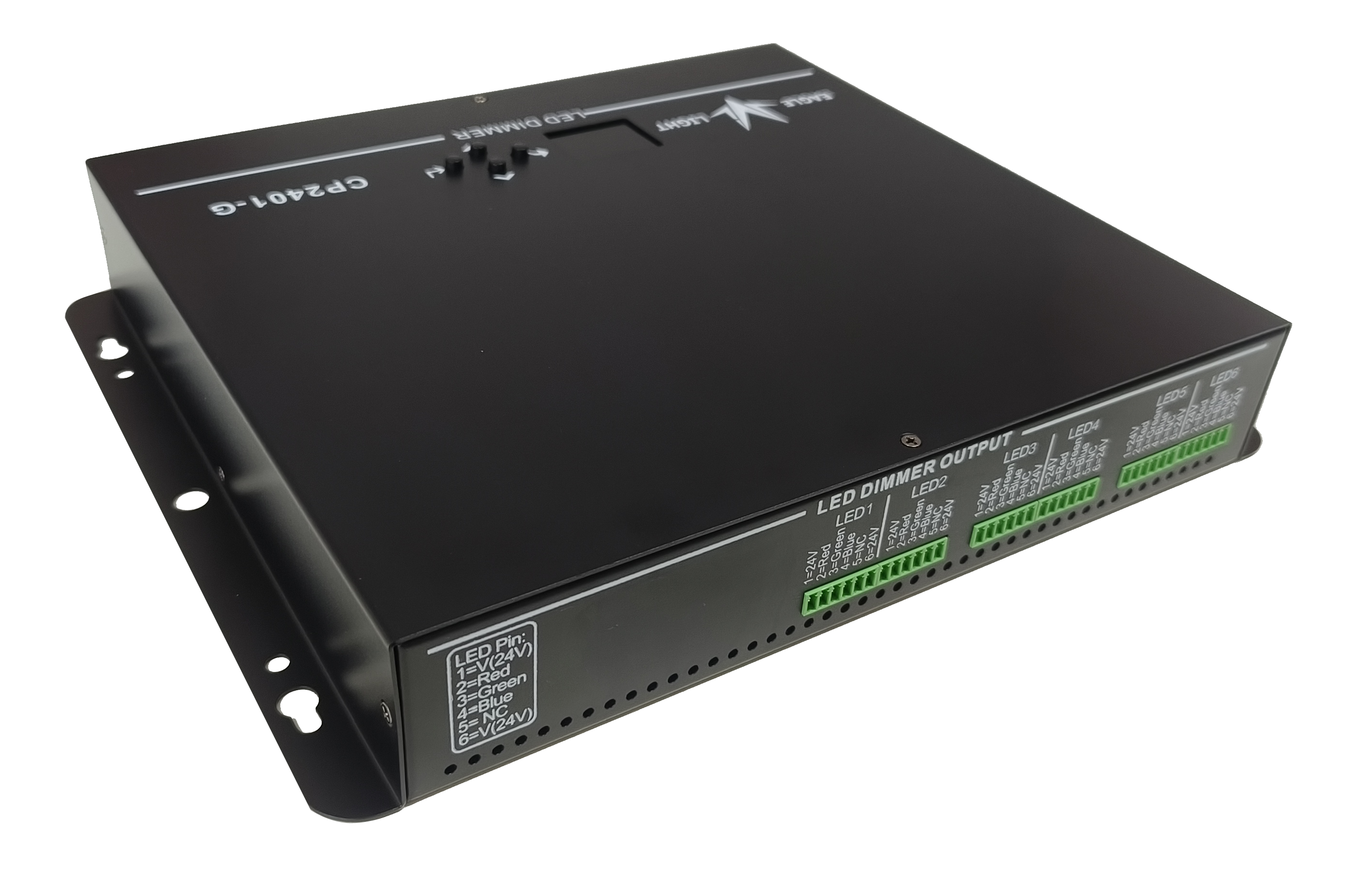

CP2401G

 LED Dimmer (Engineering Style)

Technical Parameter：

◆With 24-channel PWM dimming output;
◆Input voltage 90-240V full-bandwidth voltage,output Dc 24V voltage;
◆Each channel has a maximum constant current of 1A output;
◆When customized as RGB three-color output, it can support up to 8 LED lamps or light strips
foidimming control;
◆When customized as RGBW four-channel output, it can support up to 6 LED lamps or light
strips fordimming control;
◆Built-in 24V, 700W switching power supply;
◆There are engineering and performance styles to choose from;
◆The engineering style uses terminal blocks for connection, supports screw-fixed installation,
and hanginginstallation;
◆The performance style uses XLR sockets for connection, supports screw-fixed installation,
hangincinstallation, and lamp hook installation;
