CR002B（Light Controller 192 CH）
Sale price$0.00
Light Controller 192 CH

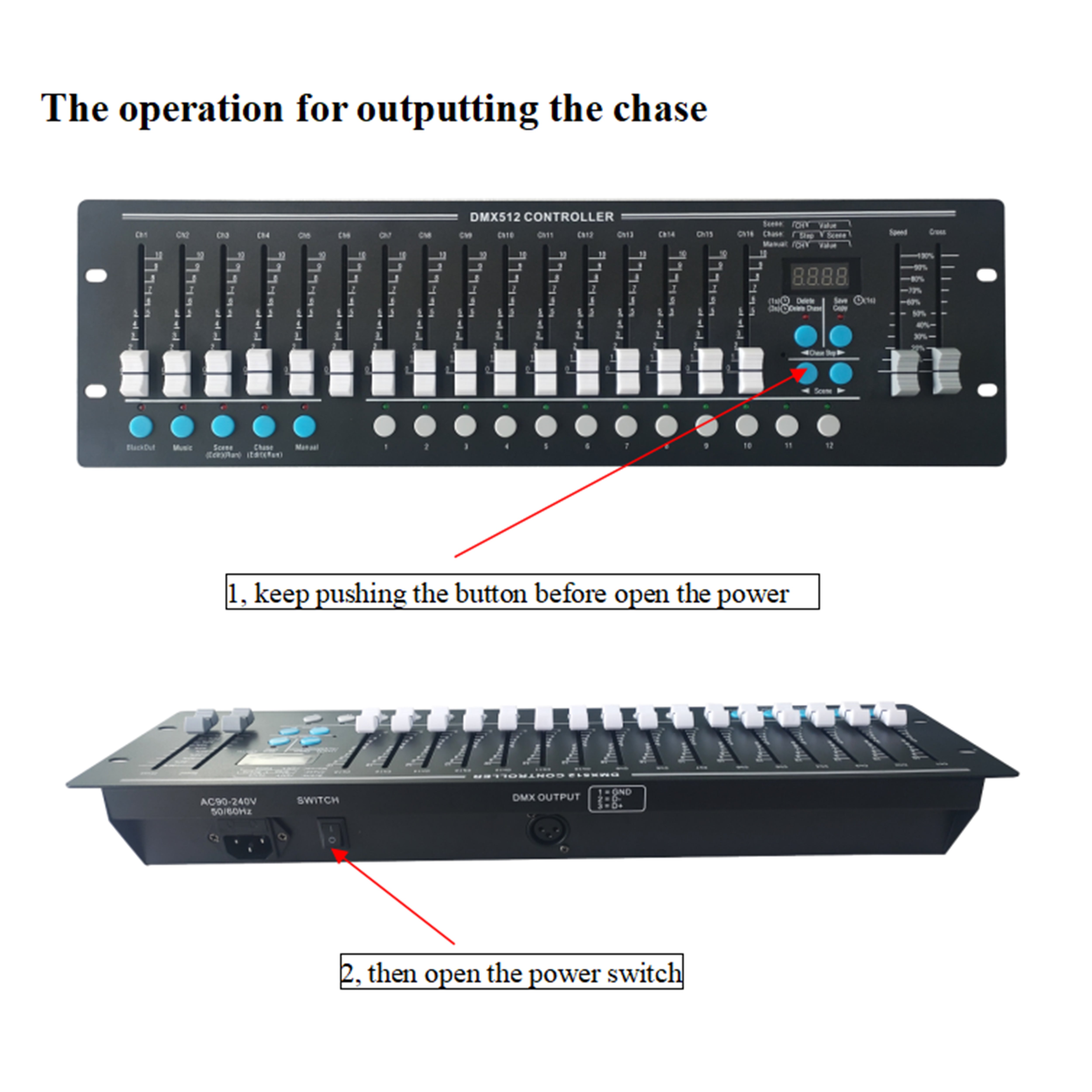

The most new features of the computer light controller (CR002B): it can realize the data transferring operation between 2 CR002B controllers (the user can copy the chase data from one CR002B controller to another CR002B controller).
CR002B,following the universal DMX 512 protocol, can control 12pieces 16-channel scanners or other equipments, and chase program and manual control of scanners can be performed at the same time .The functions are compact, and its convenient and flexible operation made it handled very easily. CR002B is suitable for different ballroom, taproom and small show.
Cautions of safety
◆ CR002B controller must be connected to the earth ground to ensure the safety of user。
◆ When CR002B controller is working，don’t plug in or plug out DMX 512 cable to avoid destroying the electronic components of the port in the controller.
◆ Don’t splash any liquid to the controller to avoid destroying the electric components and the functions of the controller
◆The scanner controller is precision electric equipment .please pay attention to moisture proof protection and dustproof .And please clean the controller panel thermally.
Installation of controller
Installing structure of CR002B scanner controller follows the international standard “19”3U.It can be embedded in operation board or directly installed in 19’’ shelf or cabinet.
The power of the controller has steady voltage output in a wide range of power supply voltage that it is adopt to the power supply of all the world .Before the power supply is connected ,.Please check whether the voltage is in normal range of CR002B
Connecting to scanner
According to DMX 512 protocol, DMX signal cable must be screened twist cable with impedance of 120Ω. In practical engineering installation, if the whole length of the cable is short, the cable may be replaced by high quality screened two-core microphone cable.
User joins each end of the cable to a XLR plug. Foot 1of the XLR plug is connected to the screen net of the cable. Twist lines (distinguished by different colors) are connected to foot 2 and 3. Foot 3 is signal + and foot 2 is signal -. Foot 2 and foot 3 of the plug cannot be confused.
To ensure correct DMX signal transmission, a 120Ω terminal matching resistance must be connected to the last equipment to absorb terminal signal reflection. The operation is as following: connect a 120Ω resistance to foot 2 and foot 3 of a plug then plug it to the output of the last scanner (or other equipment).

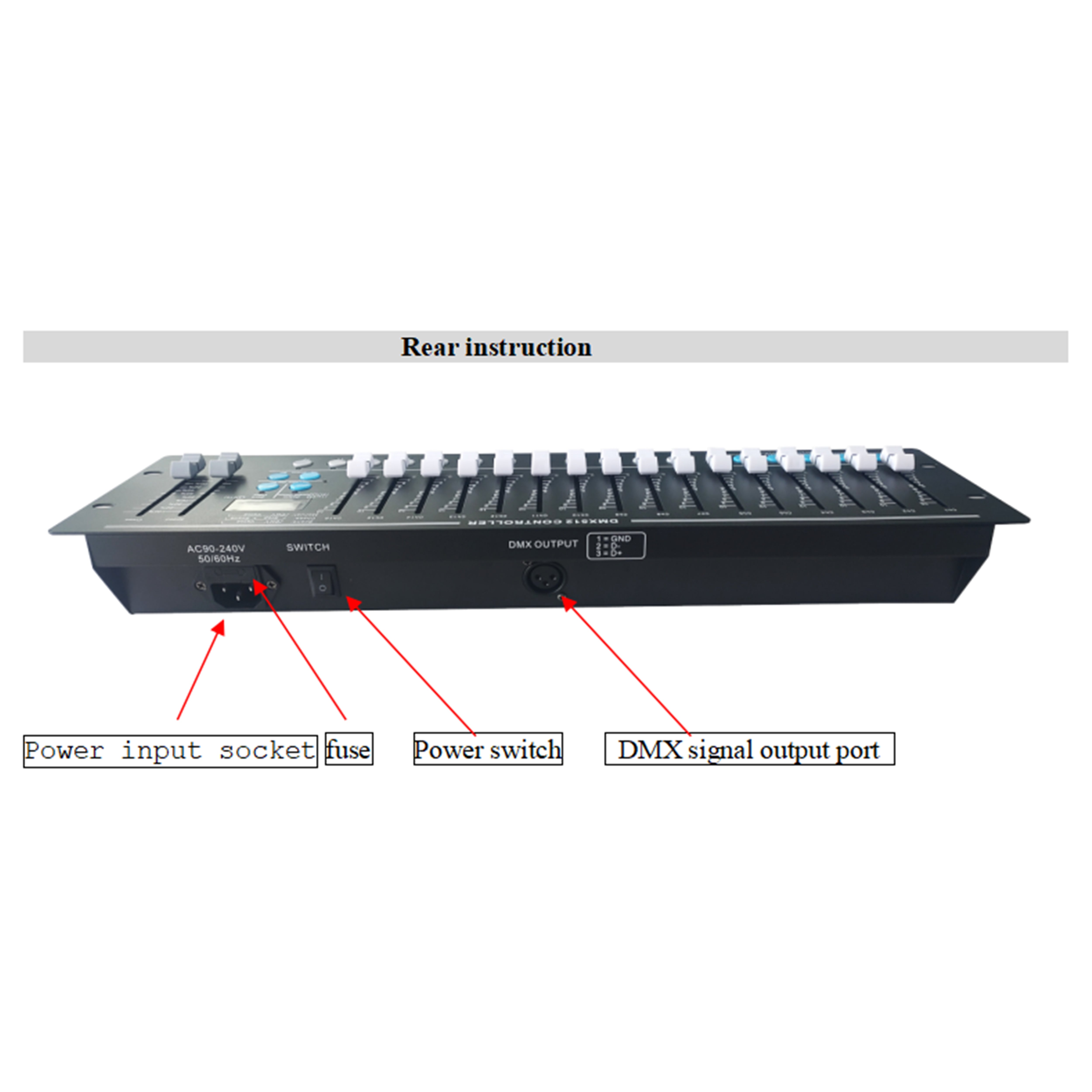

When the fuse needs to be replaced, please use the fuse with the current capacity signed on the rear of the CR002B.
Technical Parameter：
◆ Output signal: DMX512;
◆ DMX channels : 192;
◆ Maximum control channel amount of a scanner: 16;
◆ Control amount of scanners: 12;
◆ Amount of chase :12;
◆ Maximum chase steps in a chase :100;
◆ Amount of scanner scene: 100;
◆ Running scene directly: 12;
◆ Manual operation of scanner : Yes ;
◆ Music run : Yes
◆ Blackout function : Yes ;
◆Time of running chase can be adjust : Yes ;
◆ Cross of running chase can be adjust : Yes ;
◆ Port of DMX output : XLR-D3F;
◆ Power supply : AC90-240V,50-60Hz;
◆ Size : 53.5×18.5×10cm;
◆ Weight : 2.5 kg;
