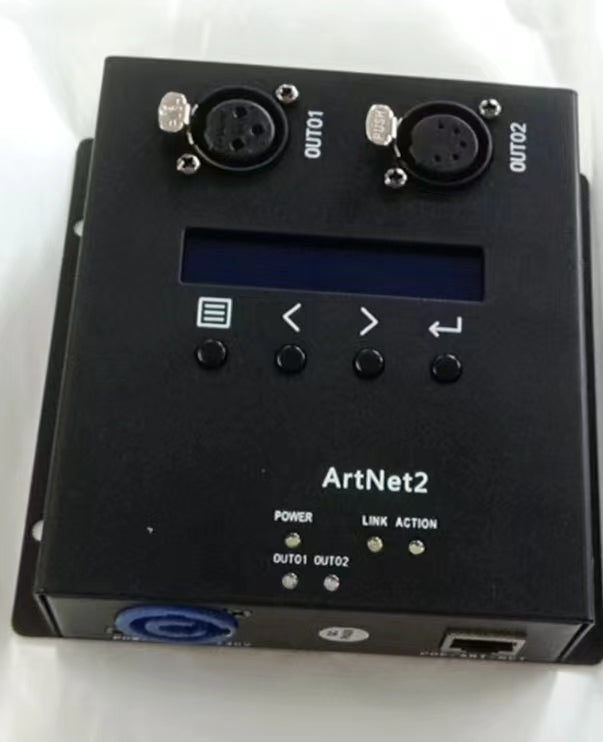

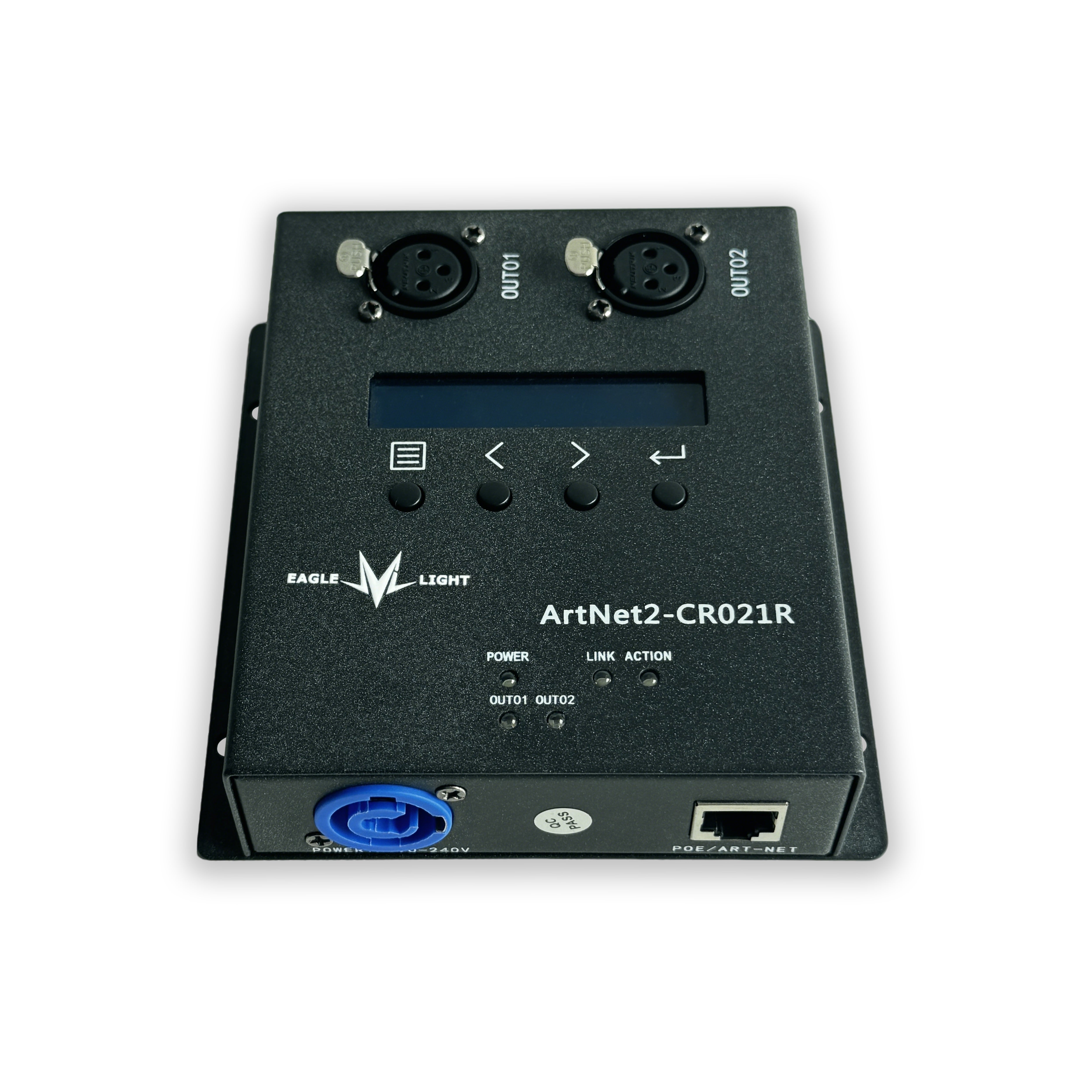

DMX Artnet Node 2 Channels

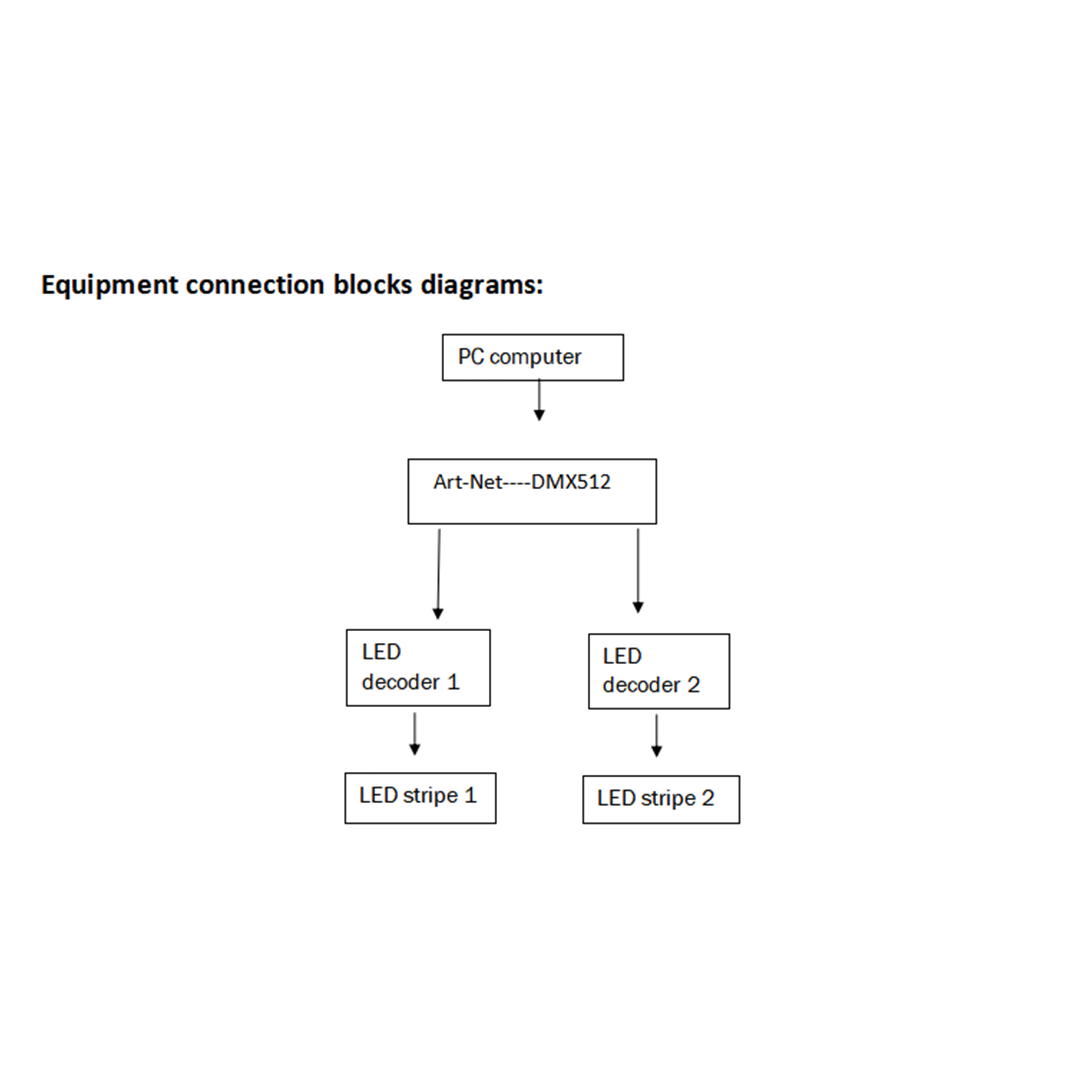

  Art-Net---DMX512 is standard Art-Net Node. Because of this, you can use the device with any application, console, or controller that supports Art-Net to distribute Art-Net data via Ethernet network. Commonly the CR021R can be used to extend the DMX output ports of tiger touch and MA2.

Technical Specifications:

◆Provide 2 standard DMX512 data output ports, supporting 2x170 LED pixels.
ArtNet can be managed in broadcast or unicast mode;
◆ 1 ArtNet data can be input or output, 2 DMX512 data can be input or output; (A total of 1024 channels can be output).

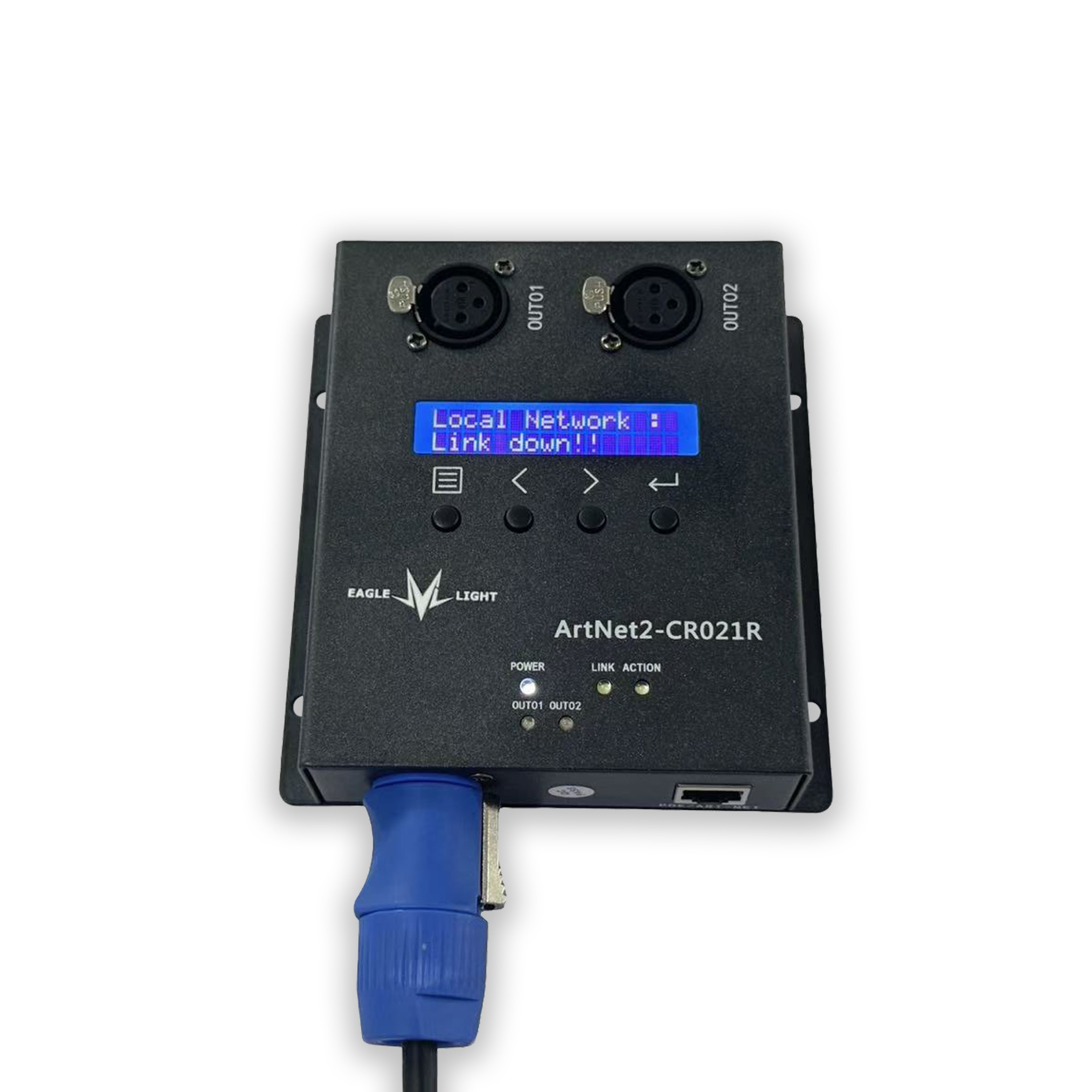

All network configuration parameters can be directly modified through built-in buttons and display screens (without the need to connect to a computer for settings).
Other software, consoles, and controllers supported by Art Net can be used to distribute Art Net data over the network.

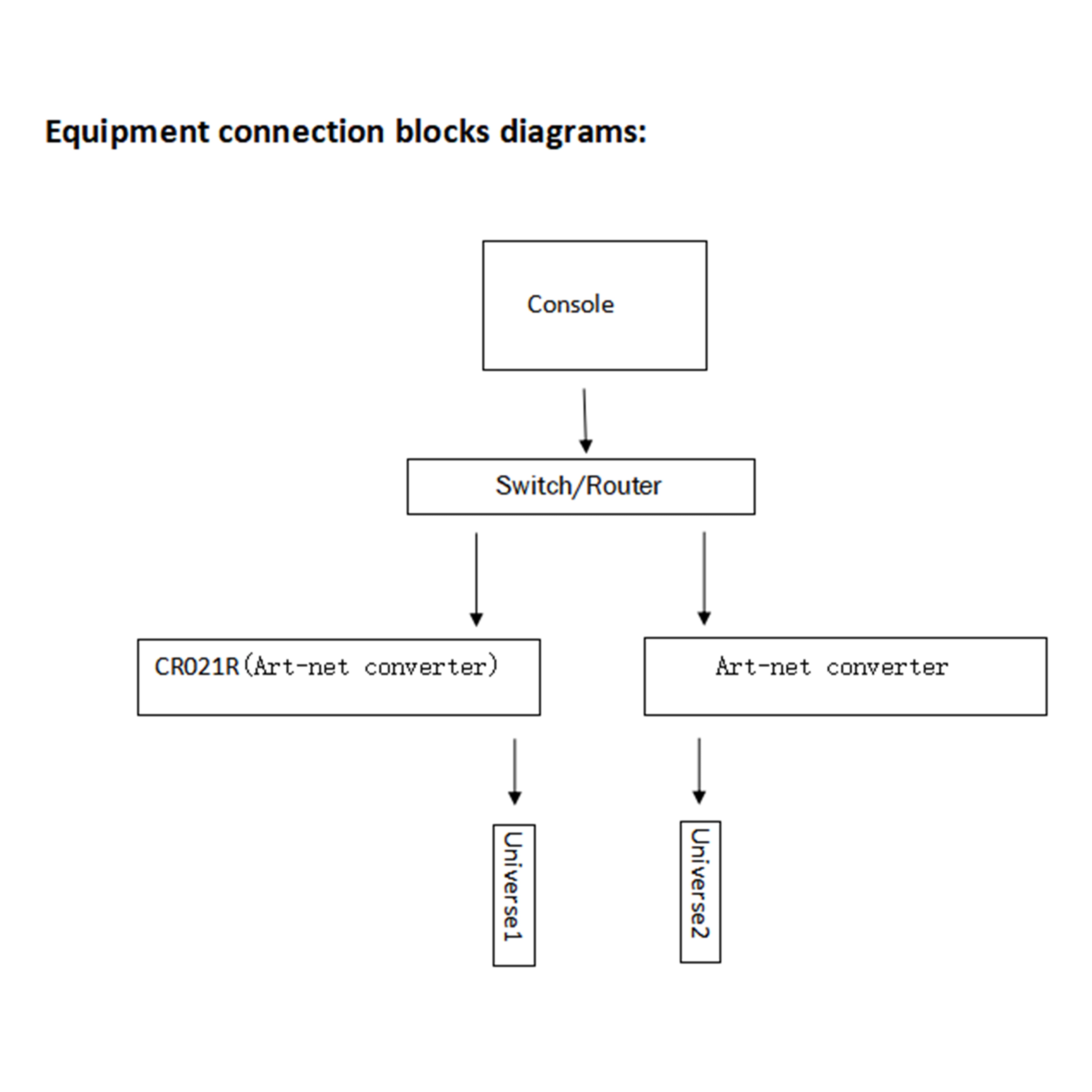

◆ Usually used to expand the DMX output ports of Tiger Touch or MA2 consoles and Madrix software

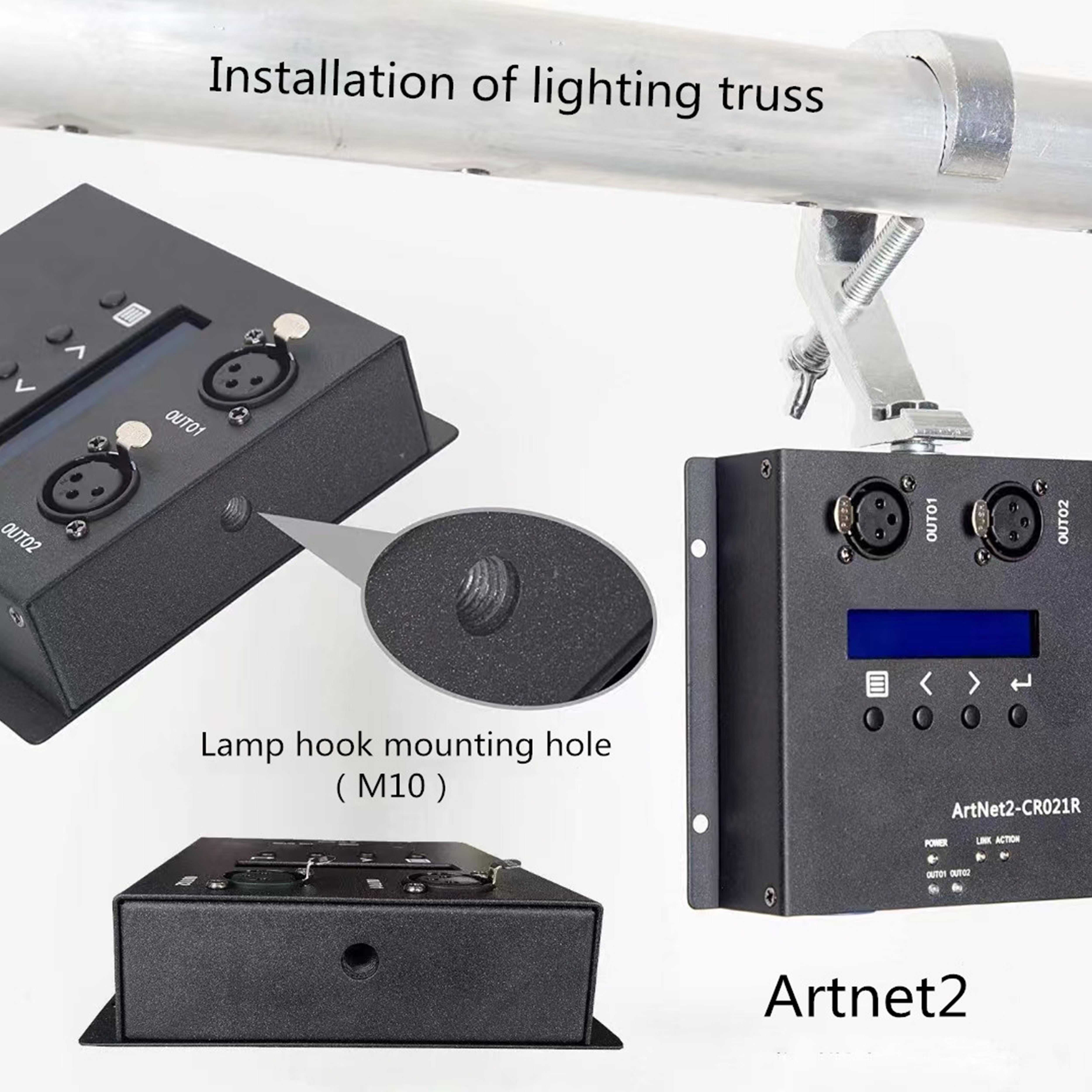

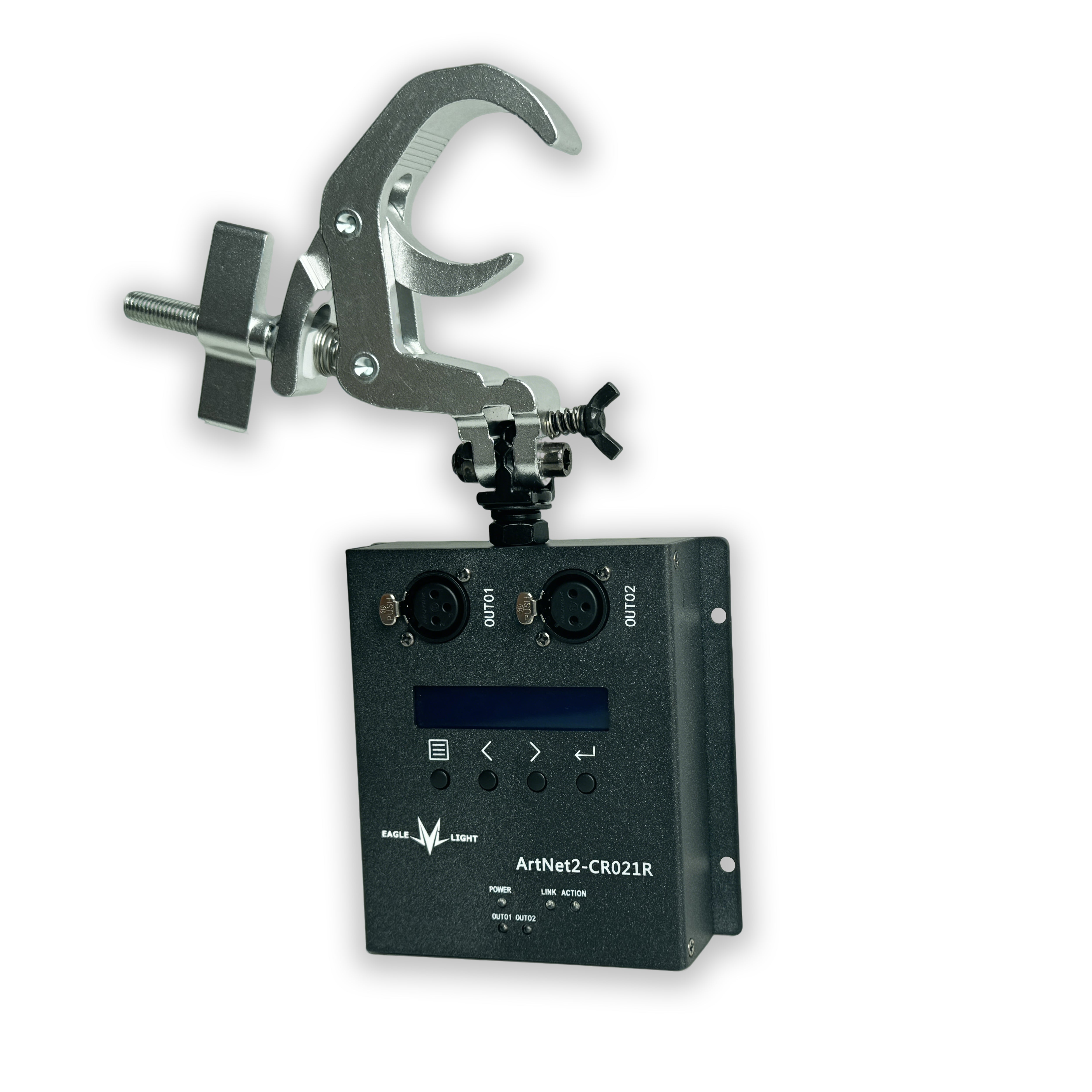

Installation method: It can be installed on the light hook or any safe position.

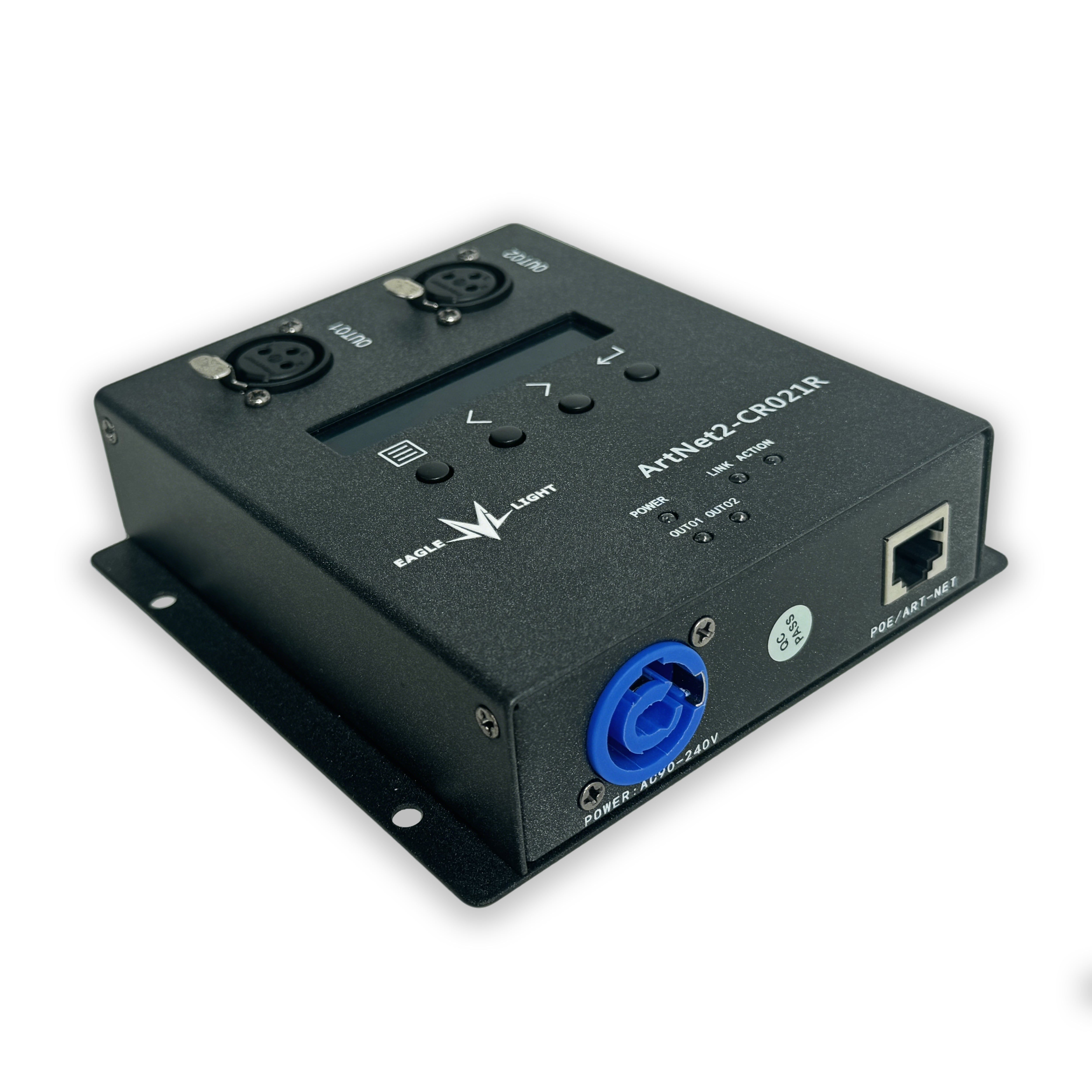

◆ Supports two power supply methods: mains power supply and Ethernet power supply POE.
Product size: 12.5 × 12.8 × 3.5 centimeters
◆ Packaging size: 23.5 × 14.5 × 6.5 centimeters
Product net weight: 0.55 kg, gross weight: 0.88 kg;
