CR041R

DMX Artnet Node 4CH

Technical Parameter：

◆4 standard DMX512 data output ports are provided, supporting 4x170 LED pixels.
◆ArtNet can be managed in broadcast or unicast mode;
◆1 ArtNet data can be input or output, 4 DMX512 data can be input or output; (total can
output 1024 channels).
◆ All network configuration parameters can be directly modified through the built-in
buttons and display (no need to connect to a computer for setting).
◆ Other software, consoles, and Art-Net-supported controllers can be used to distribute
Art- through the network Net data.
◆Commonly used to expand the Tiger Touch or MA2 console, and the DMX output port of
Madrix software

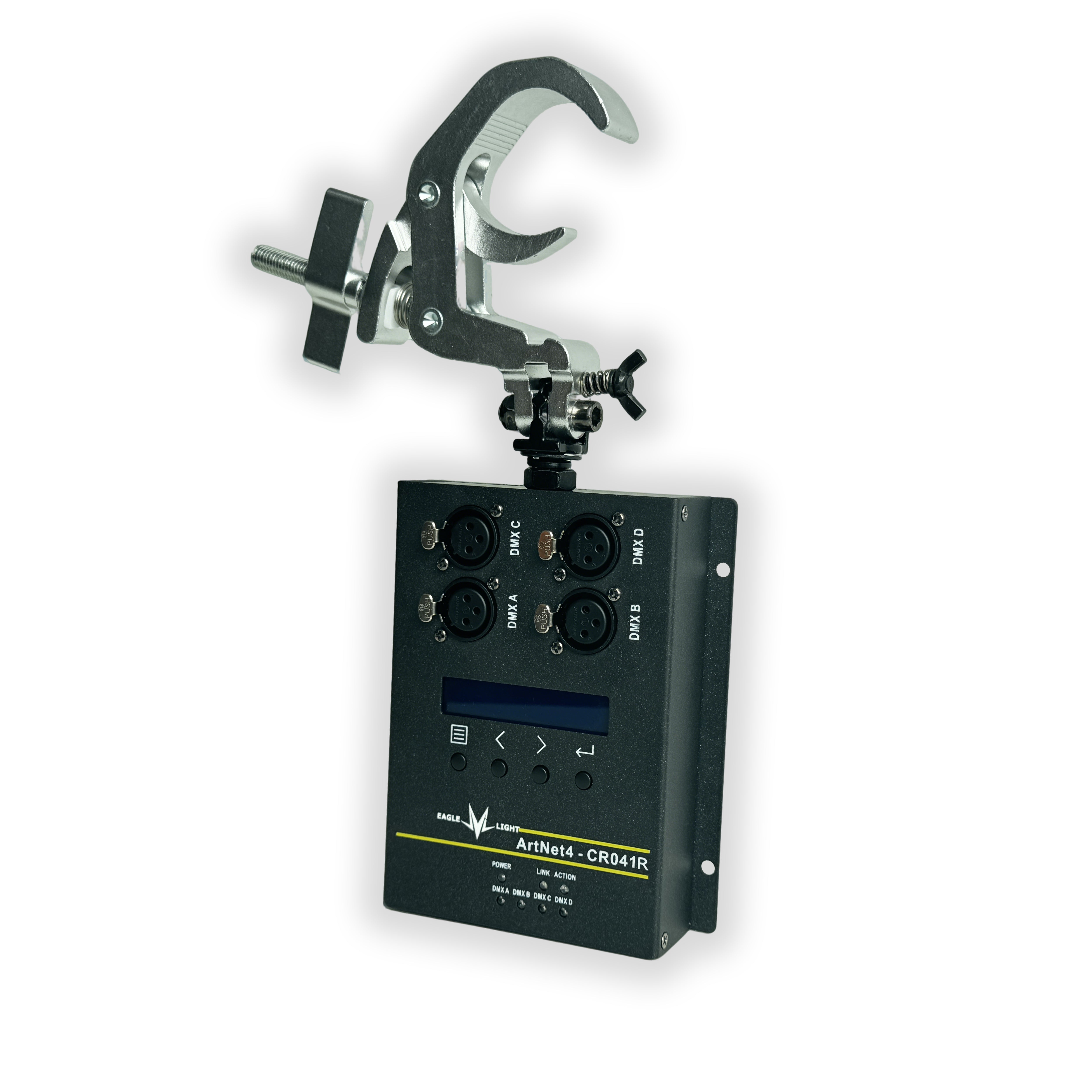

◆Installation method: It can be installed with a light hook or any safe location.
◆Support two power supply methods: (mains and network cable power supply POE).
◆ Product size: 12.5×15×3.5cm
◆ Packing size: 23.5×14.5×6.5cm
◆ Product net weight: 0.65kg, gross weight: 0.97kg
