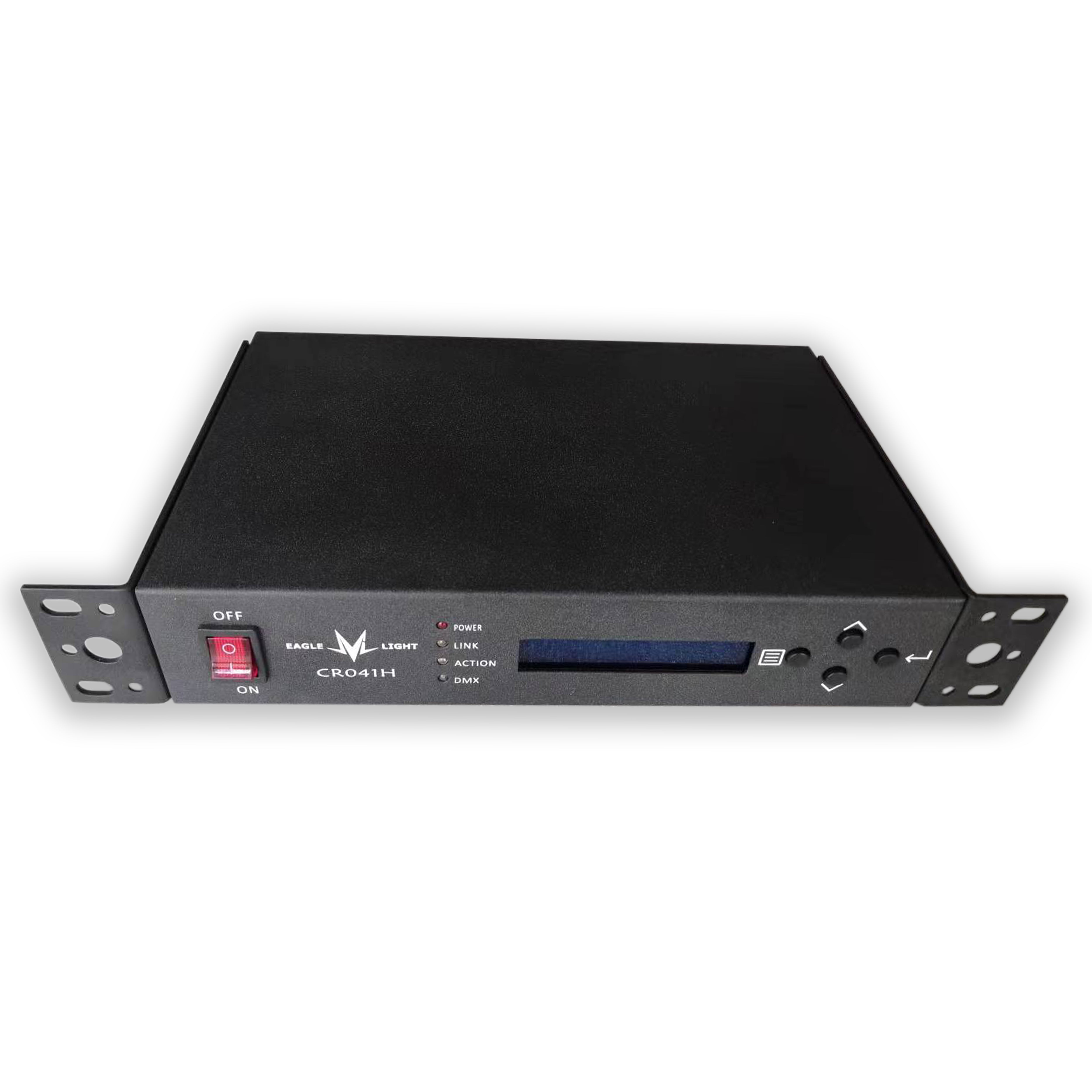

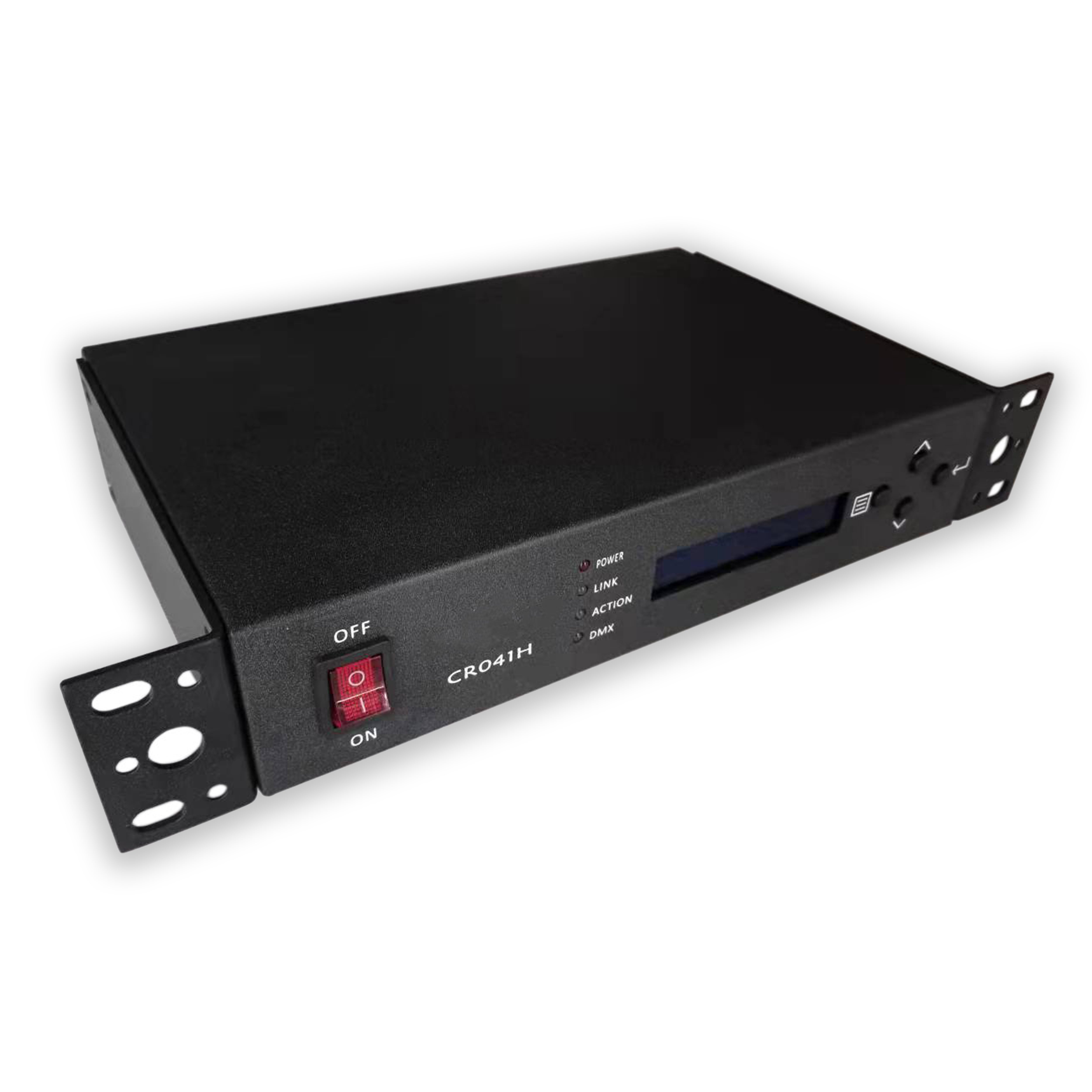

CR041H

DMX Artnet Node 4CH

Technical Parameter：

•CR041H 4-way network extender；

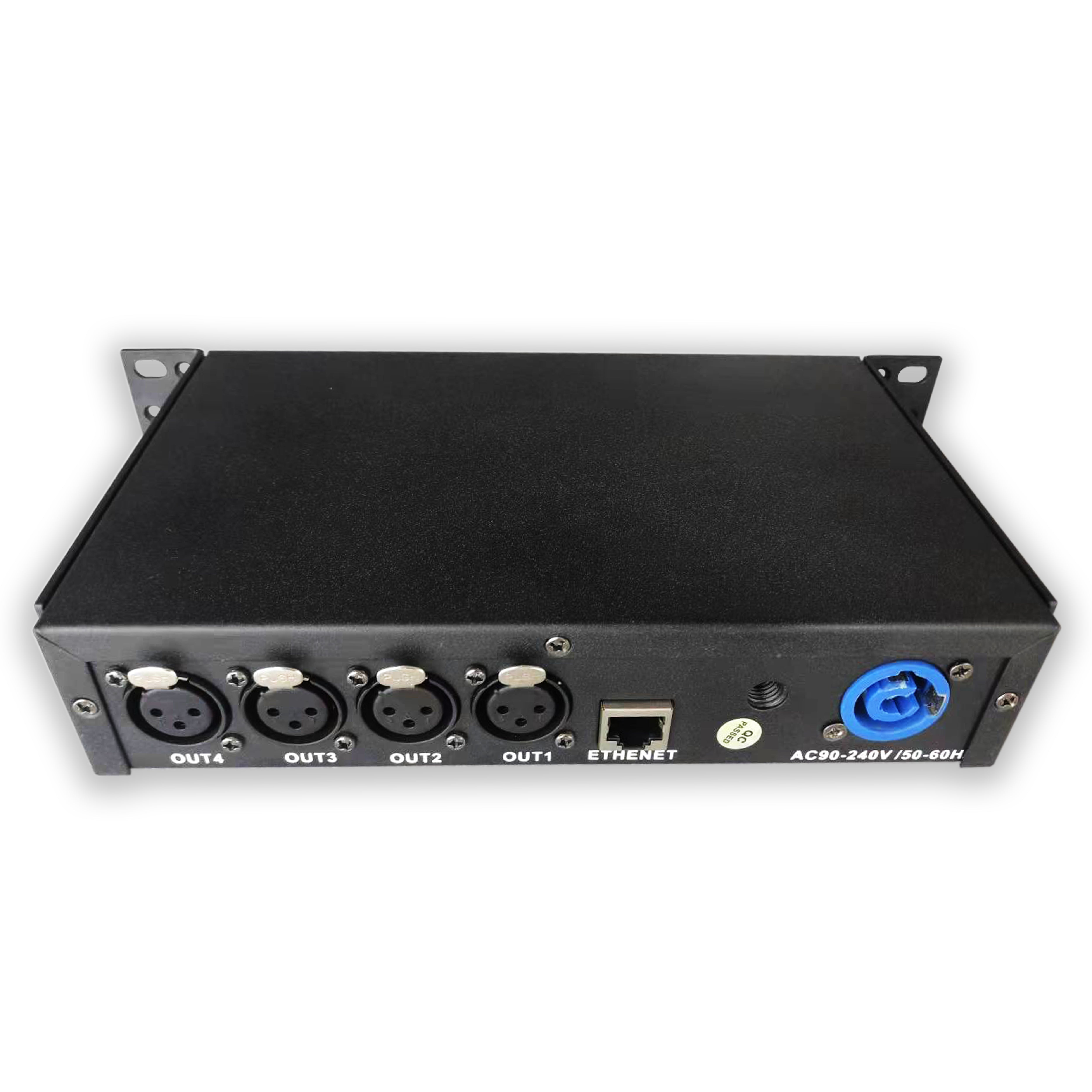

•Provide 4 standard DMX512 data output ports, support 4*170 LED pixels;
•Can manage ArtNet in broadcast or unicast mode；
•1 ArtNet data can be input, 4 DMX512 data can be output;( a total of 2048 channels can be output).
•All network configuration parameters can be directly modified through the built-in buttons and display( no need to connect to a computer for setting).

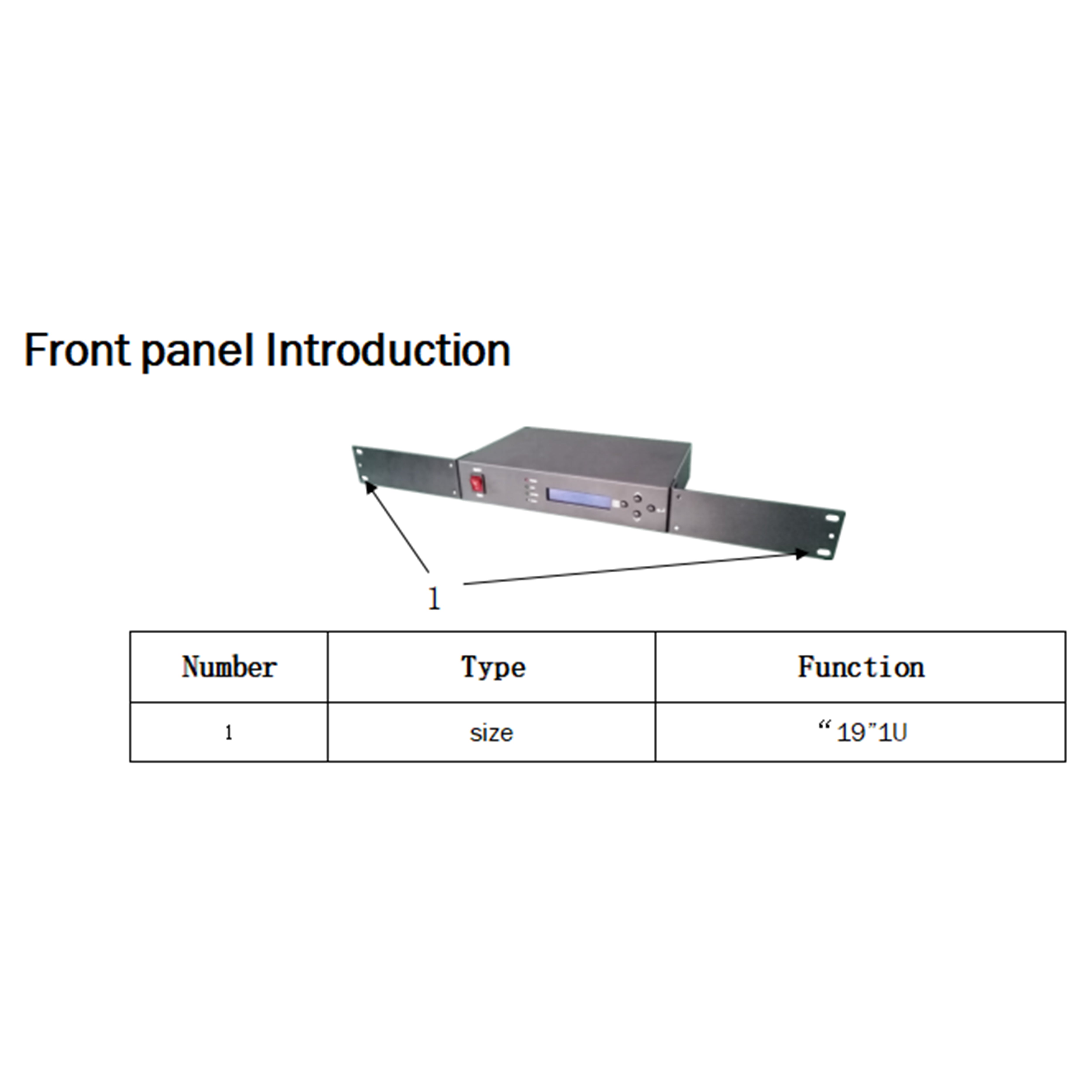

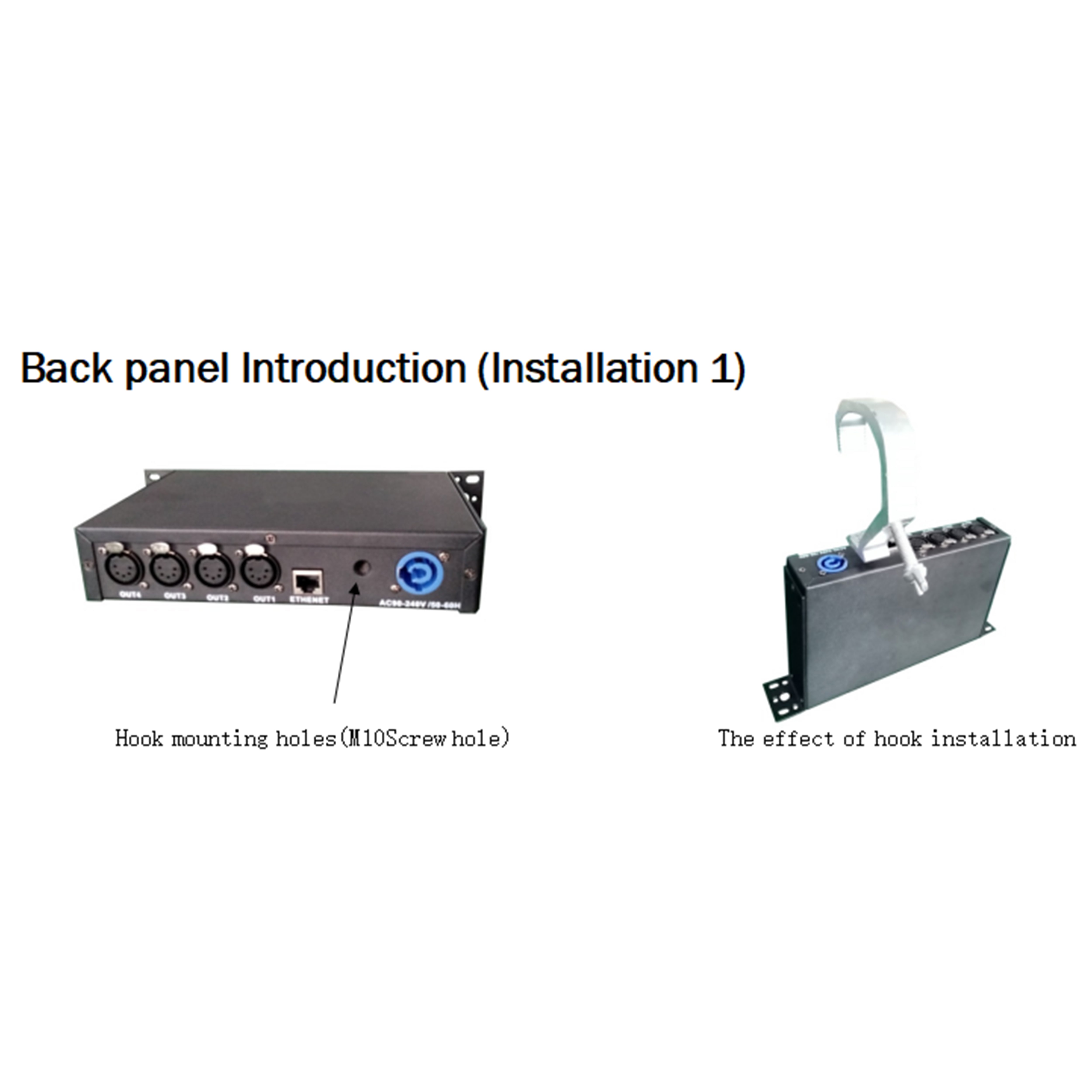

•Installation method: it can be installed in a standard 19-inch 1U cabinet, the body is half U; it can be installed in a light hook type.
•Can use other software, consoles, and controllers that support ArtNet to distribute ArtNet data through the network.
•Commonly used to expand the Tiger Touch or MA2 console and the DMX output port of Madrix software.
