CR041RMK2（Support ArtNet, DMX512, sAcn protocols）
Sale price$0.00

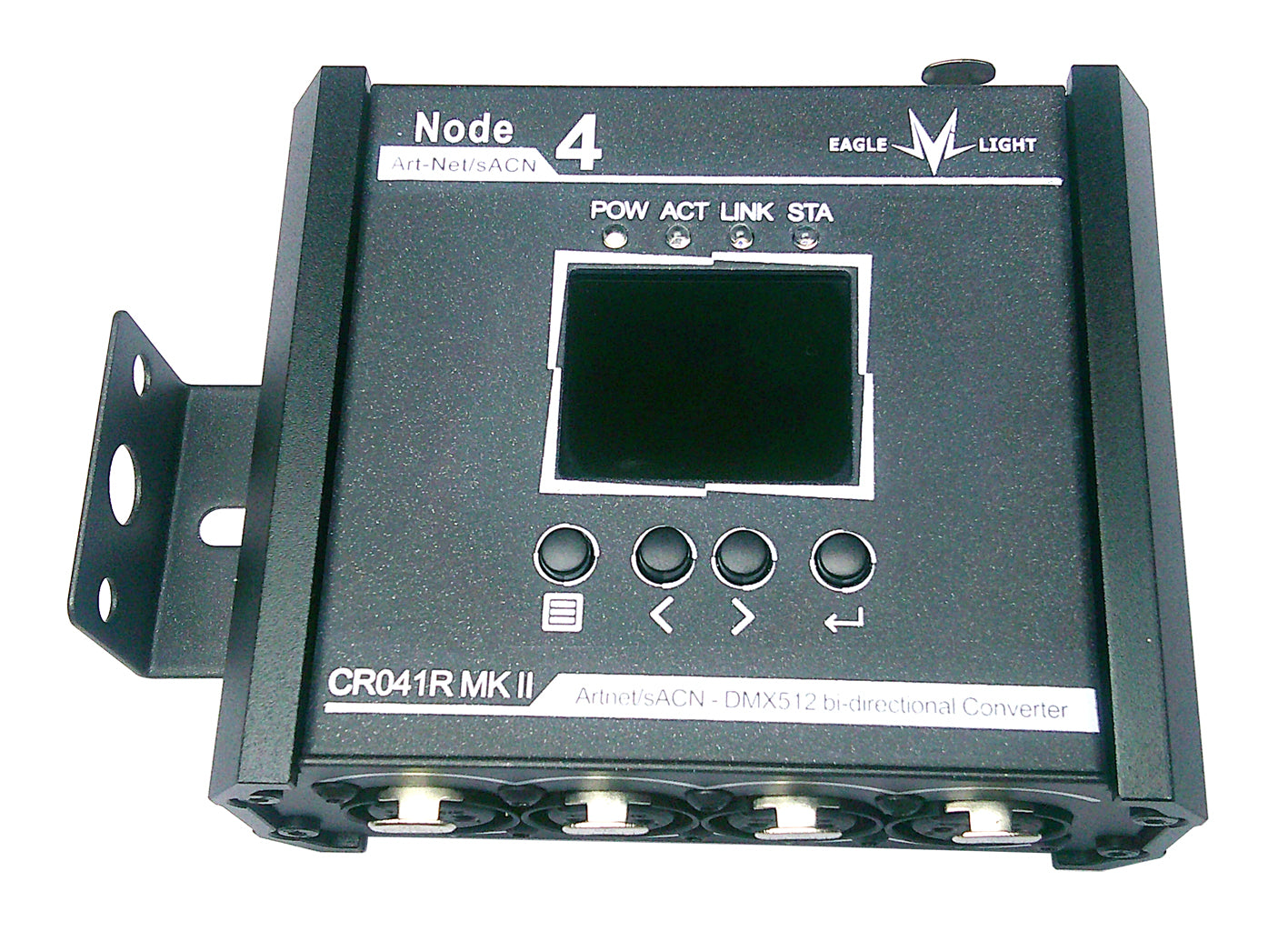

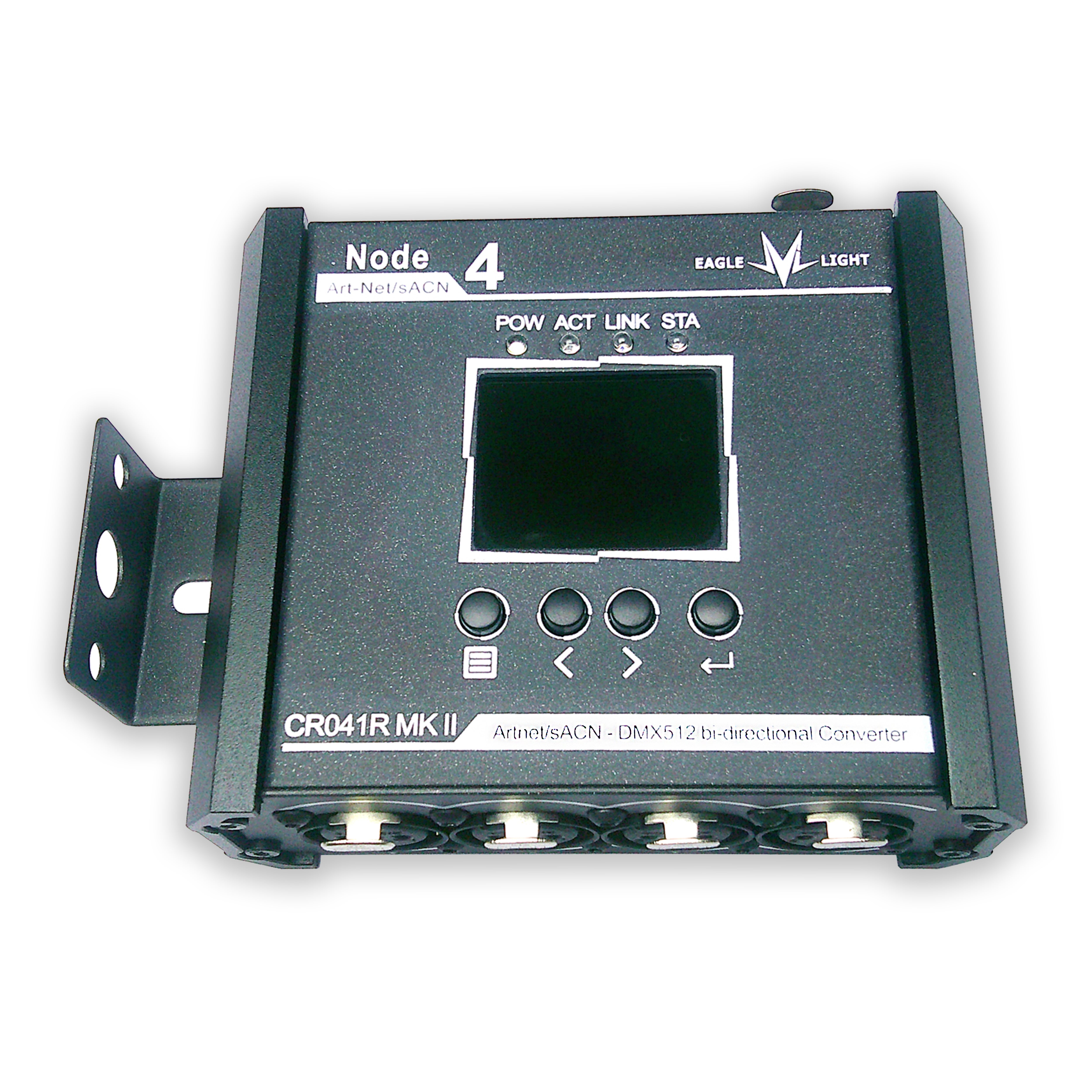

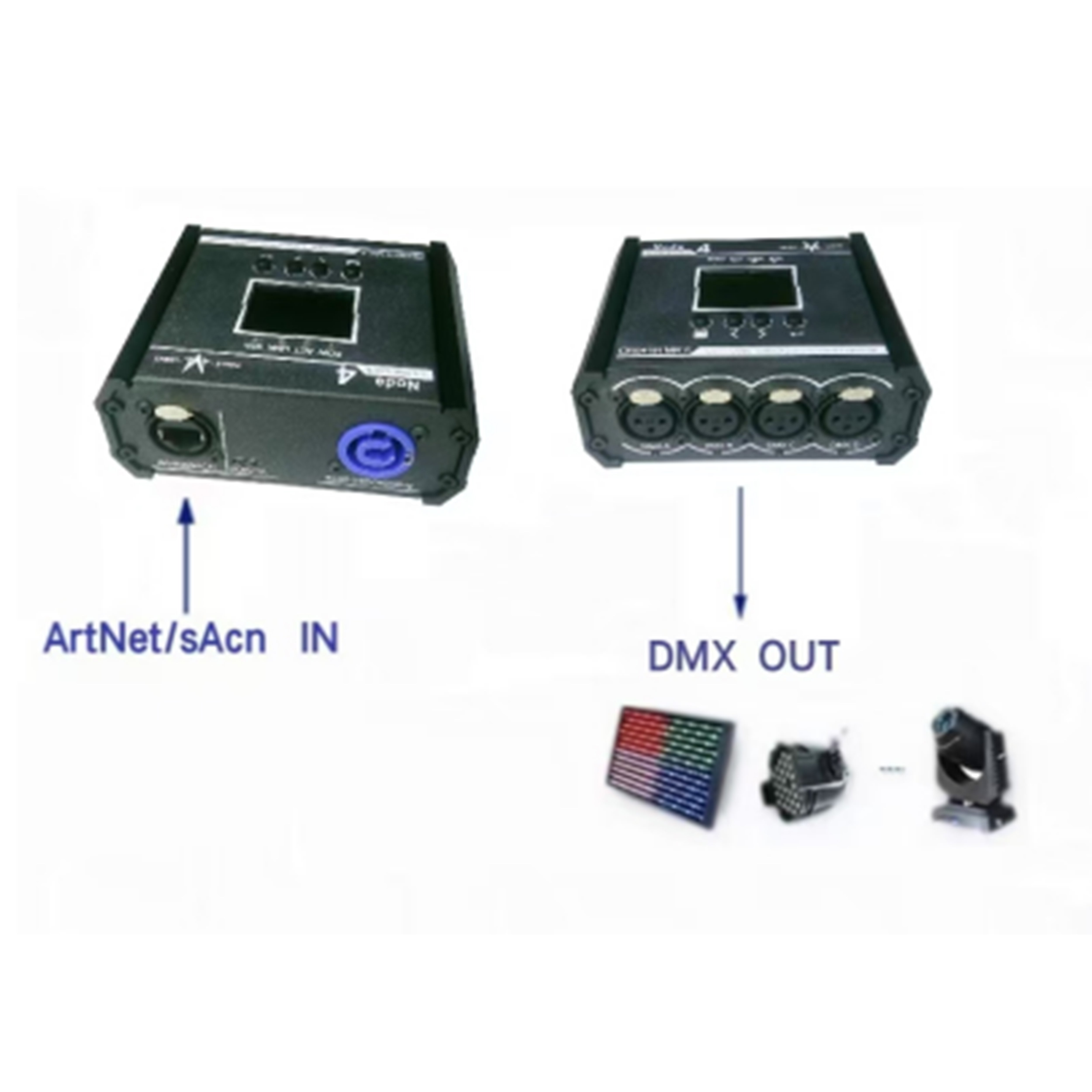

4-way Extender (Ethernet to DMX Converter)
Overview:
The 4-way extender is an Ethernet to DMX converter that provides an RJ45 network interface and four standard DMX512 output interfaces, with each port supporting ArtNet/sACN to DMX512 or DMX512 to ArtNet/sACN conversion. This device adopts a high-speed ARM processor, follows the standard Art Net protocol/sACN protocol, is highly compatible with protocol standards, has strong real-time performance, and works stably and reliably.

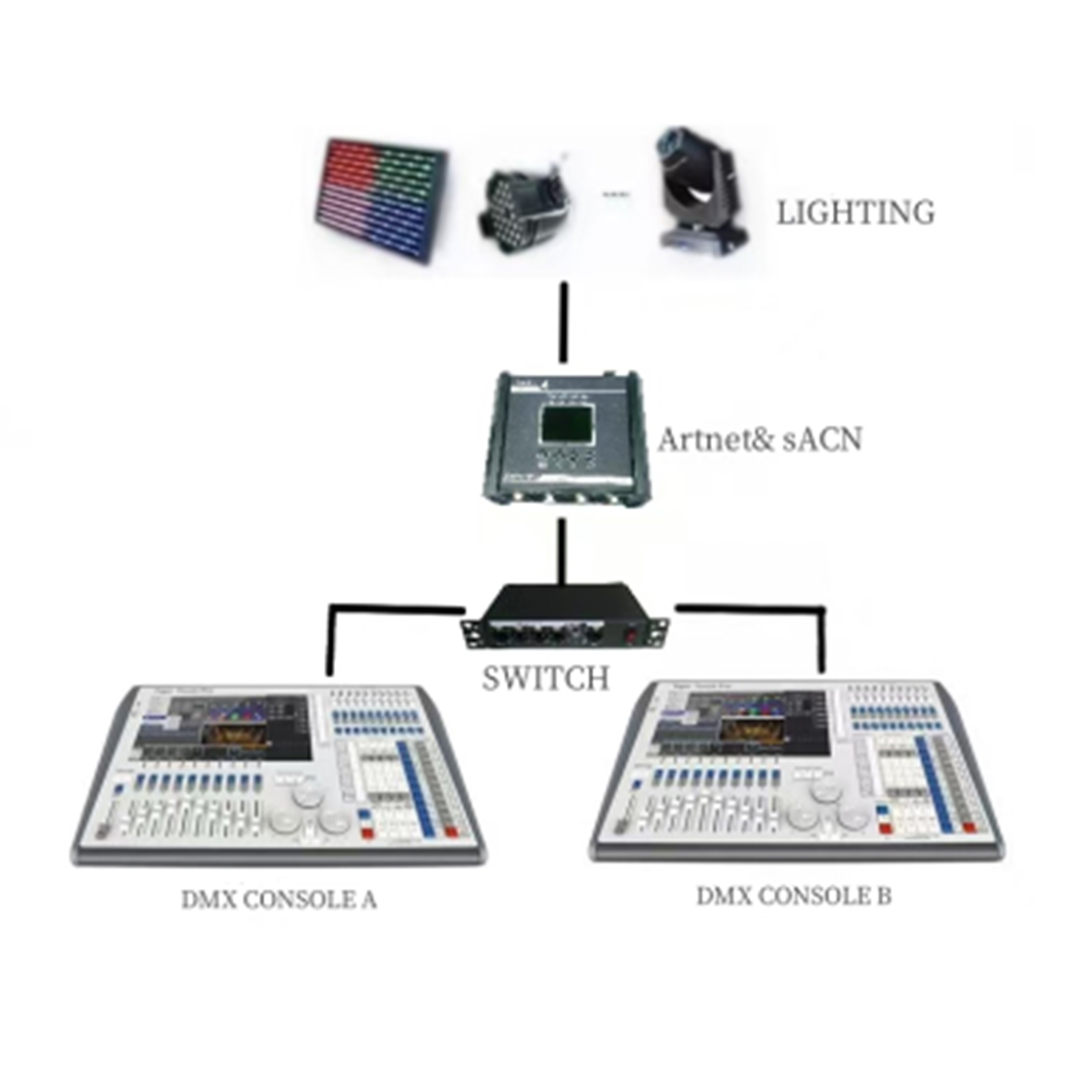

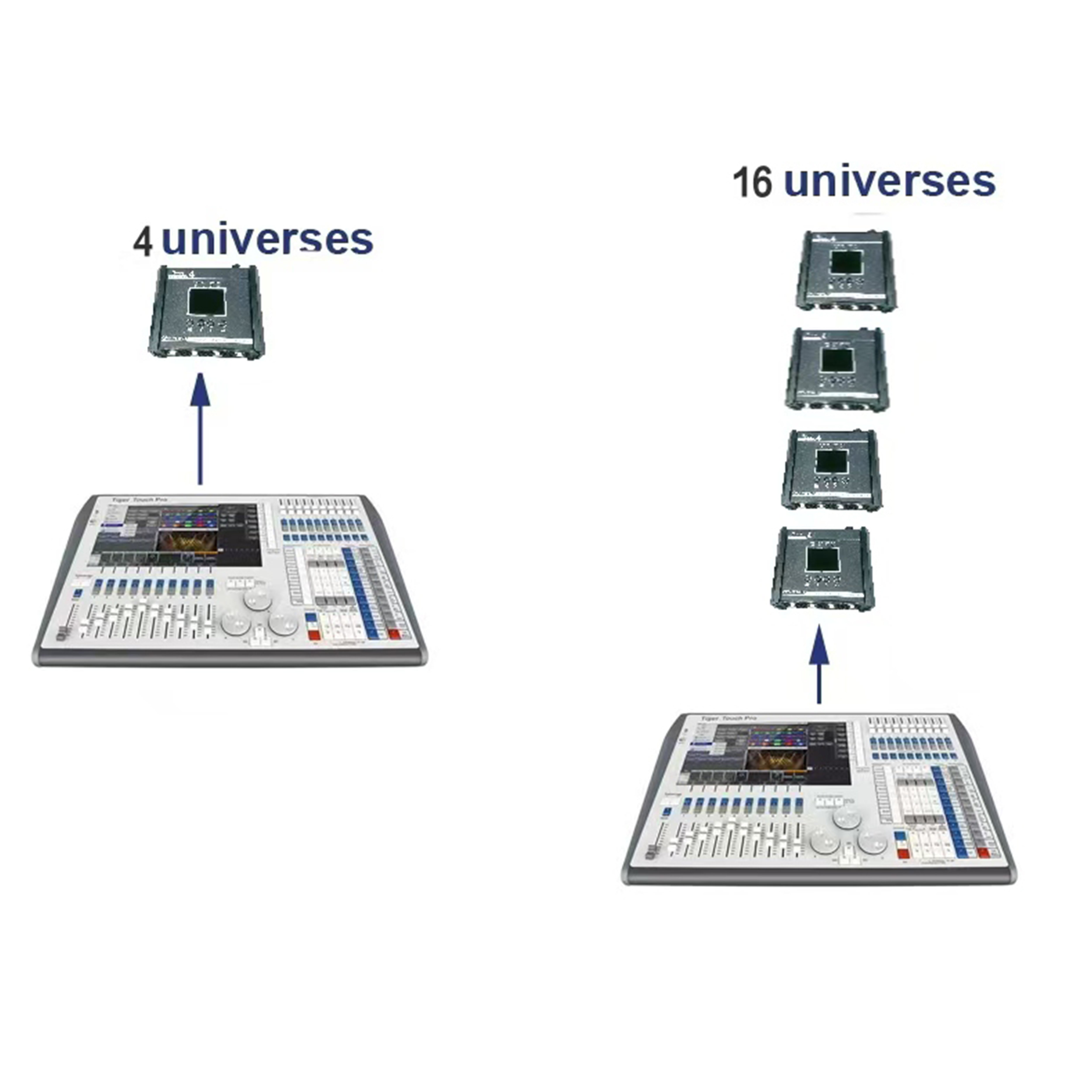

The 4-channel extender is factory configured with an IP address of 2. x.x.x and a subnet mask of 255.0.0.0, which generally does not require modification and can be plug and play. Commonly used to expand the DMX output port of Tiger Touch or MA2 console, special network configurations can be modified using the local menu.
Key Features:
1. Support ArtNet to DMX512 protocol output;
2. Support DMX512 to ArtNet protocol output;
3. Support sAcn to DMX512 protocol output;
4. Support DMX512 to sAcn protocol output;
5. Support PoE power supply through Ethernet cables
6. Provide 5V power supply through tpcy-c interface;
7. Provide RJ45 interface with lock;
8. Equipped with TFT LCD display screen;

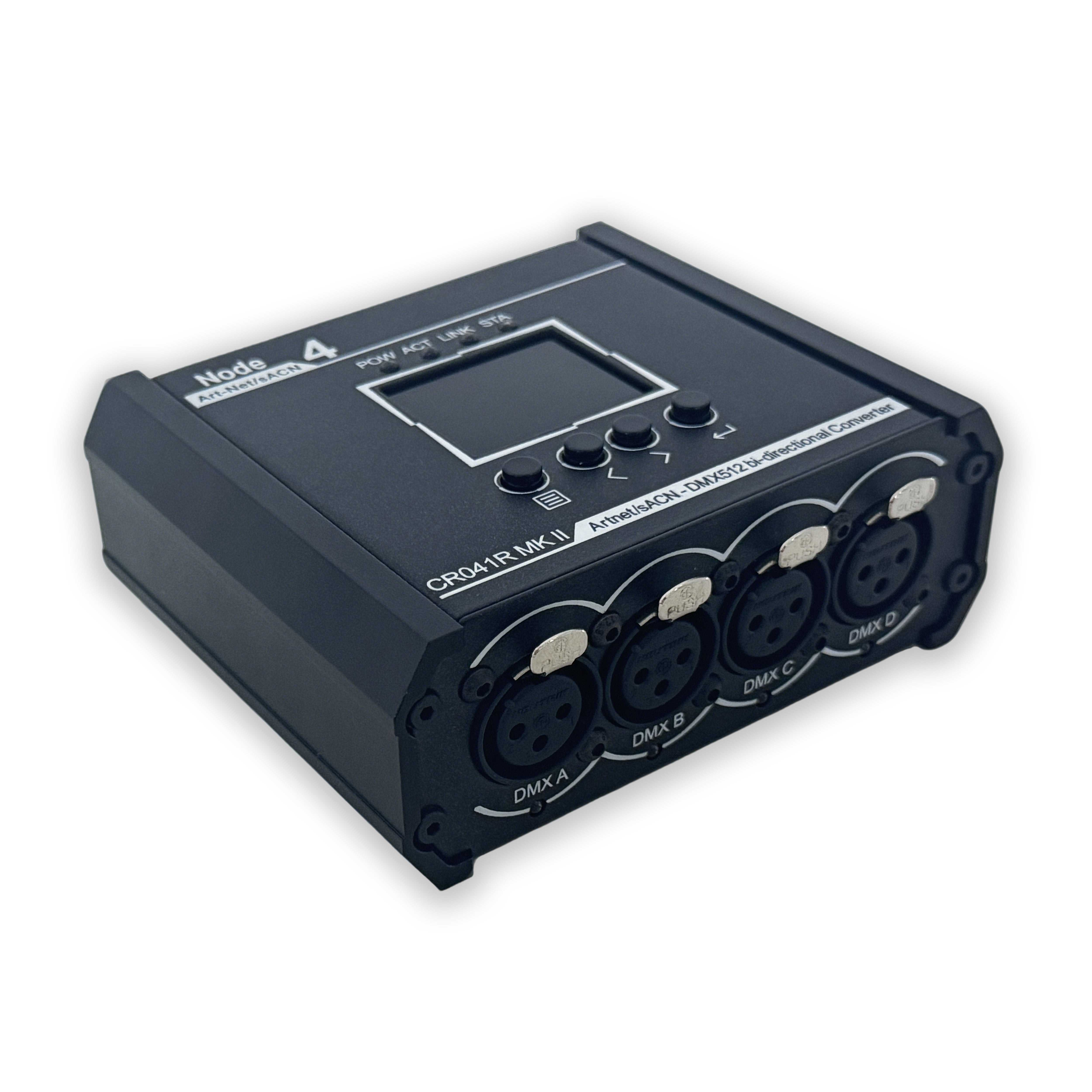

9. Four gold-plated 3-core XLR female sockets.

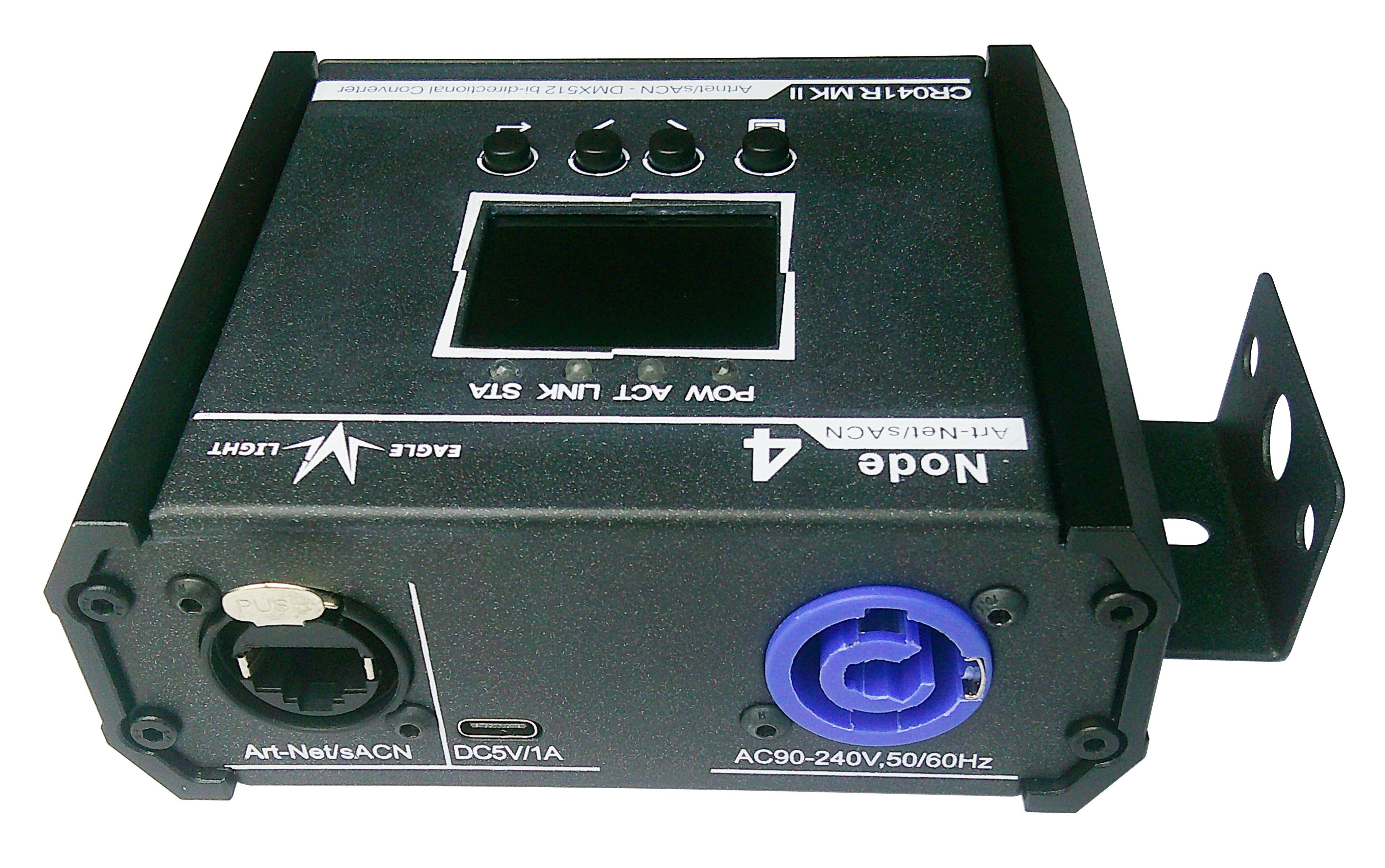

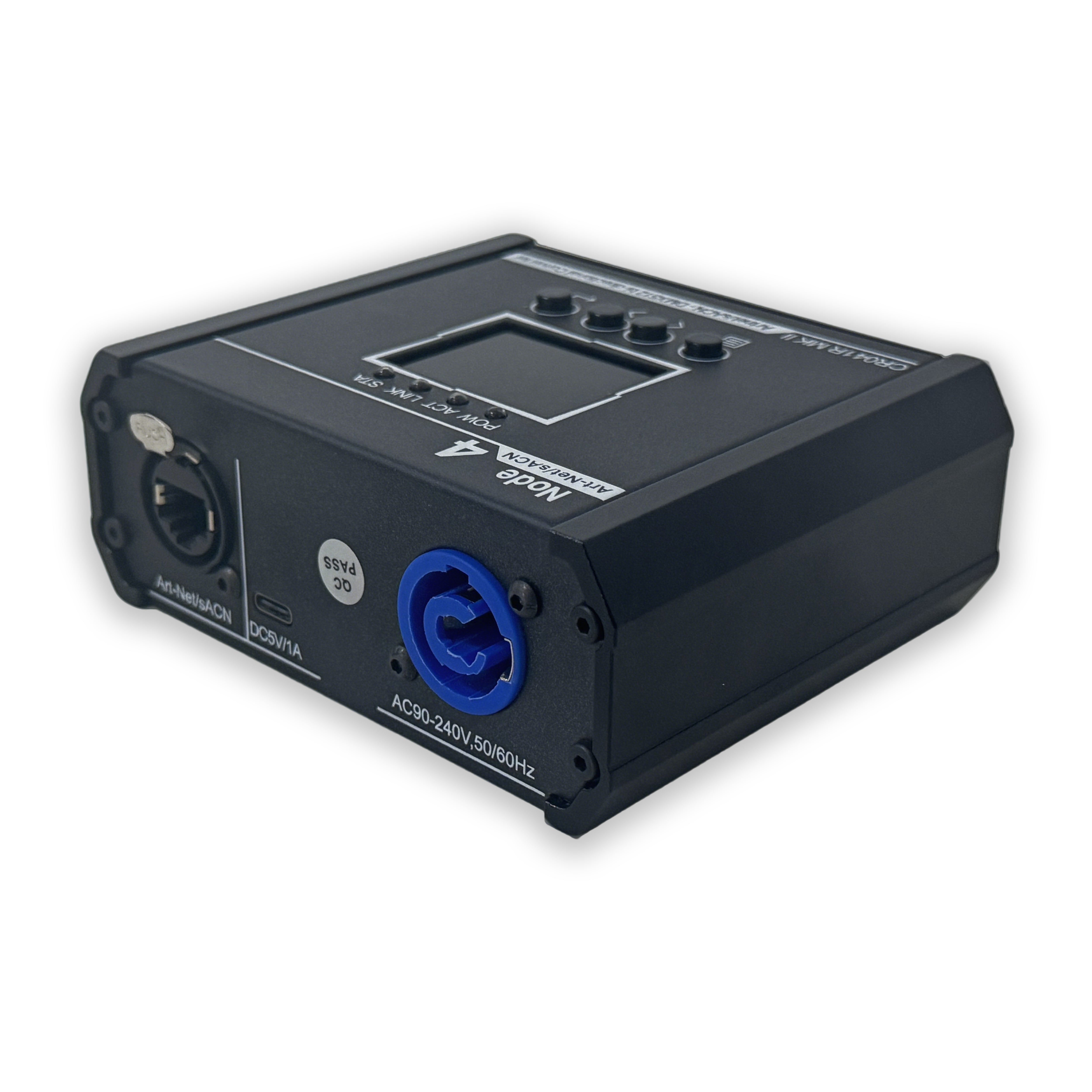

10. Supports three power supply methods: supports AC220V power supply;
11. Support 5V power supply through tpcy-c interface;
12. Supports PoE power supply via Ethernet cable.
13. Installation method: It can be installed using a light hook or installed in any safe position.
14. Product size: 11.5 * 9.5 * 4.4CM
