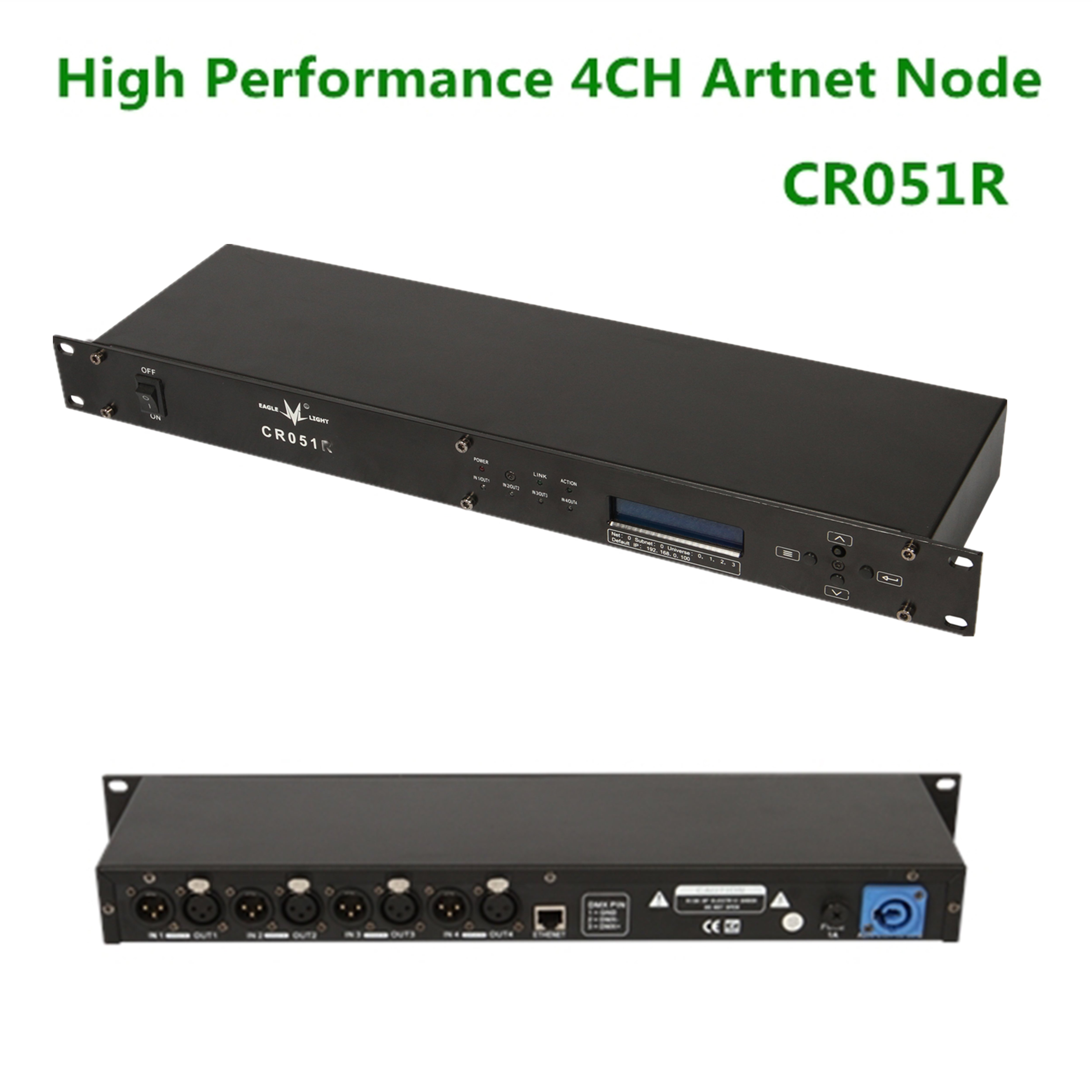

DMX Artnet Node 4CH

  CR051R is standard Art-Net Node. Because of this, you can use the device with any application, console, or controller that supports Art-Net to distribute Art-Net data via Ethernet network. Support bidirectional converter, through the setting menu, you can set the transfer mode at: Art-Net into DMX512, DMX512 into Art-Net. Commonly used to extend the DMX output ports of tigger touch and MA2.

Technical Parameter：

◆Support 4 standard DMX512 output port，and 4 x170 LED pixels.
◆Can be managed under the broadcast or uni-cast mode.
◆ Input 1 way Art-Net data，input and output 4 ways DMX512 data；（total
4×512channels）.
◆ All internet configuration parameters can directly modify with its keys and display
screen(No need to connect the computer to set up).
◆ Can use other software and controller to support Art-net and through internet to
distribute Art-net data.
◆Installation: Adopt standard 19inches 1U cabinet.
◆Size:48.3×12.5×4.5 cm ,“19”1U
◆N.W: 1.72kg
