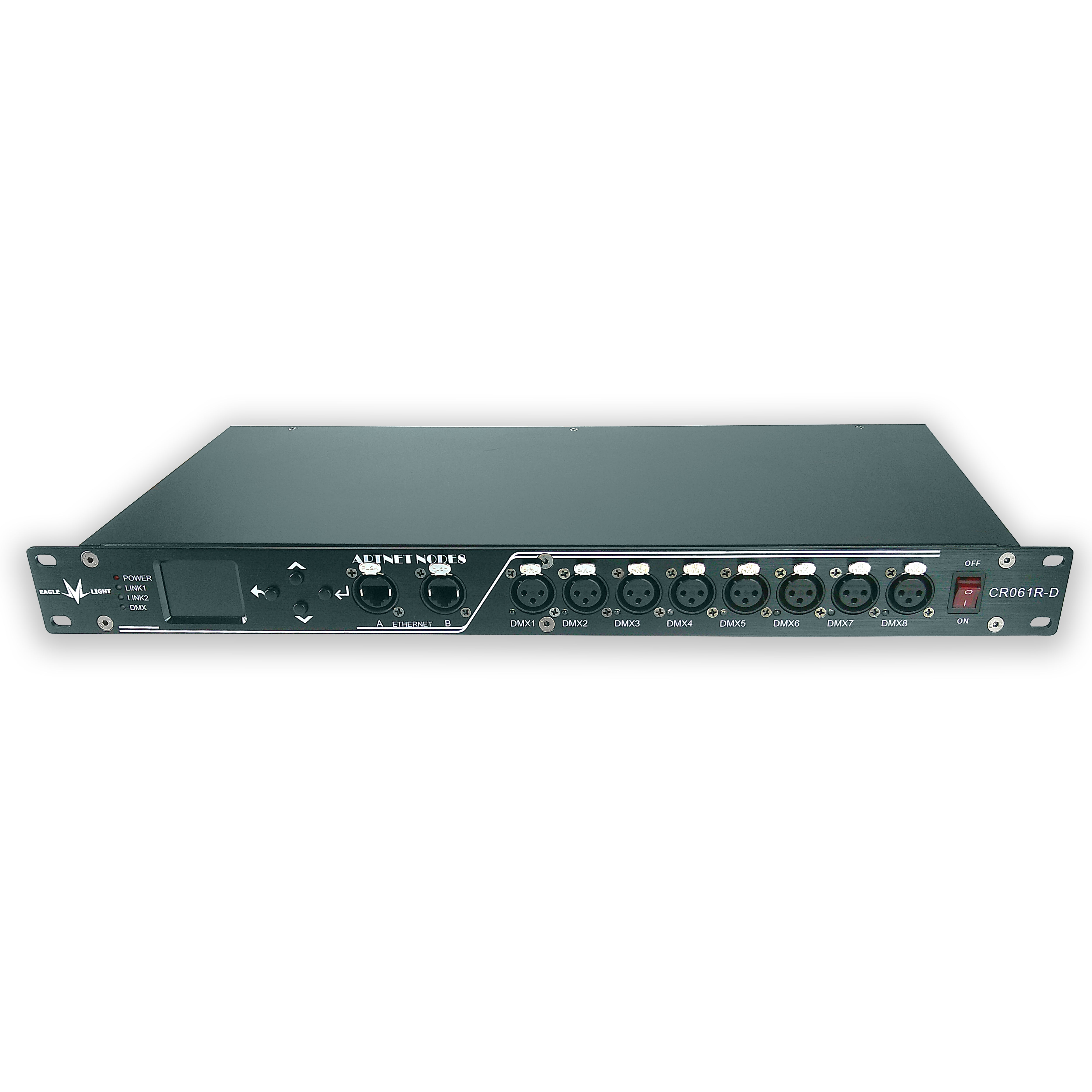

RDM Artnet Node 8CH (Dual Network Ports)
Technical Parameter：
The Artnet node 8ch is an Ethernet to DMX converter that offers dual Art-Net to DMX512 conversion
capabilities along with RDM functionality. It features eight DMX output ports, all supporting the RDM
(Remote Device Management) protocol, allowing for convenient configuration and management of
RDM/DMX lighting fixtures. This device is powered by a high-speed ARM processor, adheres to the
standard Art-Net protocol, and provides an RJ45 network interface as well as standard DMX512
input and output interfaces. The ArtNet-DMX8 is highly compatible with protocol standards, ensuring
real-time operation, stability, and reliability.
◆ 2 network ports； 1 Gigabit internet speed.
◆ Support Art Net protocol to RDM/DMX512 protocol output;
◆ Support RDM/DMX512 protocol to Art Net protocol output;
◆ 4way SPI output function, which can be used to control single line LED
light strips,
◆Each channel can support 2048 channels (4 domains) control.
Product size: 48.3× 19.3× 4.5cm, 19 "1u
◆ Carton packing size: 50×26×11cm
◆ Net weight: 2.3KG, gross weight: 3.05kg.
