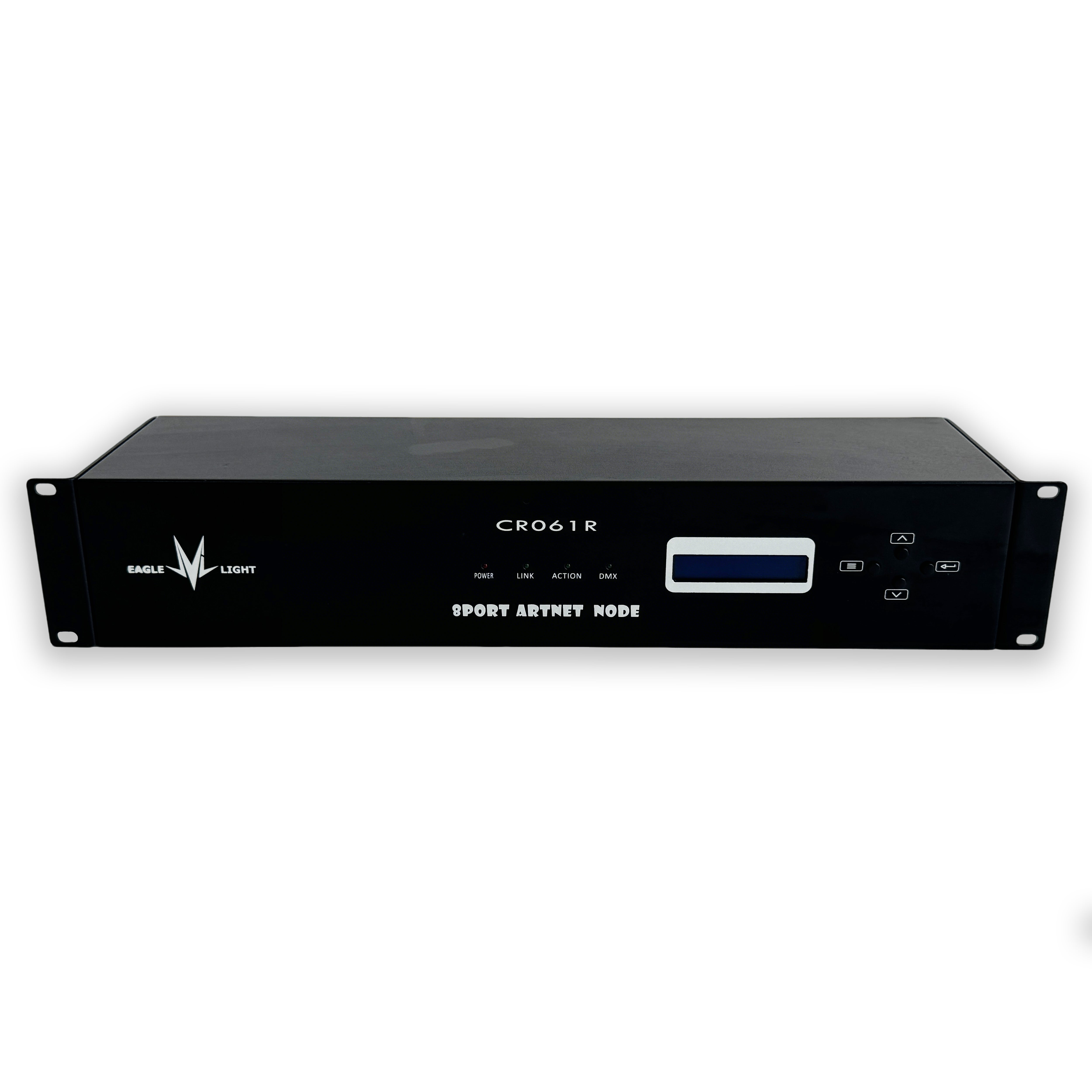

High Performance 8CH ArtNet Node

  CR061R is standard Art-Net Node. Because of this, you can use the device with any application, console, or controller that supports Art-Net to distribute Art-Net data via Ethernet network. Commonly the CR051R can be used to extend the DMX output ports of tiger touch and MA2.

Product features and parameters

●Support 8 standrad DMX512 output port，and 8 x170LEDpixels;

●Can be managed under the broadcast or uni-cast mode

●Input 1 way ArtNet data and output 8 ways DMX512 data；（total 8×512channels）

●All internet configuration parameters can directly modify with its keys and display screen(No need to connect the computer to set up)

●Can use other software and controller to support Artnet and through internet to distribute Artnet data

●Installation: Adopt standard 19inches 2U cabinet;   Size:48*12.5*8.5CM/2.52KG
