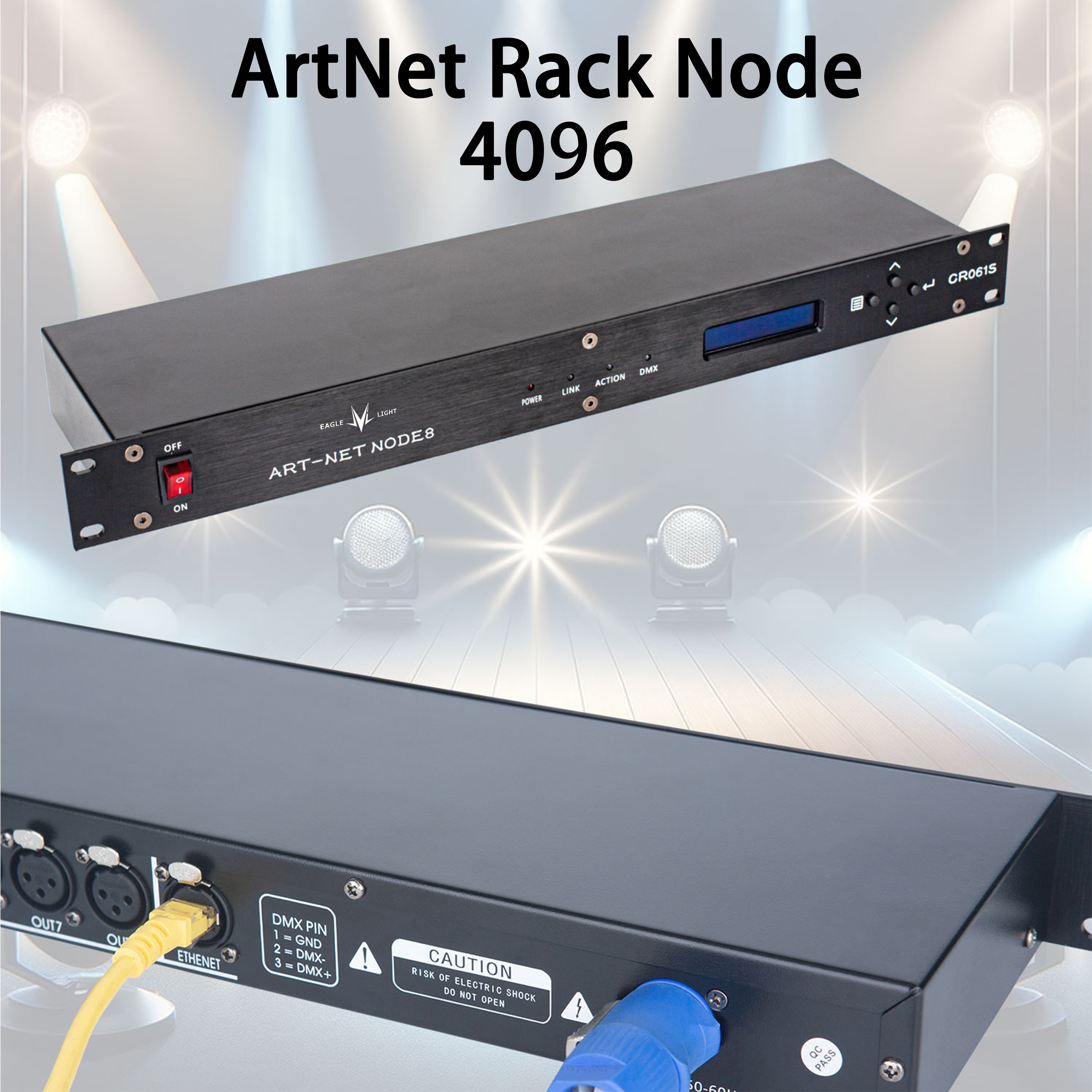

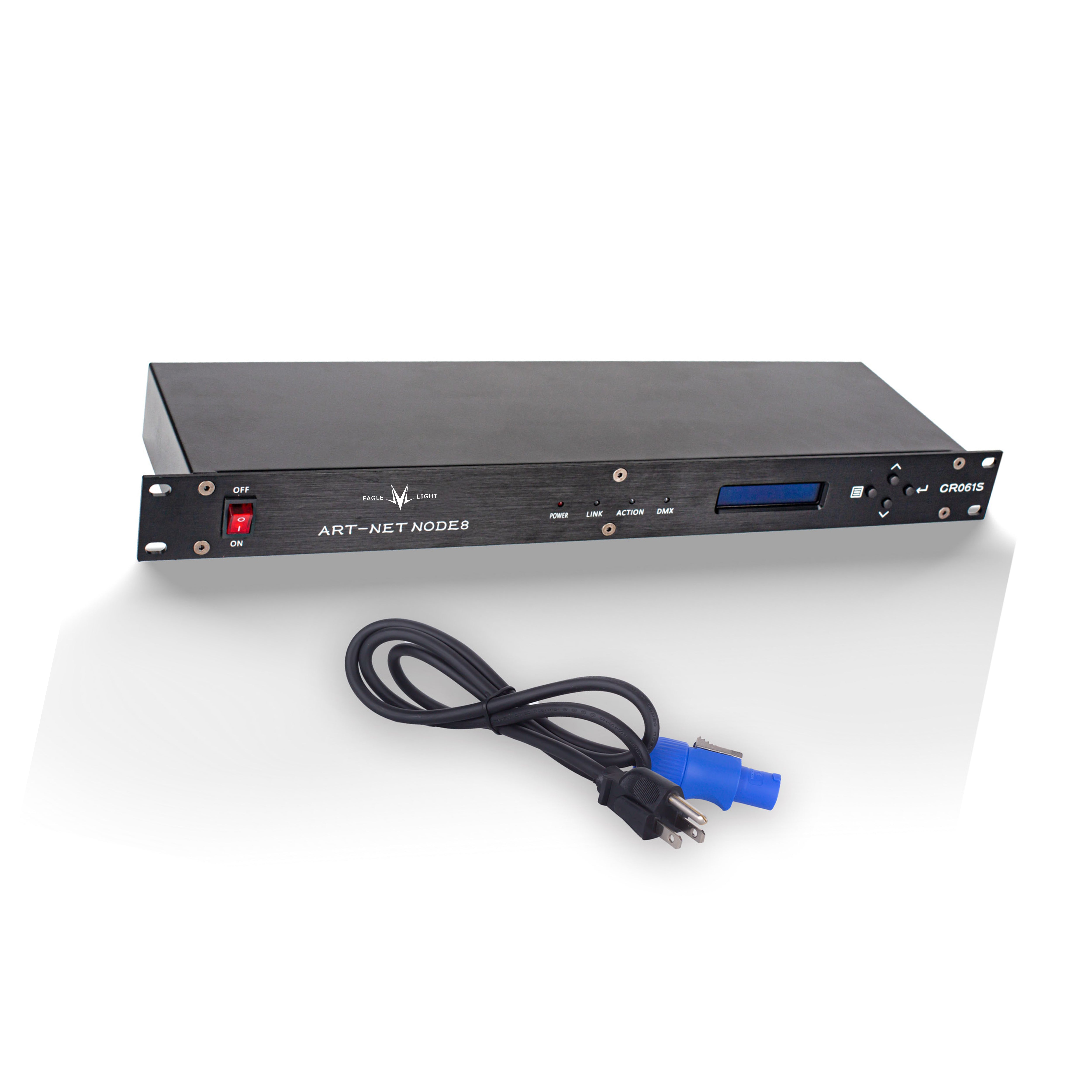

CR061S

DMX Artnet Node 8CH

Technical Parameter：

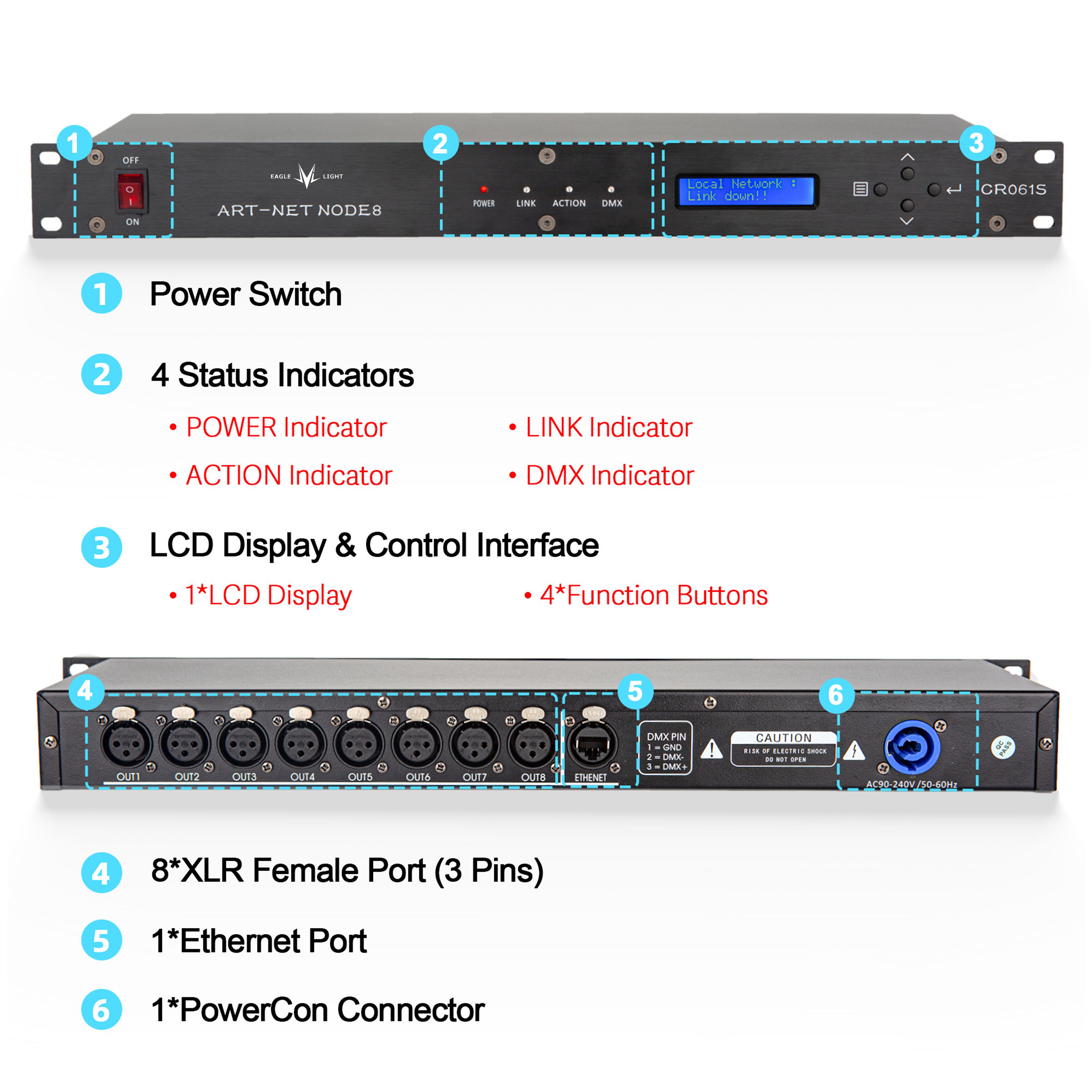

◆ 8 standard DMX512 data output ports are provided, supporting 8 x 170 LED pixels;
◆ Can manage Art-Net in broadcast or unicast mode;

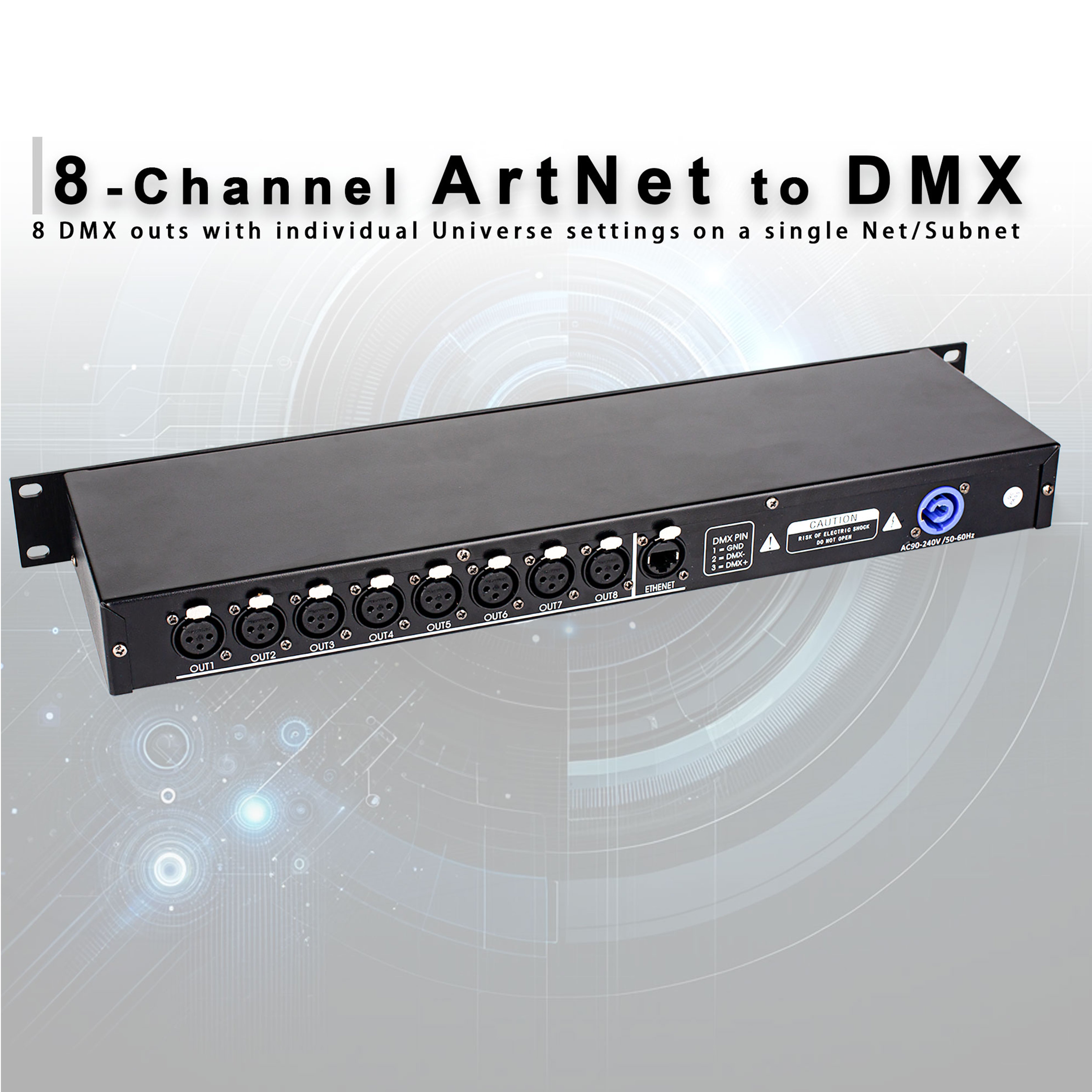

◆1 Art-Net data can be input, 8 DMX512 data can be output; (a total of 4096 channels
can be output)

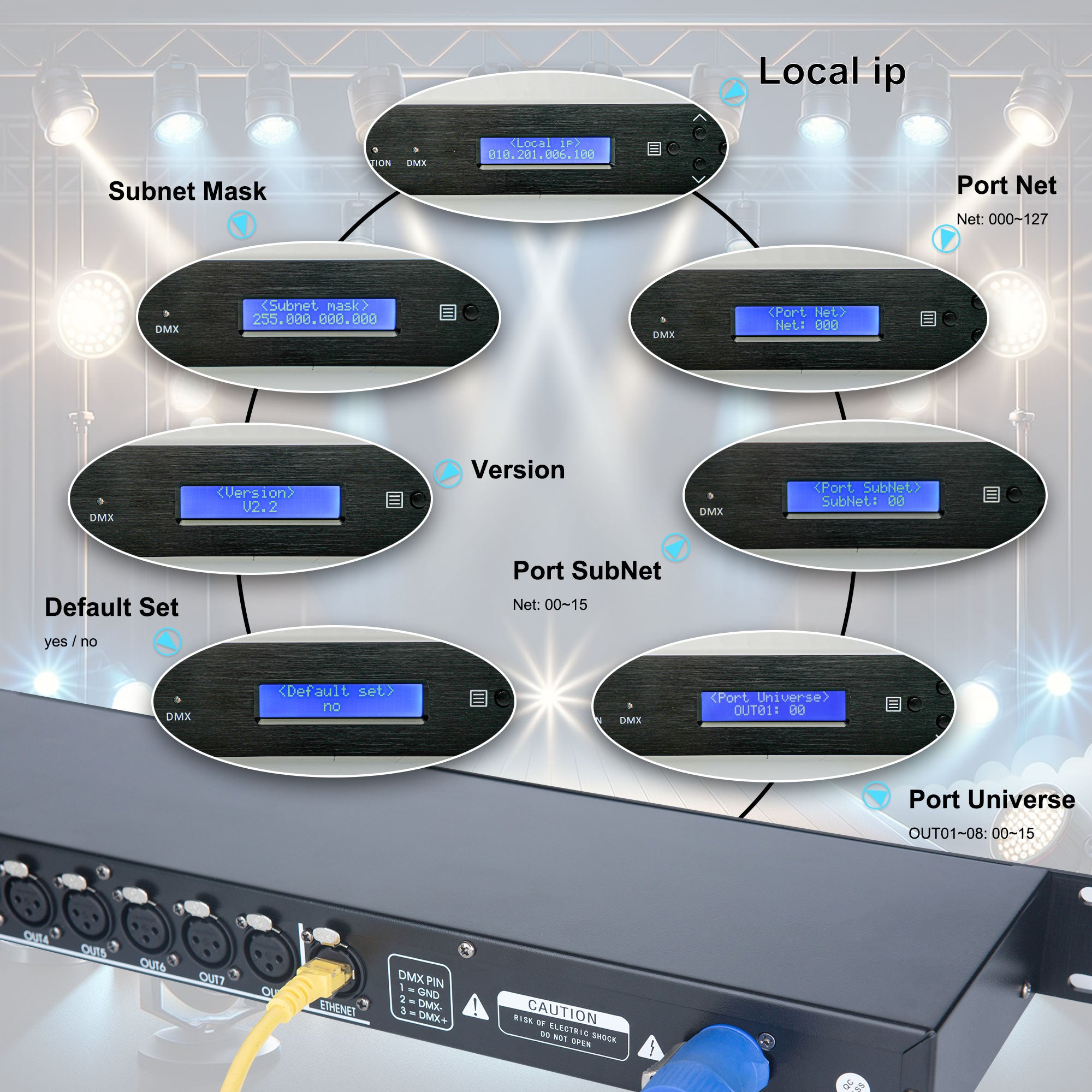

◆ All network configuration parameters can be directly modified through the built-in
buttons and display (no need to connect to a computer for setting)
◆Installation method: adopt the standard 19-inch 1U cabinet installation method design;
◆ Can use other software, consoles, and controllers that support Art-Net to distribute
Art-Net data through the network. Commonly used to expand the Tiger Touch or MA2
console, and the DMX output port of Madrix software.

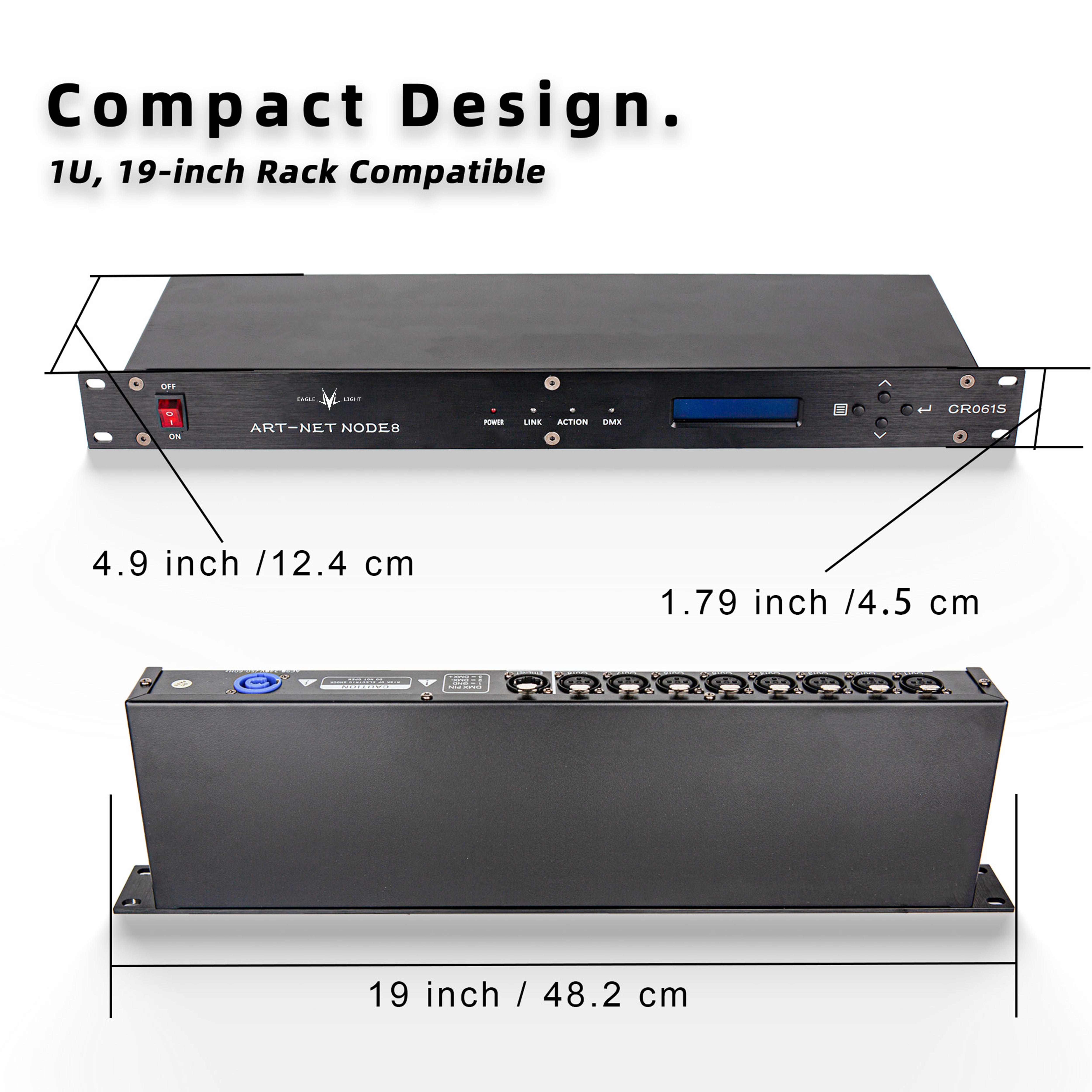

◆Product size: 48.3×12.5×4.5cm. Net weight: 2.4kg
◆Packing size: 56×16×8cm. Gross weight: 2.2kg.
