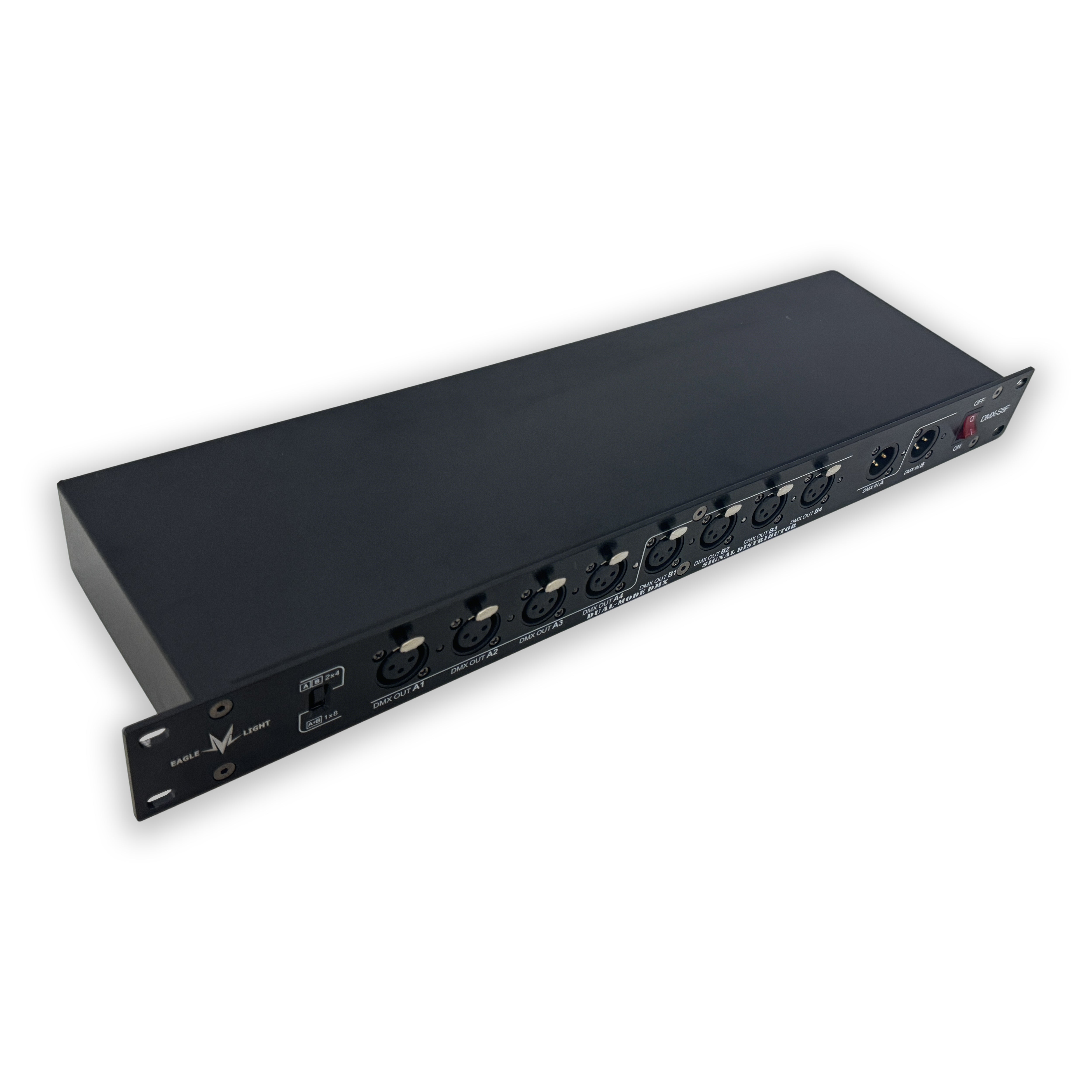

8-channel DMX signal Splitter

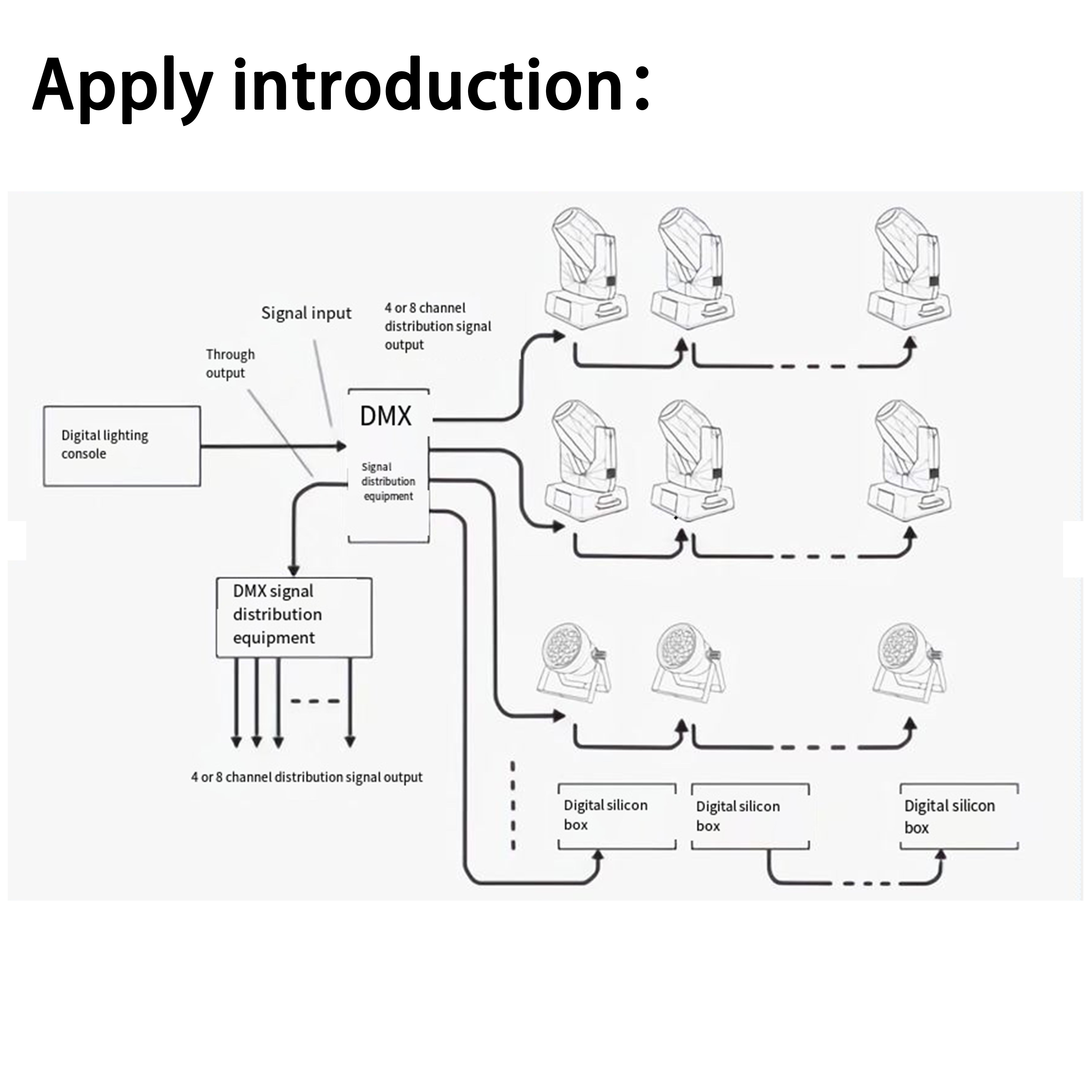

  8-channel DMX signal splitter is a new high-quality DMX512 signal splitter product, it can shape the DMX512 data signal and allocate it into 4 or 8 DMX512 signal output, and each input and output interface power supply is independent, using high voltage isolation technology. It is suitable for DMX512 signal long-distance transmission and the expansion of the number of lamps, and the need for complete electrical isolation between the signal ports.

  Because each interface is independently isolated from each other, it can avoid burning the precision digital lighting console due to problems such as control lines, computer lights, and silicon boxes, or interfering with the entire system signal. Ensure the safe operation of the digital lighting console and the whole system. At the same time, it also ensures that the DMX512 signal has enough signal strength to transmit to various lighting equipment, thereby improving the reliability of the entire lighting control system.

he main features of the 8-channel DMX signal splitter are as follows：

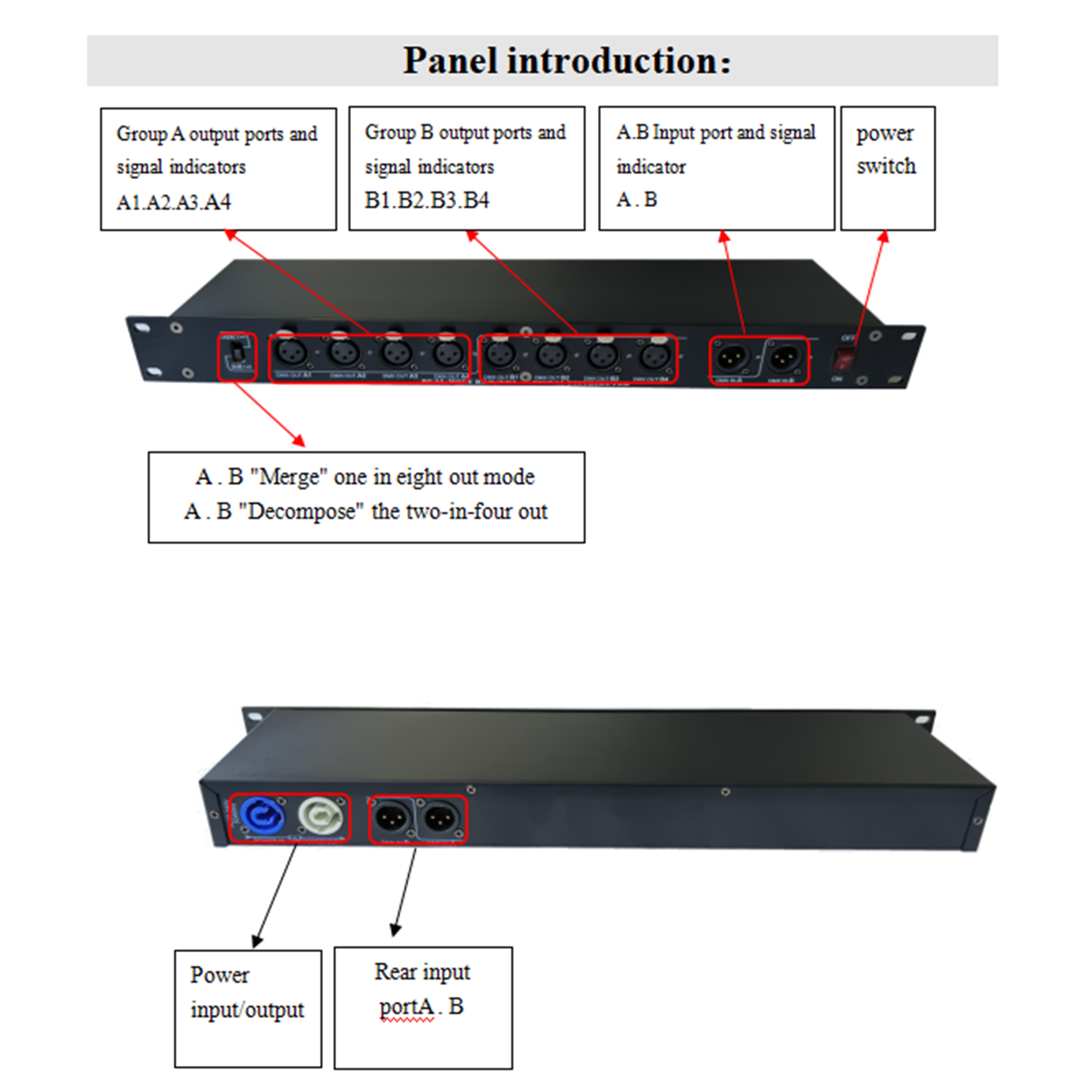

1） Two working modes can be switched freely: single group 1 input 8 output mode and double group 1 input 4 output mode；

2） Each output and input have independent power supply and photoelectric isolation measures to achieve complete electrical isolation；

3） Each port has a high brightness blue light to indicate the working status of each line at any time；
