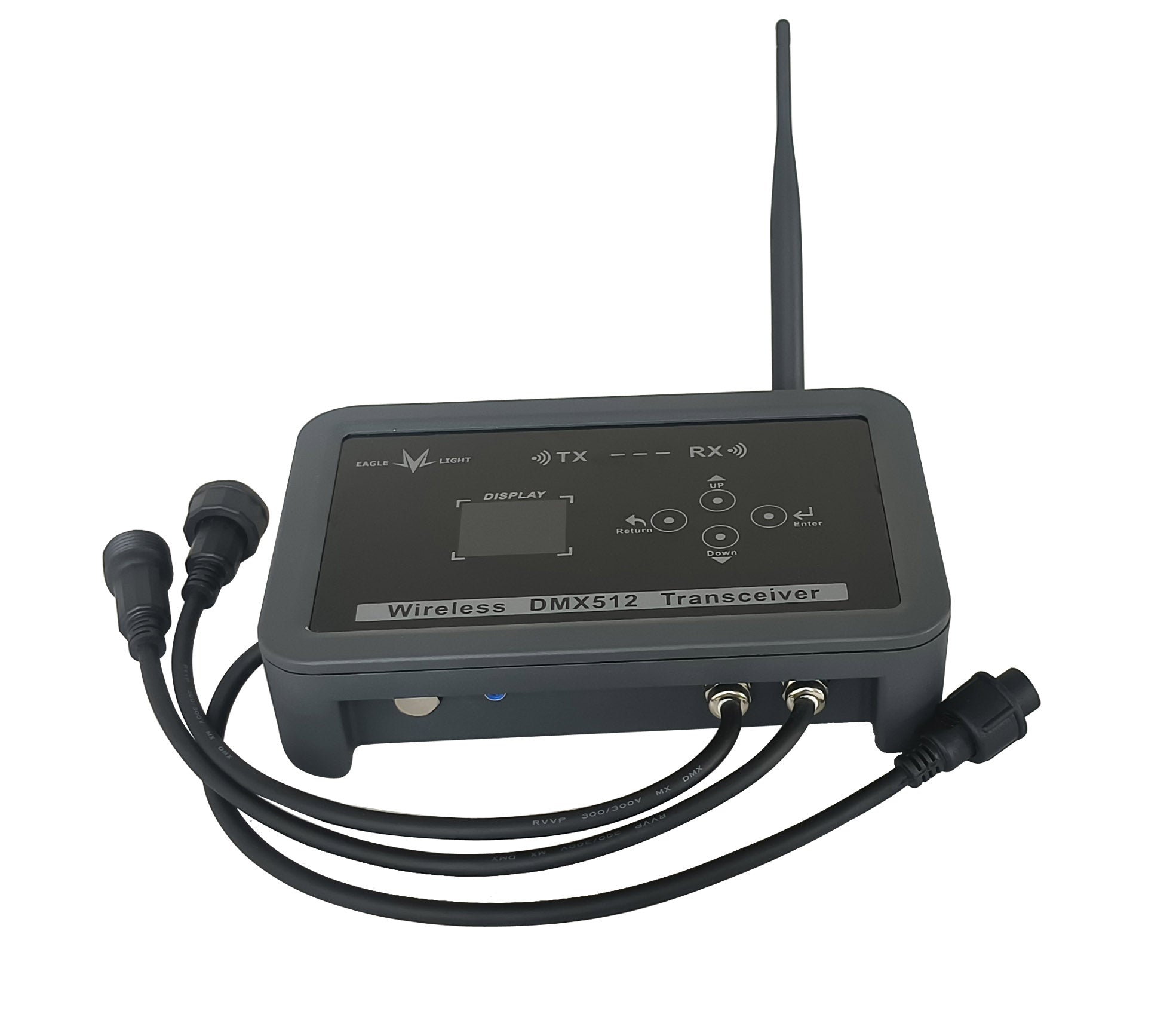

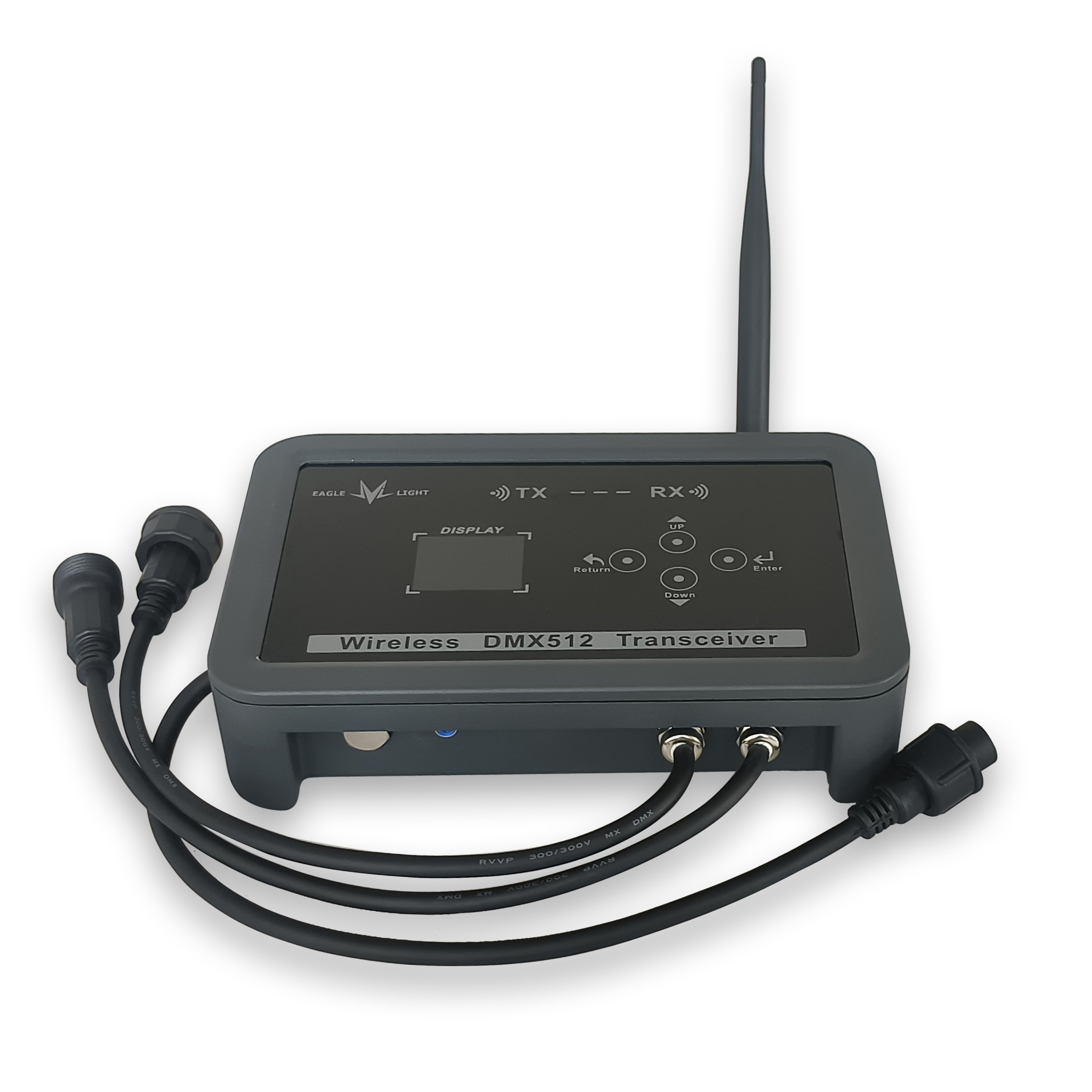

FR512W wireless transceiver
High-speed frequency hopping (FHSS) to ensure the reliability of communication
32-bit ARM processor, DMA transmission without delay
Plug and play system, hide complex communication protocols, the product automatically completes the most difficult operations
Frequency hopping technology is the abbreviation of frequency hopping spread spectrum, in which the transmitter quickly jumps from the main channel to the sub-channel, and was first used by the US military. This technology is advanced and precise, and it is difficult to interrupt and destroy, and interception is almost impossible unless you know the frequency hopping series. Spread spectrum technology has two main advantages: first, super strong anti-interference. Second, it provides multi-point access.
The wireless DMX transceiver FR512W adopts the 2.4G global open ISM band and is license-free. Efficient GFSK modulation, high-speed frequency hopping (FHSS) communication design, strong anti-interference ability, is your reliable wireless DMX solution.
FR512W Features

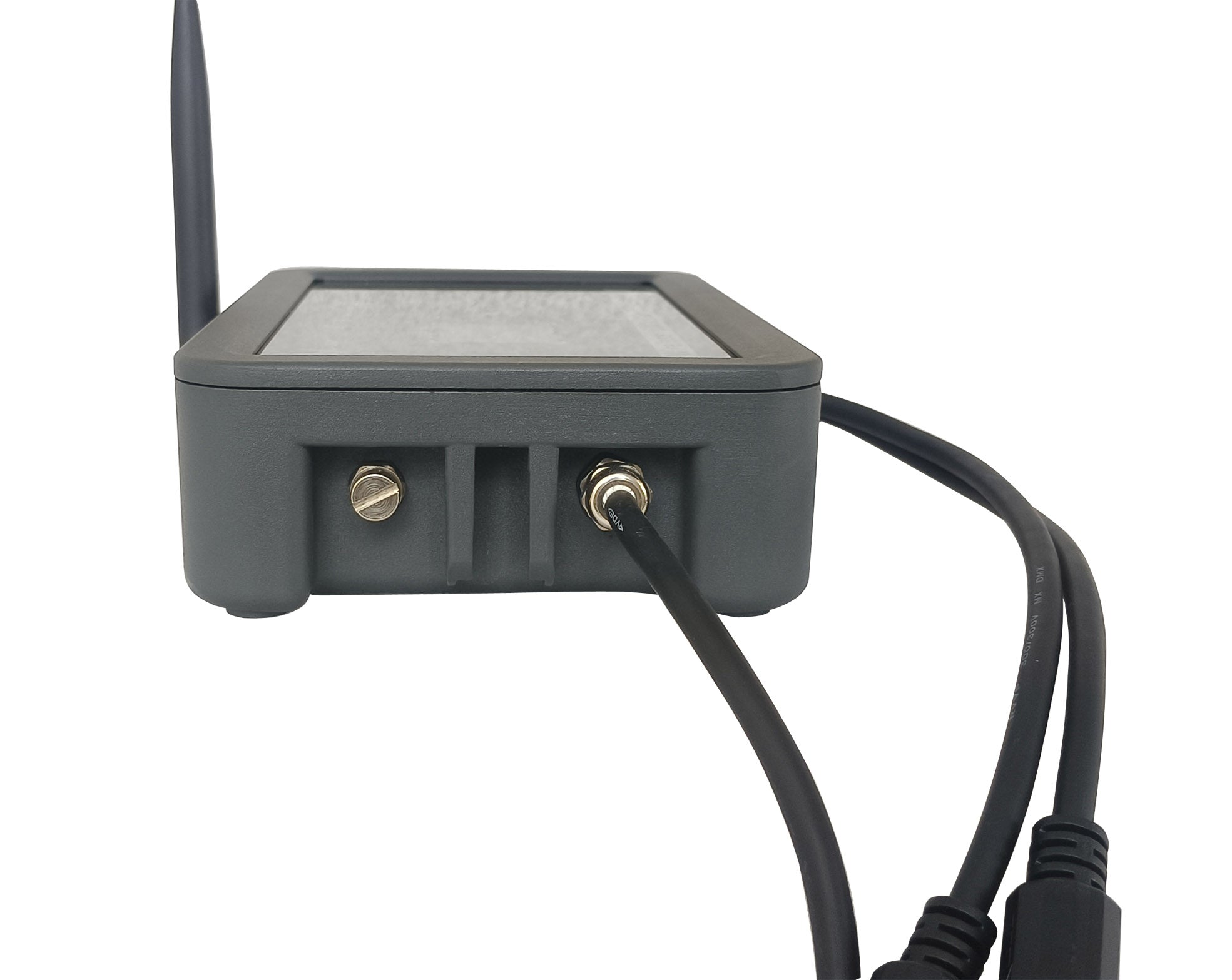

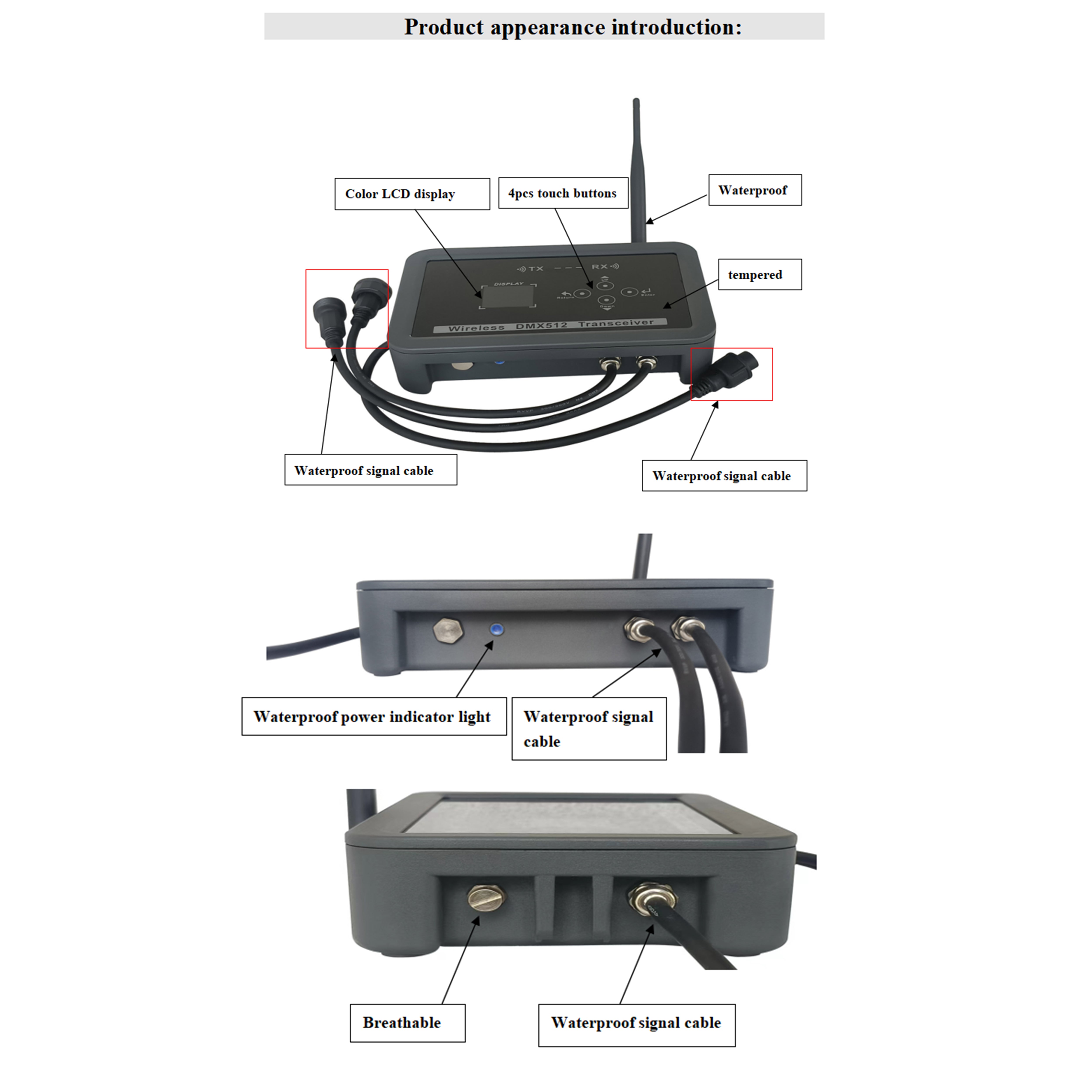

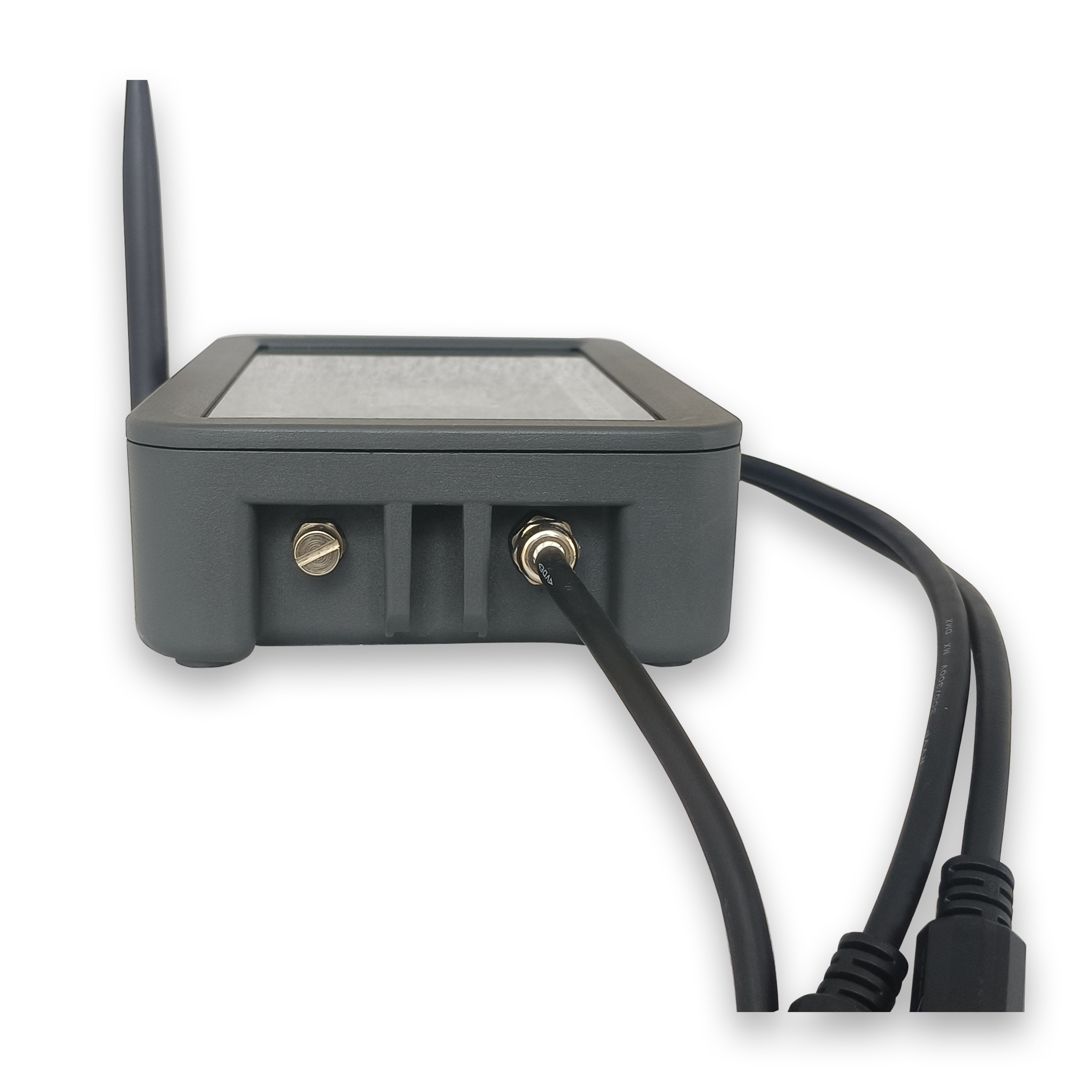

●Die-cast aluminum alloy waterproof chassis, equipped with a breathing valve to balance the internal and external air pressure, waterproof level: IP67
●High-strength tempered glass panel, TFT color LCD display, touch keyboard to achieve parameter settings;

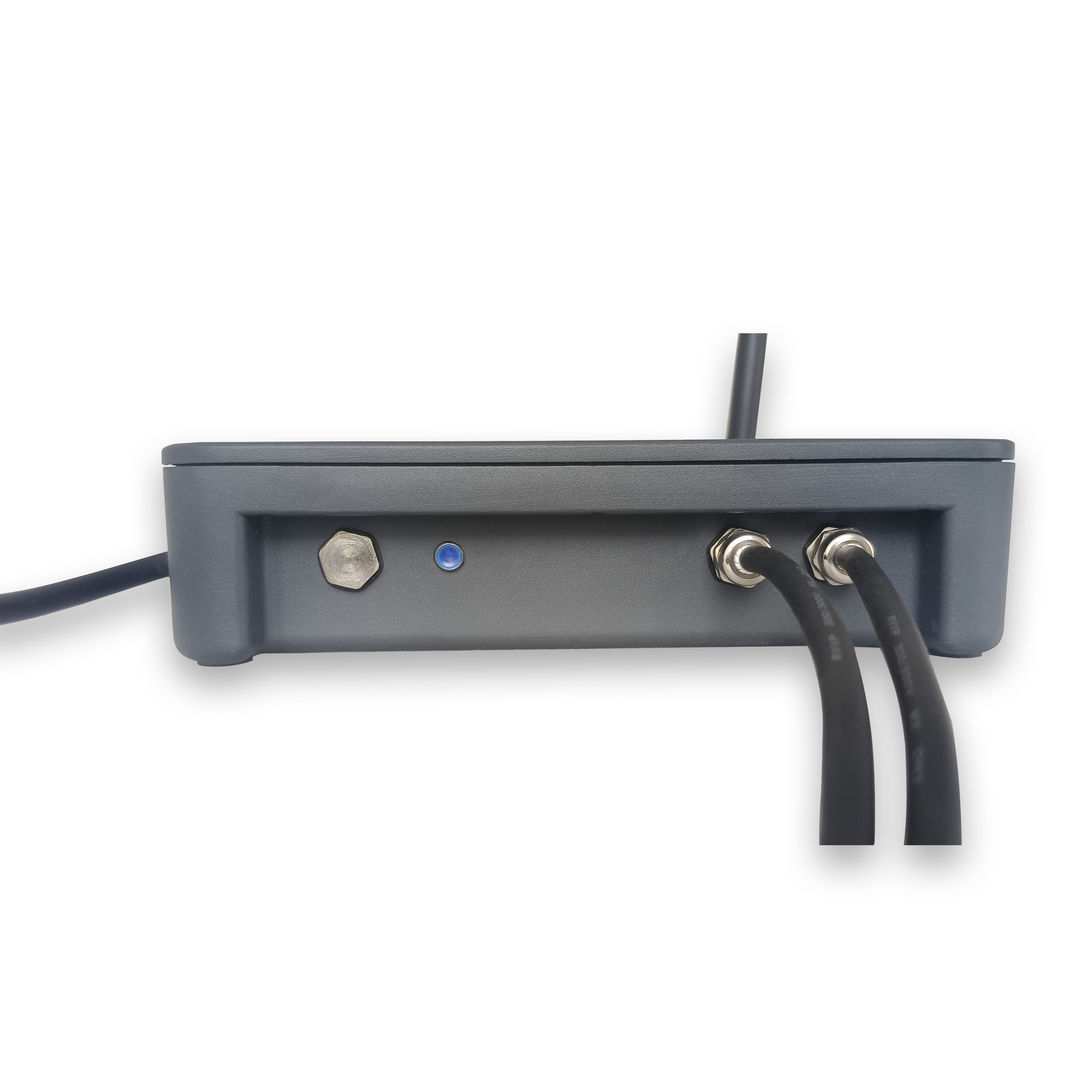

●Waterproof power indicator to monitor working status;
●1-channel DMX wireless transmission: can be configured as wireless transmission mode or wireless receiving mode;
●Working frequency band 2.4GHz
●Multiple sets of transmitters can be installed in the same location, and the working frequency is automatically configured;
●Unlimited number of receivers paired with the same transmitter;
●Support Guangzhou mode and Swedish mode optional;
●When using omnidirectional antenna, the transmission distance is 300-500 meters (open space)
●The transceiver is suitable for any occasion that requires flexible, convenient and reliable wireless lighting control, especially when traditional wired connections are inconvenient or impractical, it can greatly improve work efficiency and on-site performance.
Applications:
Due to its unique characteristics and functions, wireless waterproof DMX transceivers are very suitable for the following scenarios:
1. Outdoor activities: Whether it is an outdoor music festival, wedding celebration or open-air theater performance, wireless waterproof DMX transceivers can provide a stable wireless control solution that is not affected by bad weather, while reducing the complicated cable wiring work.
2. Temporary stages: For temporary stages that need to be quickly built and dismantled, wireless waterproof DMX transceivers can save a lot of wiring time and cost, making stage layout more efficient and convenient.
3. Difficult to wire venues: In some monuments, historical buildings or special structures, traditional cable wiring may be restricted or not allowed. Wireless waterproof DMX transceivers can solve this problem and realize wireless control of lights.
4. Mobile light shows: For occasions such as touring performances, circuses or mobile exhibitions that require frequent movement of lighting equipment, wireless waterproof DMX transceivers provide a flexible solution, making lighting control simpler and faster.
5. Water Show: In water stage or fountain light show, due to the humid environment, it is particularly important to use a wireless DMX transceiver with waterproof design, which can ensure the stable operation of the equipment in a humid environment.
6. High-altitude or long-distance control: In occasions where high-altitude or long-distance lighting equipment needs to be controlled, such as large stadiums, skyscraper exterior lighting, etc., wireless waterproof DMX transceivers can avoid the difficulties and risks of long-distance wiring.
