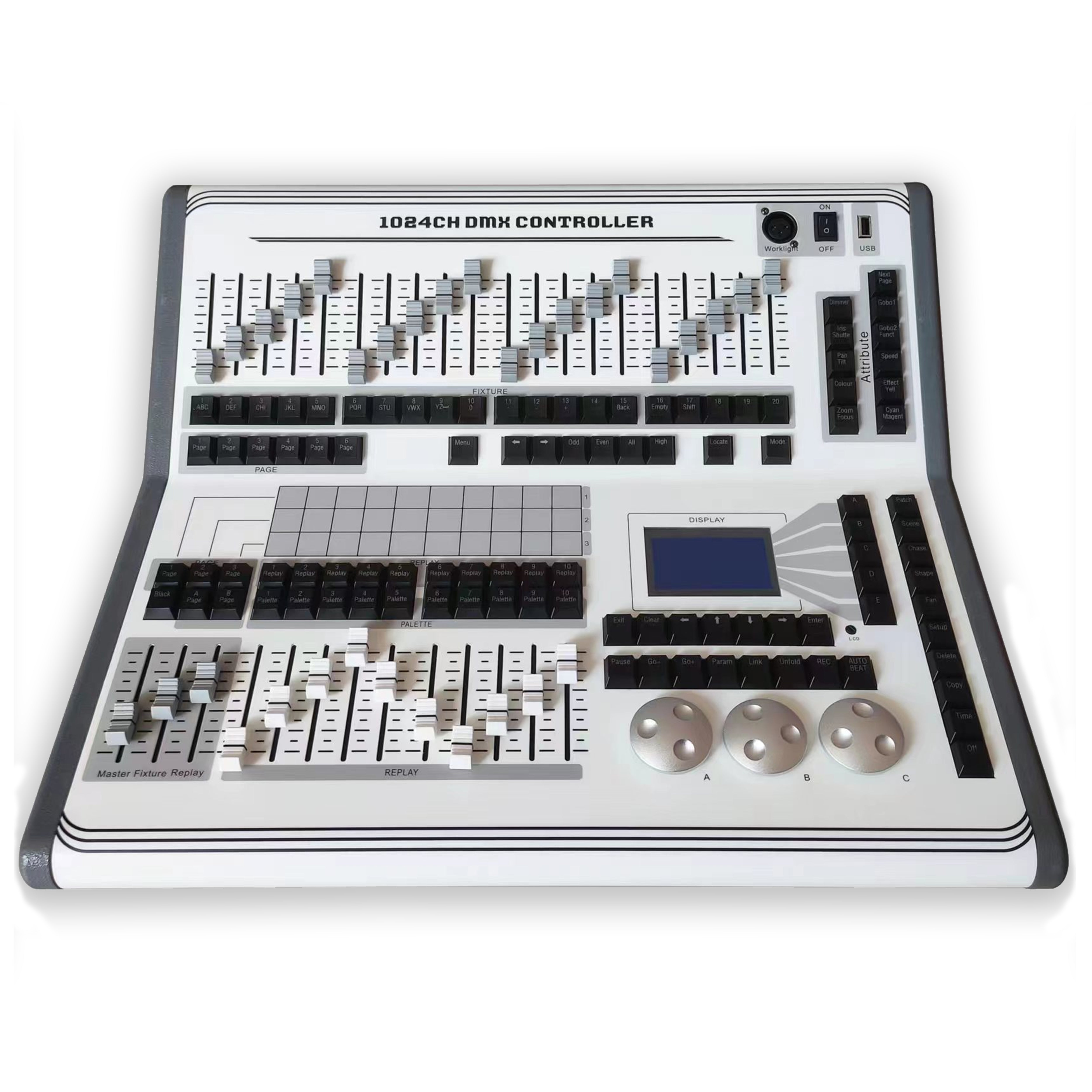

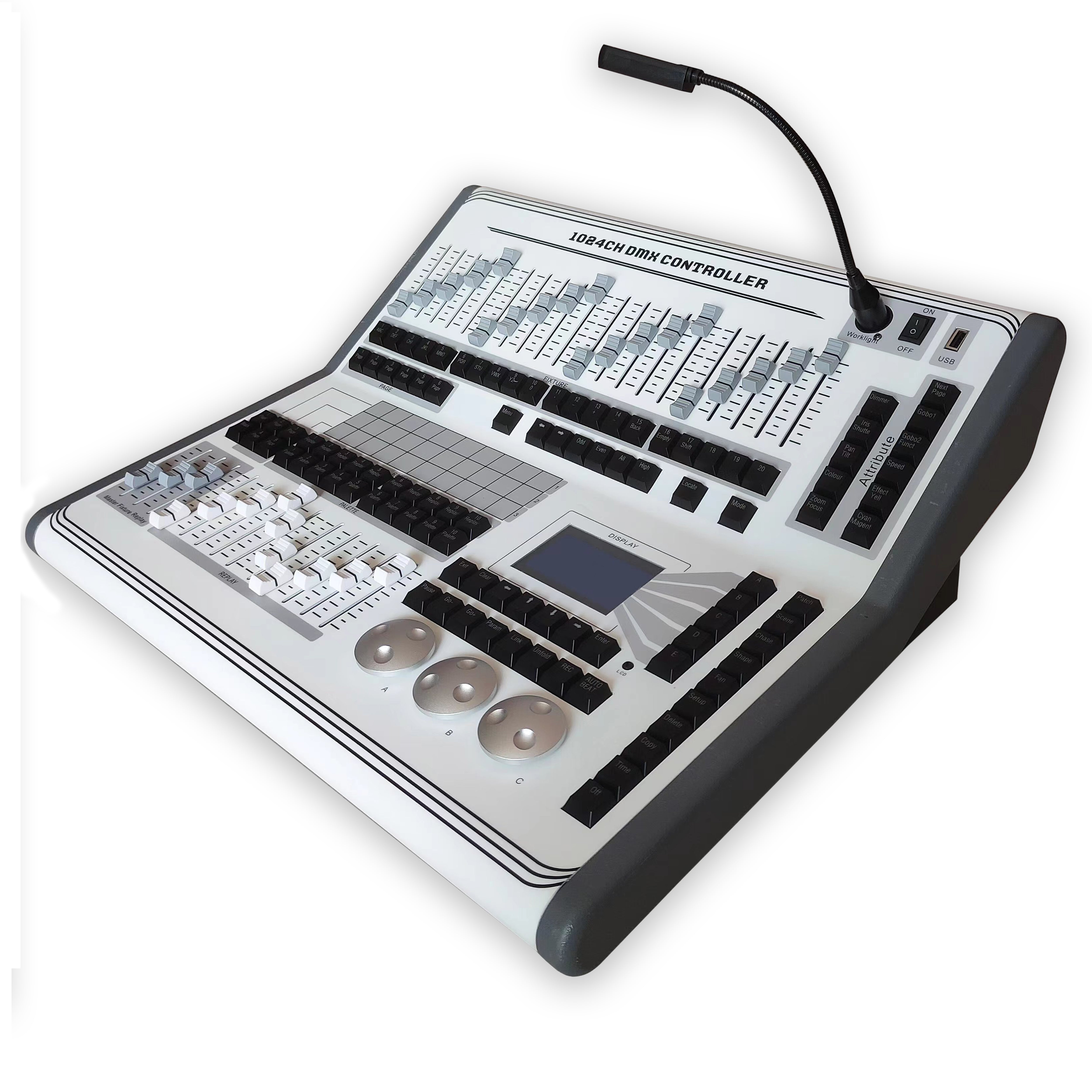

1024-Channel Lighting Console

Technical Specifications：

◆DMX512 channels: 1024

◆Mating number of fixtures:120

◆The number of scenes that can be saved: 60

◆Maximum number of materials that can be stored: 60

◆The number of scenes that can run simultaneously:10

◆The total number of steps in a multi-step scenario:200.

◆Fixtures re-connected with the address code: Support

◆Lamps horizontal and vertical exchange: Support

◆Lamps channel inverting output: Support

◆Lamps channel sliding mode switch: Support

◆Each scanner maximum available control channels:  40

◆Fixture Library: R20 pearl light library support

◆Built in light library editor: support

◆Scene time control: fade in, fade out, LTP sliding

◆Graphics can be stored for each scene: 5

◆Graphics Generator: can generate Dimmer, P / T, RGB,CMY, Color, Gobo, Iris, Focus Graphics total 150

◆Shape parameter adjustment: support

◆Internal time code/external time code sound and light synchronization: support

◆Central control : Support RS485 connection to the central control system

◆Fader scenes and dimming: Support

◆Point Control scenarios: support

◆Master Fader: Global, repeat, lighting

◆Immediate blackout: Support

◆Dial to adjust the channel values: support

◆Fader adjust the channel values: support

◆Fader Dimmer: Support

◆Console data backup and restore: supported

◆Software upgrade: support

◆Input voltage:AC110V~240V
