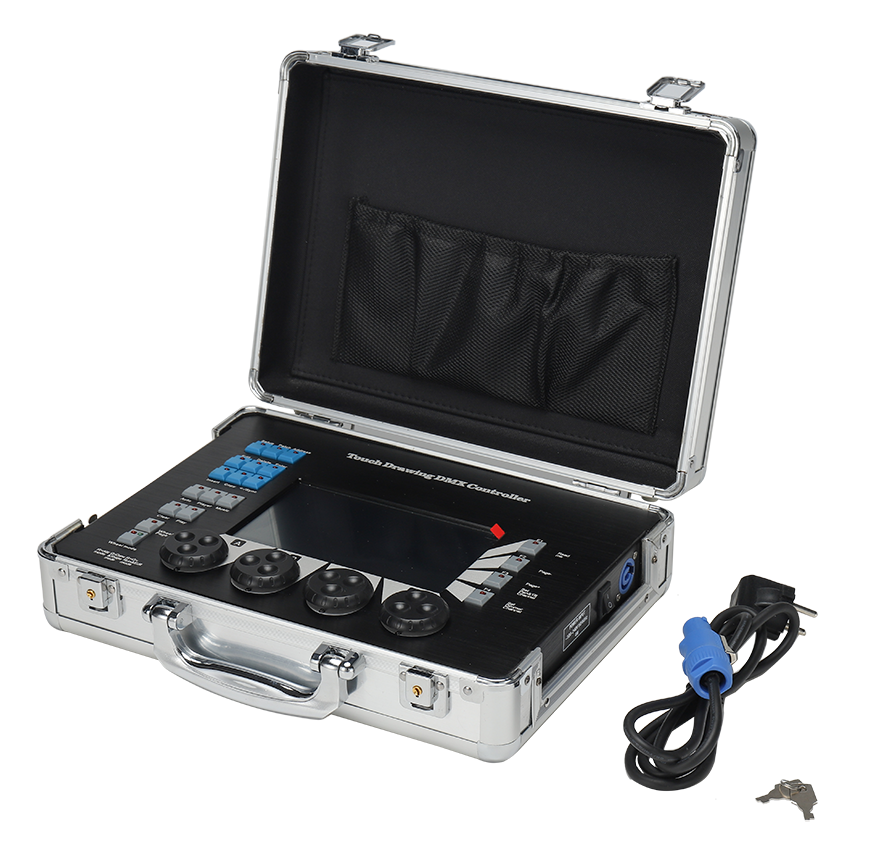

MH512

Touch Drawing Controller

Technical Parameter：

◆Channels: DMX 512 Channels.
◆Support 3 light modes: UNIT、LED、DIMMER.
◆Booting to use: Fast to set up library(without instruction, set up library on site).
Make library on controller anytime and support R20 library(Can save 200 libraries).
◆Fast touch screen control (operate touch screen and keyboard at the same time).
◆Easy to remember and find the content (handwritten names can be marked at any time).
◆Drawing quick programming and fixtures operating,palette quick RGB color mixing.
◆2 fixtures programming running modes: loop mode /player trigger mode.
◆Audio&Video synchronization in player mode: controller synchronizes with MH-Player
audio and video files two-way sync control.
◆Built-in timeline that convenient to make lighting show.
◆80 fixtures running or scenes, running 20 scenes or programmings at the same time,
outputting 20 shapes maximum.
◆Ambience programming key provides with rendering ambience programming.
◆80 editable group function, quickly choose the fixtures and attributes.32 editable built-in
materials.
◆Shape: 20 editable shapes and 20 built-in shapes; each shape provides with 2 outputting
modes(different drawing directions).
◆Support USB data: Backup and Restore.
◆With built-in instructions: guide you the operation anytime.
◆Full Chinese and English displaying and panels choose-able.
◆Professional work lamp, suitable for show inside and outside .
◆Voltage: AC90-240V/50-60Hz Power: 60W.

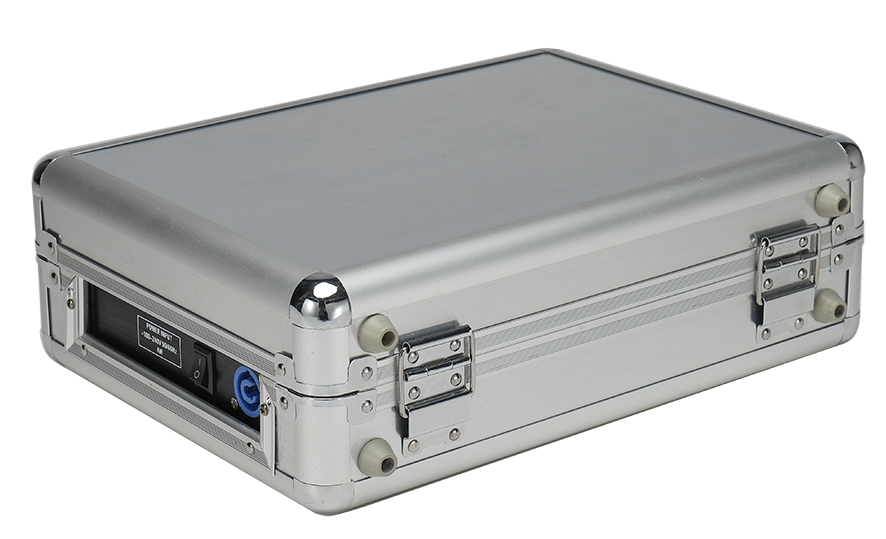

◆N.W:4.3KG 62X24.5X7.5CM（Console ）.
◆G.W: 10.84kg 67X28.5X19CM.
