10-Channel Cabinet Power Supply Unit

  PW0A10W cabinet power distributor is used for power supply and power management of 19 inch standard cabinet equipment. It adopts a loose proof power output socket and has overload protection function, which is very convenient and safe.

Technical parameters:

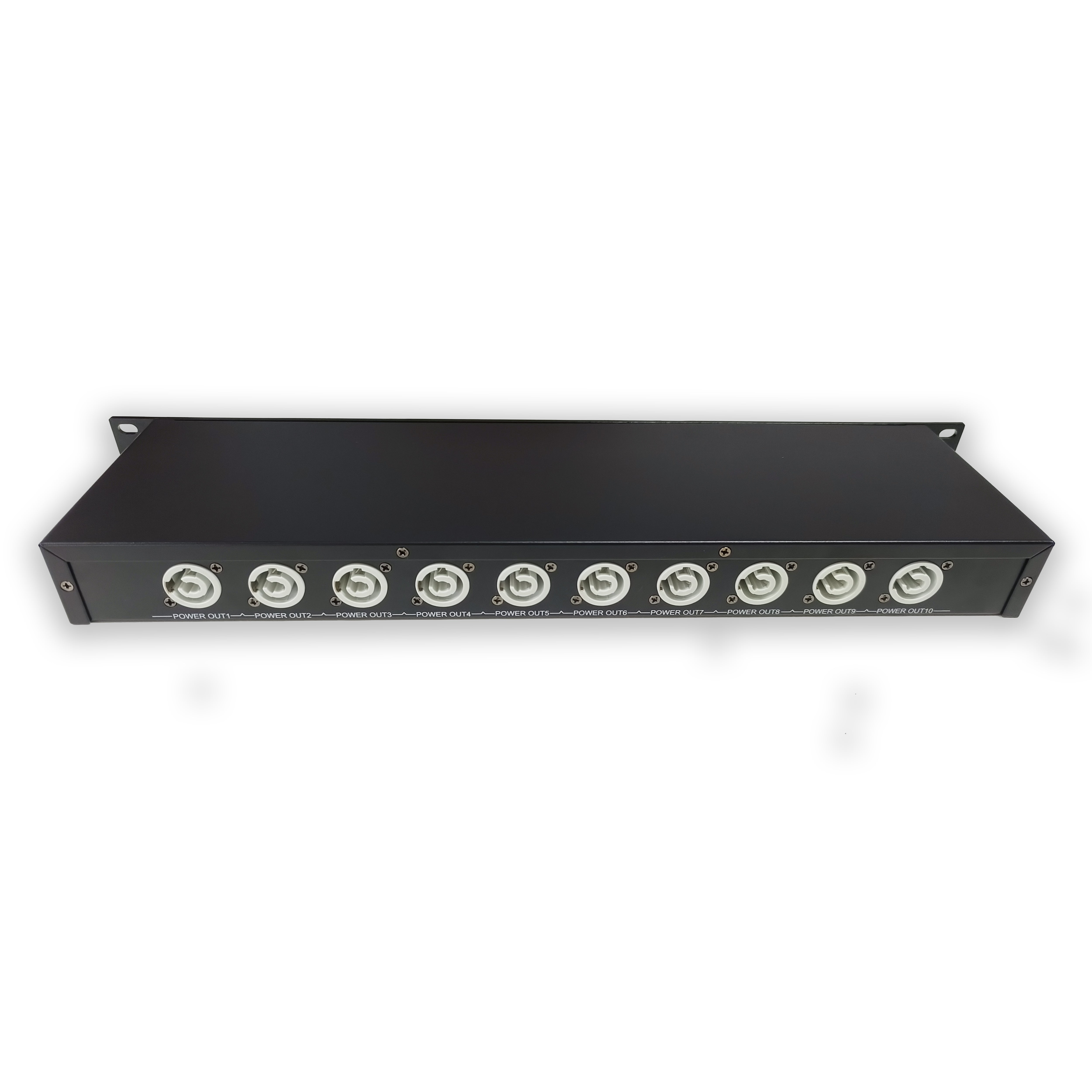

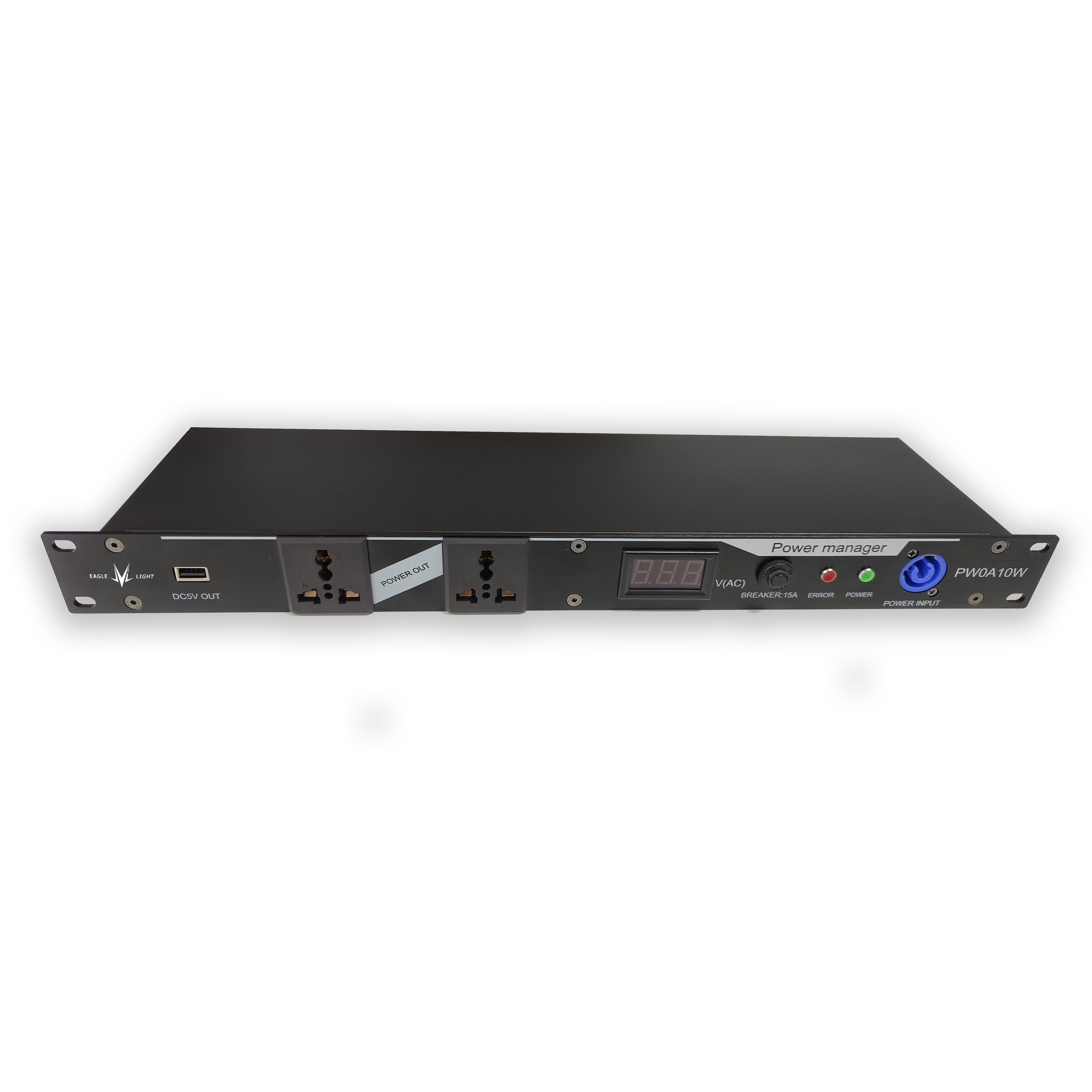

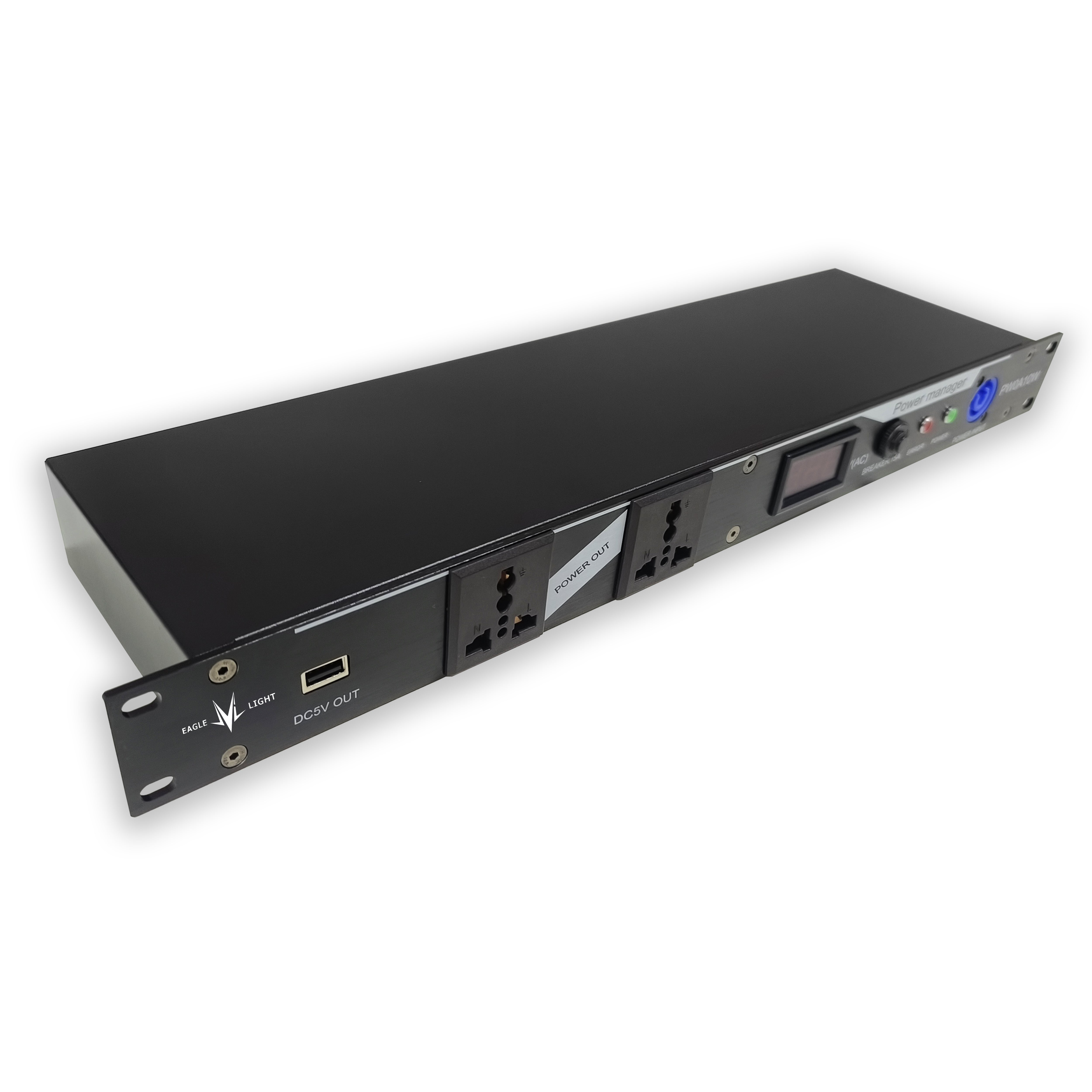

◆ 1 power input, with a total of 12  power outputs. The front panel has 2 power outputs (Universal socket), and the rear panel has 10 power outputs (anti loosening audio sockets);

◆The green light is the power indicator light, and when it is on, it indicates that the power output is normal;

◆The red light is the overload protection indicator light, and when it is on, it indicates that the equipment is under overload protection;

◆The panel is equipped with a 15A overload protector, providing overload protection function for the equipment. When the device experiences overload protection, the red indicator light will light up. After troubleshooting, press the recovery handle of the protector to restore normal power output;

◆Standard 19 inch 1U cabinet installation dimensions.
