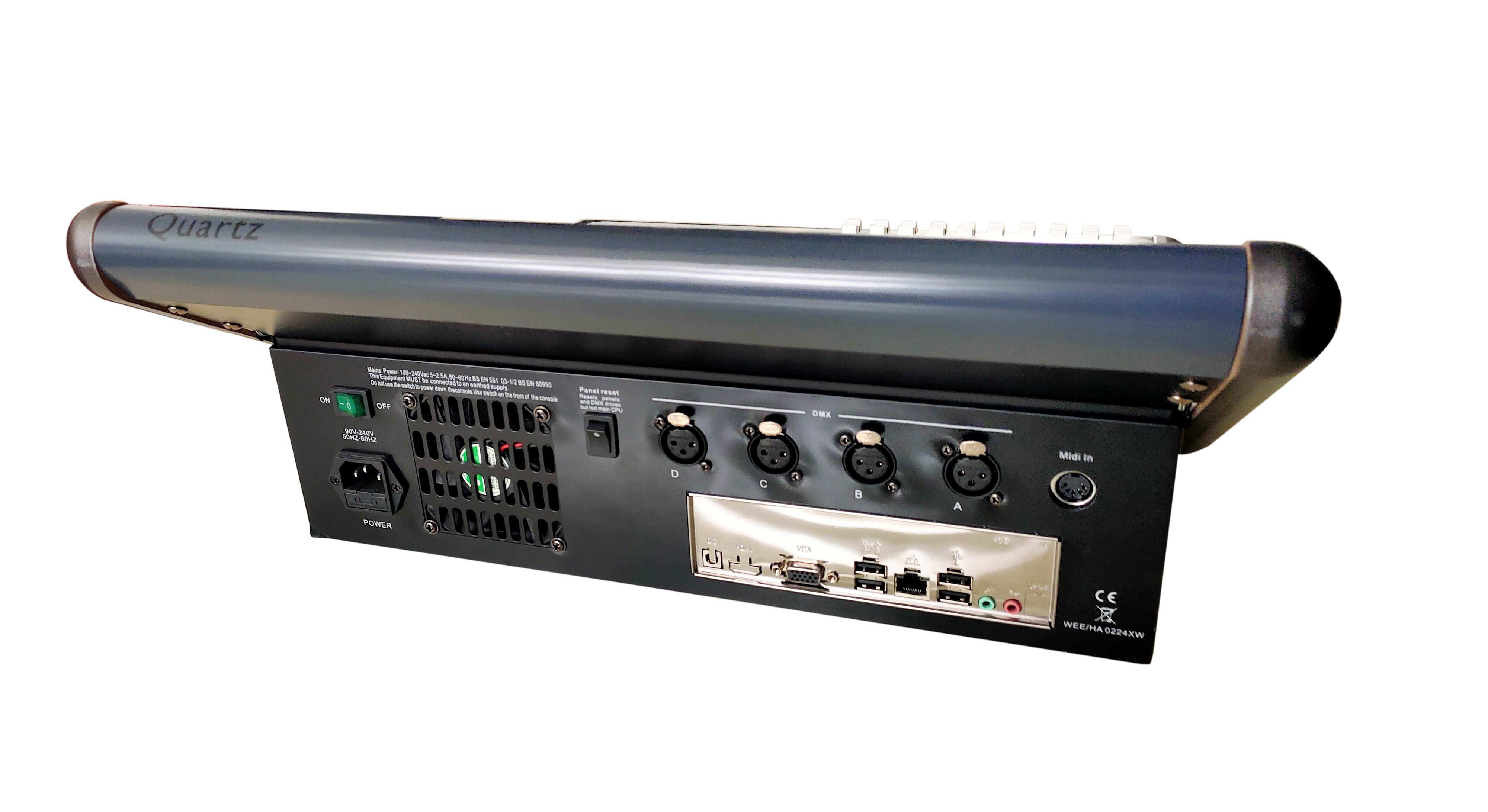

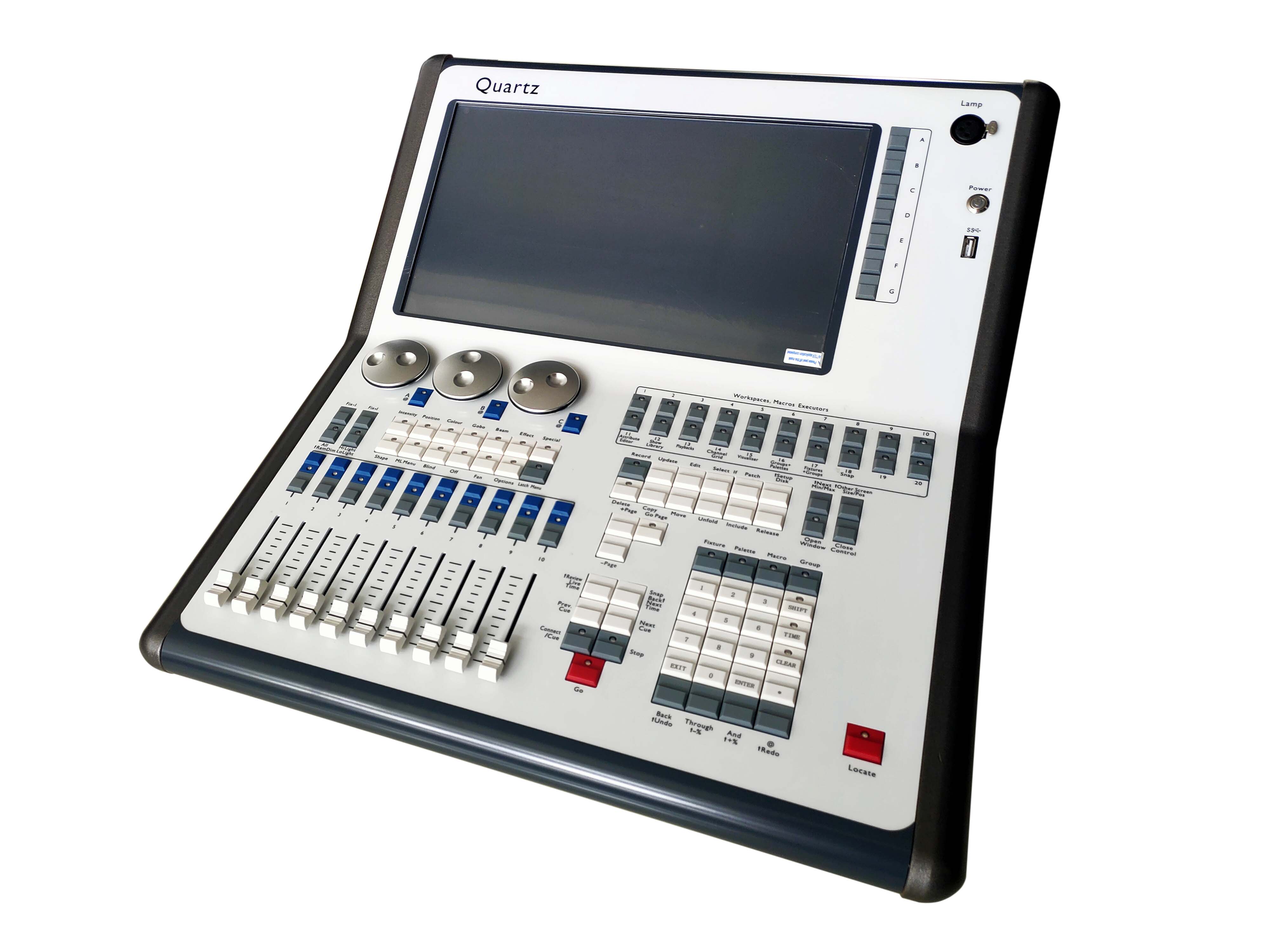

Quartz Light Controller

Technical Parameter：

◆ Screen size: 14.1 inch screen;
◆ Support version 9.1 11.1 11.3 11.4 four system free switching system;
◆ With power supply: with 90 minutes ups power supply;
◆ The default output is 4 DMX512, and the network can output 12 512;
◆ Intel Core I5 processor, 120G SSD, 4GB RAM;
◆ Support Art-net network output, which can be expanded to 12 Universe DMX outputs
through the network;
◆ Support Titan-net protocol, expandable to 64 Universe DMX outputs;
◆ 10 mechanical page-turning playback faders;
◆ 20 custom macro function keys;
◆ Built-in 14.1-inch high-brightness touch screen, which can be extended to a Titan
Fader wing;(playback auxiliary station);
◆ 20 playback faders, 30 custom macro functions, USB powered);
◆ Support headphone output (Headphone);
◆ 1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocol
 compatible with other TITAN system console performance files;
◆ Product size: 42.5×46.6×19.4 (length, width and height);
◆ Flight case Packing size: 59×54×33.5 (length, width and height);
◆ Weight: 24kg including flight case;
