RDM1602（Double Signal Splitter 16CH，Support RDM/DMX signal protocol communication）
RDM1602 16-Channel Dual-Signal Distributor
Product Overview

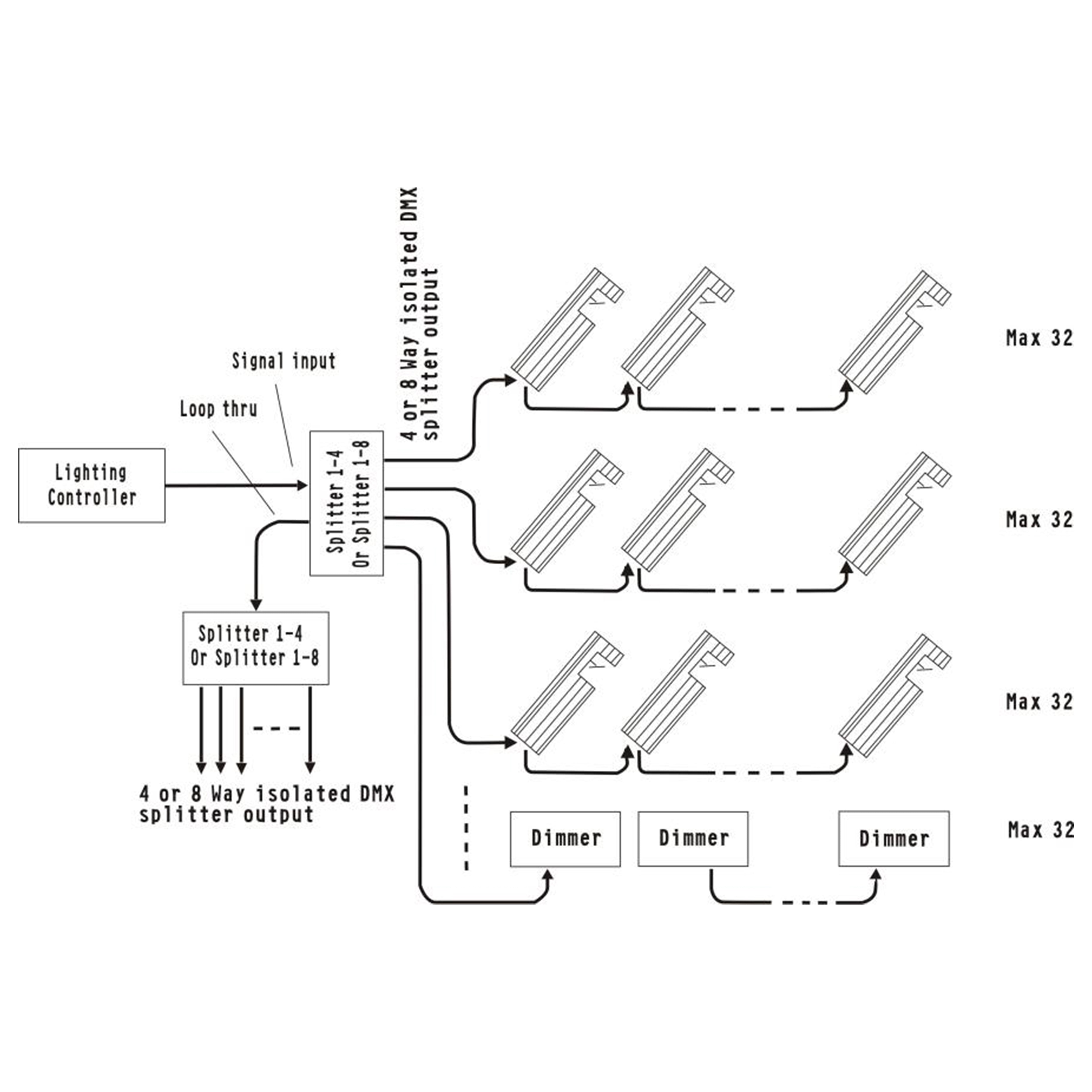

RDM1602 is an RDM-DMX512 signal distributor with compliant communication functionality supporting the international standard RDM (Remote Device Management) lighting protocol. It provides dense communication channels for RDM devices, reshapes and amplifies both RDM and DMX512 data, and expands the input signal into multiple outputs. It also extends signal transmission distance, increases the number of fixtures connectable to the console, and ensures stable and reliable signal transmission.
Key Features

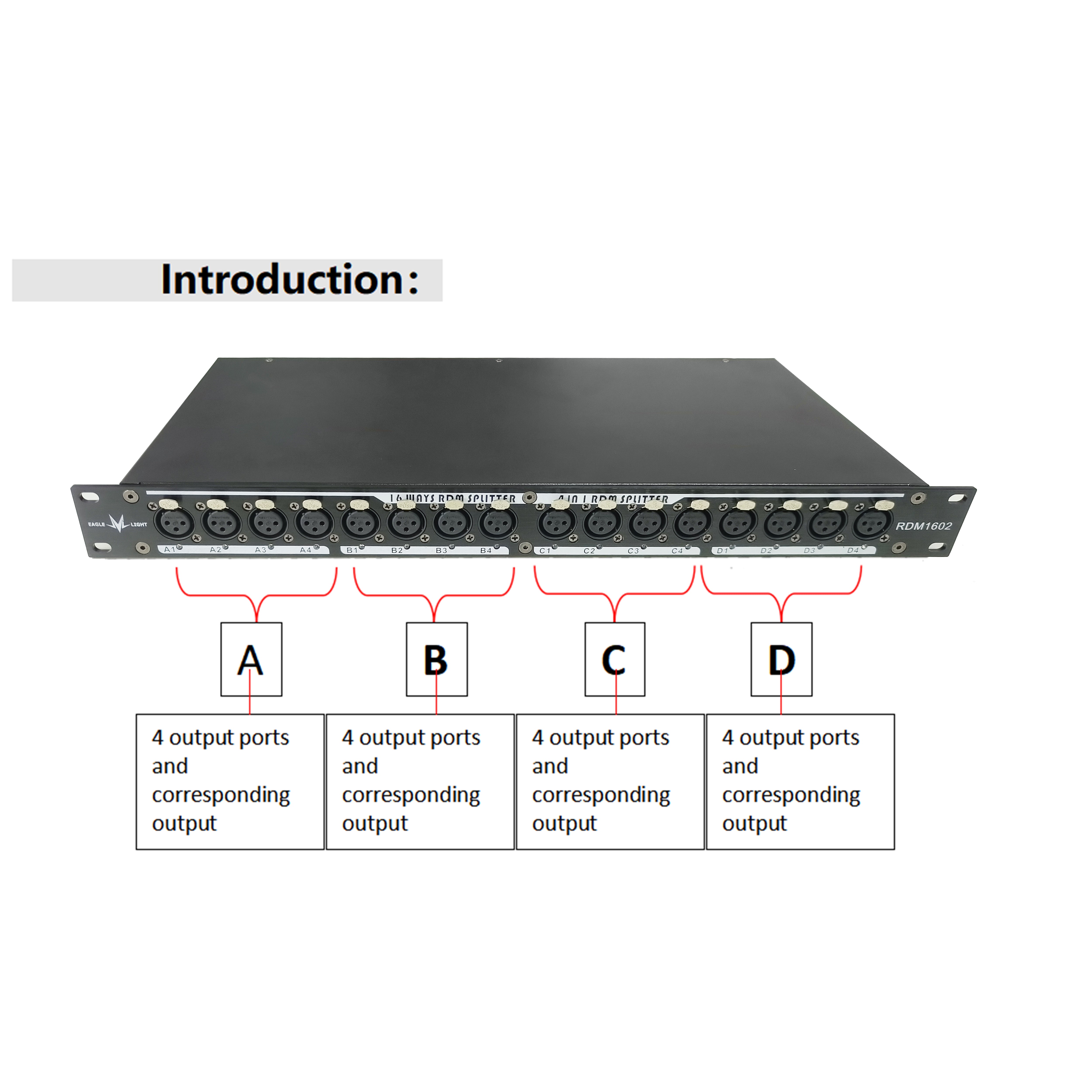

- Composed of 4 groups of 4-channel bidirectional signal distributors; one unit fulfills the functions of four separate devices. Various channel configurations of bidirectional distributors can be achieved through flexible combination settings.
- Equipped with a new RDM switch for enabling or disabling the RDM function.
- Built-in terminating resistors to prevent signal reflection interference.
- Each input and output features independent power supply and photoelectric isolation, achieving complete electrical isolation.
- Each port is fitted with a high-brightness blue status indicator arrow to clearly display real-time working status.
Signal Amplifier Applications
- Stage performances, concerts, music festivals, outdoor light shows
- Theaters, bars, KTVs, banquet halls, wedding venues
- Architectural lighting, landscape lighting, cultural tourism lighting projects
- Studios, exhibition halls, large-scale lighting control systems
- Engineering sites with strong electromagnetic interference and long-distance transmission requirements
Technical Parameters
- Supports RDM/DMX signal protocol communication
- 4-in-1 integrated design, combining 4 RDM distributors in one unit
- Full electrical isolation on all ports for maximum system safety and stability

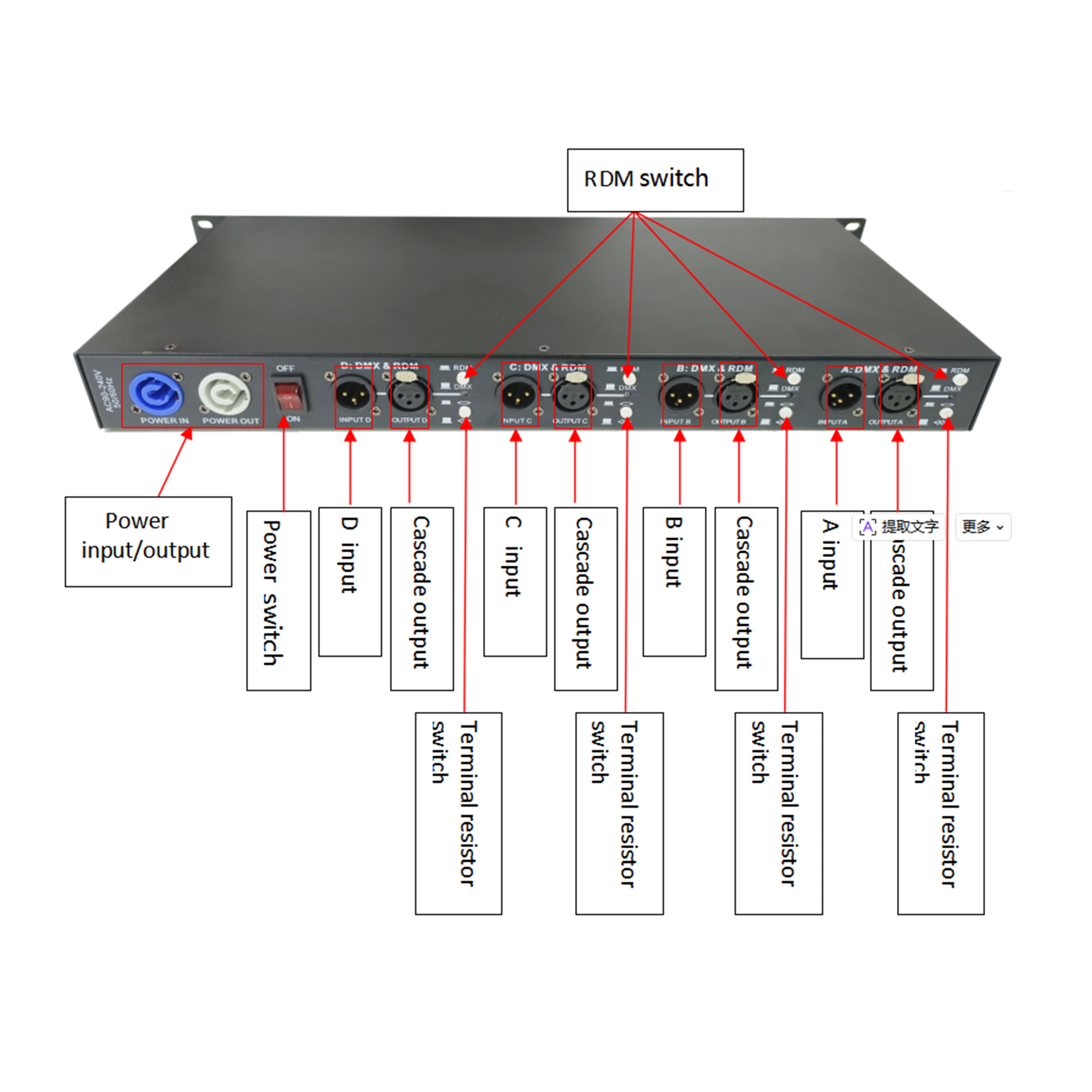

- Each input terminal is equipped with input and cascade XLR ports
- RDM enable switch on each input channel to filter pure RDM signals and ensure standard DMX output
- Terminating resistor available on each input to avoid signal instability caused by reflection

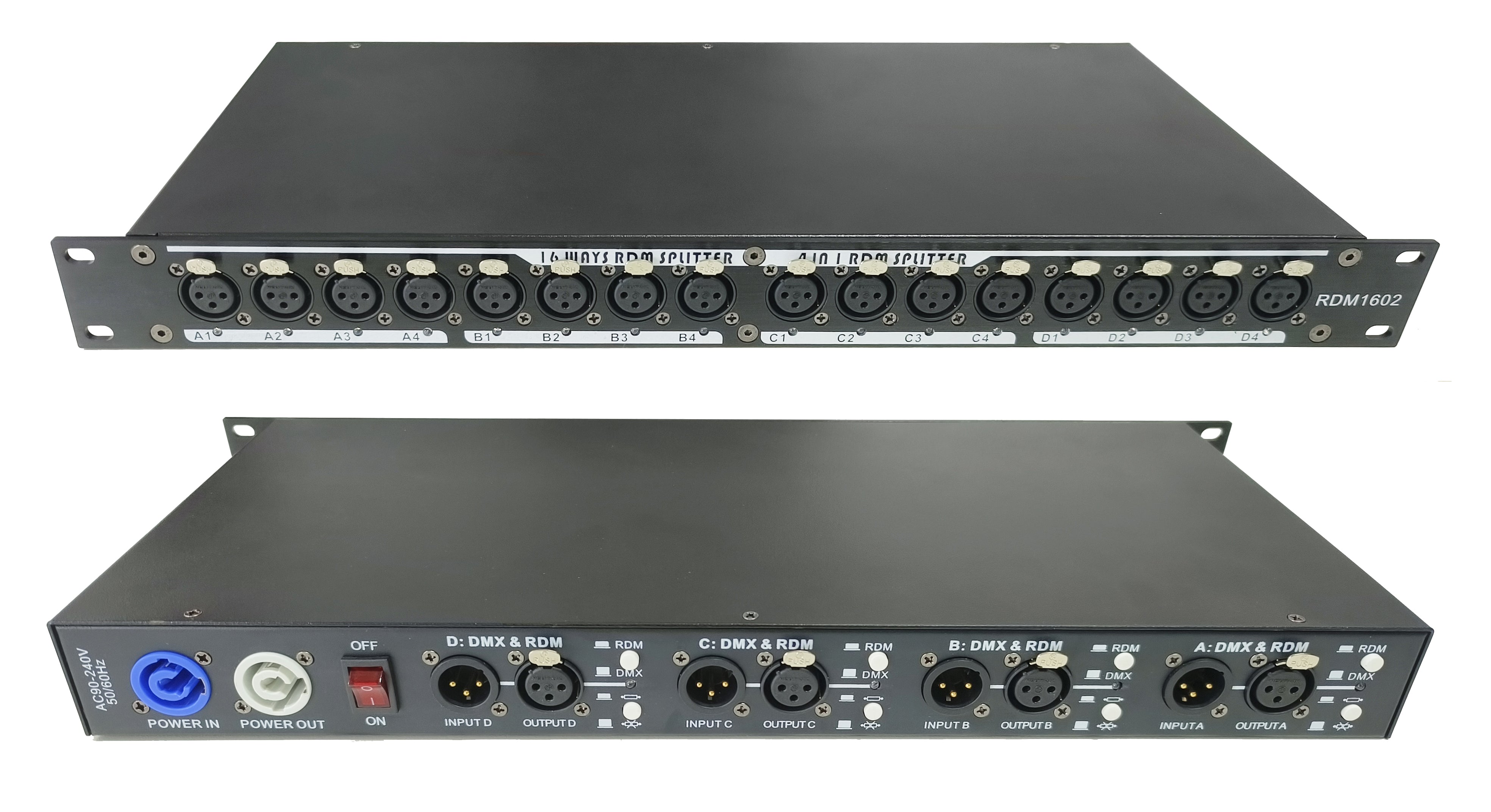

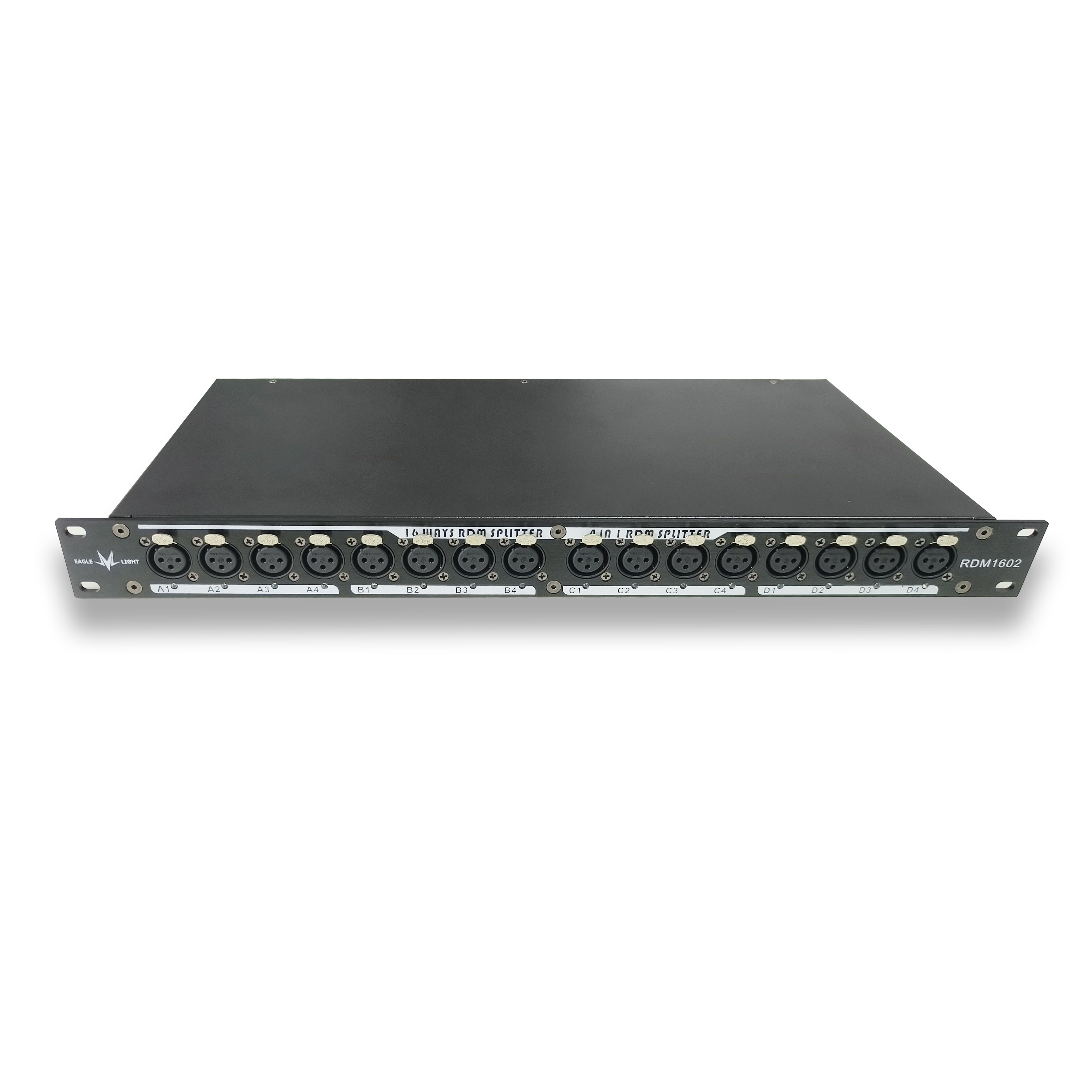

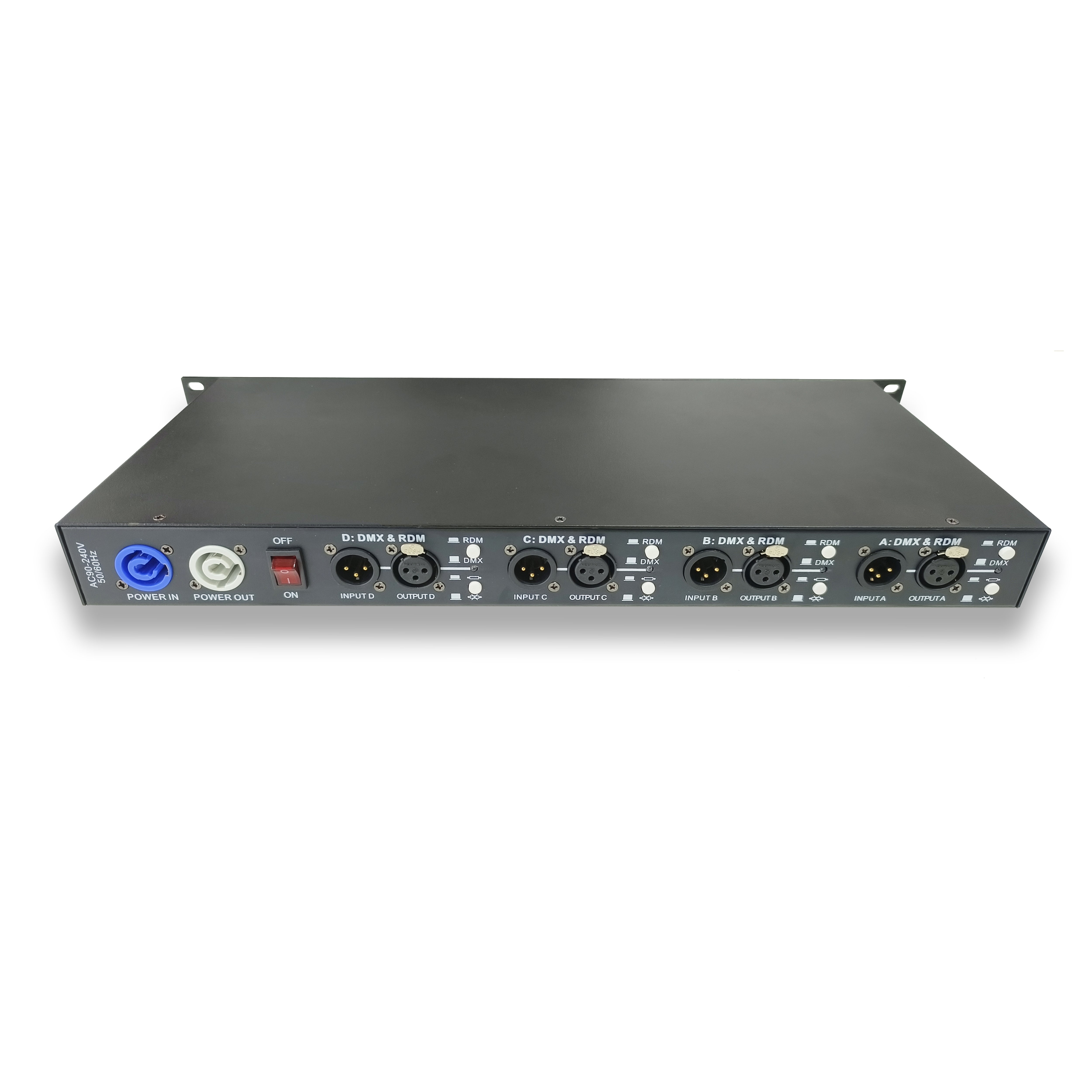

- Input ports on the rear panel, with 16-channel distributed outputs on the front; inputs can be hidden inside the rack after installation, while outputs face outward for convenient on-site operation
- Flexible application modes via cascade input terminals; anti-loose power input port ensures safe power supply; parallel power connection design simplifies wiring
- Input-output electrical isolation withstand voltage: > AC3000V

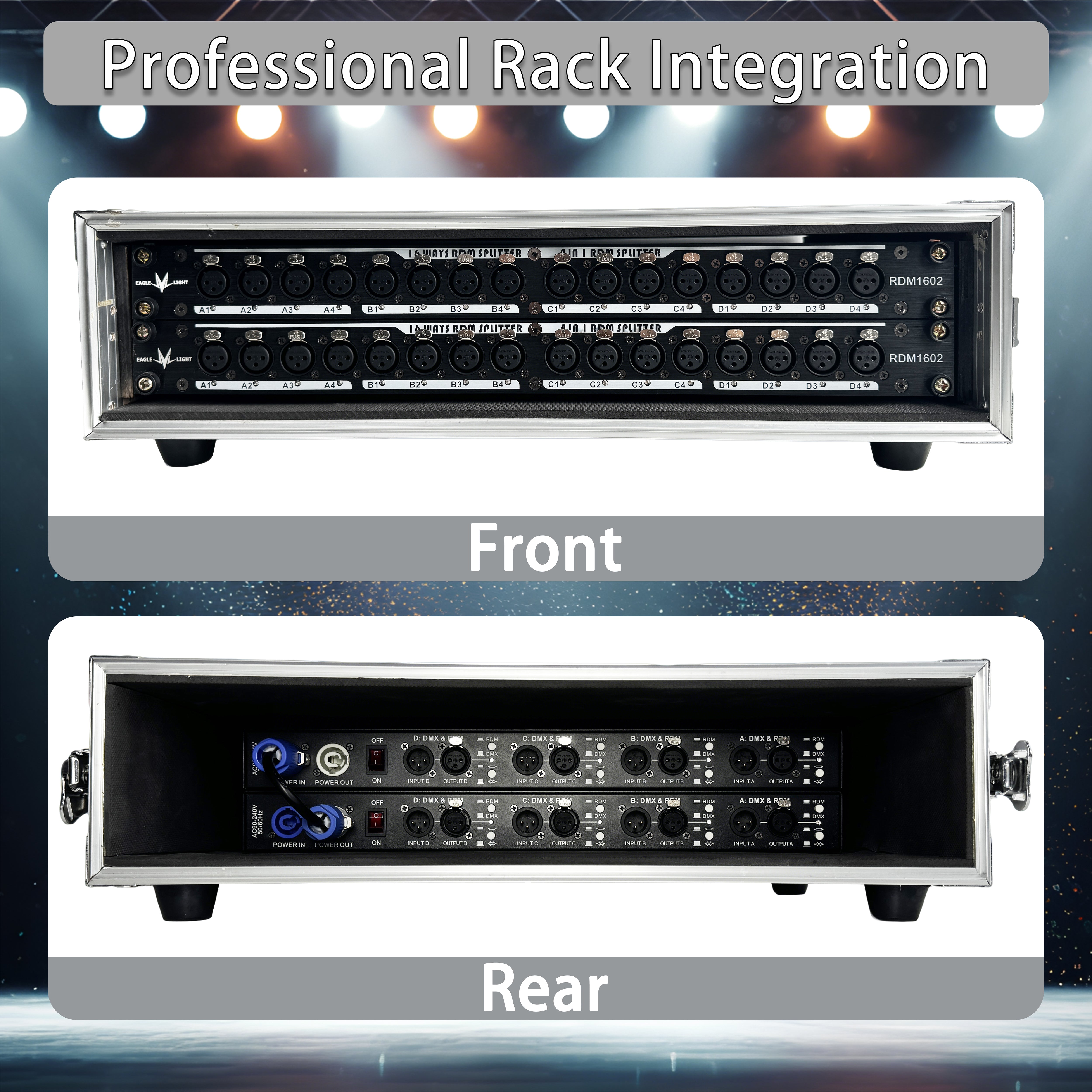

- Dimensions: 48.4 × 4.5 × 14 cm, 19-inch 1U rack mount
- Weight: 2.5 kg
