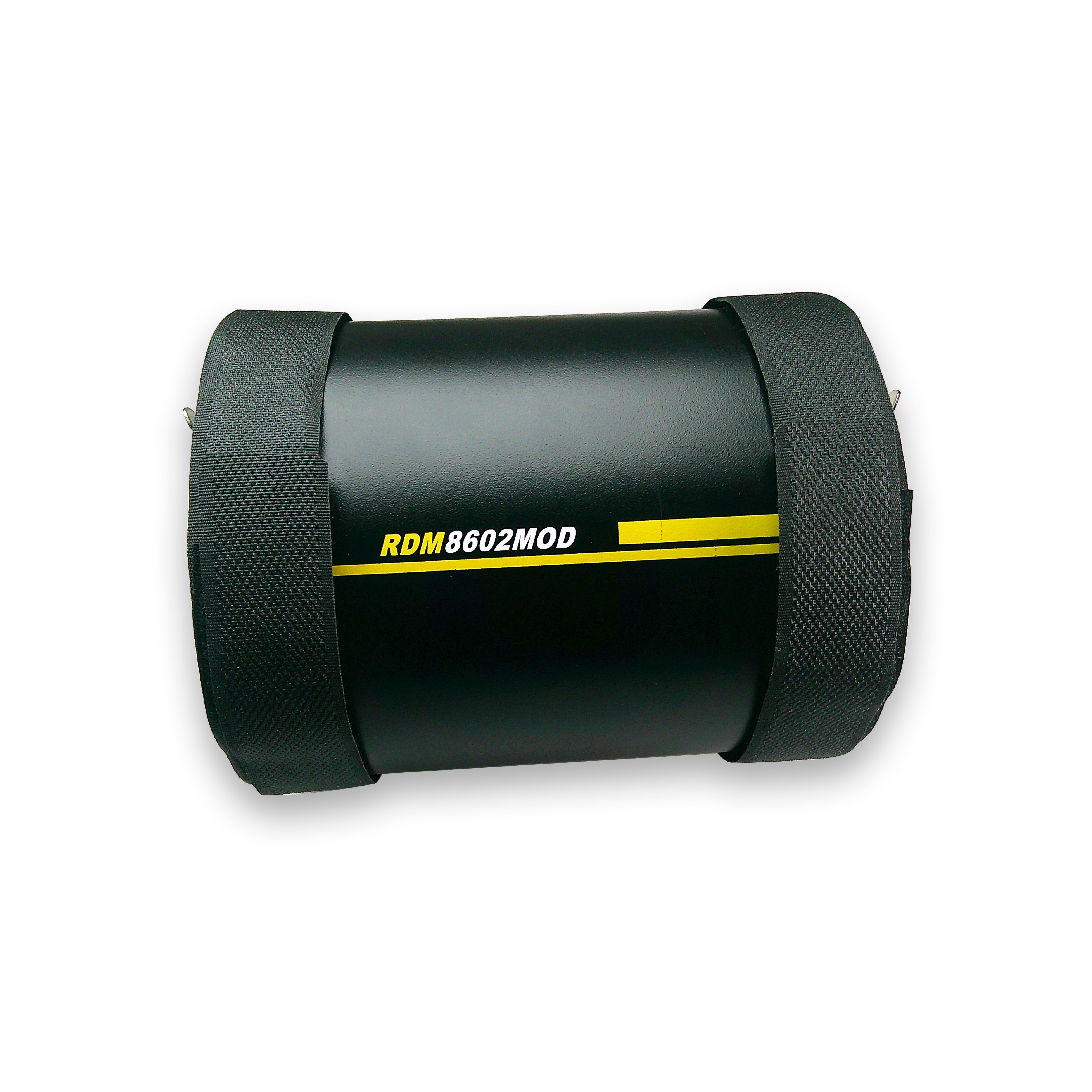

RDM Modular Splitter 6CH in Bundled

Product Overview

Key Features

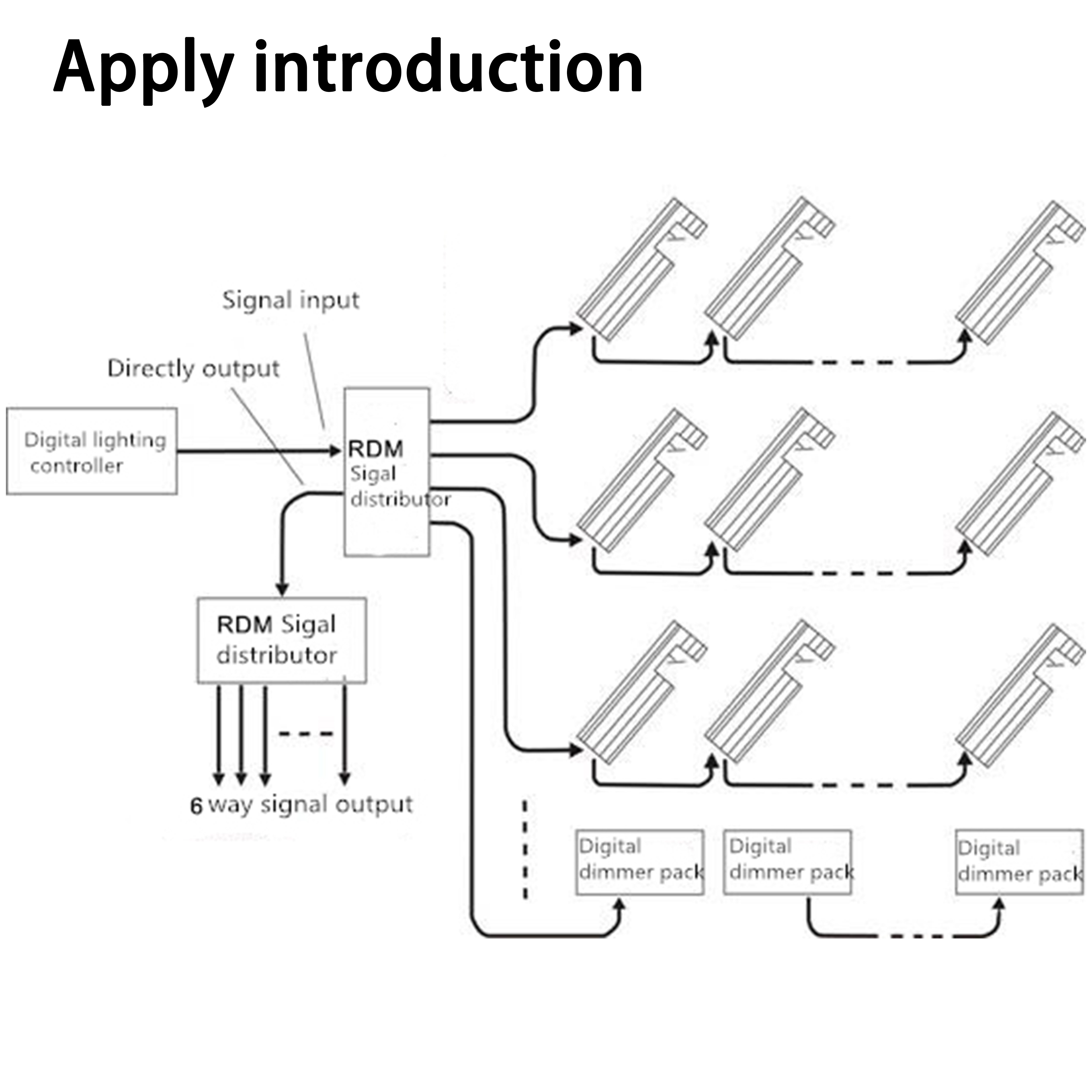

• Applications requiring long-distance transmission of RDM-DMX512 signals.
• Applications requiring an increased number of lighting fixtures.
• Applications requiring signal strength enhancement and interference filtering.
• Applications requiring full electrical isolation between signal ports.
• Applications requiring the RDM console to remotely set or read parameters of RDM fixtures (e.g., setting fixture addresses, reading fixture libraries, etc.).

Application Scenarios

• Stage performances, concerts, music festivals, outdoor light shows
• Theaters, bars, KTV, banquet halls, wedding venues
• Architectural lighting, landscape lighting, cultural tourism lighting projects
• Studios, exhibition halls, large-scale lighting control systems
• Engineering sites with strong electrical interference and long-distance transmission needs

Technical Parameter

• Adopt international DMX512-RDM two-way communication protocol; It allows your controller to easily and accessibly read and set the parameters of light over long distances. (For example: Set the light address, read library parameter and find light) Also connect more lights.

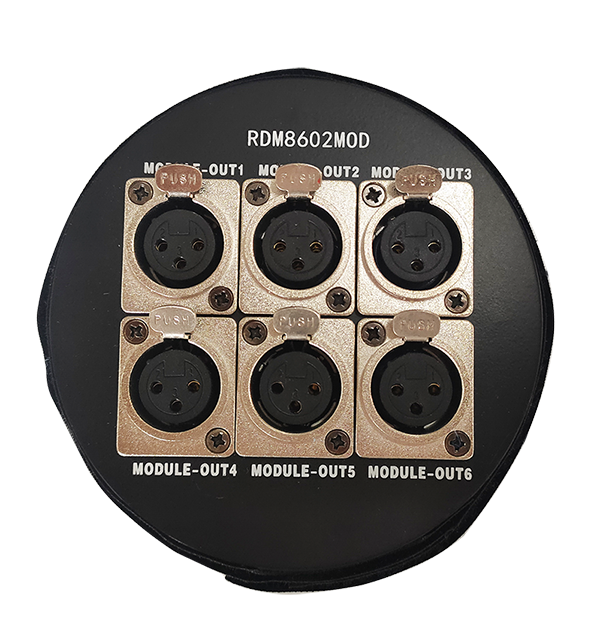

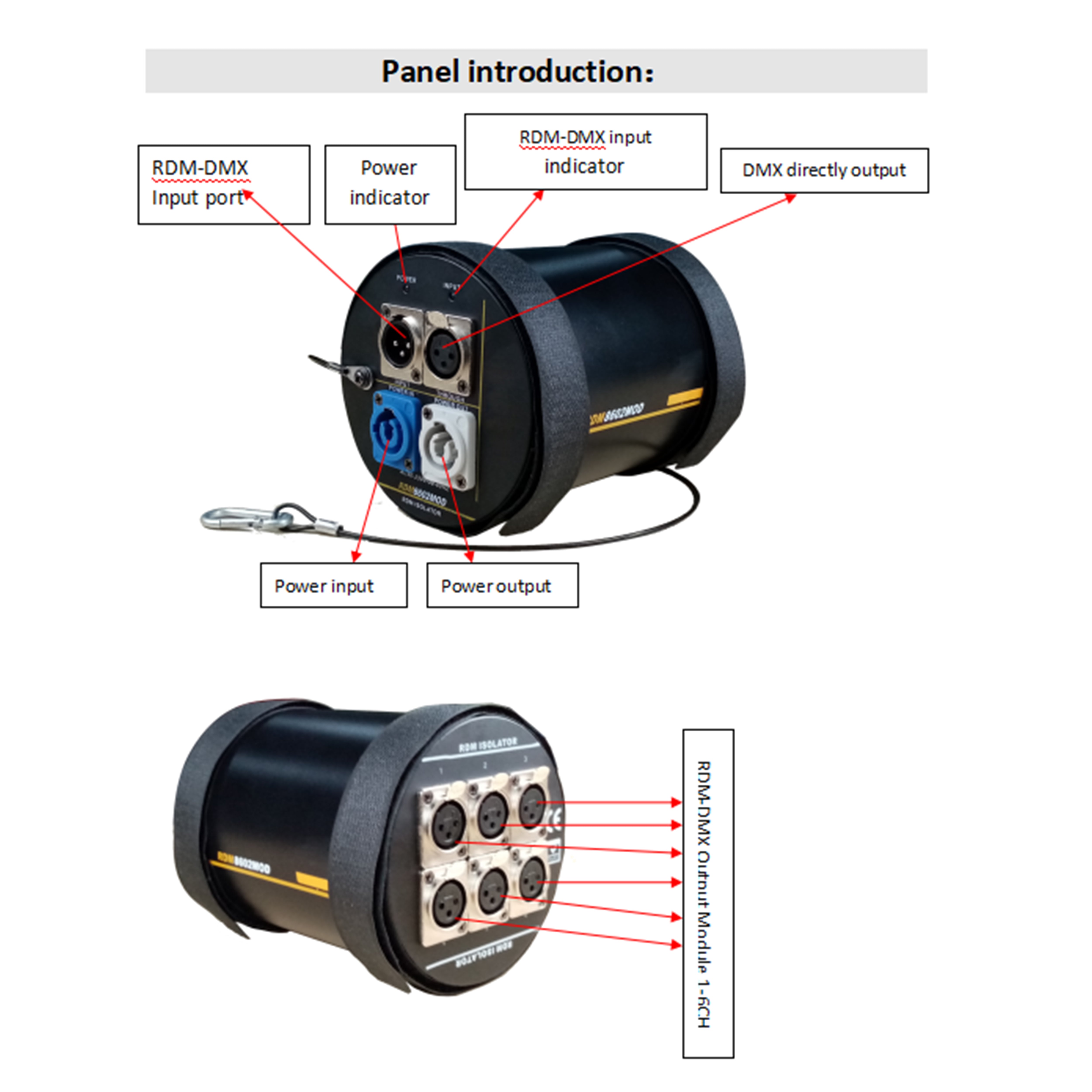

• 1 RDM inputs, 6 RDM outputs.
• Each in-out processing circuit both adopt modular design, and user can willfully match the assembly 3 pins or 5 pins in-out modular according to your needs.
• When the output module was broken caused by strongly attack from the external current, then the user can fix it at once .So it has another protection method for the live shows.
• Each in-out has independent power supply, and each modular board is isolated with the independent protection circuit and photoelectric isolation. The measures realized the absolutely isolation between the signal and the electricity.
• The 3 Pin (XLR-3)or 5 Pin(XLR-5) are more durable with the silver metal.
• N.W: 0.86KG , 11.5×17cm.
• Possess two-way DMX512-RDMprotocol function. Can feedback the light data to MA and other RDM light controller.
