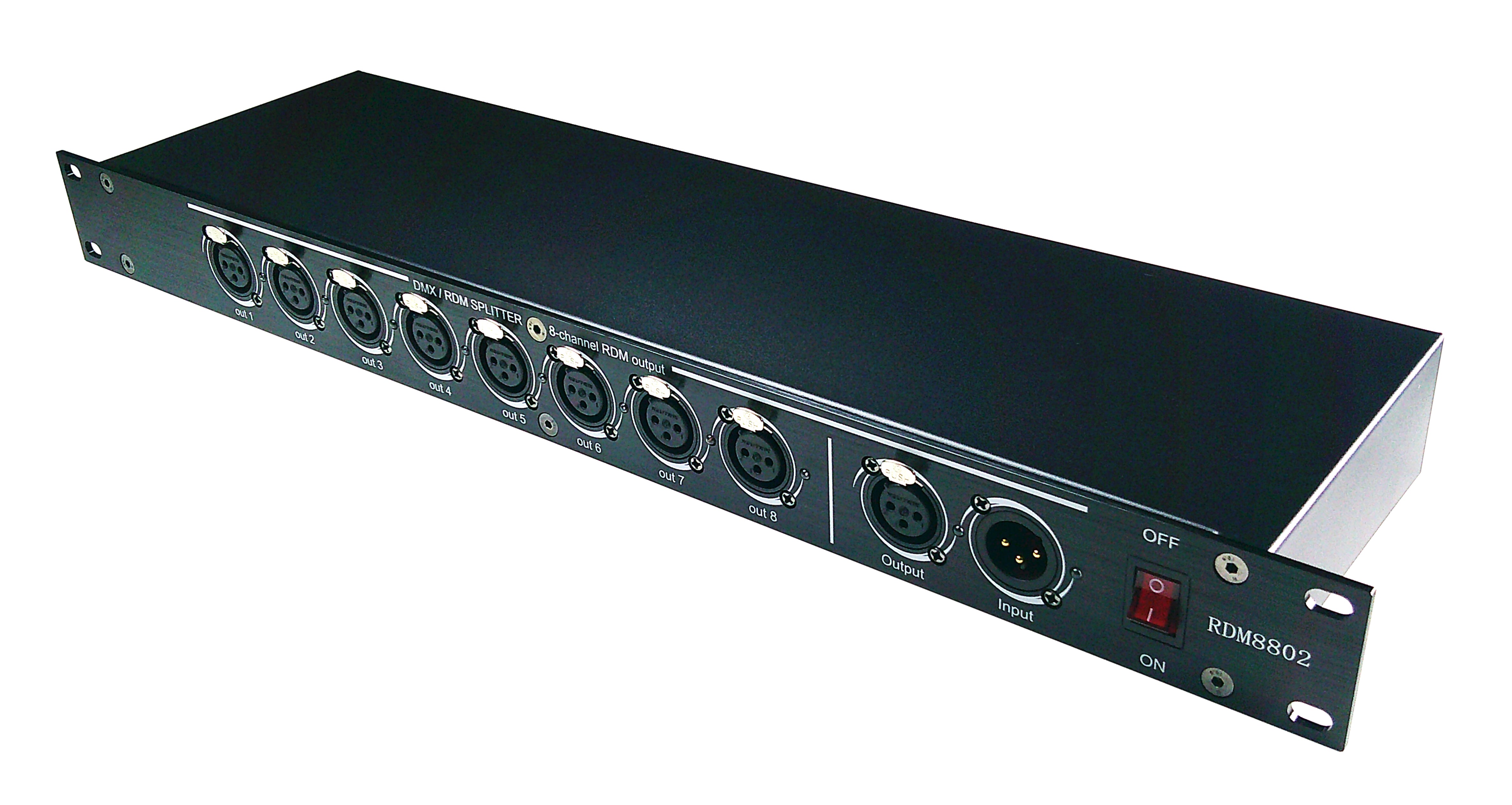

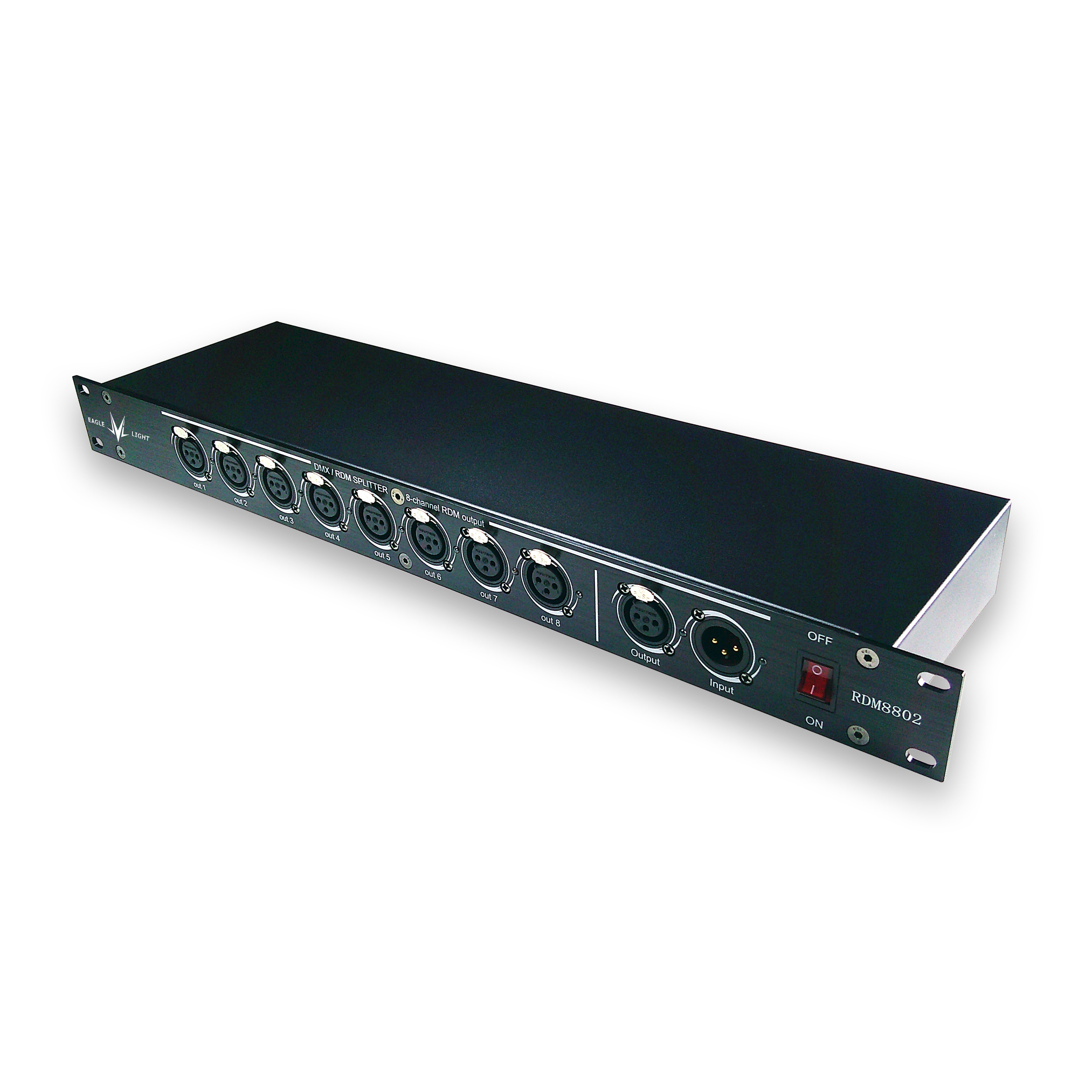

RDM Splitter 8CH

Product Overview

  This is a professional RDM-DMX512 signal splitter/distributor with built-in RDM (Remote Device Management) protocol, the internationally universal standard lighting communication protocol, supporting full bidirectional signal transmission. It builds a stable bidirectional communication channel for RDM-enabled lighting devices, reshapes and amplifies both RDM data and standard DMX512 data signals, and expands single-channel input signals into 8 independent output channels to meet diversified engineering and performance needs.

Core Product Advantages

  • Ideal for scenarios requiring long-distance transmission of RDM-DMX512 signals
  • Perfect for expanding the total number of connected lighting fixtures in the control system
  • Effectively enhances signal strength and filters out signal interference for stable transmission
  • Supports remote parameter setting and reading for RDM lighting fixtures via RDM console over long distances

Application Scenarios

  • Stage performances, live concerts, music festivals, outdoor large-scale light shows
  • Theaters, leisure bars, KTV lounges, banquet halls, professional wedding venues
  • Architectural lighting, landscape lighting, cultural tourism lighting engineering projects
  • Professional studios, exhibition halls, large-scale centralized lighting control systems
  • Engineering sites with strong electrical interference and strict long-distance transmission requirements

Technical Parameters

  • Adopts international standard DMX512-RDM bidirectional communication protocol, enabling the controller to remotely read and set lighting parameters easily over long distances (e.g.: setting lighting address code, reading library parameters, fixture positioning), and supports connecting more lighting fixtures

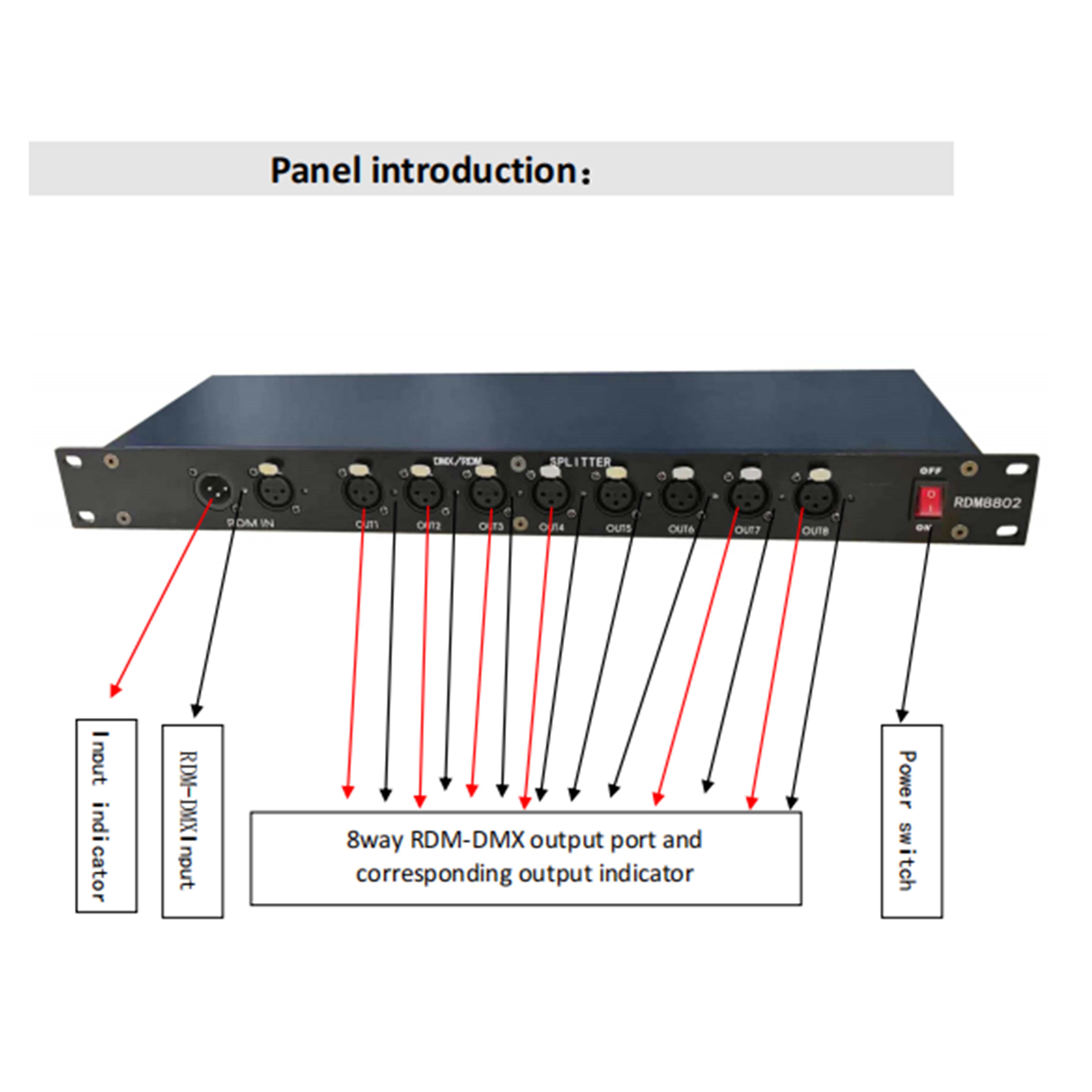

  • 8 independent electrically isolated DMX signal output channels, equipped with a dedicated signal indicator light for each channel
  • Built-in signal reshaping and amplification function, effectively extending signal transmission distance

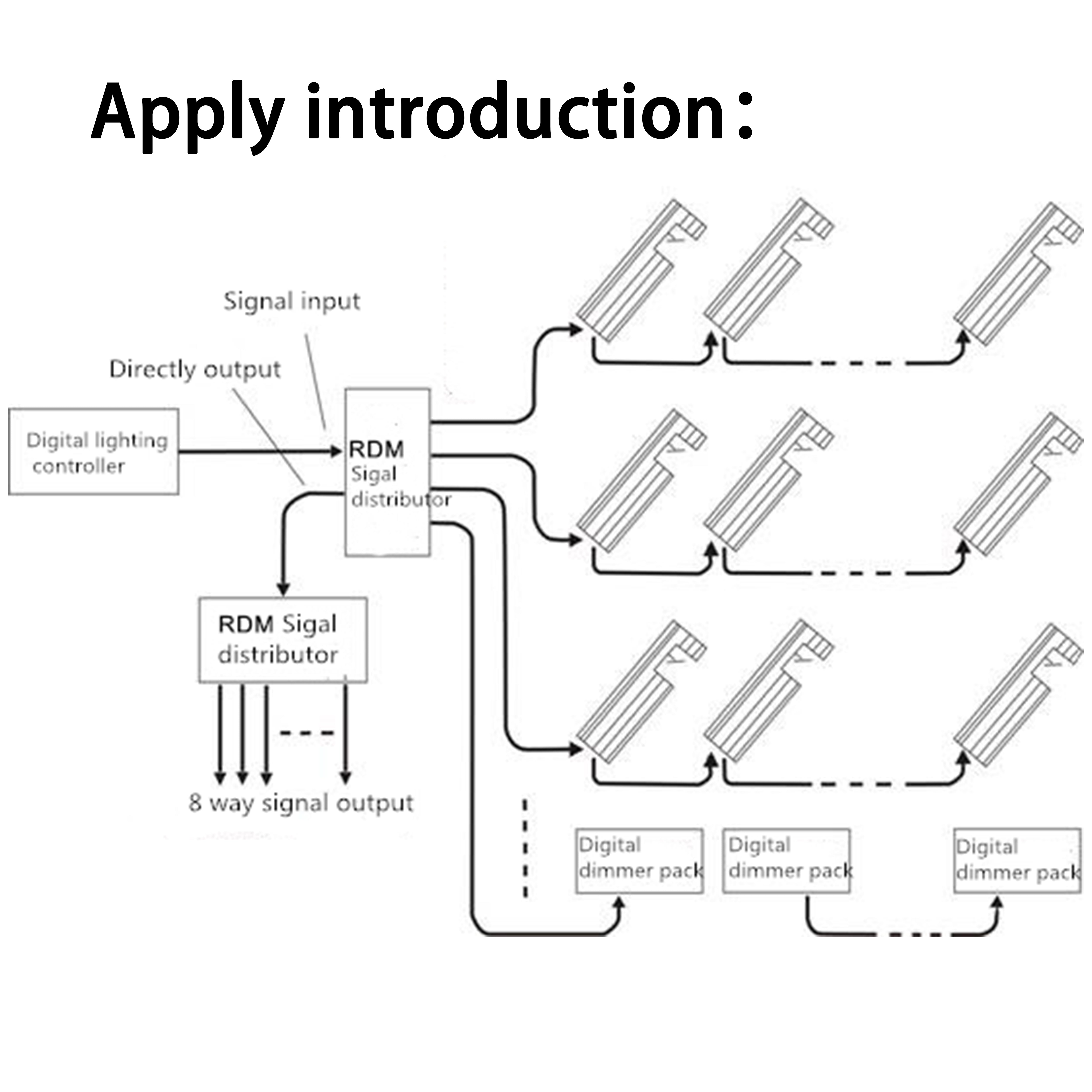

  • Standard configuration: 1 channel signal input, 8 channels direct independent signal output
  • Expands the number of devices on the data bus, protects the DMX512 output port of the controller, and improves the overall safety and stability of the digital lighting control system
  • Full bidirectional DMX512-RDM protocol compatibility, capable of feeding back lighting data to MA and other mainstream RDM lighting controllers

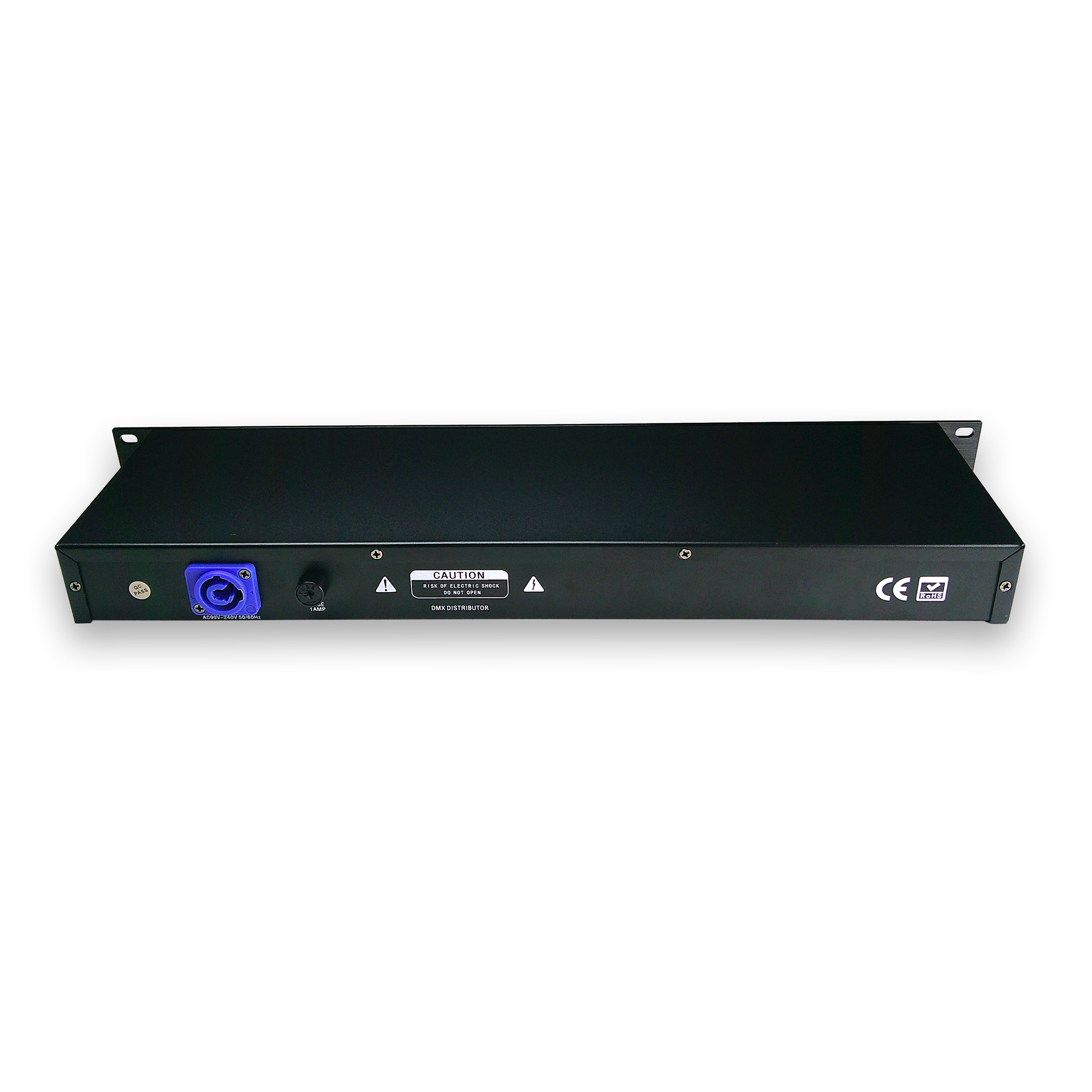

  • Working Voltage: AC90V-240V, 50Hz/60Hz (wide voltage universal)
  • Net Weight: 1.8KG
  • Gross Weight: 2.2KG

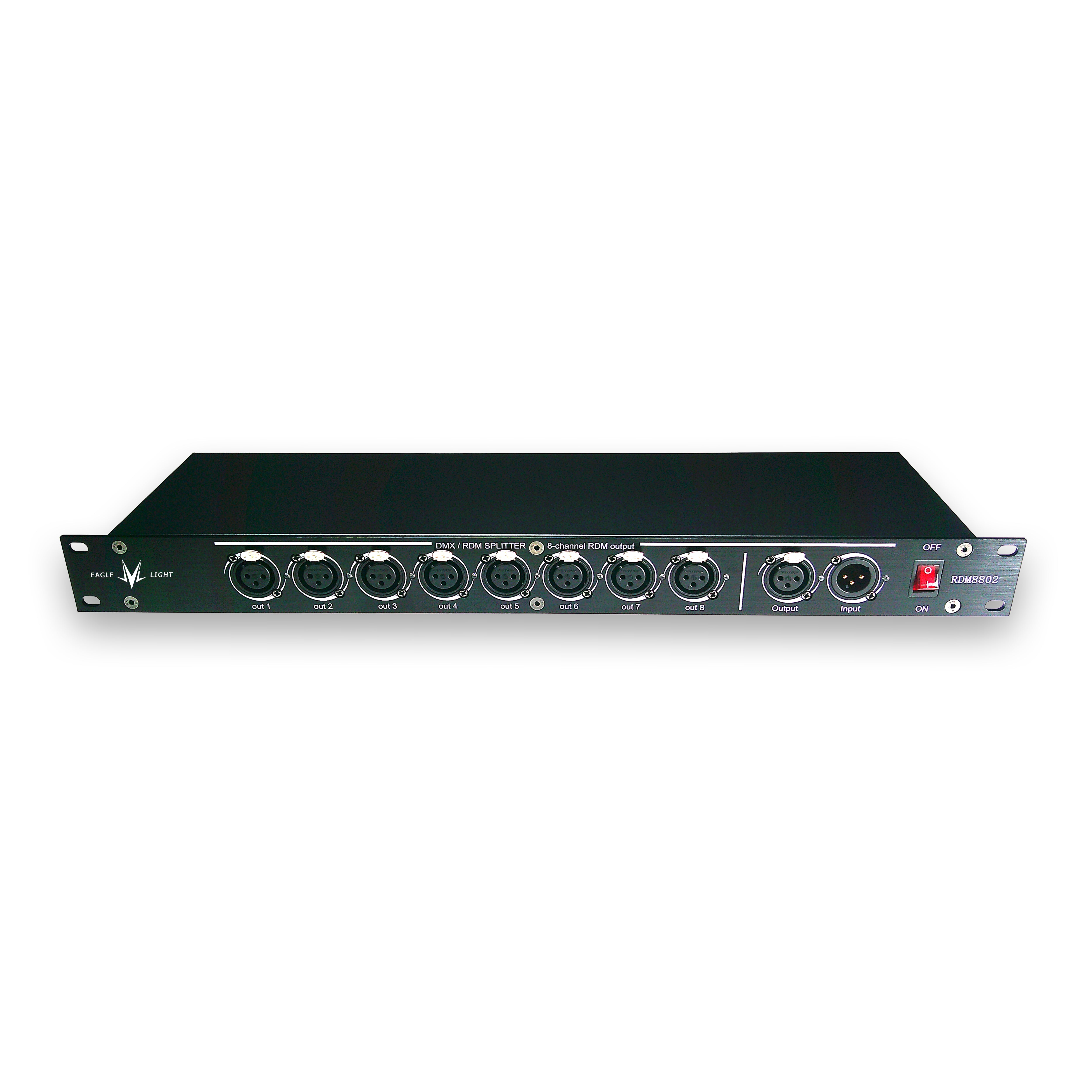

  • Specification: 19” 1U standard rack mount
  • Product Size: 53.5×18.5×10cm
