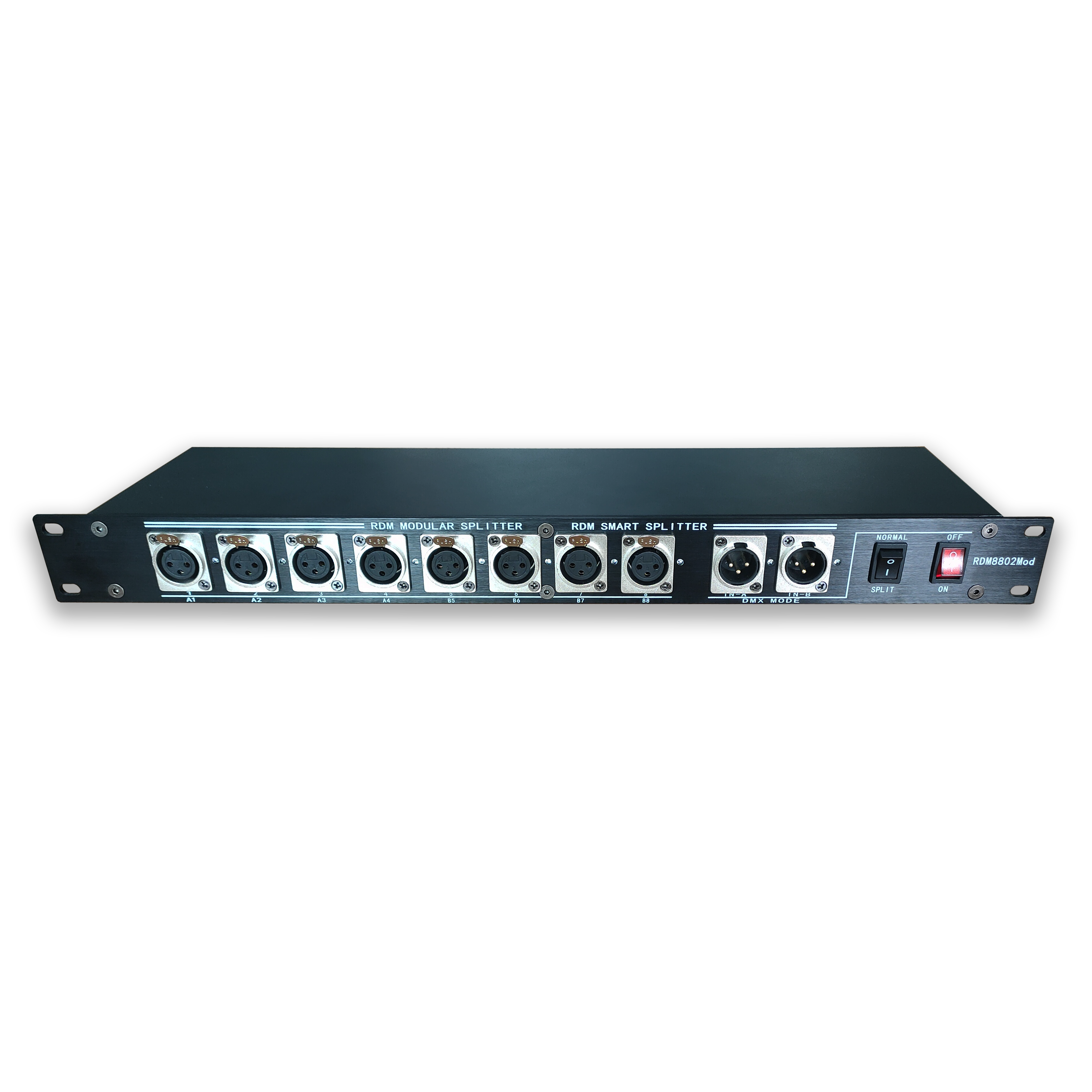

Modular RDM Splitter 8CH

Product Overview

Key Features

• Applications requiring long-distance transmission of RDM-DMX512 signals;
• Applications requiring an increased number of connected lighting fixtures;
• Applications requiring signal strength enhancement and interference filtering;
• Applications requiring electrical isolation between individual signal ports;
• Applications requiring an RDM console to remotely set or read parameters of RDM fixtures (e.g., setting fixture addresses, reading fixture libraries, etc.).

Application Scenarios

• Stage performances, concerts, music festivals, outdoor light shows
• Theaters, bars, KTV, banquet halls, wedding venues
• Architectural lighting, landscape lighting, cultural tourism lighting projects
• Studios, exhibition halls, large-scale lighting control systems
• Engineering sites with strong electrical interference and long-distance transmission needs

Technical Parameter

• Adopt international DMX512-RDM two-way communication protocol; It allows your controller to easily and accessibly read and set the parameters of light over long distances.(For example: Set the light address, read library parameter and find light) Also connect more lights.
• In appointed site, it can be easily divided into 2 pieces 4 ways DMX512-RDM splitter or 1piece 8 ways that you can select more output ports and connect more devices.

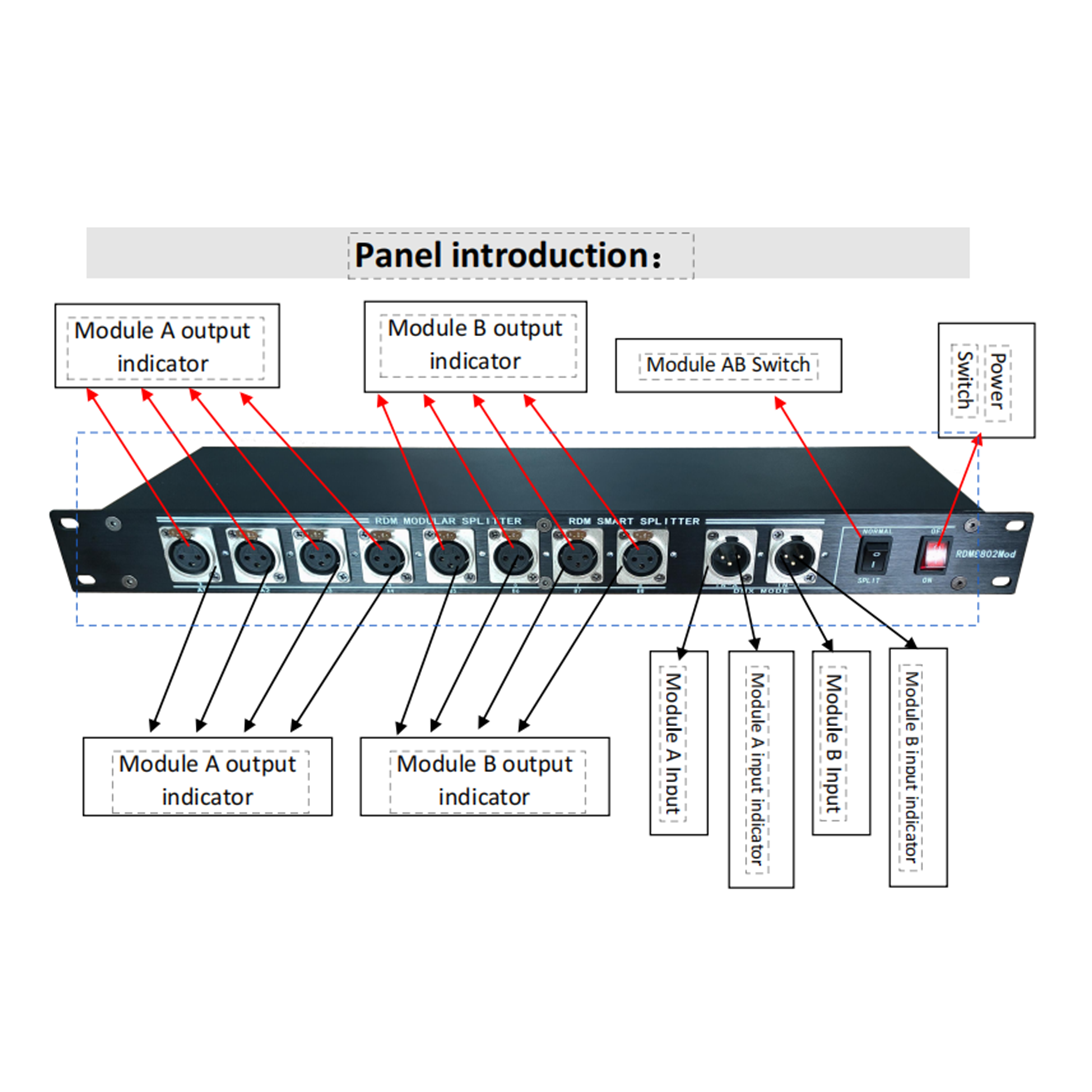

• Adopt modular design in each input and output port, easy to configure the number and position of 3pin or 5pin module. At the same time, offer more convenient protection method in appointed site.
• Possess isolated power supply system and signal output indication in each module. Electrical isolation technology between each port to make them not electrical connection, effectively avoid interaction of devices in whole internet and protect them.

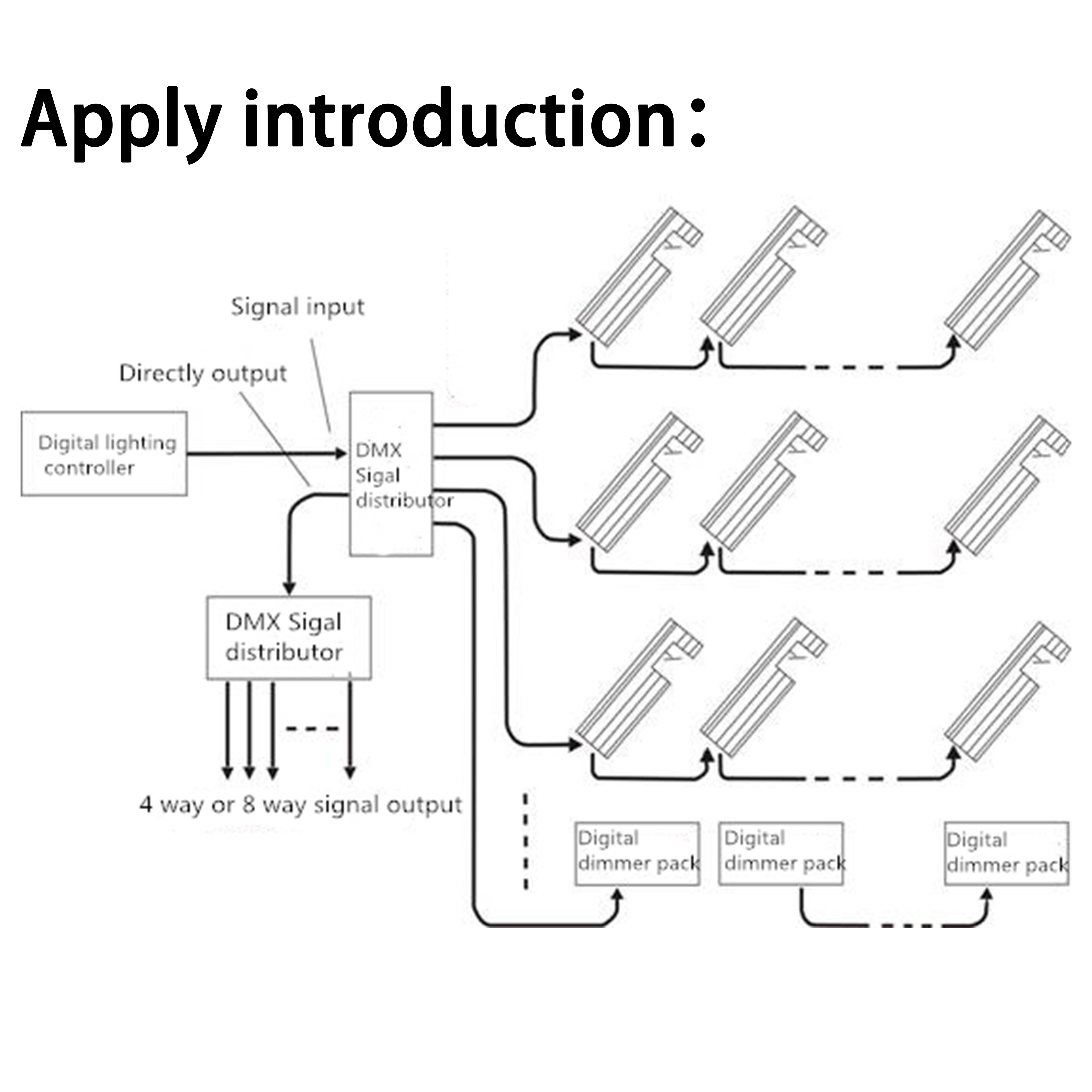

• Up to 6-level series extension are supported. Realize two-way communication control over long distance.
• Possess two-way DMX512-RDM protocol function. Can feedback the light data to MA and other RDM light controller.
• Electrical isolation voltage of each port: ＞AC300V
• N.W: 2.5KG 48.3×12.5×4.5 cm ,“19”1U
• G.W: 2.79KG 56×16×8cm

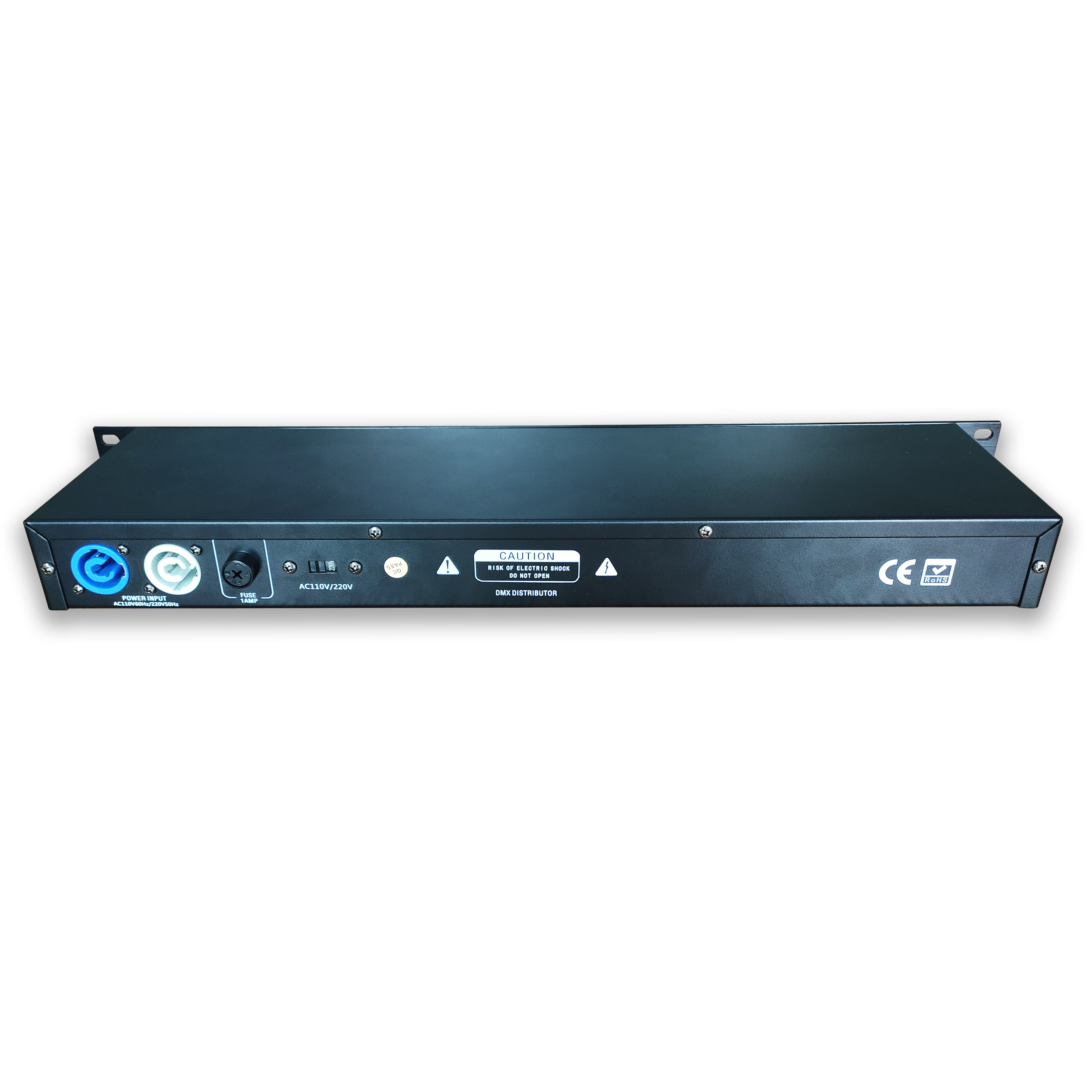

• Power Supply: AC90-240V 50HZ /60Hz
• Input/Output Signal Protocol: The internationally recognized RDM/DMX protocol
• Bidirectional Signal Transmission: Support
• Transmission Capacity: Can support real-time transmission of data from 512-1024 channels
• Signal Output: Two group of 1-in-4-out or one group of 1-in-8-out signals with electrical isolation for distribution and output
• Signal Connection Socket: Input XLR-3/5-M, output XLR-3/5-F
• Interface Type: RS-485
• Input to Output Electrical Isolation Withstand Voltage: ＞AC300V
• Size: 484*45*140mm “19”1U
• Weight: 1.8KG
