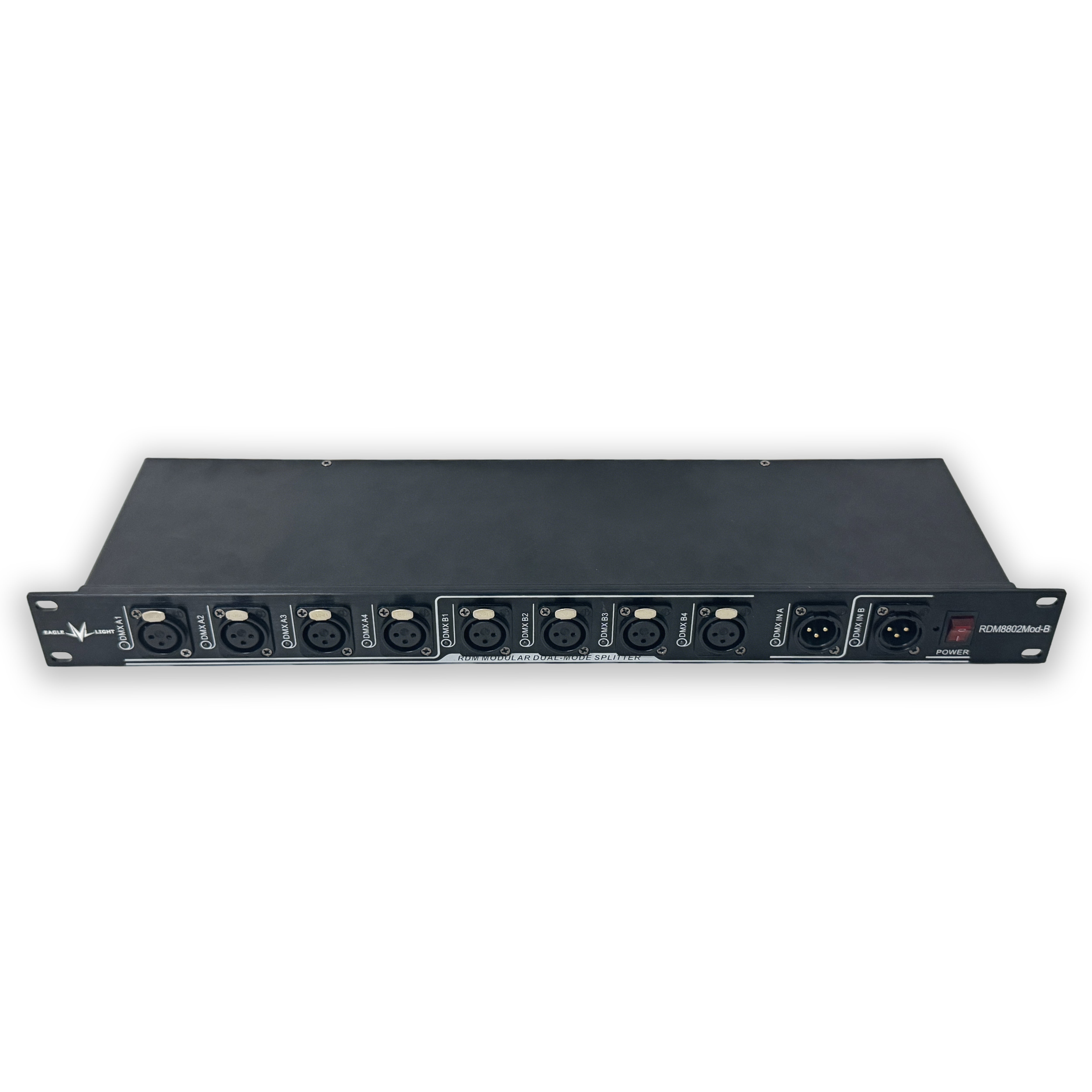

8-Channel Modular RDM Signal Splitter

The RDM 8-way plug-in module amplifier is an RDM-DMX512 signal splitter product with built-in international standard RDM (Remote Device Management) lighting protocol for bidirectional communication. It provides a bidirectional communication path for RDM devices and can shape and amplify RDM data and DMX512 data. It can also expand input signals into multiple outputs. So enhancing the distance over which signals can be transmitted increases the number of lights that can be connected to the control panel, ensuring stable and reliable signals.

The RDM 8-way plug-in module amplifier provides isolated power supply for each port, and the signal transmission of each port adopts optoelectronic isolation technology, so that there is no electrical connection between ports. At the same time, each pin of each port is equipped with surge high voltage absorption and protection circuits. Therefore, it effectively blocks the mutual interference of high-voltage pulses in the network, suppresses high-voltage pulses, and ensures the safety of equipment and the reliability of communication in the network.

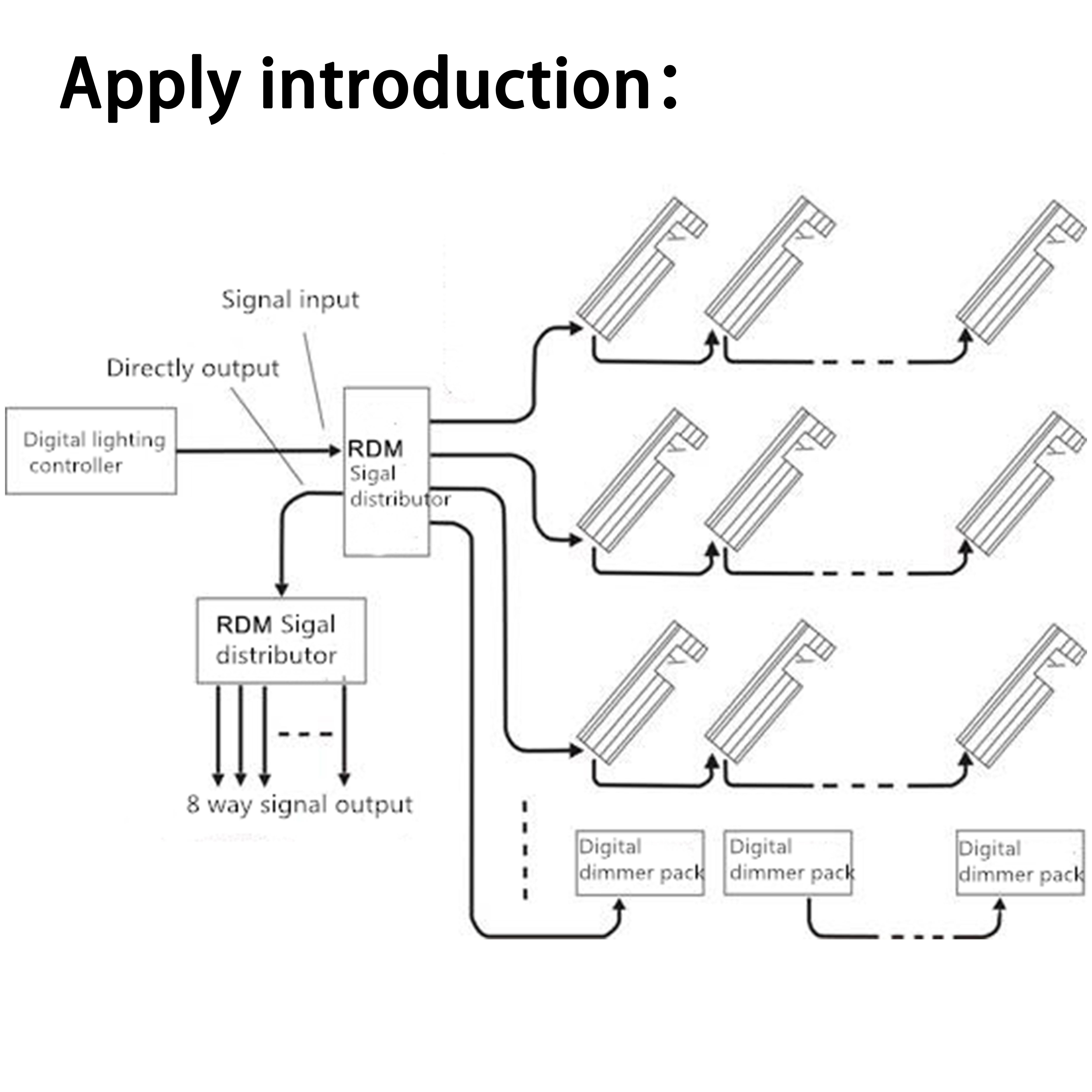

RDM 8-way plug-in module amplifier is suitable for:

1) Need to implement RDM-DMX512 signal long-distance transmission application;

2) Applications that require the expansion of the number of lighting fixtures used;

3) Applications that require enhancing signal strength and filtering out signal interference;

4) Applications that require electrical isolation between signal ports;

5) Need to implement remote parameter setting or parameter reading applications for RDM lighting fixtures on the RDM console (such as setting fixture addresses, reading fixture libraries, etc.);

The main features of RDM 8-way plug-in module amplifier are as follows:

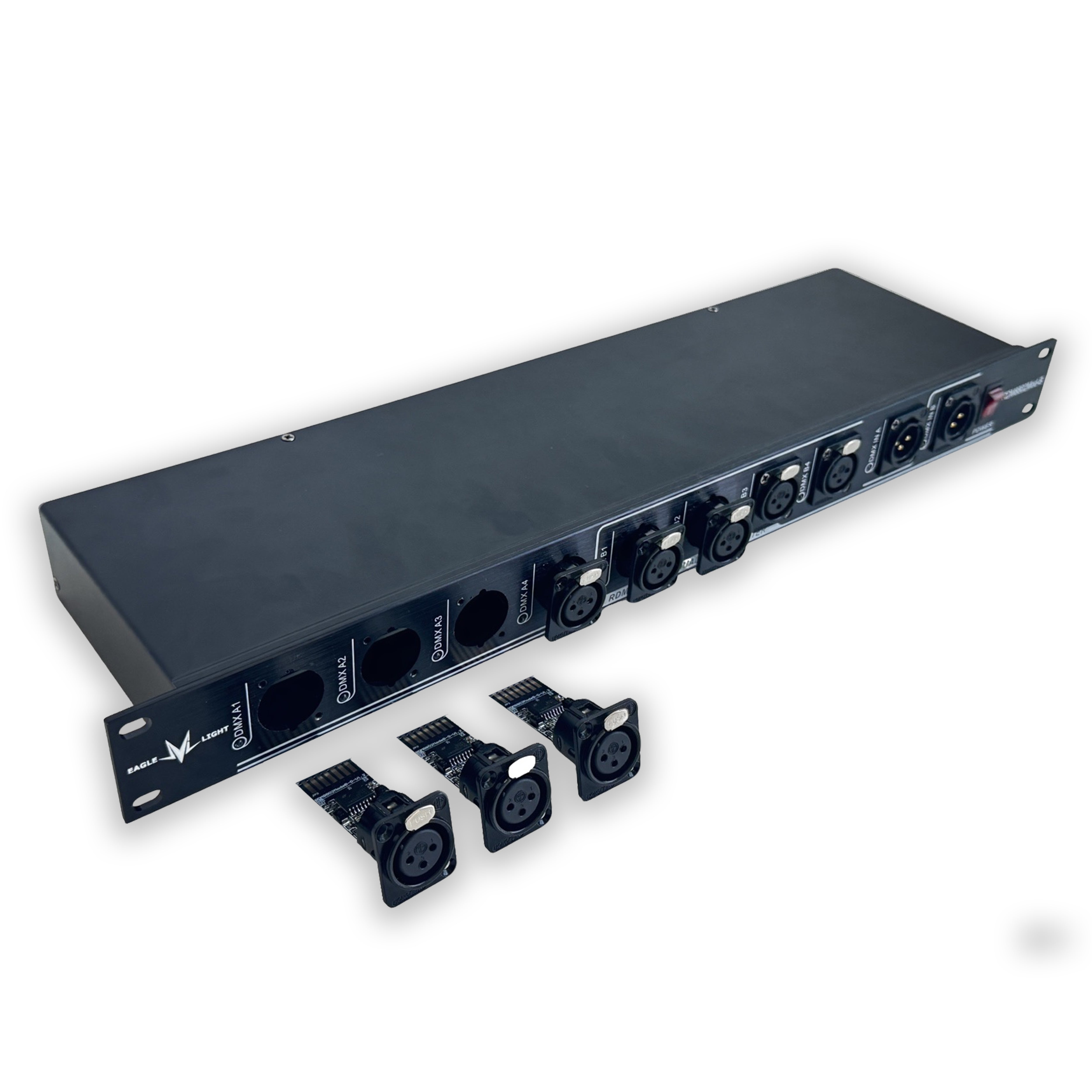

1) Each output and input of it adopts a modular design, and users can replace any output or input module separately without opening the chassis, which is more convenient for on-site emergency maintenance and handling. This feature adds another layer of safety insurance to on-site applications;

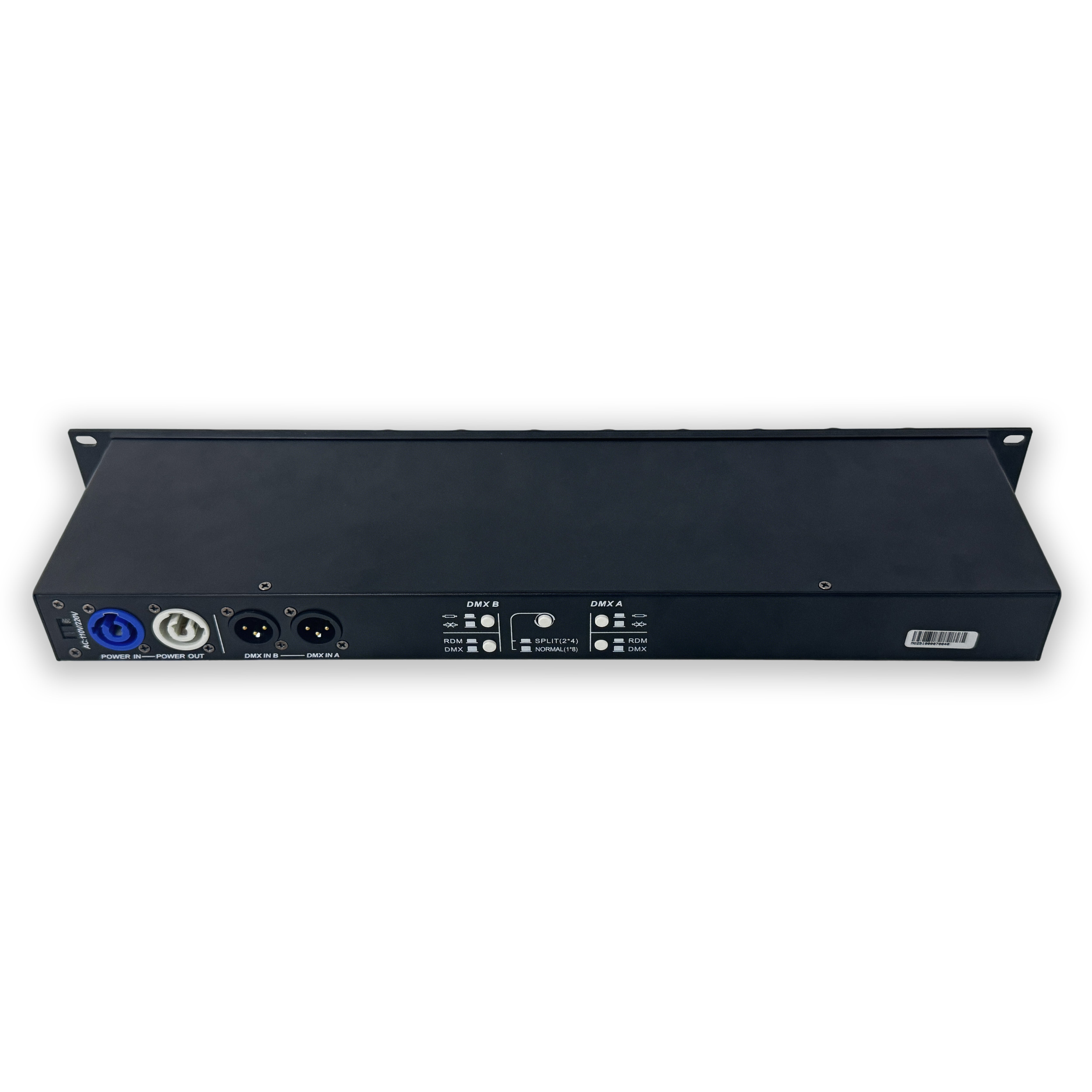

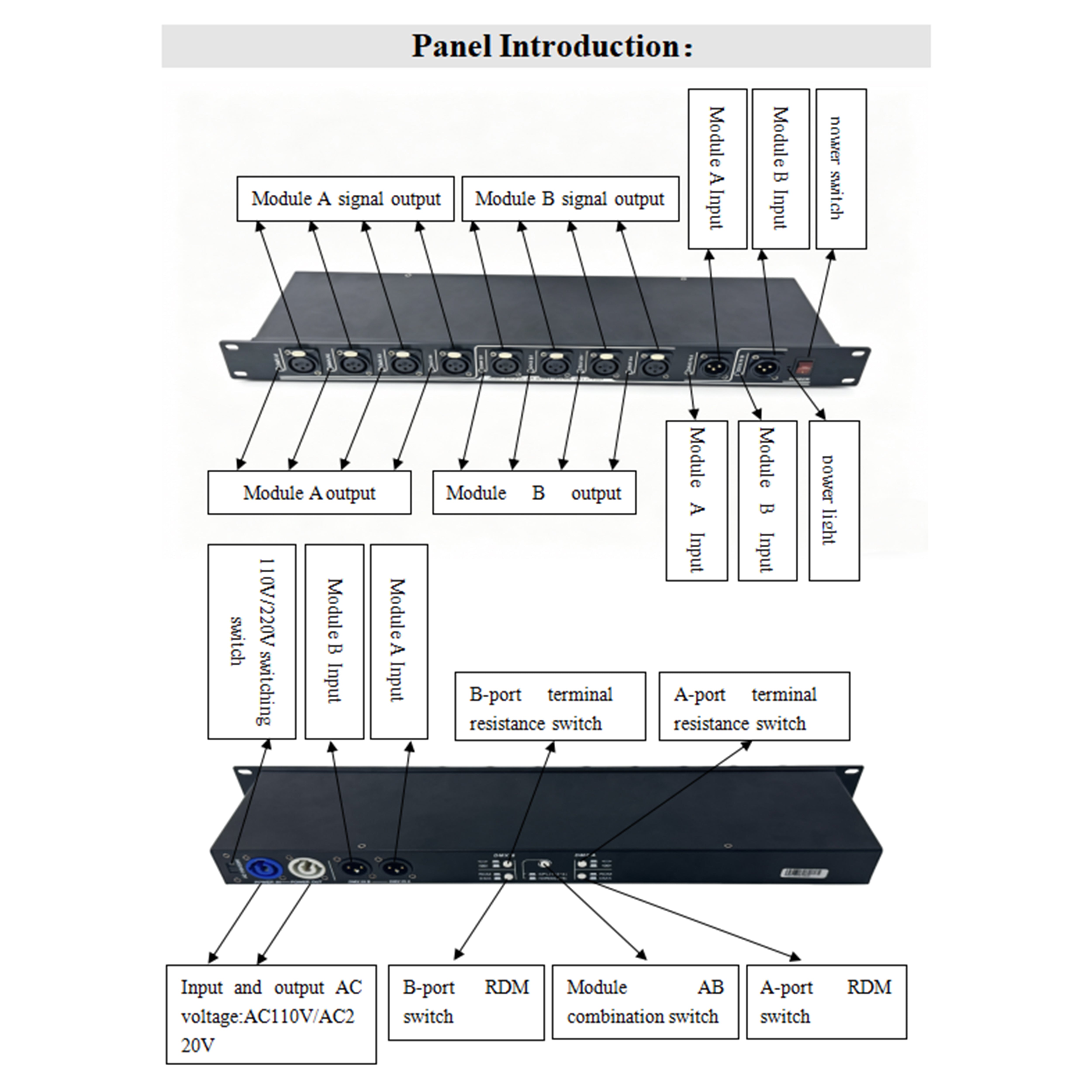

2) Two working modes can be freely switched: single group with 1 input and 8 output modes, and dual group with 1 input and 4 output modes;

3) Each output and input has independent power supply and optoelectronic isolation measures, achieving complete electrical isolation;

4) Each module is equipped with a high brightness blue light indicator that combines power and signal indication, indicating the working status of each module at any time;

5) The internal power supply adopts transformer stabilized power supply, which is more durable and has less interference;

6) Adopting a brand new patented mold positioning structure, precise insertion of module ports can be achieved without any alignment required
