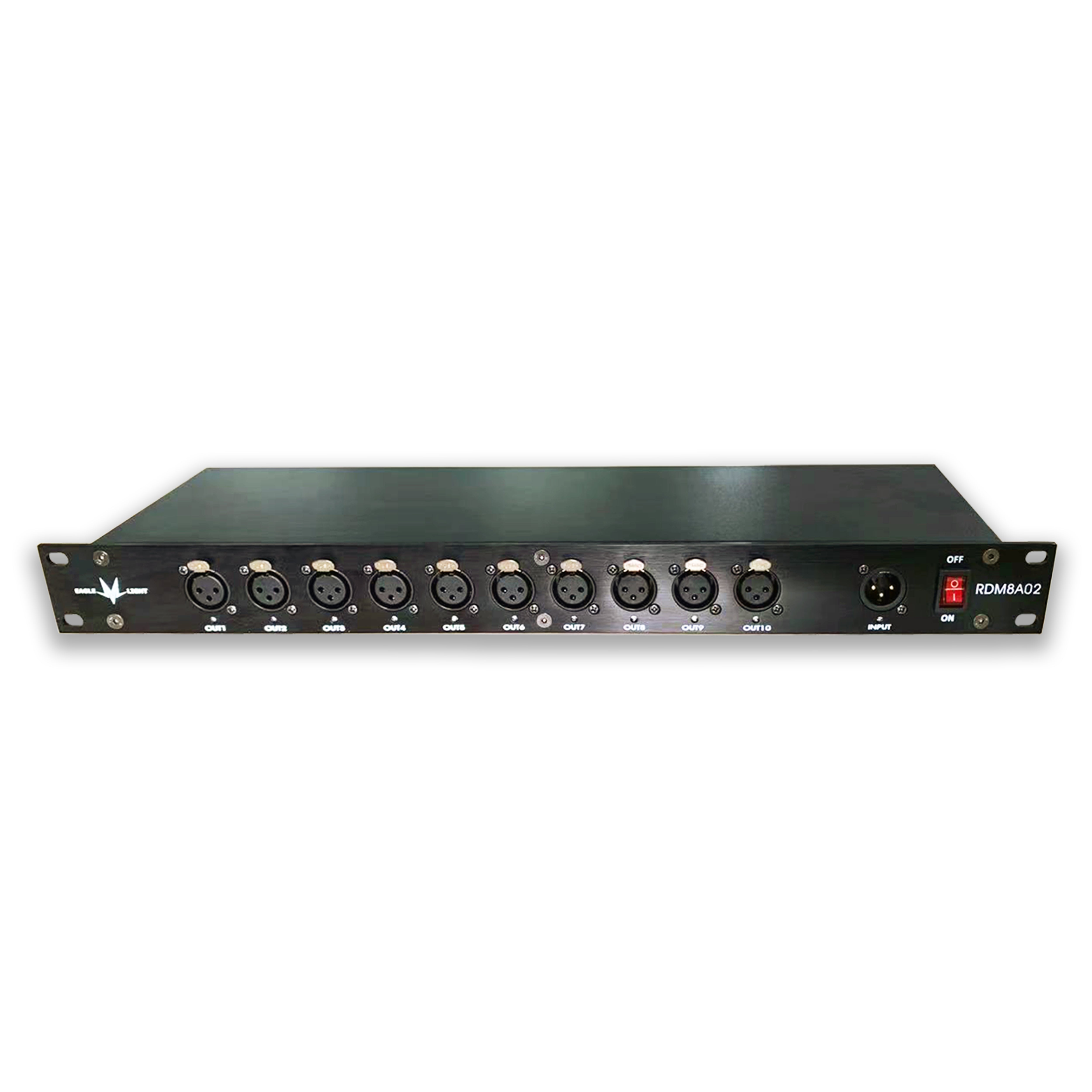

RDM 10 Channel Splitter (Model: RDM8A02)
Product Overview
RDM8A02 is a high-performance RDM-DMX512 signal distributor with built-in bidirectional communication, fully compliant with the international standard RDM (Remote Device Management) lighting protocol.

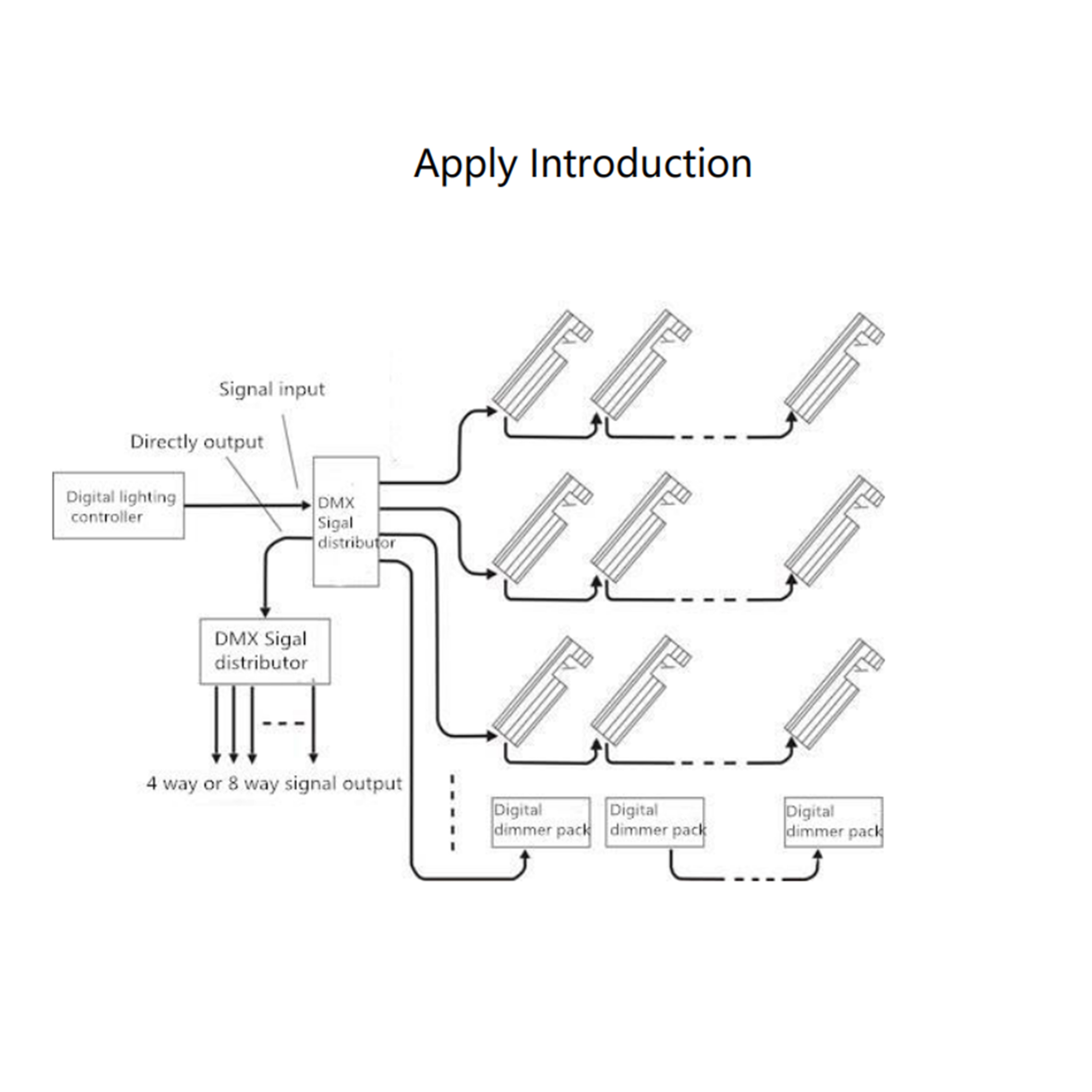

It provides a stable bidirectional communication channel for RDM devices, reshapes and amplifies both RDM and DMX512 signals, and distributes one input signal into multiple output channels.
This splitter effectively extends signal transmission distance, increases the number of fixtures connectable to the console, and ensures stable and reliable signal transmission.
Each port is powered by an independent isolated power supply and uses optical isolation technology, with no electrical connection between ports.
Each channel is also equipped with surge voltage absorption and protection circuits, which block crosstalk caused by high-voltage pulses, protect consoles and other valuable equipment, and ensure safe and stable communication.
Key Features

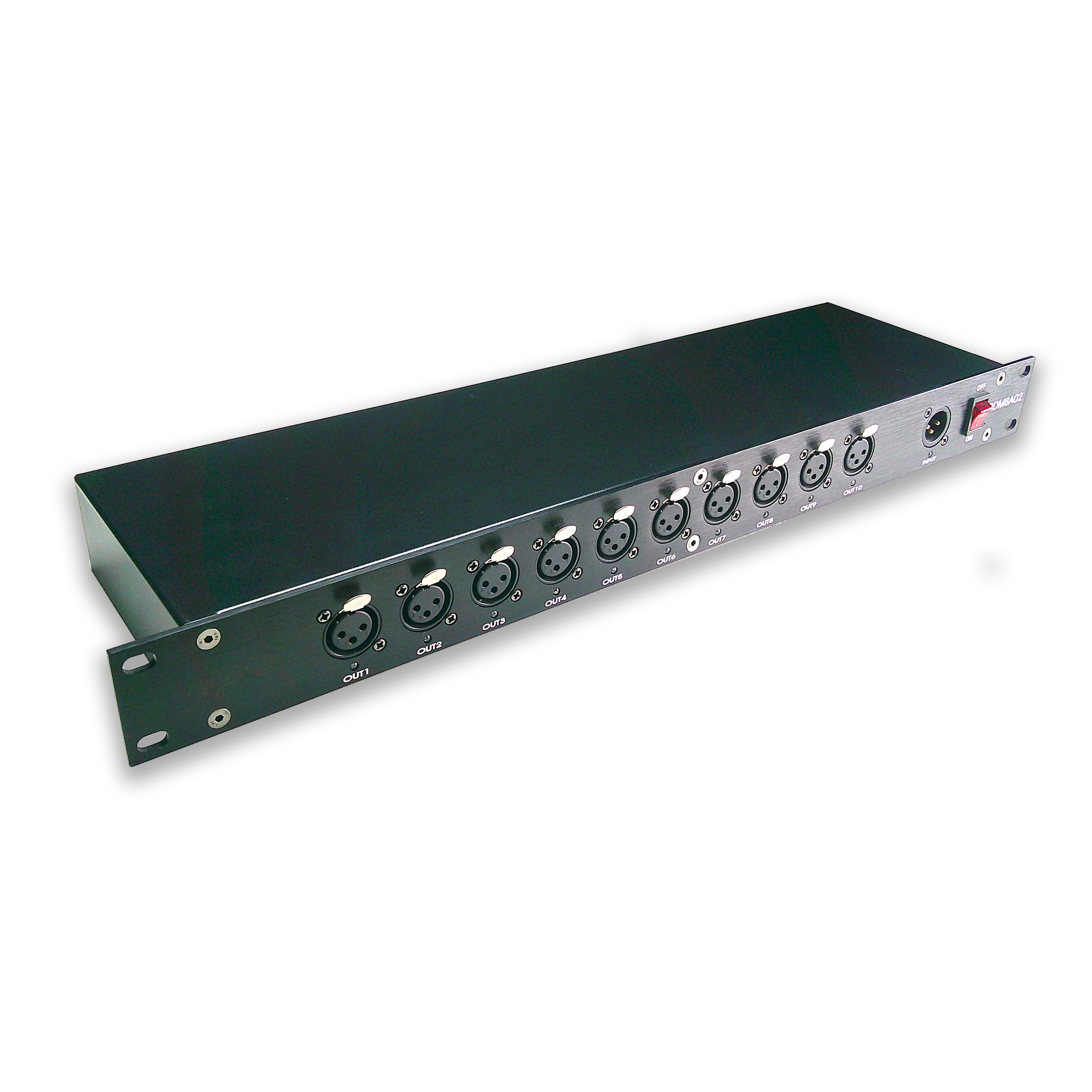

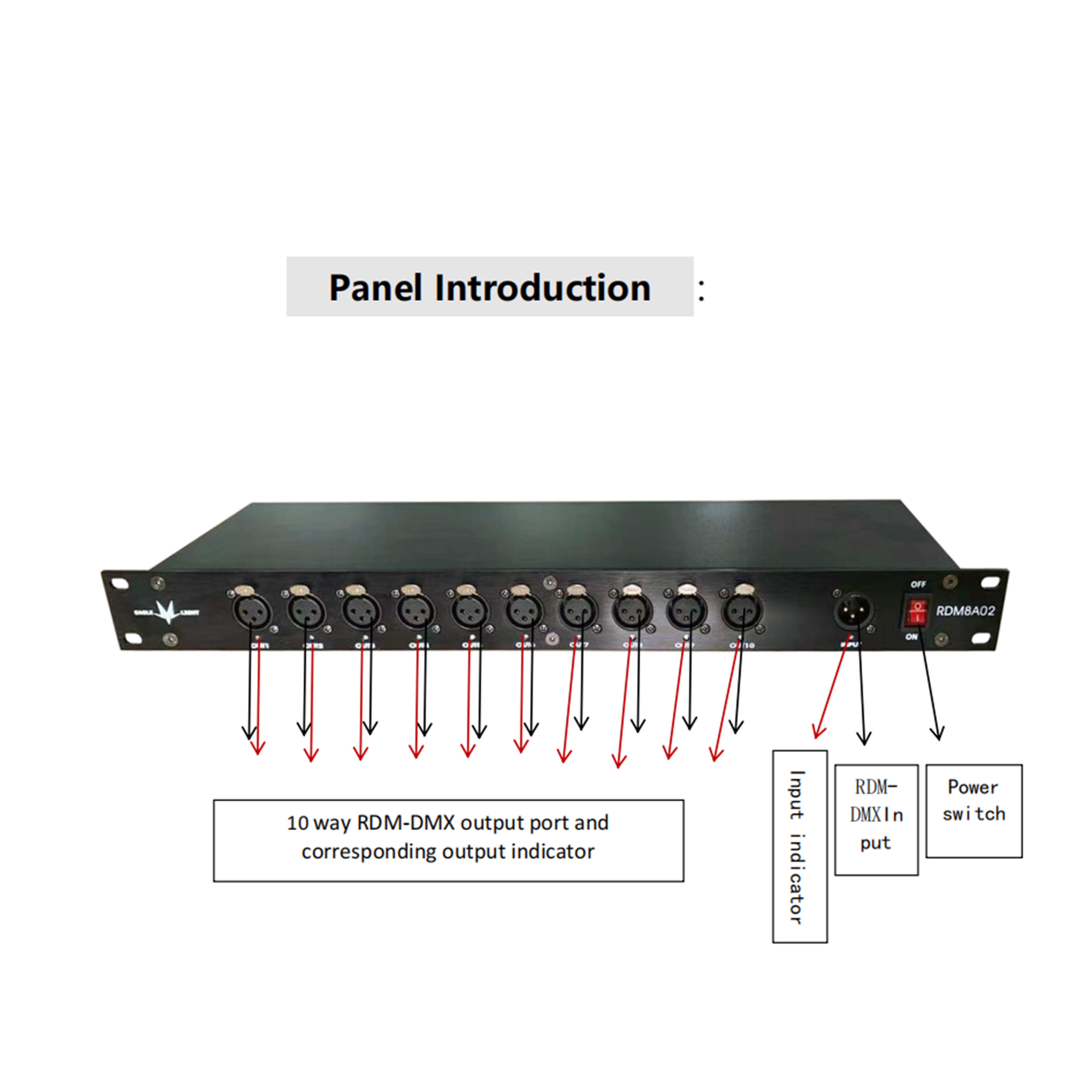

- 1 DMX-RDM input, 10 independent isolated outputs
- Supports bidirectional DMX512-RDM communication protocol
- Allows remote setting and reading of RDM fixture parameters (address, library, lamp search, etc.)
- Reshapes and amplifies signals for long-distance transmission
- Enhances signal strength and filters interference
- Increases the number of connectable lighting fixtures
- Independent optical isolation for each port, no mutual interference
- Surge & high-voltage pulse protection for controller and equipment safety
- Standard 19" 1U rack-mounted design, easy to install
Application Scenarios
- Stage performances, concerts, music festivals, outdoor light shows
- Theaters, bars, KTV, banquet halls, wedding venues
- Architectural lighting, landscape lighting, cultural tourism lighting projects
- Studios, exhibition halls, large-scale lighting control systems
- Engineering sites with strong electrical interference and long-distance transmission needs
Technical Specifications
- Signal Protocol: DMX512 & RDM bidirectional communication
- Input: 1 × RDM-DMX512
- Output: 10 × electrically isolated RDM-DMX512 (with signal indicators)
- Isolation: Independent optical isolation for each port
- Protection: Surge voltage absorption & high-voltage pulse protection

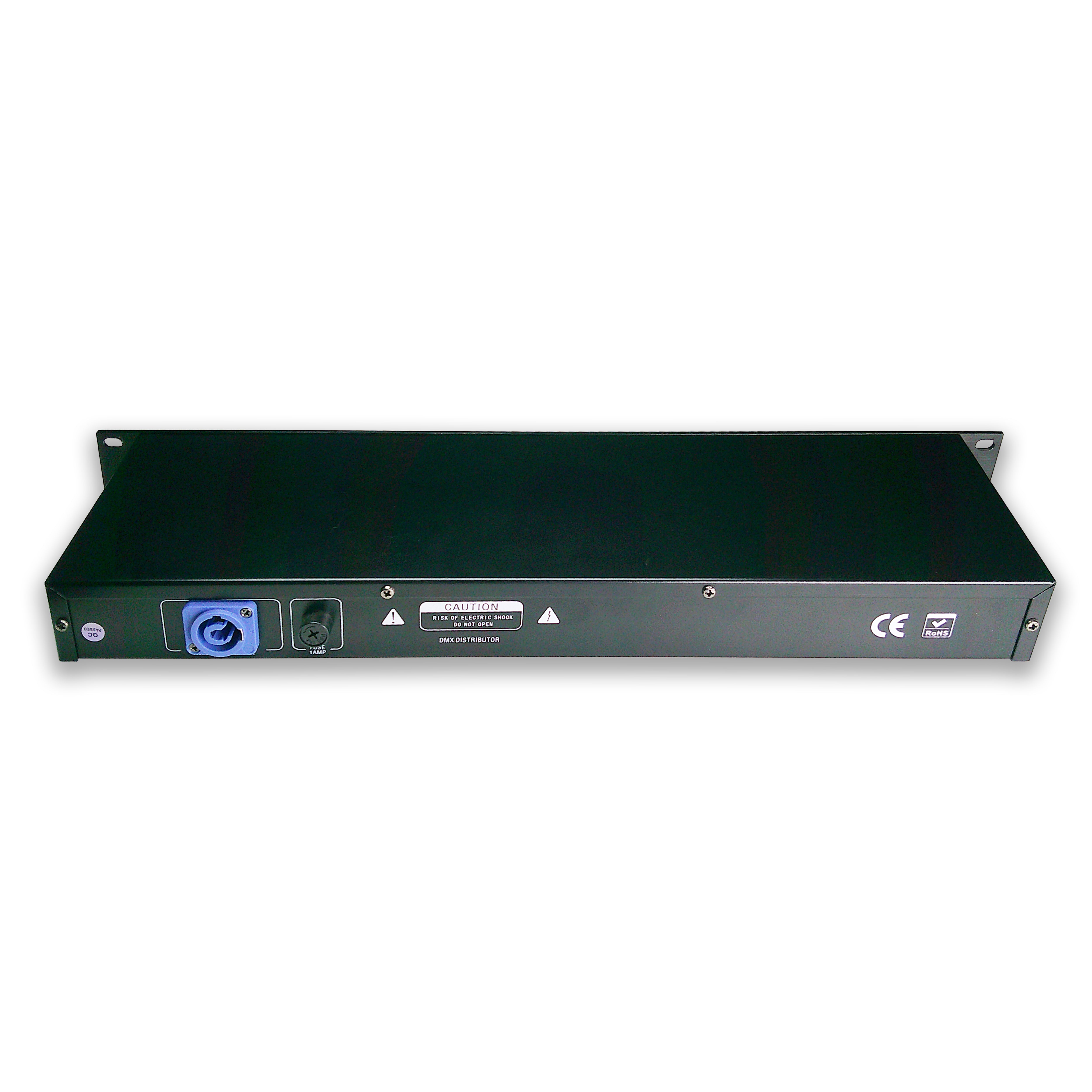

- Power Supply: AC 90V–240V 50/60Hz
- Dimensions: 48.3 × 12.5 × 4.5 cm (standard 19" 1U)
- Net Weight: 1.74 kg
- Gross Weight: 2.0 kg
- Carton Size: 56 × 16 × 8 cm
