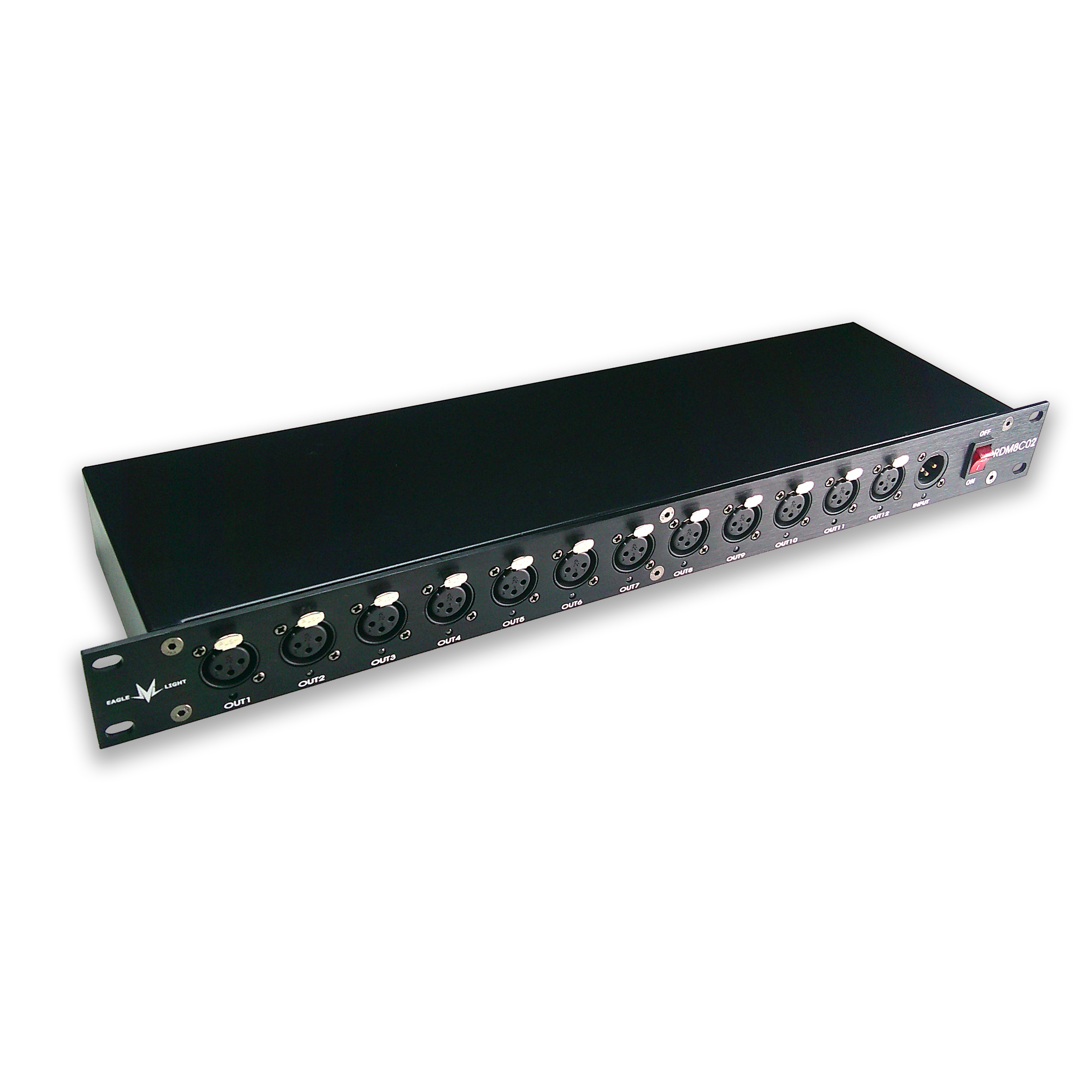

RDM8C02（RDM Splitter 12CH，Supports DMX512-RDM bidirectional communication protocol）
Product Overview
RDM8C02 is a high-performance RDM-DMX512 signal distributor with built-in bidirectional communication functionality, fully compliant with the international standard RDM (Remote Device Management) lighting protocol. This professional signal splitter creates a stable bidirectional communication channel for RDM-enabled lighting devices, delivering precise reshaping and amplification for both RDM data and DMX512 data signals.

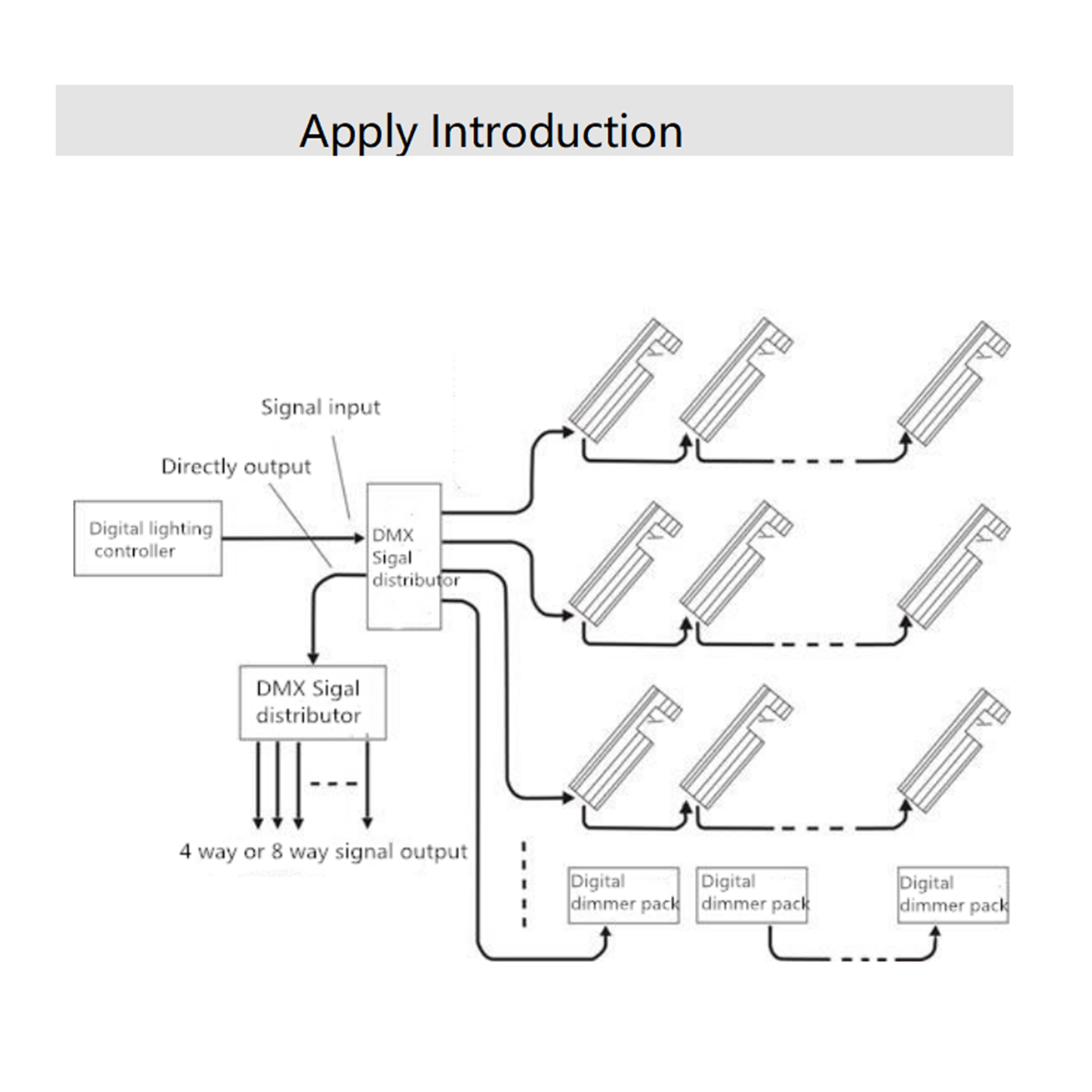

It efficiently splits one input signal into 12 independent output channels, extending effective signal transmission distance, expanding the total number of connectable lighting fixtures to the control console, and guaranteeing ultra-stable, interference-free signal transmission even in large-scale and long-distance lighting control systems. Designed for professional lighting engineering, it optimizes system stability and simplifies remote device management for global lighting projects.
Key Features
-
1 Input, 12 Independent Outputs: Splits a single RDM-DMX512 input signal into 12 high-quality output channels, massively expanding the number of connectable lighting fixtures and optimizing system wiring efficiency
-
Bidirectional RDM-DMX512 Protocol Support: Fully compatible with international standard DMX512-RDM bidirectional communication protocol, enabling remote parameter reading and setting via RDM control consoles
-
Remote Device Management: Allows controllers (including MA series and other mainstream RDM consoles) to remotely adjust fixture addresses, read fixture library parameters, search for connected lamps, and monitor device status over long distances
-
Electrical Isolation & Signal Stability: Each output channel features independent electrical isolation, with dedicated signal indicator lights for real-time working status monitoring; effectively filters signal interference and protects the controller’s DMX512 output port
-
Long-Distance Transmission Enhancement: Reshapes and amplifies weak signals to extend effective transmission distance, perfect for large venues and long-distance engineering layouts
-
Wide Voltage Compatibility: Supports universal AC90V-240V (50/60Hz) power input, suitable for global use without voltage conversion
-
System Protection: Boosts the number of devices on the data bus, enhances the safety and stability of the entire digital lighting control system, and reduces signal failure risks
Application Scenarios
This RDM 12 channel splitter is specially designed for professional lighting control scenarios with high demands for signal stability, remote management and long-distance transmission, including:
-
Large-scale live events: Stage performances, concerts, music festivals, outdoor light shows and cultural tourism light projects
-
Indoor commercial venues: Theaters, bars, KTV, banquet halls, wedding venues and multi-functional halls
-
Fixed engineering lighting: Architectural lighting, landscape lighting, studio lighting and exhibition hall lighting systems
-
Large-scale control projects: Professional stadiums, large exhibition centers and industrial lighting engineering sites
-
Harsh environments: Engineering sites with strong electrical interference and long-distance signal transmission requirements
Technical Specifications
-
Signal Protocol: Adopts international standard DMX512-RDM bidirectional communication protocol
-

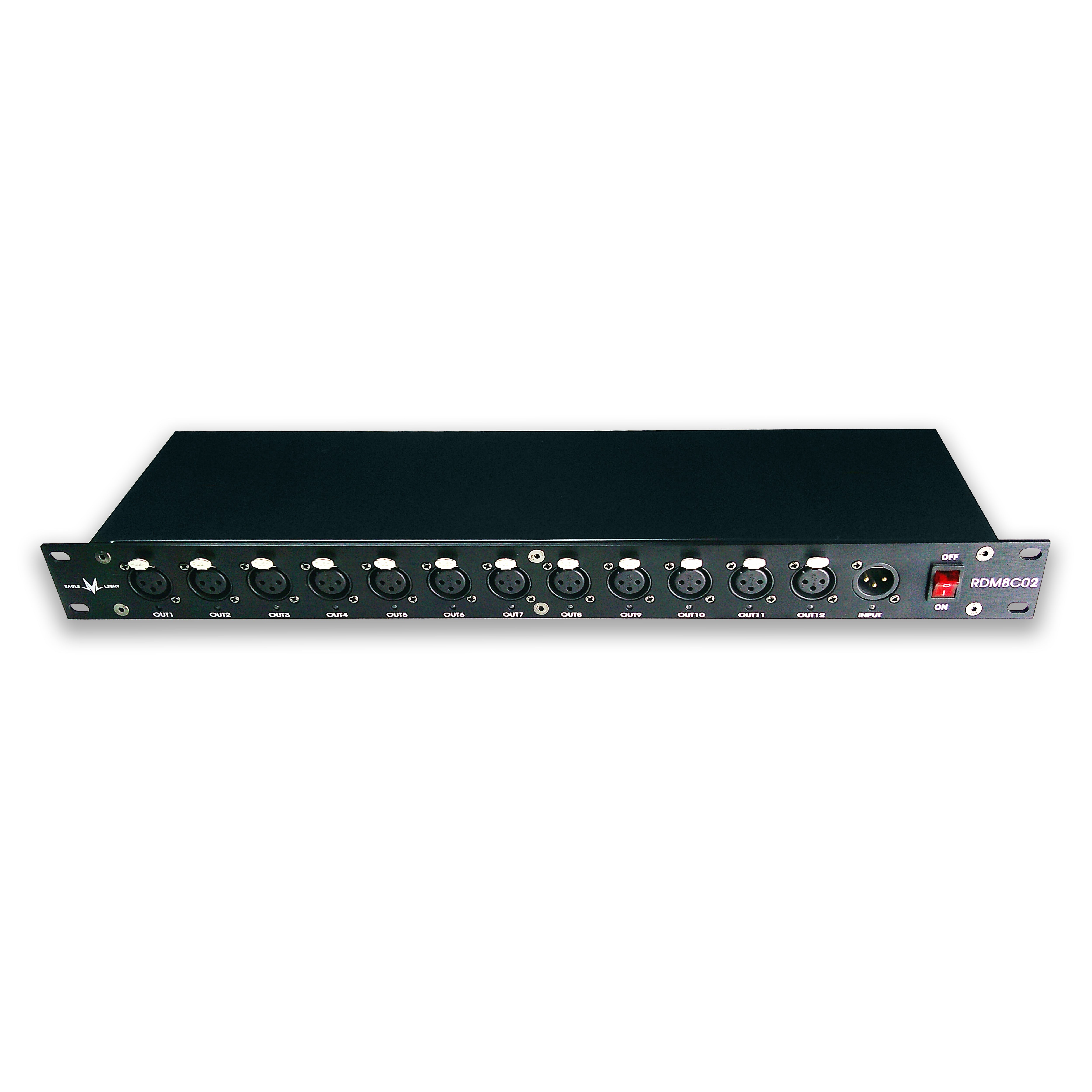

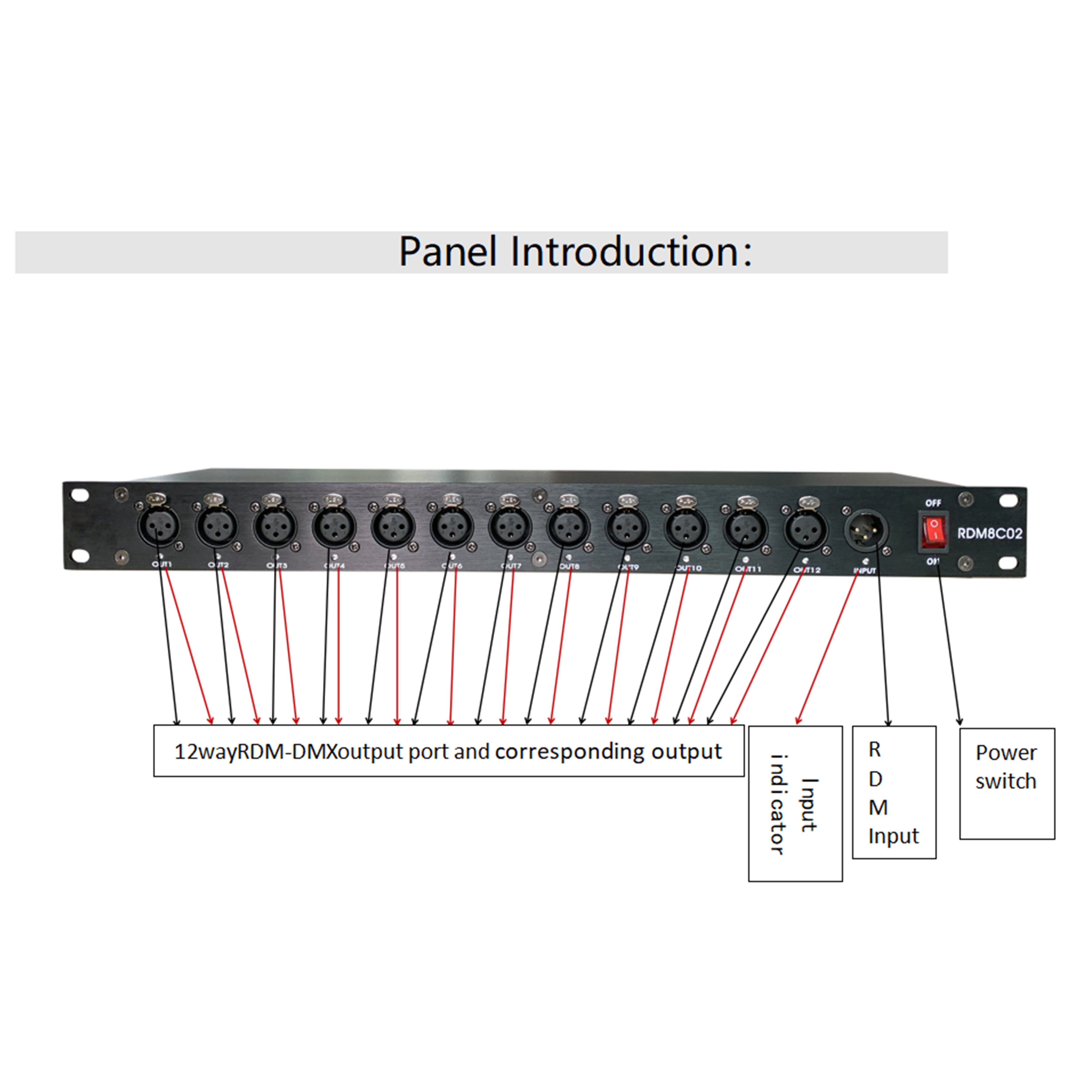

Signal Interface: 1 RDM-DMX512 input, 12 independent electrically isolated RDM-DMX512 outputs (with signal indicator lights)
-
Functionality: Bidirectional data transmission, supports feedback of light data to MA and other RDM controllers; signal reshaping, amplification and interference filtering
-

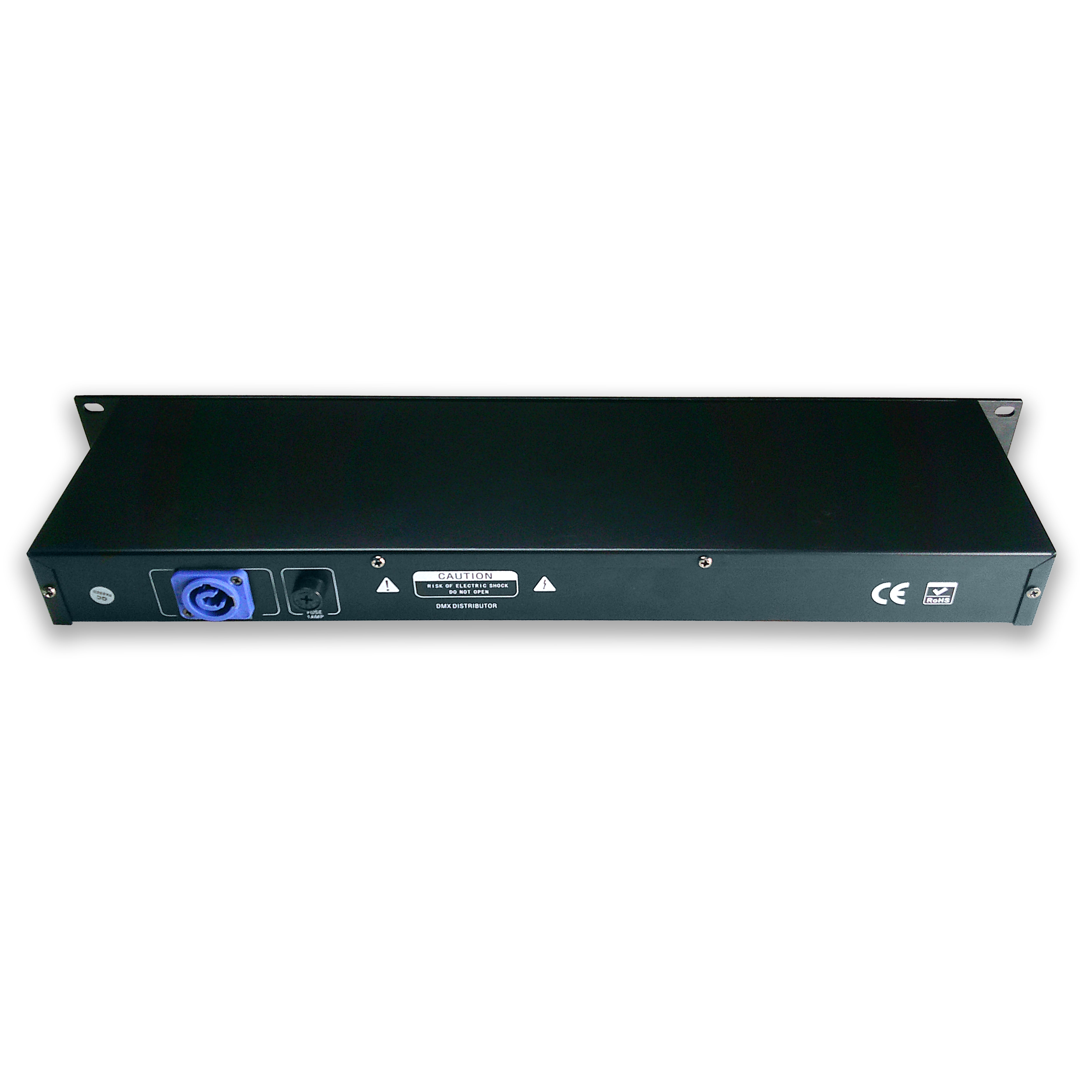

Power Supply: AC90V-240V, 50Hz/60Hz (universal wide voltage for global use)
-
Size: 48.3 × 12.5 × 4.5 cm, standard 19" 1U rack-mounted design
-
Net Weight: 1.65kg
-
Gross Weight: 2.2kg
-
Carton Size: 56 × 16 × 8cm
